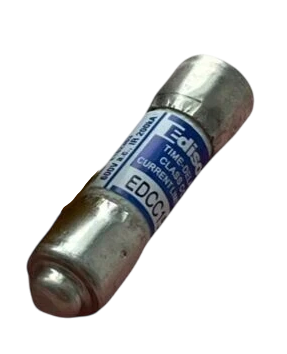

EDCC1.6 - Edison Fuses 1.6A 600V Class CC Time-Delay Fuse, 200kA Interrupt Rating

EDCC1.6

EDCC1.6 is a Class CC, 1.6A, 600V time-delay fuse designed for reliable branch circuit protection in a compact size. This fuse features a 200kA interrupt rating and is ideal for applications requiring fast response and time-delay characteristics to prevent nuisance tripping. The Edison EDCC1.6 fuse is a current-limiting, non-indicating fuse with a cylindrical shape and ferrule mounting. It is UL Listed and CSA Certified, meeting safety standards for Class CC fuses. The compact design allows for space-saving installation in control panels and electrical enclosures.

• Amperage: 1.6A
• Voltage: 600V AC, 300V DC
• Class: CC
• Interrupt Rating: 200kA RMS Sym.
• Mounting Type: Ferrule
• Series/Frame: EDCC
• Time-Delay: Yes
• Current-Limiting: Yes
• Shape: Cylindrical
• Approvals: UL Listed, CSA Certified
• Physical Size: 13/32" x 1 1/2"
• Application: Feeder/branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDCC1.6
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 1.6
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782634808060
• GTIN : 00782634808060
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.19
