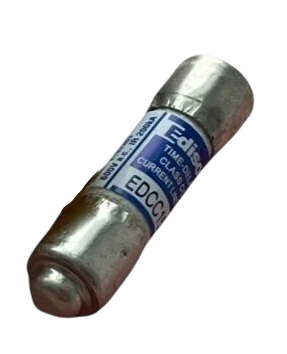

EDCC1.25 - Edison Fuses 1.25A 600V Class CC Time-Delay Fuse, 200kA Interrupt Rating

EDCC1.25

EDCC1.25 is a Class CC time-delay fuse designed for reliable branch circuit protection up to 30 amps. This compact fuse features a rejection tip and is suitable for a wide range of electrical applications requiring precise overcurrent protection. The Edison EDCC1.25 fuse offers a 600Vac voltage rating and a 300Vdc rating for select amperages. It is current-limiting with a 200kA RMS symmetrical interrupt rating, making it ideal for demanding environments. The fuse is UL Listed and CSA Certified, ensuring compliance with industry safety standards.

• Amperage: 1.25A
• Voltage: 600Vac / 300Vdc
• Poles: 1
• Mounting Type: Edison Base
• Interrupt Rating: 200kA RMS Sym.
• Series/Frame: EDCC
• Trip Unit: Time-Delay
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDCC1.25
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 1.25
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782634808039
• GTIN : 00782634808039
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.19
