Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
EDC3150Y

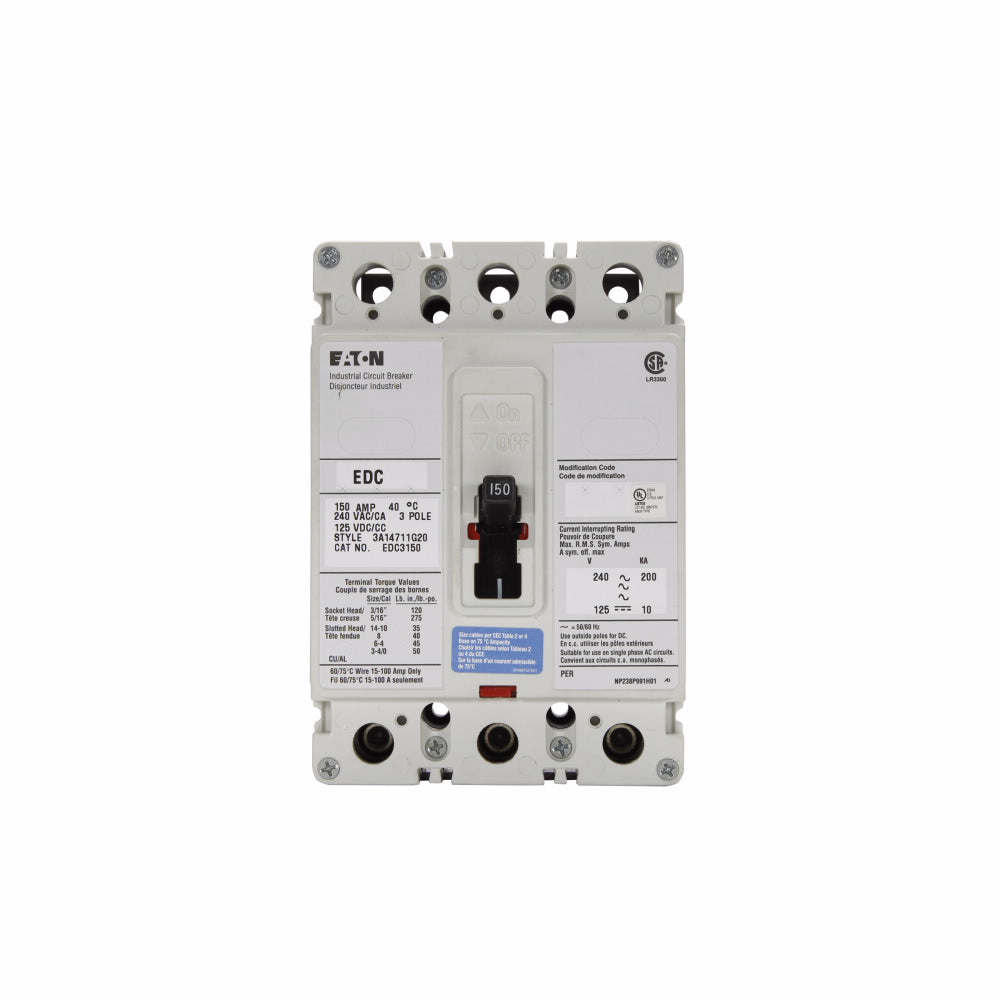

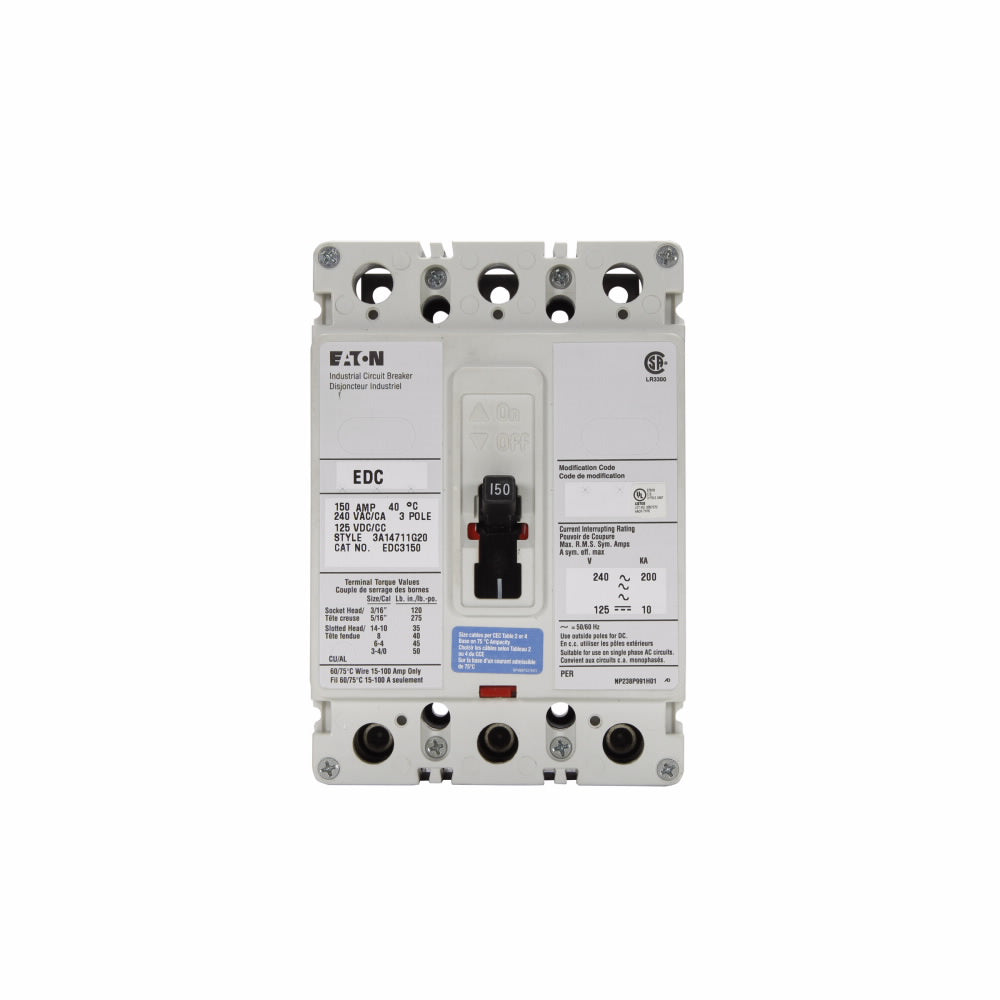

EDC3150Y is a 150 Amp, 3-pole molded case circuit breaker from Eaton's Series C line designed for reliable circuit protection.This circuit breaker features a fixed thermal and fixed magnetic trip unit, suitable for 240 VAC and 125 VDC applications. It has a 200 kA interrupt rating and is constructed with a robust F-frame design, ensuring high performance and durability in demanding electrical environments.
- Key Specifications
- Amperage: 150 Amp
- Voltage Rating: 240 VAC / 125 VDC
- Poles: 3
- Interrupt Rating: 200 kA
- Trip Type: Fixed Thermal / Fixed Magnetic
- Series/Frame: Series C, F-frame
- Mounting Type: Fixed
- Part Number: EDC3150Y
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EDC
- Voltage : 240
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
- UPC : 786679454947
- GTIN : 00786679454947
- Country of Origin : Dominican Republic
- Dimensions : 7.5 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 3
- Certification : UL Listed
