EDB34125SA - Schneider Electric (Square D) 3-Pole 125 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB34125SA

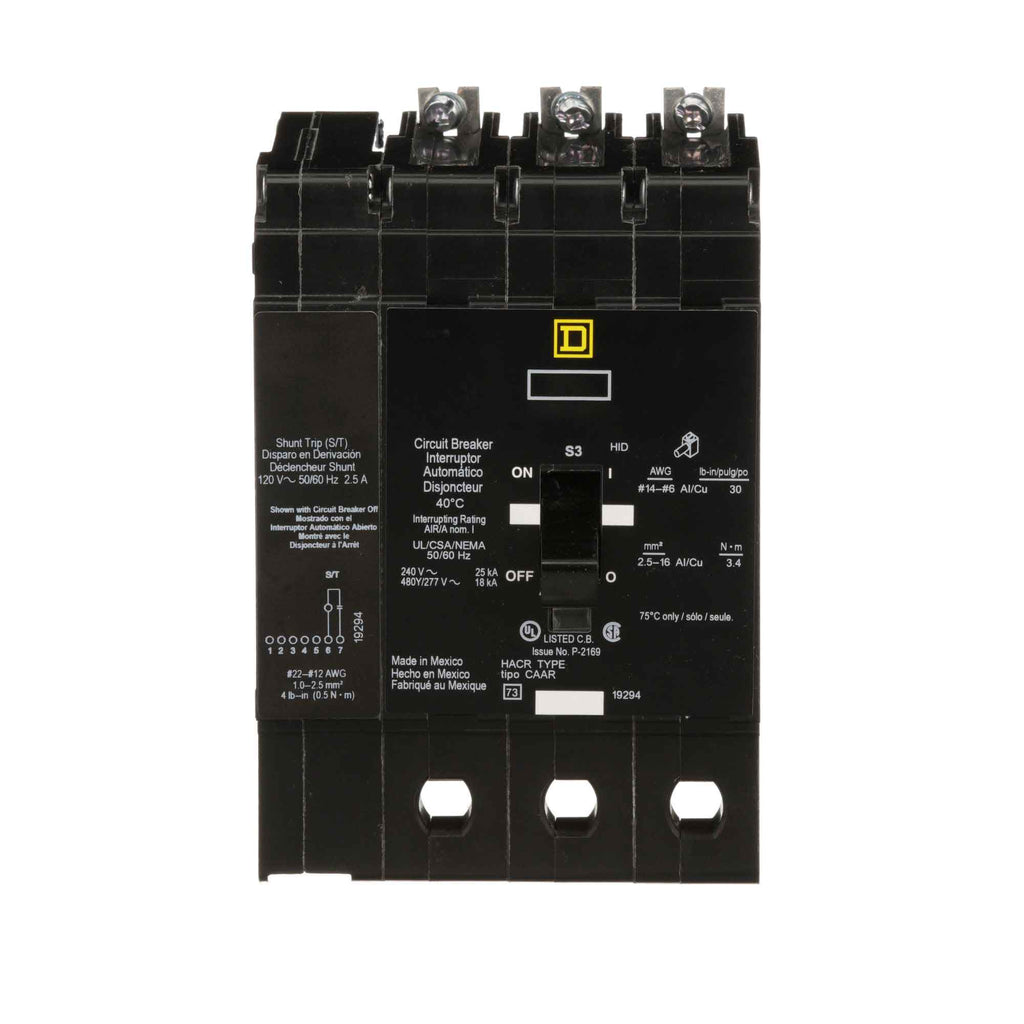

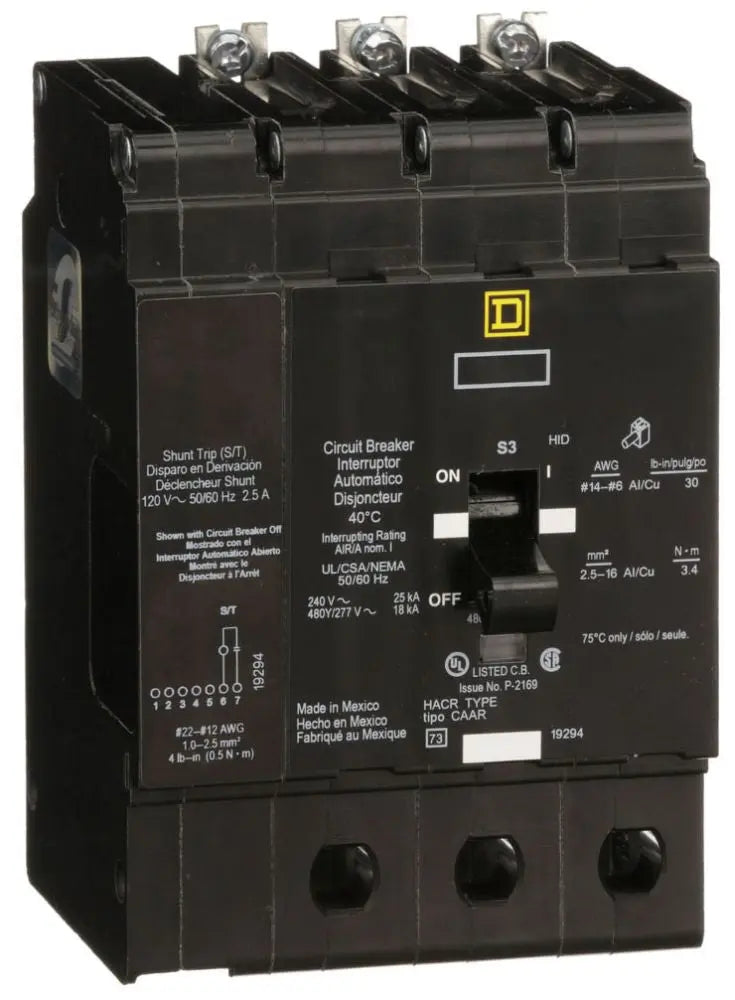

EDB34125SA - Schneider Electric E-Frame 3-pole molded case circuit breaker with 125A rating, bolt-on mounting, and 120V shunt trip.This EDB series thermal-magnetic circuit breaker provides LI (long-time and instantaneous) protection with 18kA interrupt rating at 480V. Rated for 480Y/277VAC systems, it features Visi-Trip technology for faster troubleshooting and is designed for lighting panelboards.

• Part Number: EDB34125SA
• Manufacturer: Schneider Electric
• Series/Frame: EDB / E-Frame
• Poles: 3
• Amperage: 125A
• Voltage: 480Y/277VAC
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic (LI)
• Interrupt Rating: 18kA@480V
• Shunt Trip: 120V
• Connection: Lug (14-2/0 AWG Cu, 12-2/0 AWG Al)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB34125SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901129820
• GTIN : 00785901129820
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 3.92 in (99.57 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 4.14
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
