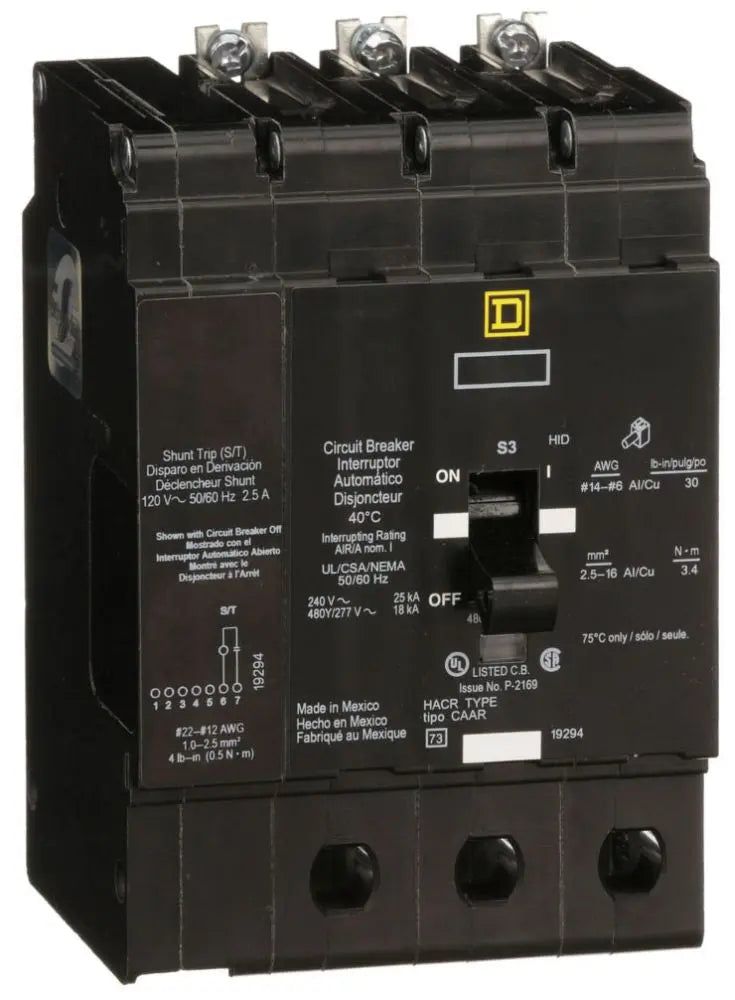

EDB34050SA - Schneider Electric (Square D) 3-Pole 50 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB34050SA

EDB34050SA is a Schneider Electric E-Frame miniature circuit breaker rated at 50A, 3 pole with shunt trip for lighting panelboards.This bolt-on miniature circuit breaker provides superior overload and short circuit protection in NF panelboards. It features thermal-magnetic trip unit technology, lugs connection, and operates at 480Y/277 VAC with specified interrupting capacities.

• Part Number: EDB34050SA
• Manufacturer: Schneider Electric
• Frame Size: E-Frame
• Rated Current: 50 A
• Number of Poles: 3
• Voltage Rating: 480Y/277 VAC
• Mounting Type: Bolt-on
• Trip Unit: Thermal-magnetic
• Interrupt Rating: 18 kA at 480Y/277 VAC, 25 kA at 240 VAC
• Connection: Lugs (Aluminum)
• Product Destination: NF panelboard
• Application: Lighting panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB34050SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901335153
• GTIN : 00785901335153
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 3.92 in (99.57 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 4.178
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
