EDB34045 - Schneider Electric (Square D) 3-Pole 45 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

Save $395.70
SKU: EDB34045-New
Condition: New
Price:
$273.30 $669.00
Stock:
80 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

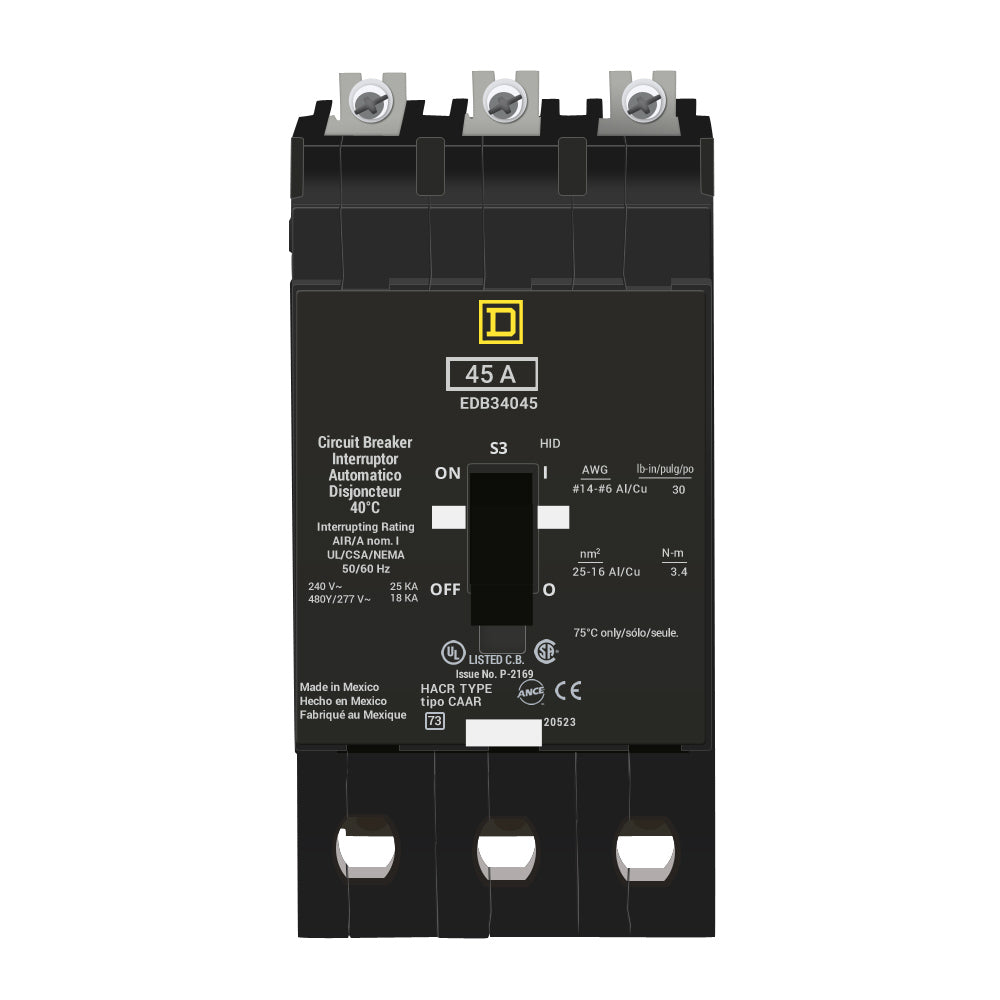

EDB34045 - Square D/ Schneider Electric Bolt-On 45 Amp 3 Pole Circuit Breaker - Essential Electric Supply

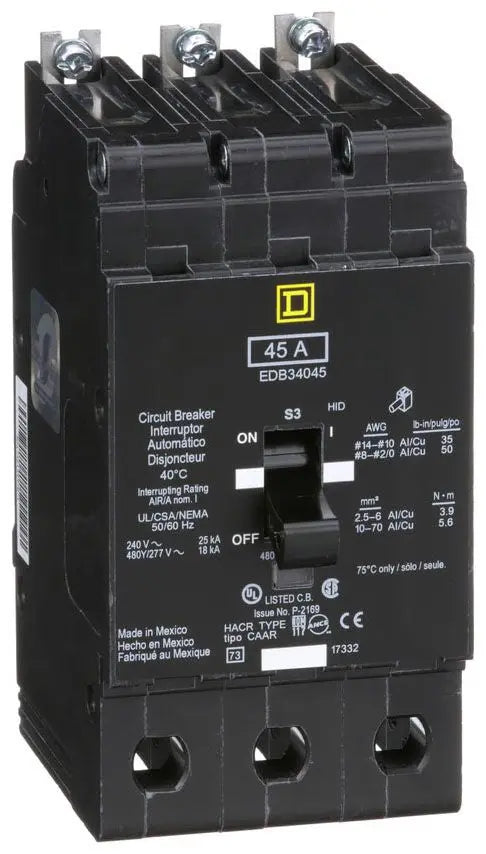

EDB34045 - Schneider Electric (Square D) 3-Pole 45 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
EDB34045 - Square D/ Schneider Electric Bolt-On 45 Amp 3 Pole Circuit Breaker - Essential Electric Supply
EDB34045 - Schneider Electric (Square D) 3-Pole 45 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB - Essential Electric Supply

Description

EDB34045


EDB34045 is a 3-pole molded case circuit breaker rated at 45 amperes, 480Y/277V AC, designed for use in Square D NF panelboards. This E-Frame miniature circuit breaker features a thermal-magnetic trip unit with both long-time and instantaneous protection, providing superior overload and short-circuit protection for lighting and power distribution applications. The bolt-on mounting style allows for quick installation and removal from compatible panelboards. Key Specifications
  • Amperage: 45A
  • Poles: 3
  • Voltage: 480Y/277V AC
  • Interrupt Rating: 18kA at 480Y/277V AC; 25kA at 240V AC; 25kA at 120V AC
  • Mounting Type: Bolt-On
  • Series: EDB (E-Frame)
  • Trip Unit: Thermal-Magnetic with Long-Time and Instantaneous Functions
  • Wire Gauge: AWG 12 to AWG 2/0 Aluminum; AWG 14 to AWG 2/0 Copper
  • Dimensions: 5.66 inches H x 2.94 inches W x 4.05 inches D
  • Weight: 4 lbs
  • Trip Indicator: Yes
  • Application: HID-Rated / HACR-Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: EDB34045
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : EDB Series
  • Type : EDB
  • Voltage : 480Y/277
  • Amperage : 45
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/EDB
  • Temp Rating : 104 ¡F (40 ¡C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901307235
  • GTIN : 00785901307235
  • Country of Origin : Mexico
  • Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
  • Weight : 3.57
  • Panel Type : NF panelboard
  • Standards : cULus, IEC
  • Certification : cULus, IEC
  • Wire Size : AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
