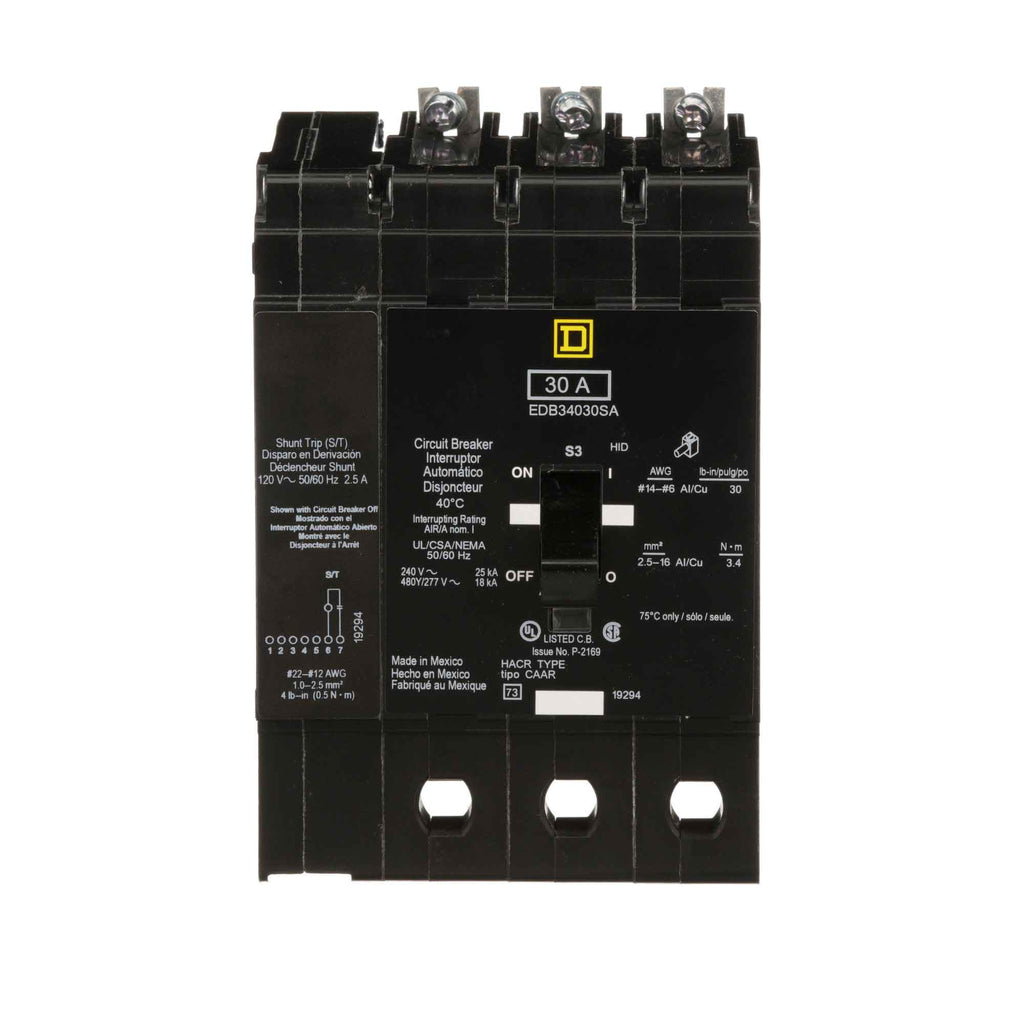

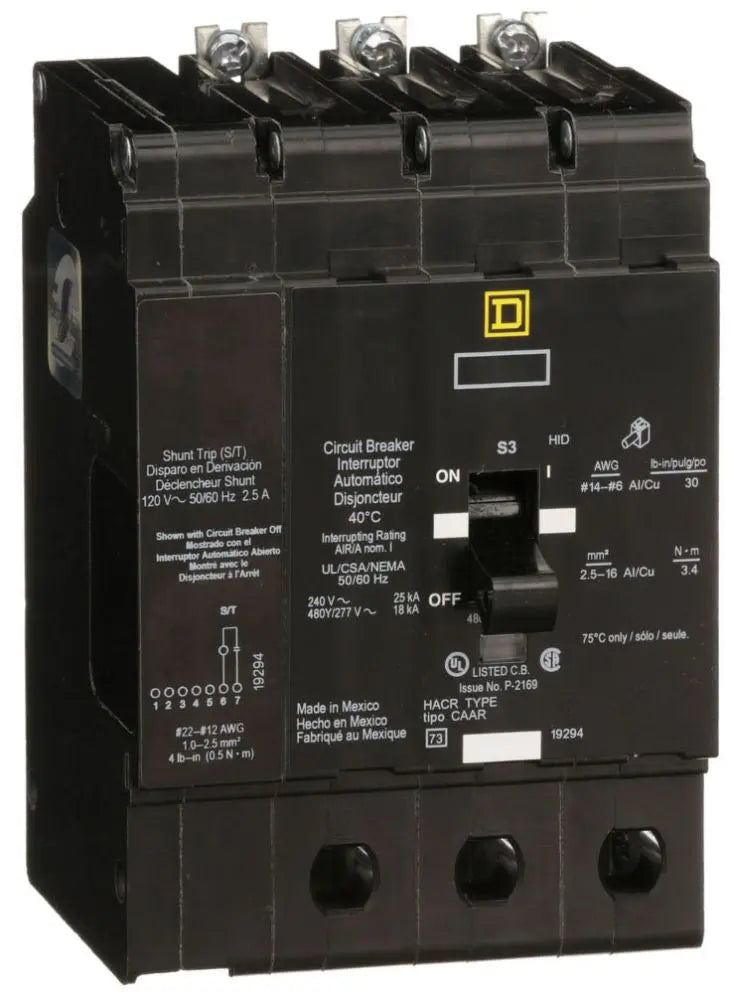

EDB34030SA - Schneider Electric (Square D) 3-Pole 30 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB34030SA

EDB34030SA is a Schneider Electric E-Frame molded case circuit breaker with 120V shunt trip for lighting panelboards.

This 3-pole, bolt-on miniature circuit breaker provides thermal-magnetic protection with long-time and instantaneous functions, rated at 30A and 480Y/277VAC. It offers superior overload and short circuit protection for NF panelboards, HACR, and HID applications, featuring Visi-Trip indicator for faster troubleshooting.

Key Specifications

• Amperage: 30A
• Voltage: 480Y/277VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA@480V
• Series/Frame: EDB / E-Frame
• Trip Unit: Thermal-Magnetic (LI)
• Shunt Trip: 120V
• Phase: 3
• Certifications: UL Listed, cULus, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB34030SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901326427
• GTIN : 00785901326427
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 3.92 in (99.57 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 4.211
• Panel Type : Square D NF Panelboards
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 6, Aluminum, AWG 14 to AWG 6, Copper
