EDB26030 - Square D 30 Amp 2 Pole 600Y/347V Bolt-On Molded Case Circuit Breaker E-Frame 14kA Interrupt

EDB26030

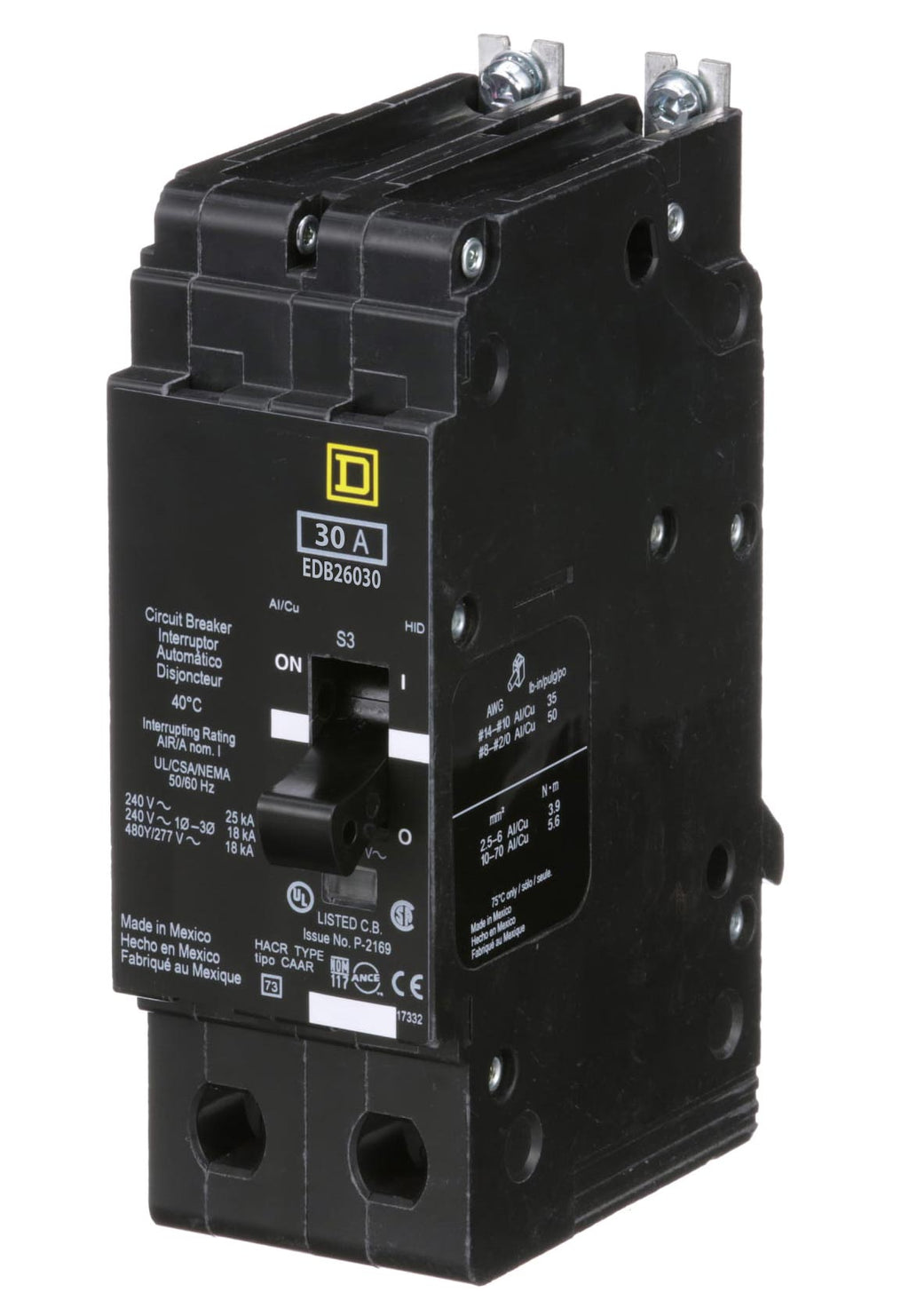

EDB26030 is a Square D 2 pole, 30 amp molded case circuit breaker designed for Bolt-On mounting in Square D NF panelboards.EDB26030 features thermal magnetic trip unit protection with a 14 kA interrupt rating at 600Y/347 VAC, suitable for short-circuit and overload protection in lighting and branch circuit applications. It supports aluminum and copper lugs, is HACR and HID rated, and complies with UL and CSA certifications.

• Amperage: 30 Amp
• Voltage Rating: 600Y/347 VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 14 kA at 600Y/347 VAC
• Series/Frame: EDB Series, E-Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
• Application: Lighting Panel, HACR Rated
• Connection: Aluminum and Copper Lugs
• Dimensions: 5.66" x 1.96" x 4.05"
• Weight: 3 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB26030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901234852
• GTIN : 00785901234852
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.6
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 6, AWG 14 to AWG 6, Aluminum/Copper
