EDB24125 - Square D 125A 2-Pole Bolt-On Circuit Breaker 480Y/277V E-Frame Thermal Magnetic

EDB24125

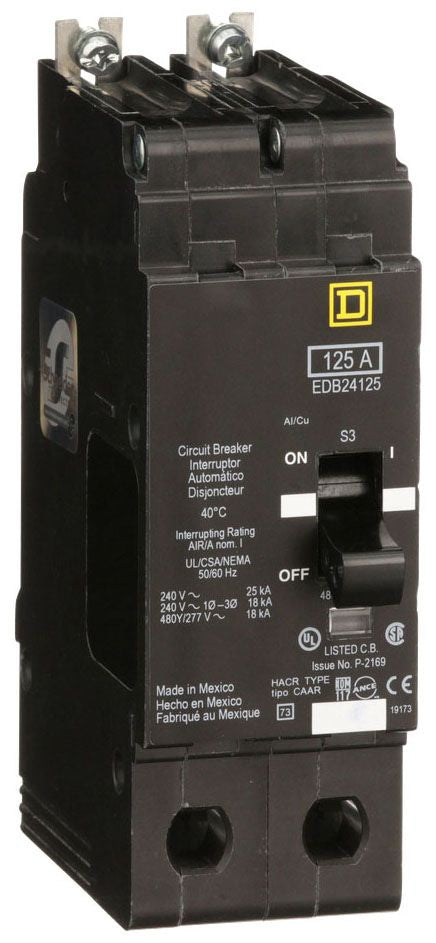

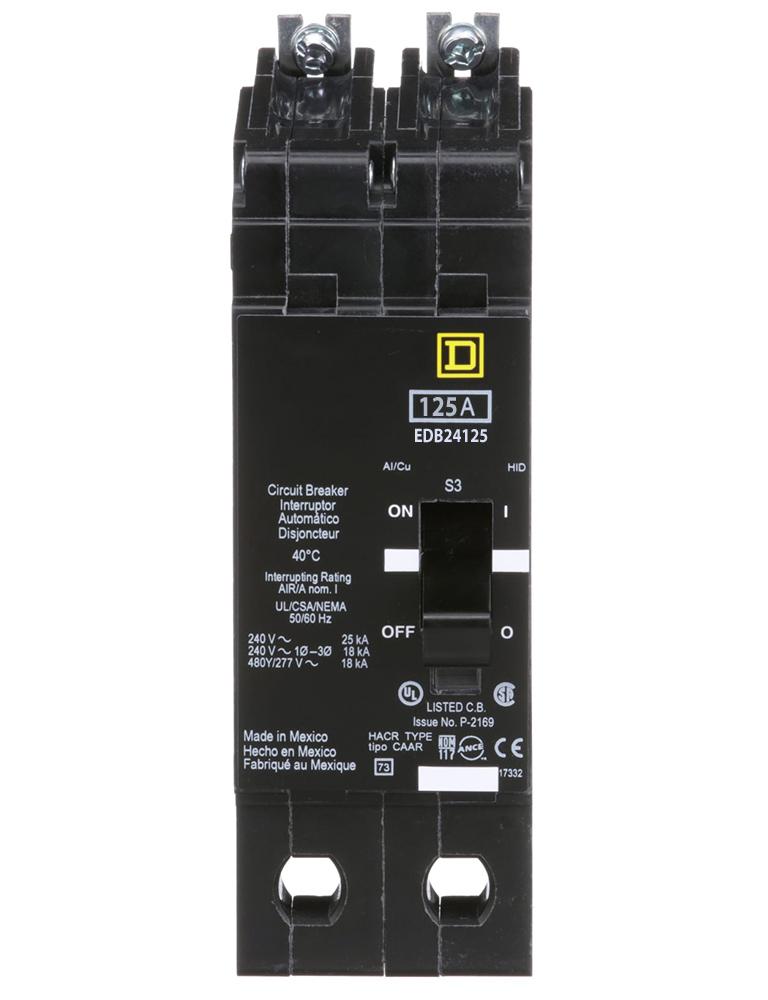

EDB24125 - Schneider Electric E-Frame 2-pole molded case circuit breaker rated at 125A, 480Y/277V AC with thermal-magnetic trip unit and bolt-on mounting. The EDB24125 is a miniature circuit breaker from the EDB series designed for NF panelboards and lighting applications. It features Visi-Trip indicator for trip signaling, aluminum lugs, and HACR-rated protection against overload and short-circuit conditions with superior interrupting capacity.

• Part Number: EDB24125
• Manufacturer: Schneider Electric
• Frame/Series: E-Frame / EDB
• Amperage: 125A
• Voltage: 480Y/277V AC
• Poles: 2
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 18kA@480Y/277V, 25kA@240V
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB24125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901311072
• GTIN : 00785901311072
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.571 lb
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to 2/0 Aluminum, AWG 14 to 2/0 Copper
