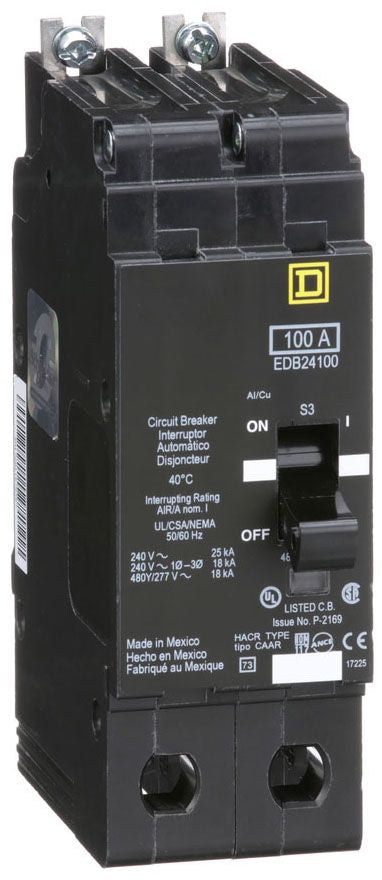

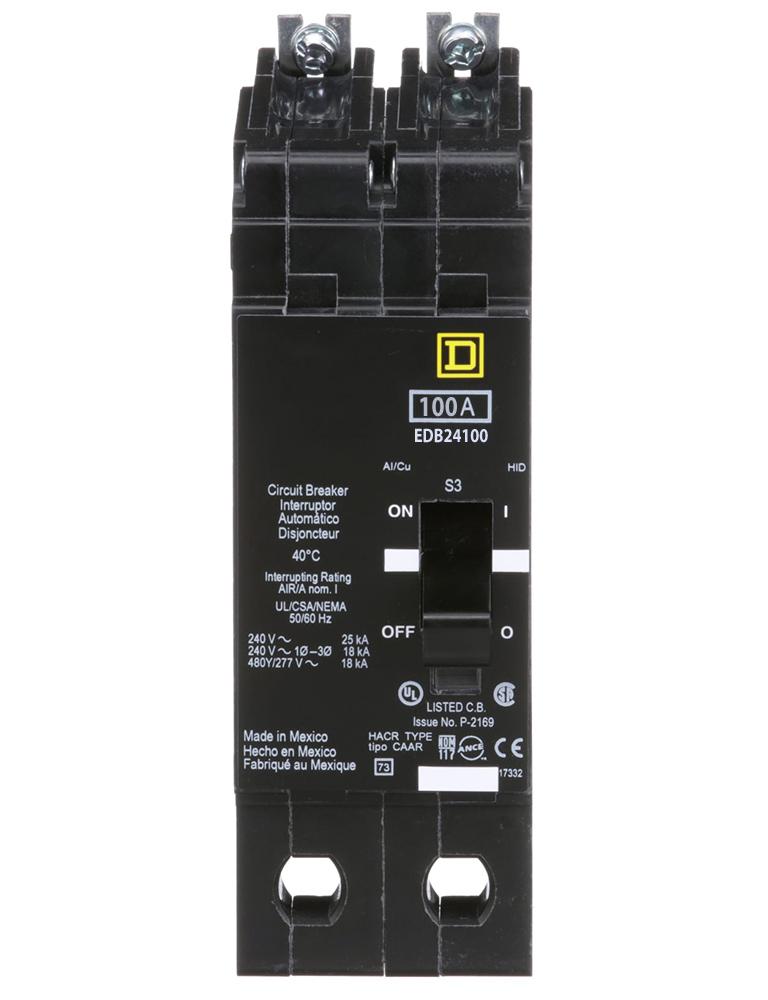

EDB24100 - Square D 100A 2-Pole 480Y/277V Bolt-On Molded Case Circuit Breaker E-Frame

EDB24100

EDB24100 is a Square D 2-pole molded case circuit breaker rated for 100 amps and 480Y/277 volts AC with Bolt-On mounting.EDB24100 features a thermal-magnetic trip unit providing reliable overload and short-circuit protection. It has an interrupt rating of up to 25kA at 120VAC and is UL, CSA, and CE listed. This breaker fits Square D NF panelboards and supports aluminum and copper wiring from AWG 12 to AWG 6.

• Amperage: 100A
• Voltage: 480Y/277 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA at 120VAC, 18kA at 277VAC and 480Y
• Series/Frame: EDB Series, E-Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, CE Listed
• Application: Lighting Panelboards, HID-Rated, HACR-Rated
• Wire Range: AWG 12-6 Aluminum, AWG 14-6 Copper
• Dimensions: 5.66" x 1.96" x 4.05"
• Weight: 4 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB24100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901072928
• GTIN : 00785901072928
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.54
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
