EDB24090 - Schneider Electric (Square D) 2-Pole 90 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

Save $804.15
SKU: EDB24090-New
Condition: New
Price:
$329.85 $1,134.00
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

EDB24090 - Square D/ Schneider Electric Bolt-On 90 Amp 2 Pole Circuit Breaker - Essential Electric Supply
EDB24090 - Schneider Electric (Square D) 2-Pole 90 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
EDB24090 - Square D/ Schneider Electric Bolt-On 90 Amp 2 Pole Circuit Breaker - Essential Electric Supply
EDB24090 - Schneider Electric (Square D) 2-Pole 90 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB - Essential Electric Supply

Description

EDB24090

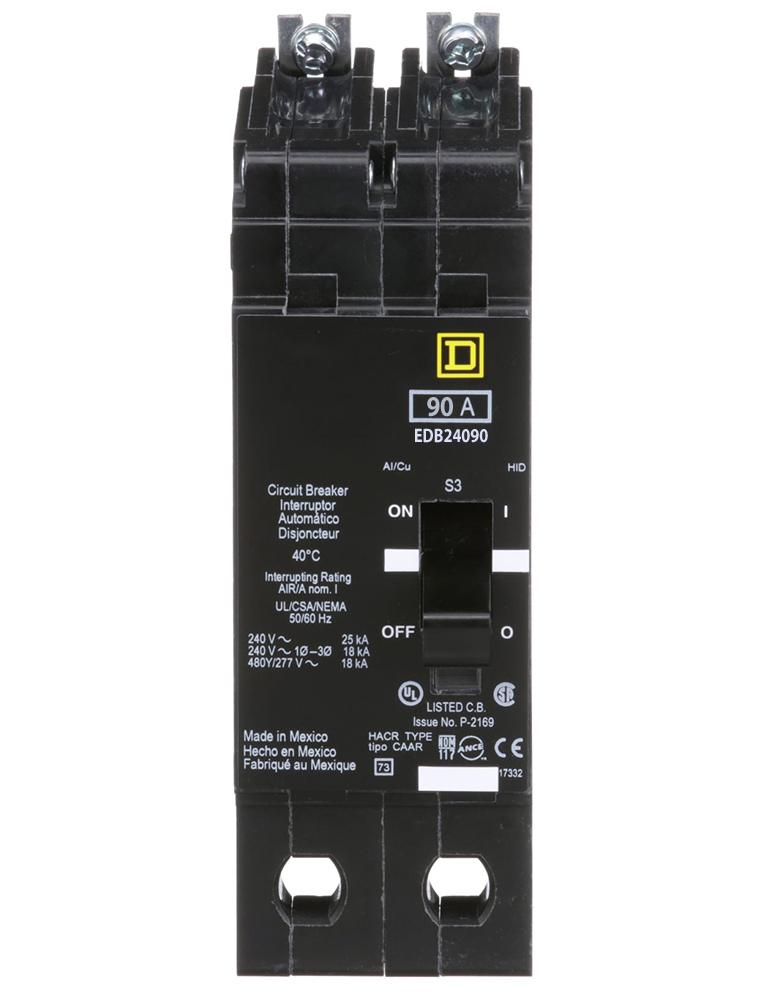

EDB24090 is a 2-pole miniature circuit breaker rated at 90 amperes, 480Y/277V AC, designed for use in lighting panelboards with superior overload and short-circuit protection.

This E-Frame bolt-on circuit breaker features thermal-magnetic trip technology with a Visi-Trip indicator for quick visual confirmation of trips. The breaker is HACR-rated and suitable for branch circuit protection in panelboard installations. It accommodates wire sizes from AWG 14 to AWG 2/0 (copper or aluminum) and includes aluminum lugs for electrical connection.

  • Amperage Rating: 90A
  • Poles: 2
  • Voltage: 480Y/277V AC
  • Mounting: Bolt-On
  • Frame: E-Frame (125A Frame)
  • Trip Unit Rating: 2300A
  • Interrupt Rating: 18kA @ 480Y/277V, 25kA @ 240V, 25kA @ 120V
  • Trip Technology: Thermal-Magnetic
  • Wire Size: AWG 14-2/0 Copper, AWG 12-2/0 Aluminum
  • Certifications: UL Listed, CSA, HOM Certified
  • Dimensions: 5.66" H x 1.96" W x 4.05" D
  • Weight: 3 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: EDB24090
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : EDB Series
  • Type : EDB
  • Voltage : 480Y/277
  • Amperage : 90
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/EDB
  • Temp Rating : 104 ¡F (40 ¡C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901311065
  • GTIN : 00785901311065
  • Country of Origin : Mexico
  • Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
  • Weight : 2.45
  • Panel Type : NF panelboard
  • Standards : cULus, IEC
  • Certification : cULus, IEC
  • Wire Size : AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
