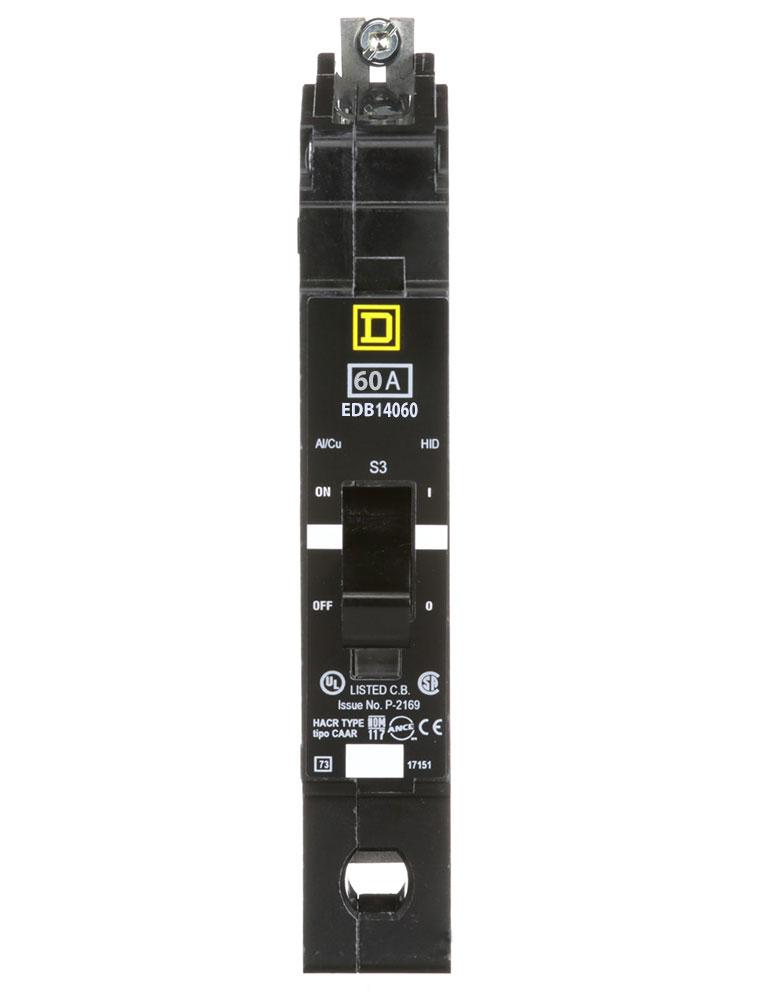

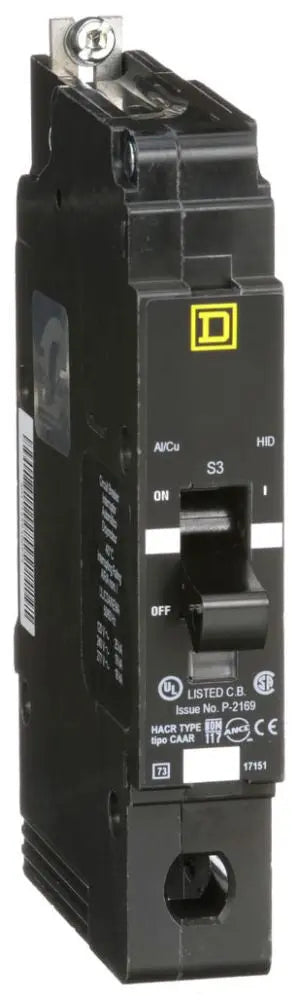

EDB14060 - Schneider Electric (Square D) 1-Pole 60 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

EDB14060

EDB14060 - Schneider Electric E-Frame miniature circuit breaker, 60A, 1 pole, 277VAC, bolt-on mounting for lighting panelboards.This thermal-magnetic circuit breaker provides superior overload and short circuit protection with Visi-Trip indicator for faster troubleshooting. It features a 25kA maximum interrupt rating and is designed for use in Square D NF panelboards.

• Part Number: EDB14060
• Manufacturer: Schneider Electric
• Brand: Square D
• Amperage: 60A
• Voltage: 277VAC
• Poles: 1
• Frame/Series: E-Frame
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 25kA max at 120VAC
• UPC: 785901326434
• Certifications: UL Listed, CSA, HOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB14060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 277
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901326434
• GTIN : 00785901326434
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.319
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 14 to AWG 2/0, AWG 12 to AWG 2/0, Cu/Al
