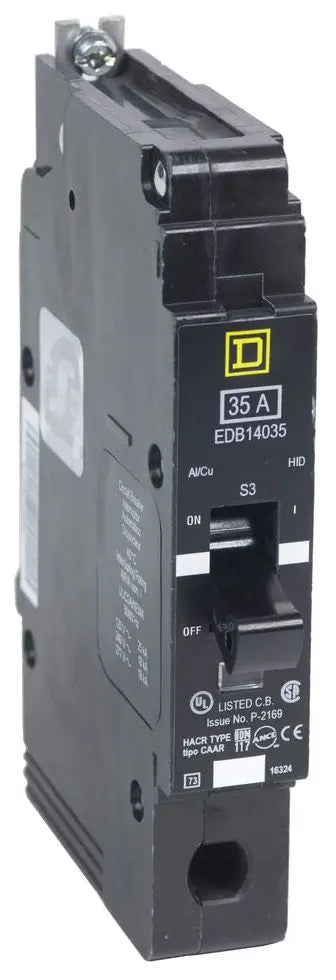

EDB14045 - Schneider Electric (Square D) 1-Pole 45 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

EDB14045

EDB14045 is a single-pole miniature circuit breaker from Schneider Electric designed for use in lighting panelboards with superior overload and short circuit protection. This E-Frame bolt-on breaker delivers reliable performance across a range of voltage configurations and is available in ratings from 15A to 125A. Key Specifications

• Amperage Rating: 45 Amps
• Number of Poles: 1 Pole
• Voltage Rating: 277 VAC
• Maximum Operating Voltage: 277 V AC
• Breaking Capacity: 18 kA at 277 V AC, 18 kA at 240 V AC, 25 kA at 120 V AC, 18 kA at 120/240 V AC
• Mounting Type: Bolt-On
• Frame Size: E-Frame
• Wire Gauge: AWG 12 to AWG 2/0 aluminum; AWG 14 to AWG 2/0 copper
• Certifications: UL listed, CSA certified, HOM certified
• Features: HACR rated, HID rated, Visi-Trip indicator

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB14045
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 277
• Amperage : 45
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901335139
• GTIN : 00785901335139
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.323
• Panel Type : Square D NF Panelboards
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
