- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63S125A

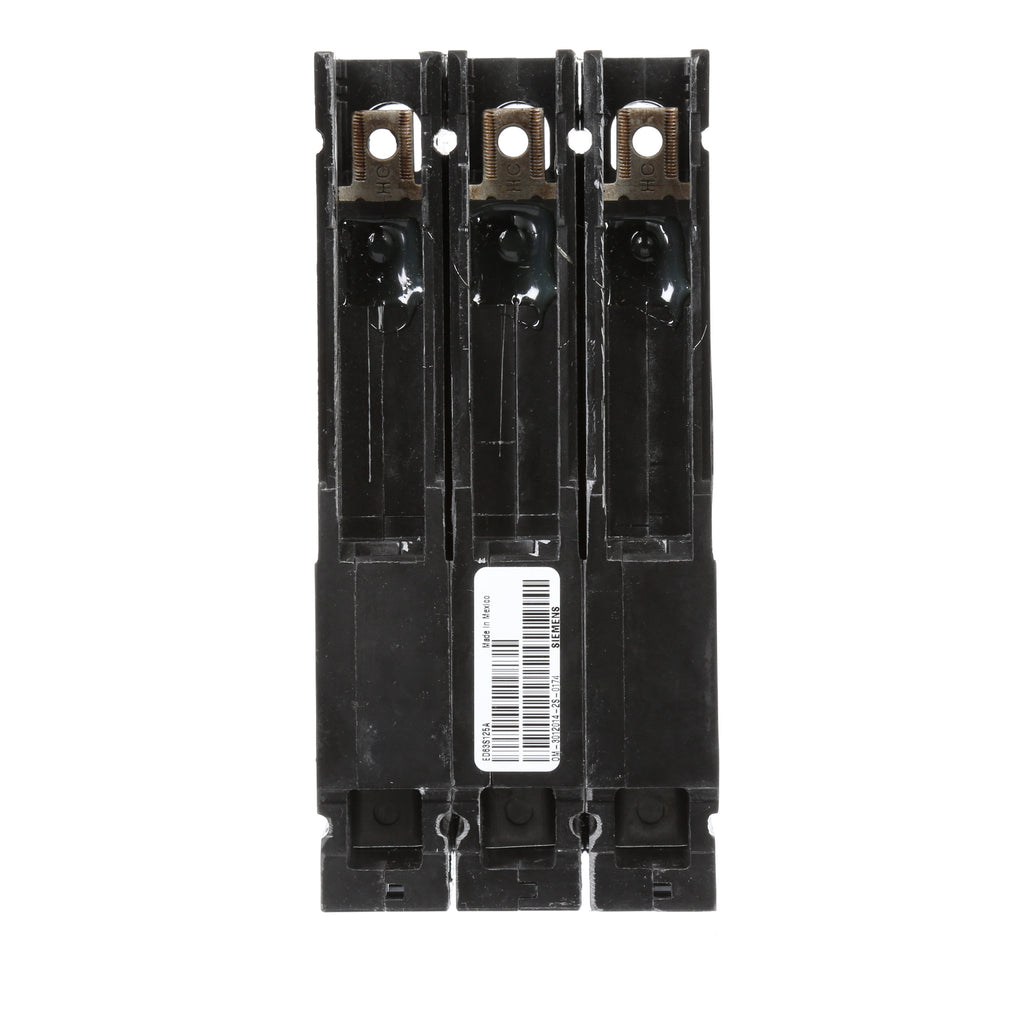

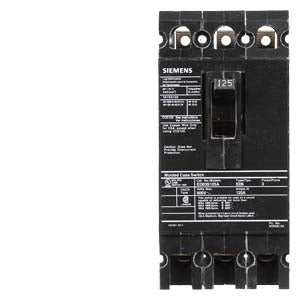

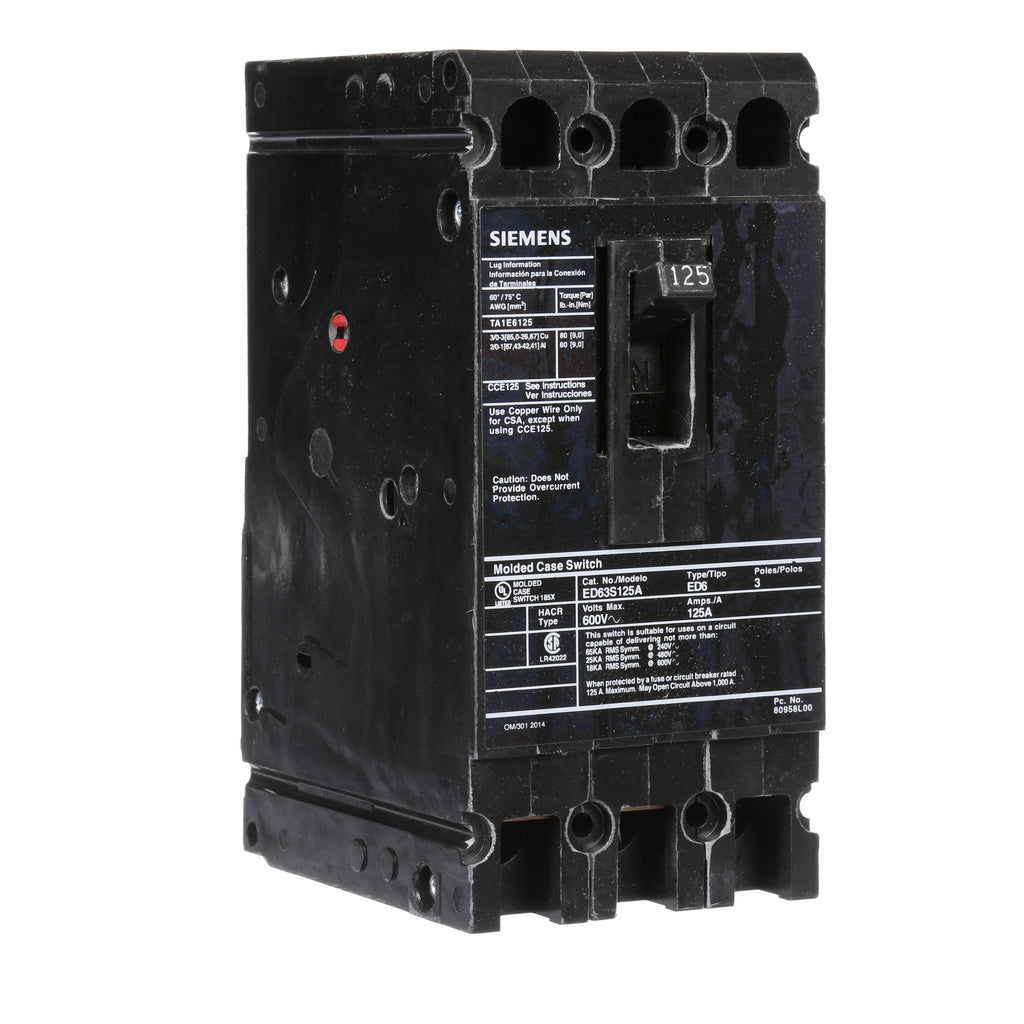

ED63S125A is a Siemens 3 pole, 125 amp, 600 volt bolt-on molded case circuit breaker with a 25kA interrupt rating at 480V. This Siemens ED63S125A circuit breaker is designed for reliable protection in commercial and industrial power distribution systems. It features a bolt-on mounting configuration for secure installation and offers a high interrupt capacity for demanding applications. The breaker is thermal magnetic trip type and is rated for 125 amps at 600 volts AC.
- Part Number: ED63S125A
- Manufacturer: Siemens
- Amperage: 125A
- Voltage: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA @ 480V
- Series/Frame: ED63
- Trip Unit: Thermal Magnetic
- Application: Molded Case Circuit Breaker
- Net Weight: 3.7 lbs
- Standards: UL 489 Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: ED63S125A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : NA - No Overcurrent Protection
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Non-Automatic
Product Data
- UPC : 783643216563
- GTIN : 00783643216563
- Country of Origin : Mexico
- Weight : 0.328
- Certification : IEC Certified, UL Listed
