Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63B100

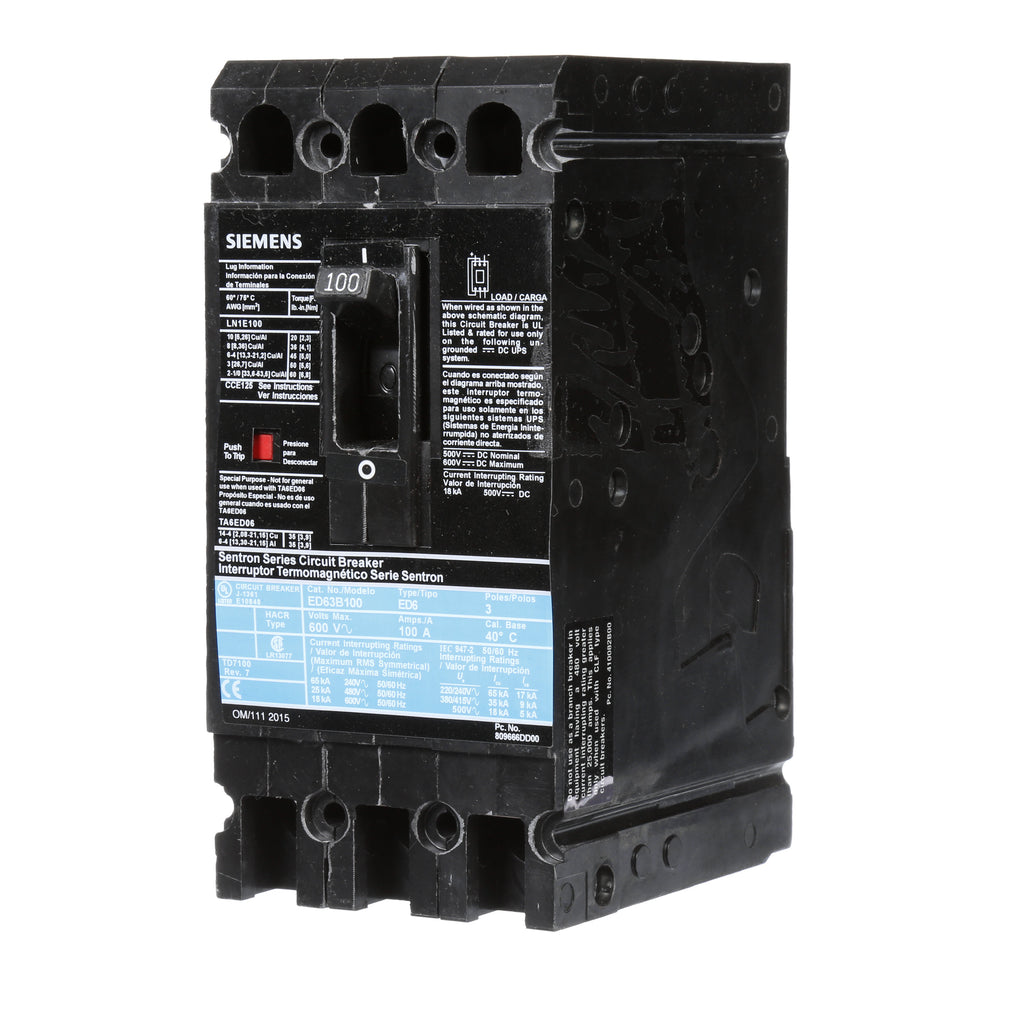

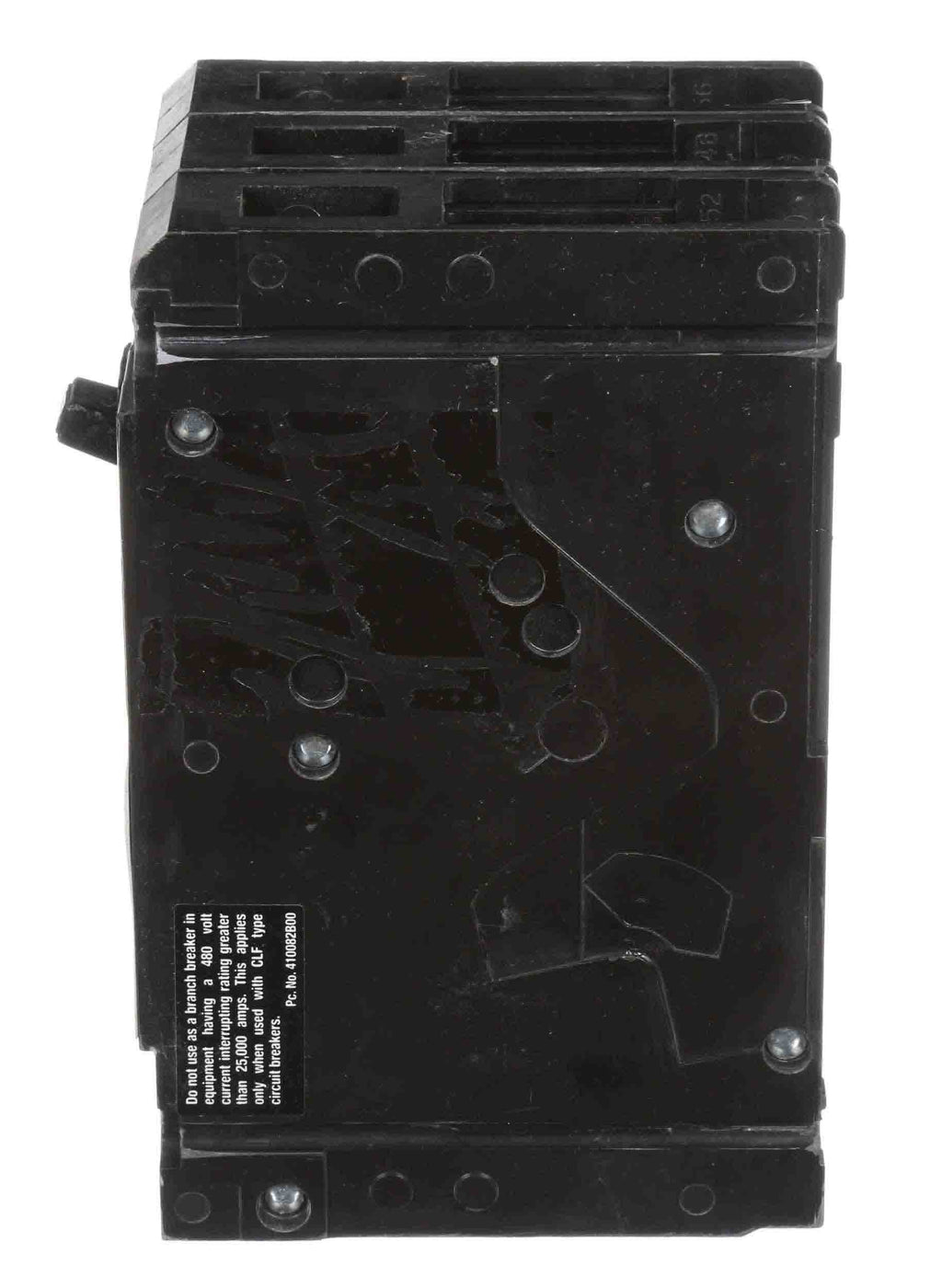

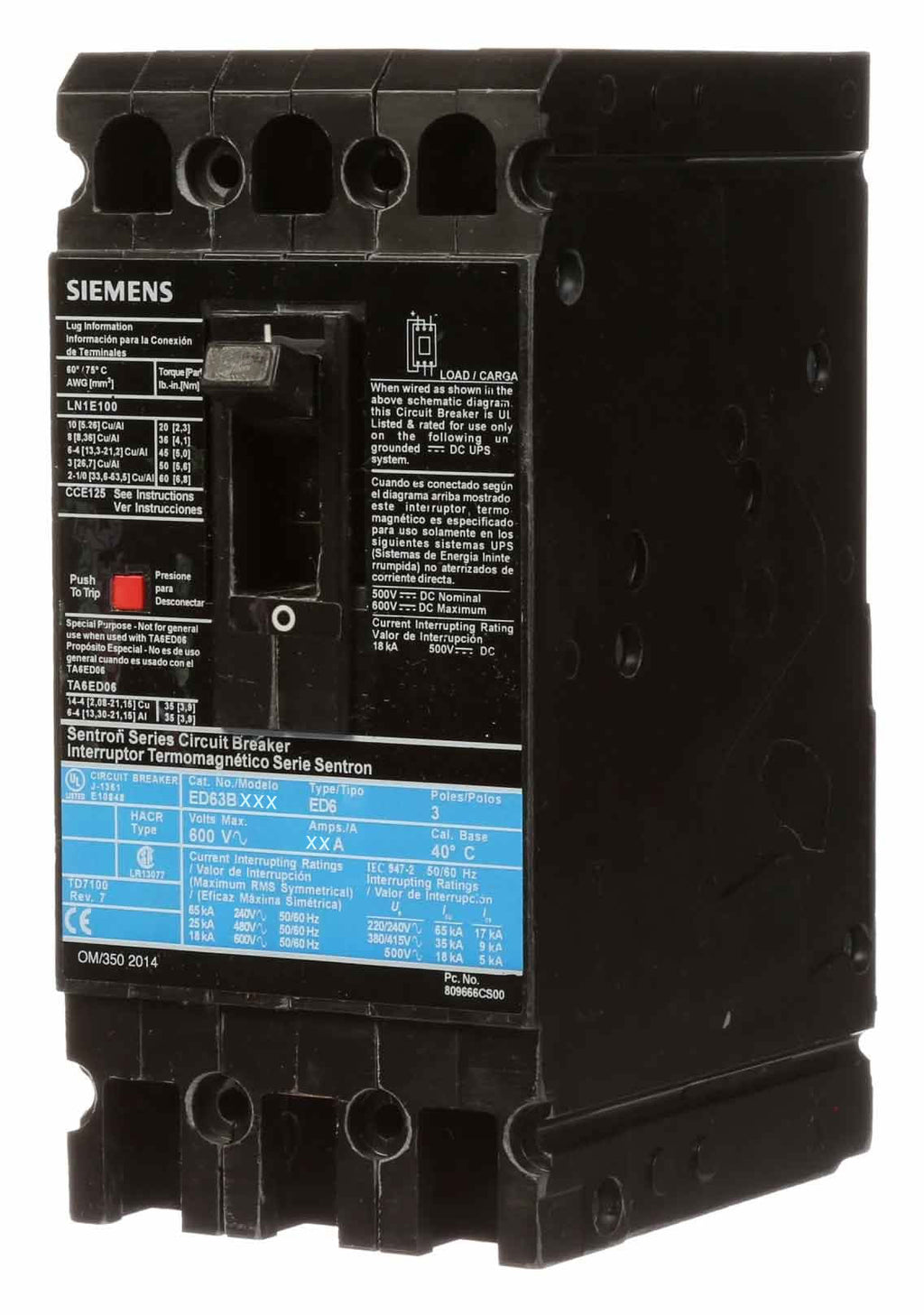

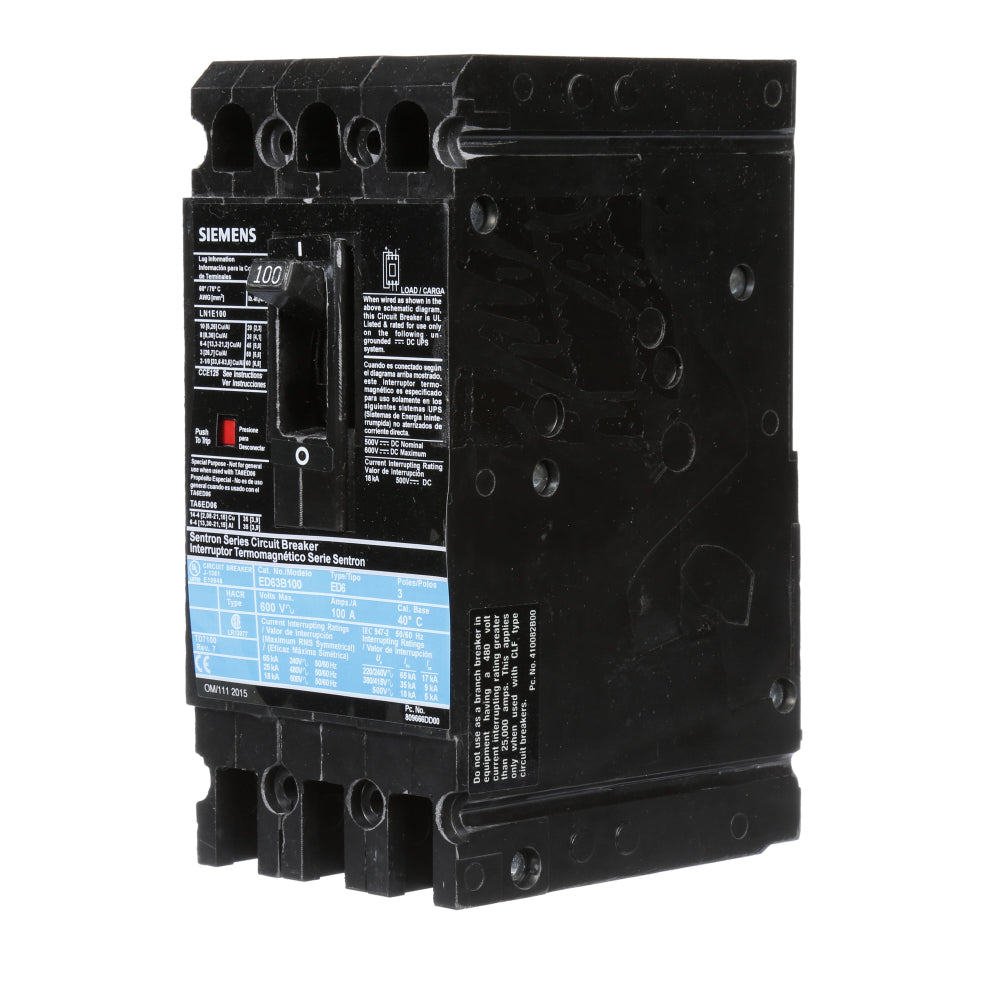

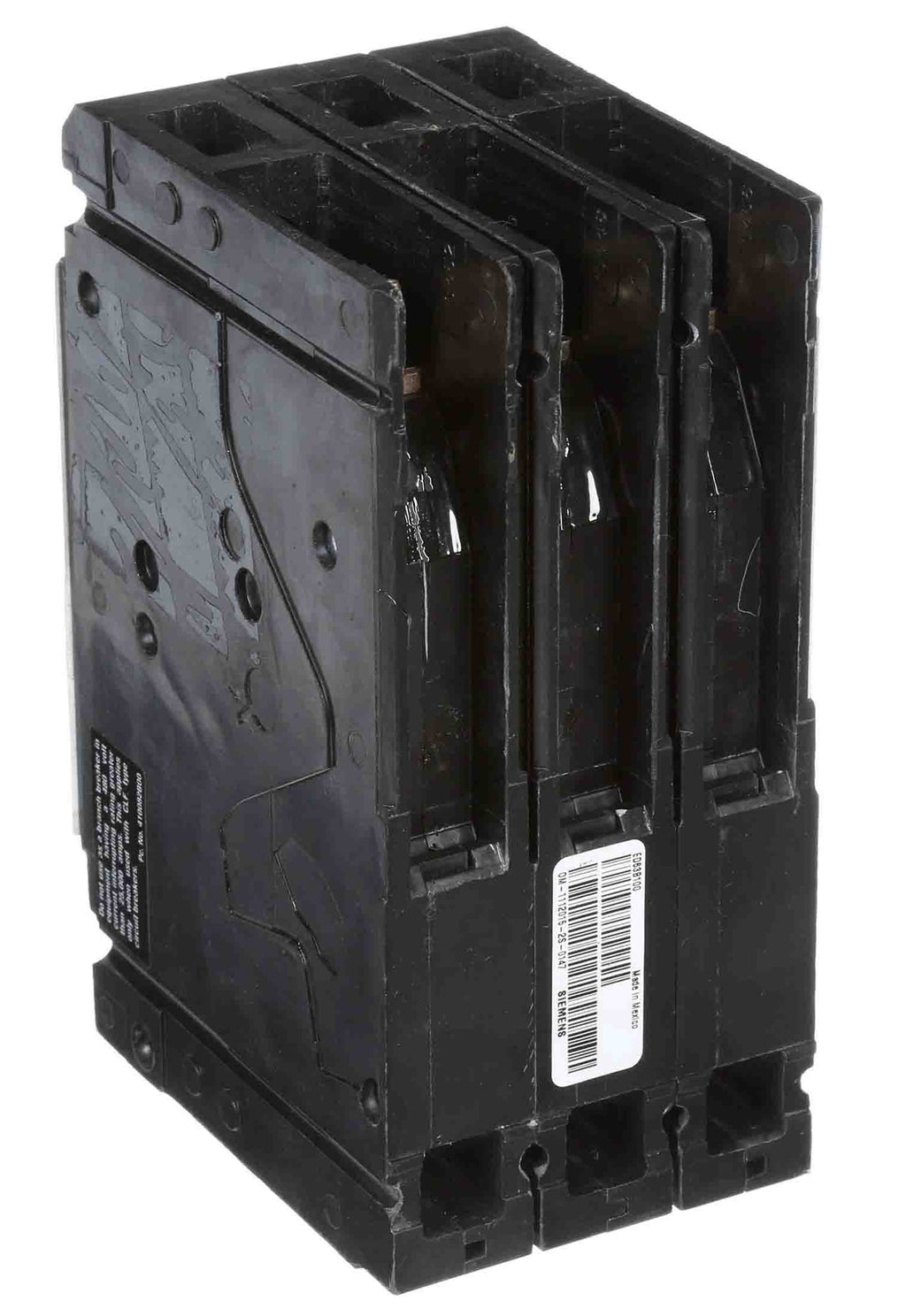

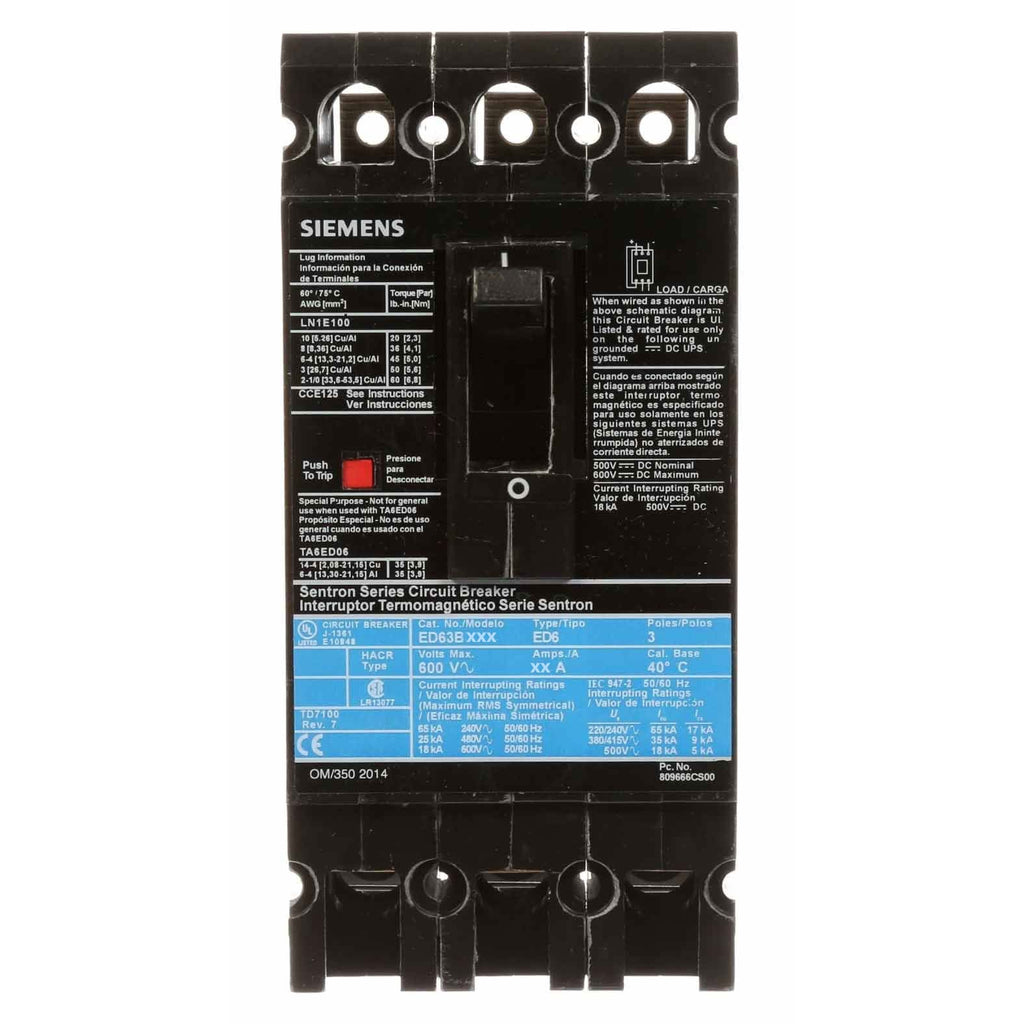

ED63B100 - Siemens Sentron Series type ED molded case circuit breaker, 3 pole, 100A, 600V, bolt-on mounting with thermal magnetic trip.The ED63B100 features a compact ED frame design with LI long-time and instantaneous trip functions, providing reliable thermal magnetic protection for 3-phase systems at 40 degrees C. It offers standard interrupting capacity rated at 25kA at 480V and includes load side lug terminals for secure bolt-on installation in panelboards.
- Part Number: ED63B100
- Manufacturer: Siemens
- Series/Frame: Sentron ED
- Amperage: 100A
- Voltage: 600VAC
- Poles: 3
- Phase: 3
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic (LI)
- Interrupt Rating: 25kA@480V, 18kA@600V
- Certifications: UL 489, CSA
Specifications
- Part Number: ED63B100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643209787
- GTIN : 00783643209787
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.1013
- Weight : 3.704
- Certification : IEC Certified, UL Listed
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
