Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63B090L

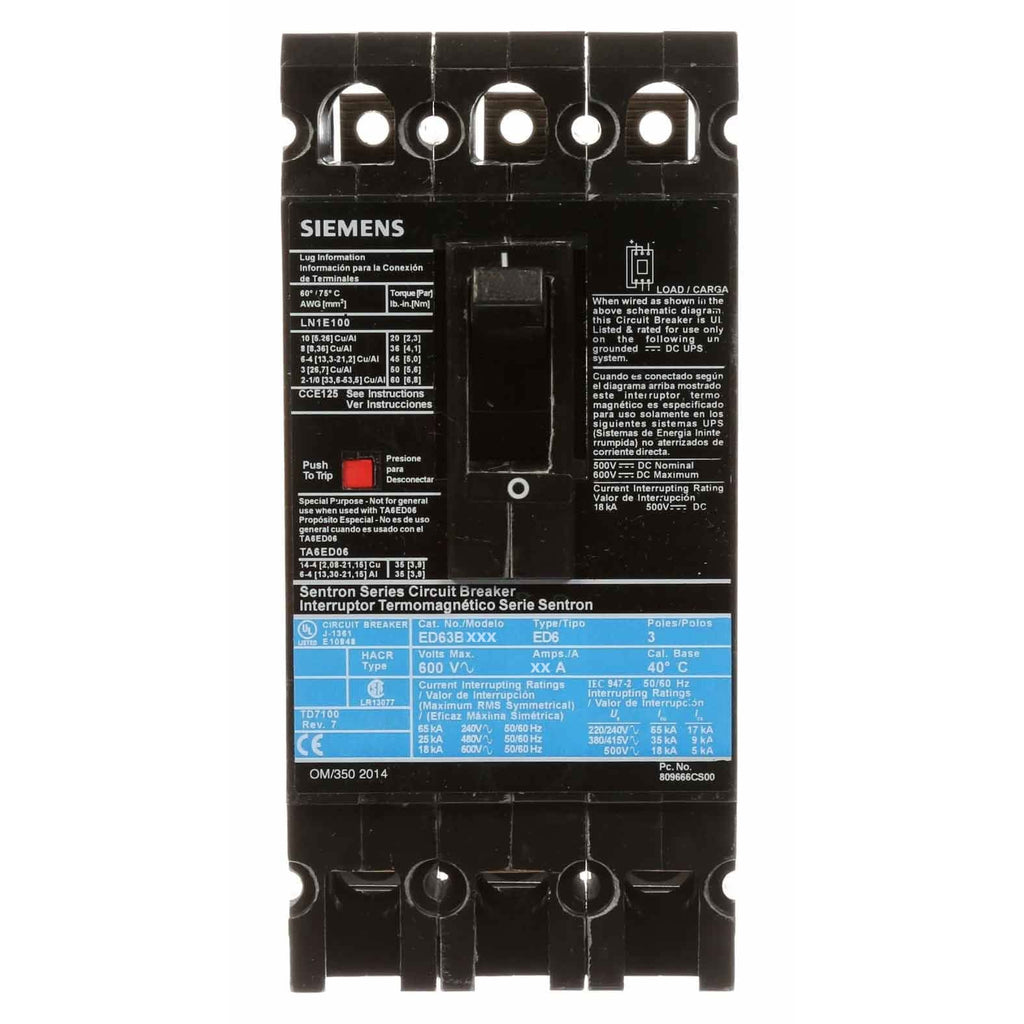

ED63B090L is a Siemens Type ED6 thermal magnetic circuit breaker rated for 90 amps and 600 volts AC with 3 poles.This Siemens molded case circuit breaker features a 3-pole design, 90 ampere rating, and 600 VAC voltage capacity. It provides thermal magnetic trip protection with a 25 kiloampere interrupt rating at 480 VAC, suitable for industrial and commercial power distribution applications. The breaker is part of the Sentron ED6 series and includes line and load side lugs for feed-thru mounting.
- Amperage: 90 Amp
- Voltage: 600 VAC
- Poles: 3
- Interrupt Rating: 25 kA at 480 VAC
- Trip Unit: Thermal Magnetic
- Series/Frame: ED6 Sentron
- Mounting Type: Feed-Thru with line/load lugs
- Certifications: UL Listed (implied by Siemens standard)
- Dimensions: Approx. 3" W x 4.56" D x 6.35" H
Specifications
- Part Number: ED63B090L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643236370
- GTIN : 00783643236370
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.1011
- Weight : 3.109
- Certification : Ul Listed, IEC
