Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63B080L

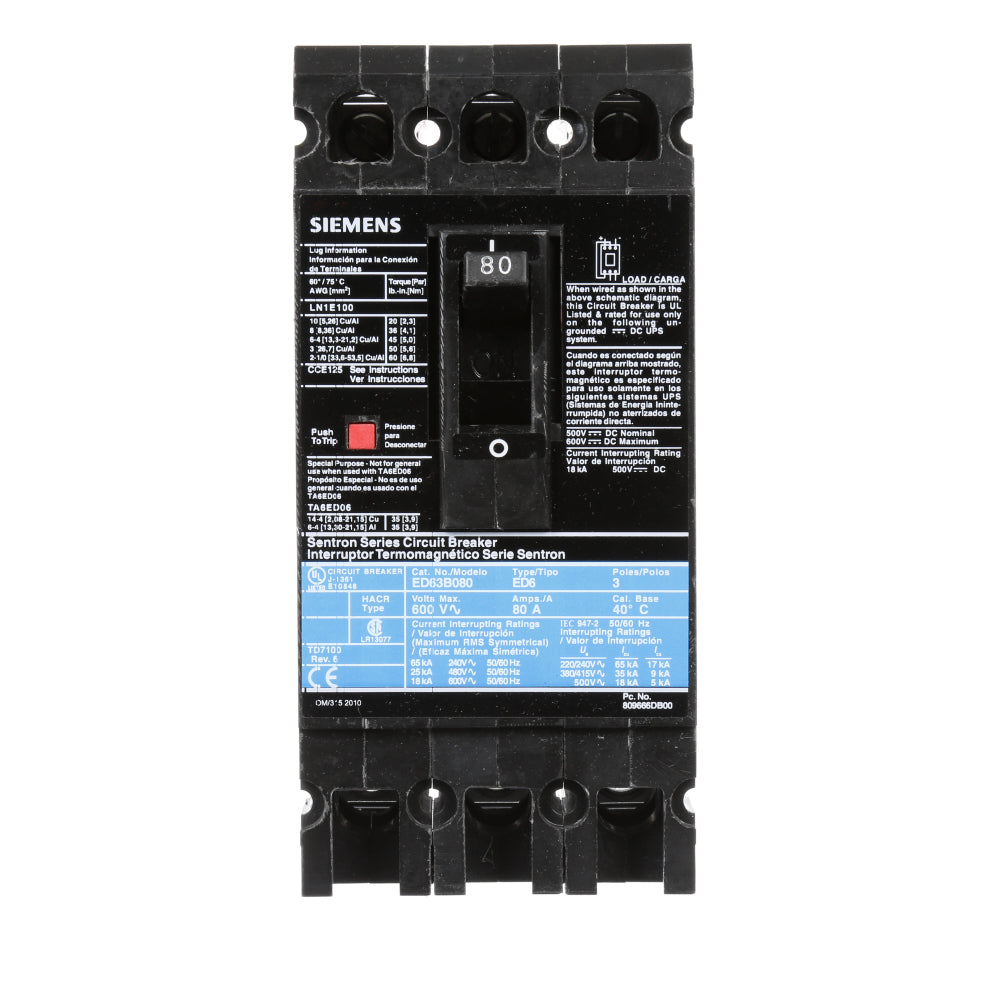

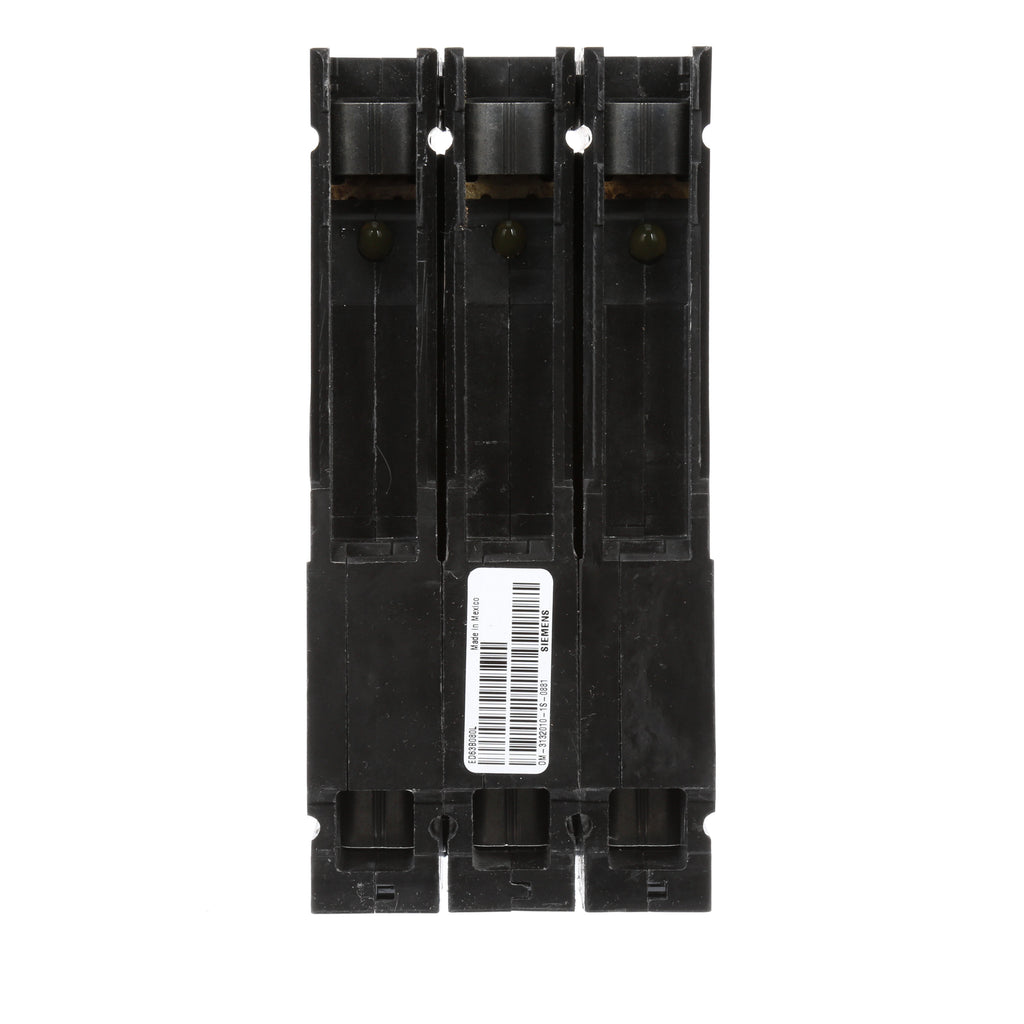

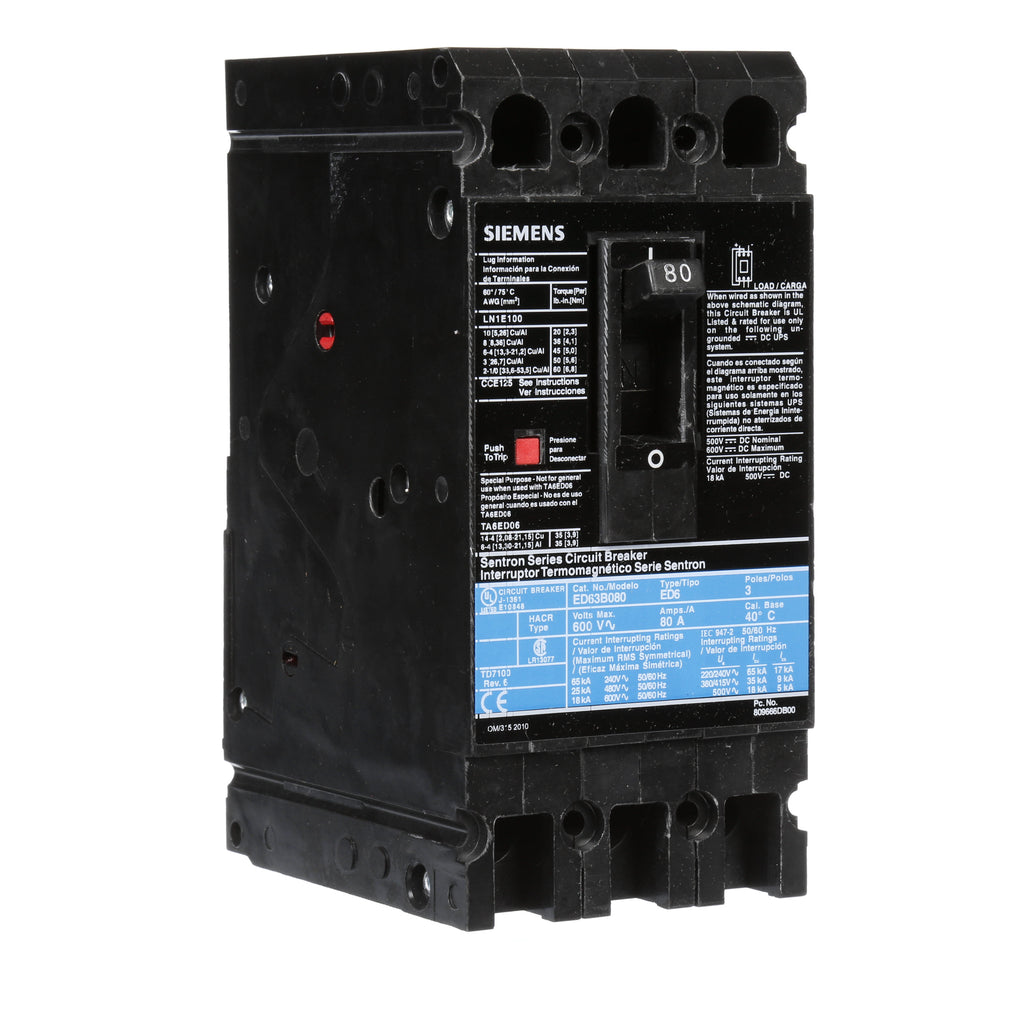

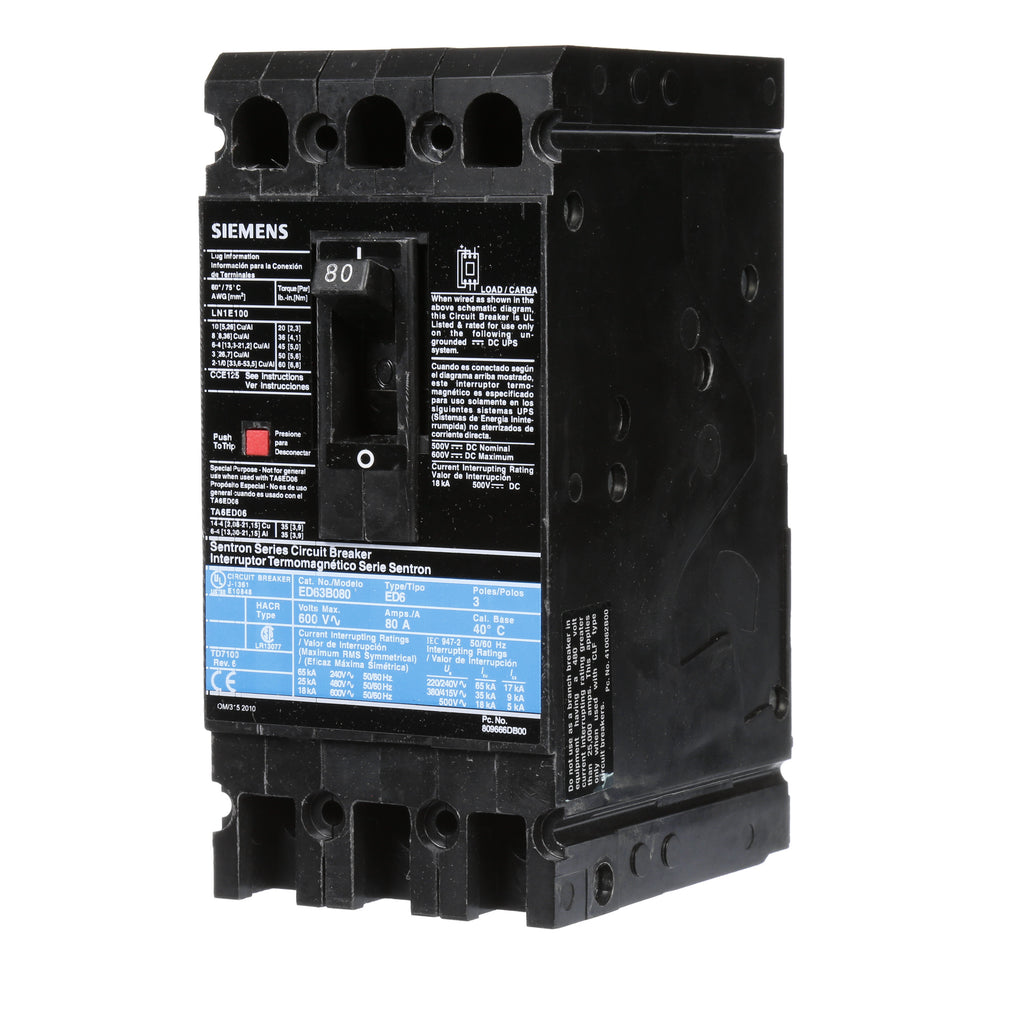

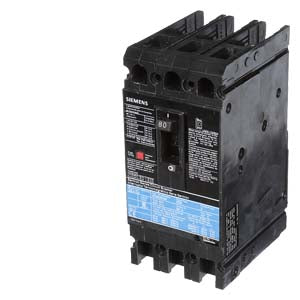

ED63B080L - Siemens 3-pole molded case circuit breaker rated at 80A and 600VAC with standard breaking capacity.This Siemens Sentron ED frame breaker provides thermal-magnetic trip protection in a robust design for reliable overload and short-circuit protection. It features line and load side lugs (feed-thru) and meets UL 489 / IEC 60947-2 standards with 18kAIC at 600V and 25kAIC at 480V.
- Part Number: ED63B080L
- Manufacturer: Siemens
- Poles: 3
- Amperage: 80A
- Voltage: 600VAC
- Frame: ED
- Interrupt Rating: 18kAIC @ 600V, 25kAIC @ 480V
- Trip Type: Thermal-Magnetic
- Mounting: Feed-Thru Lugs
- Frequency: 50/60 Hz
- Temperature Rating: 40C
Specifications
- Part Number: ED63B080L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643236363
- GTIN : 00783643236363
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.1008
- Weight : 3.651
- Certification : Ul Listed, IEC
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
