Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63B070L

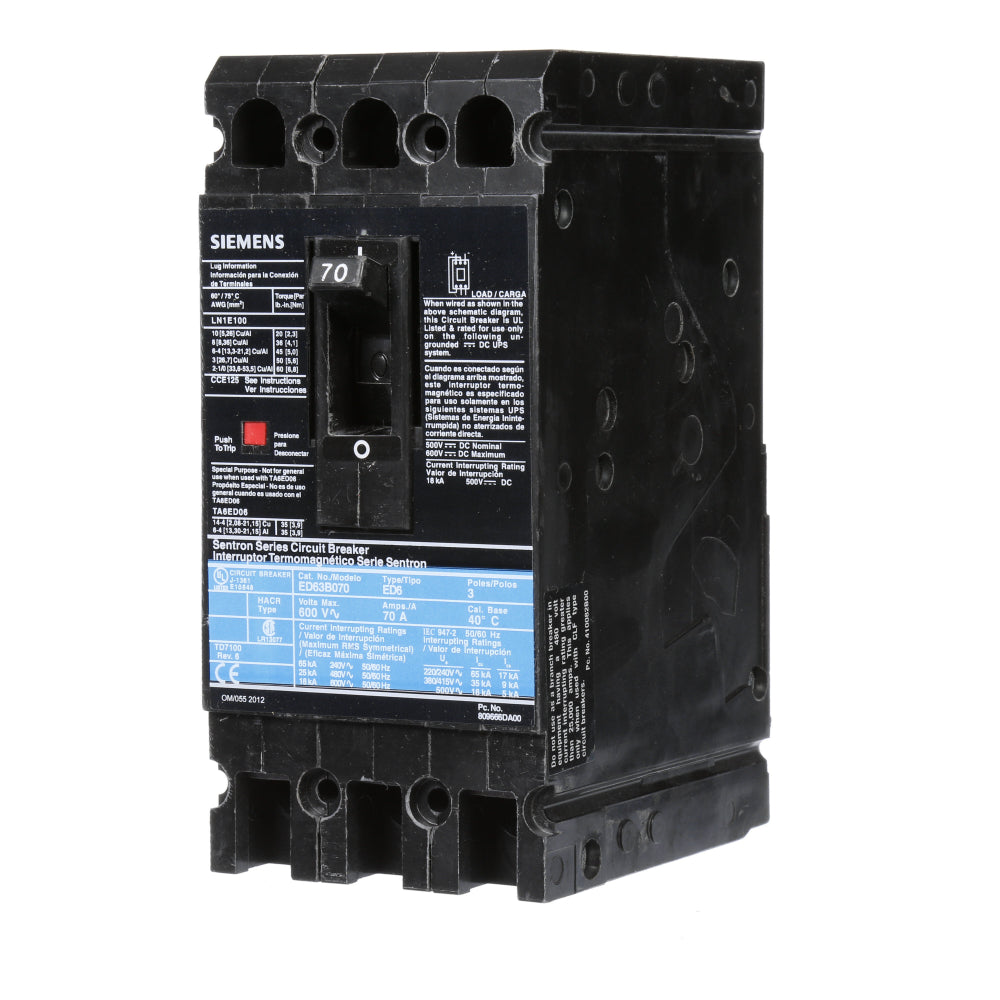

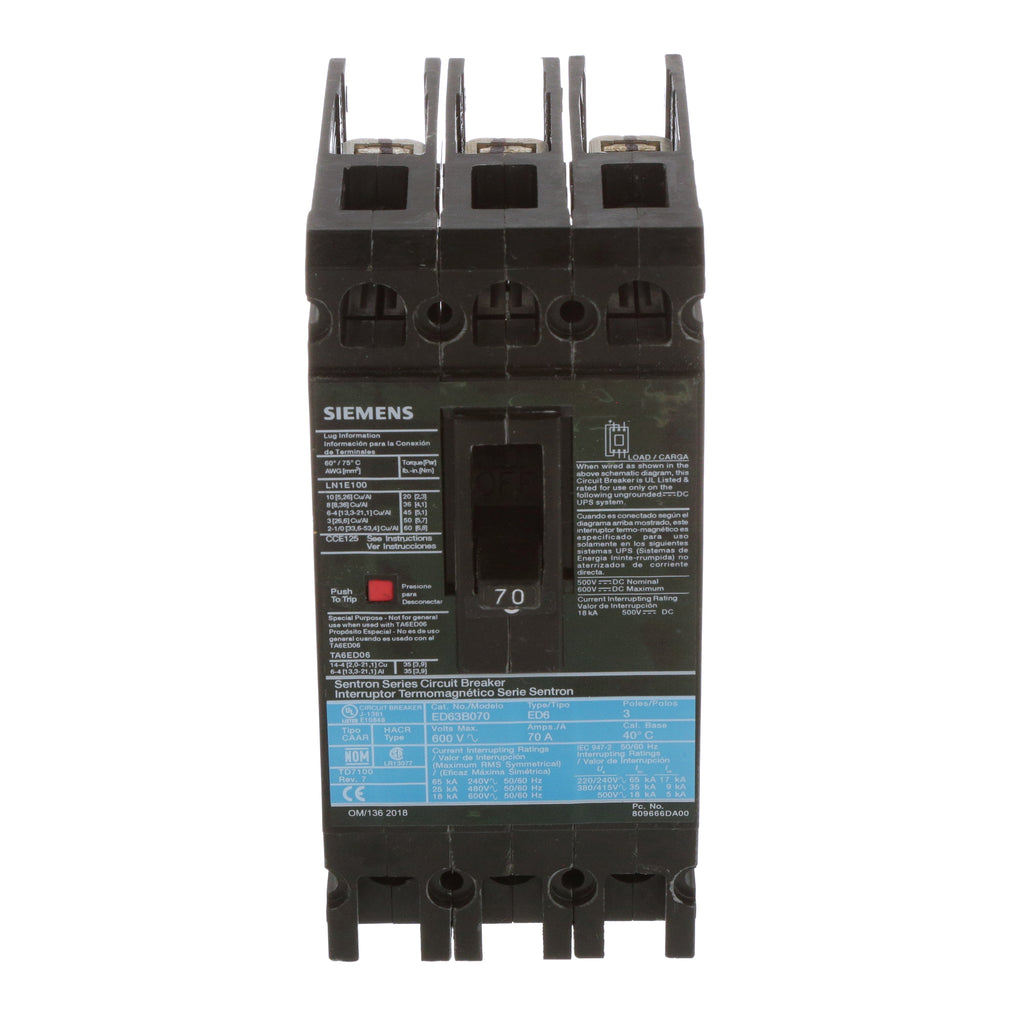

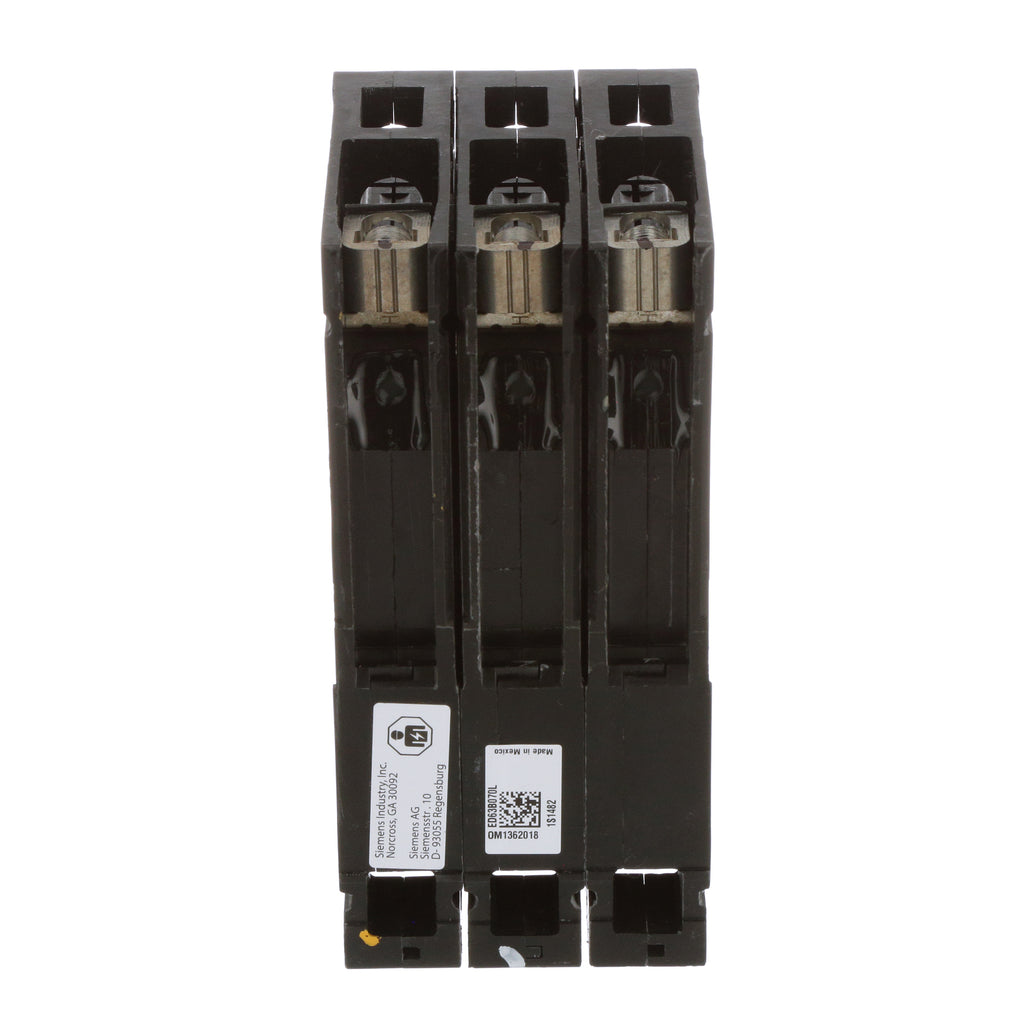

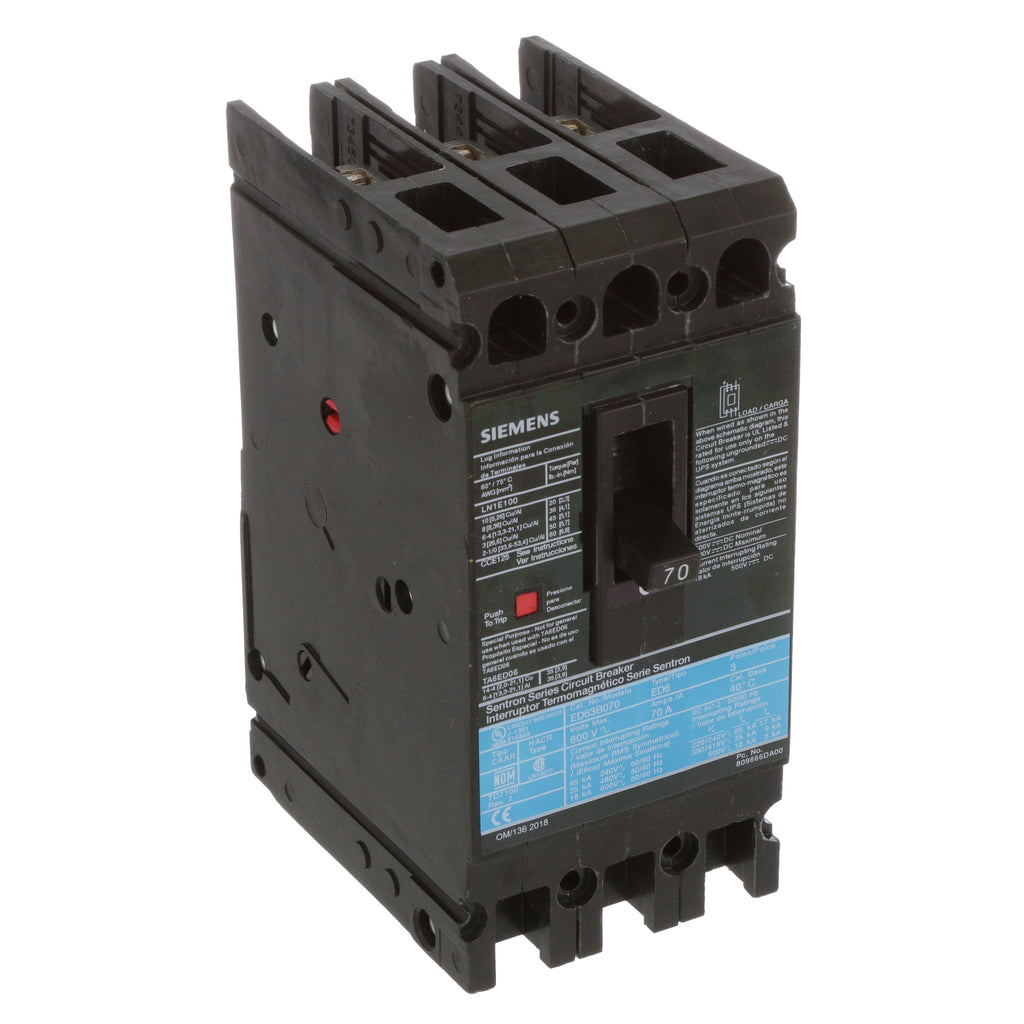

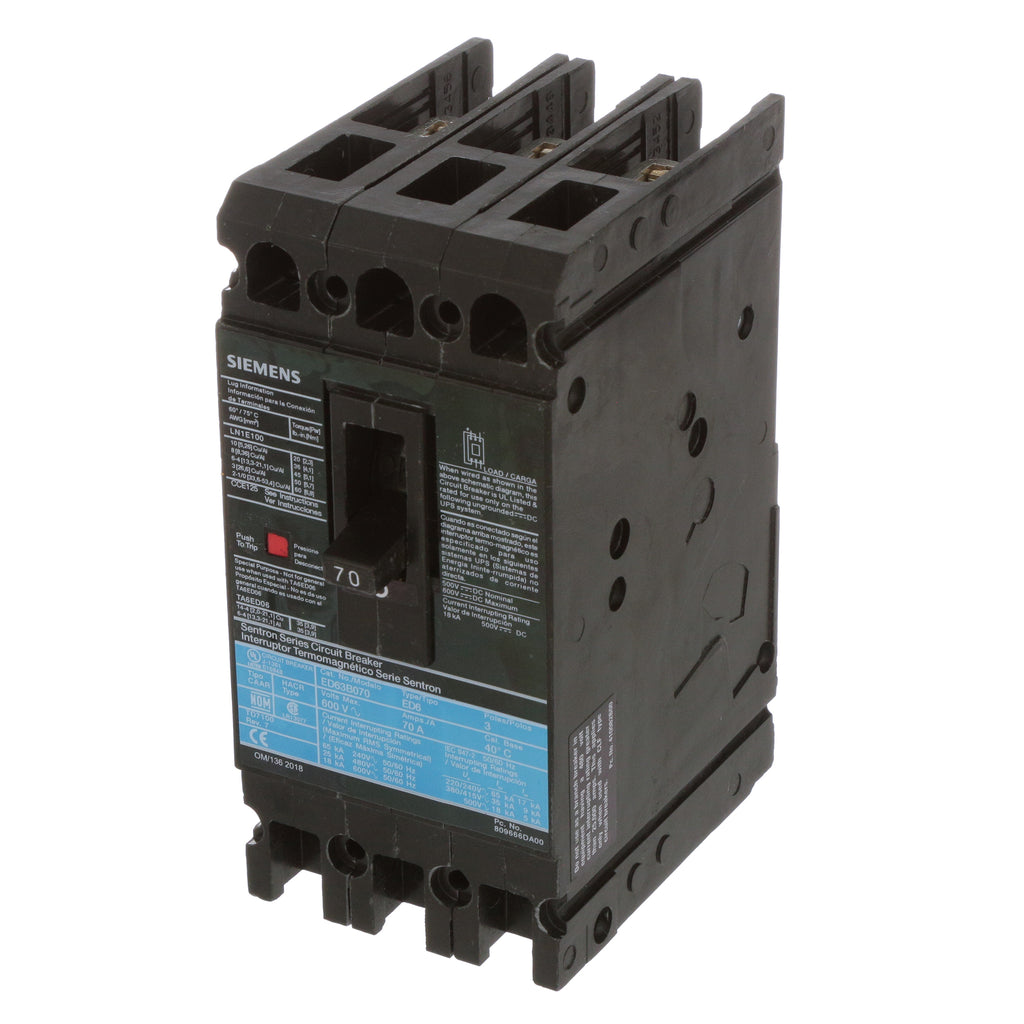

ED63B070L is a Siemens 3-pole molded case circuit breaker rated for 70 amps and 600 volts AC, designed for reliable low voltage power distribution protection.
This Siemens ED frame breaker features a thermal/magnetic trip unit with a standard interrupt rating of 18 kAIC at 600V and 25 kAIC at 480V. It supports wire sizes from 10 to 1/0 AWG (CU/AL) and complies with UL 489 and IEC 60947-2 standards. The breaker is suitable for panel or chassis mounting in industrial and commercial applications requiring robust circuit protection.
- Key Specifications
- Amperage: 70A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Interrupt Rating: 18 kAIC at 600V, 25 kAIC at 480V
- Trip Unit: Thermal/Magnetic
- Series/Frame: ED Frame
- Wire Range: 10 - 1/0 AWG (CU/AL)
- Certifications: UL 489, IEC 60947-2
- Mounting Type: Panel/Chassis
- Part Number: ED63B070L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
- UPC : 783643236356
- GTIN : 00783643236356
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.1004
- Weight : 3.71
- Certification : Ul Listed, IEC
