Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63B040L

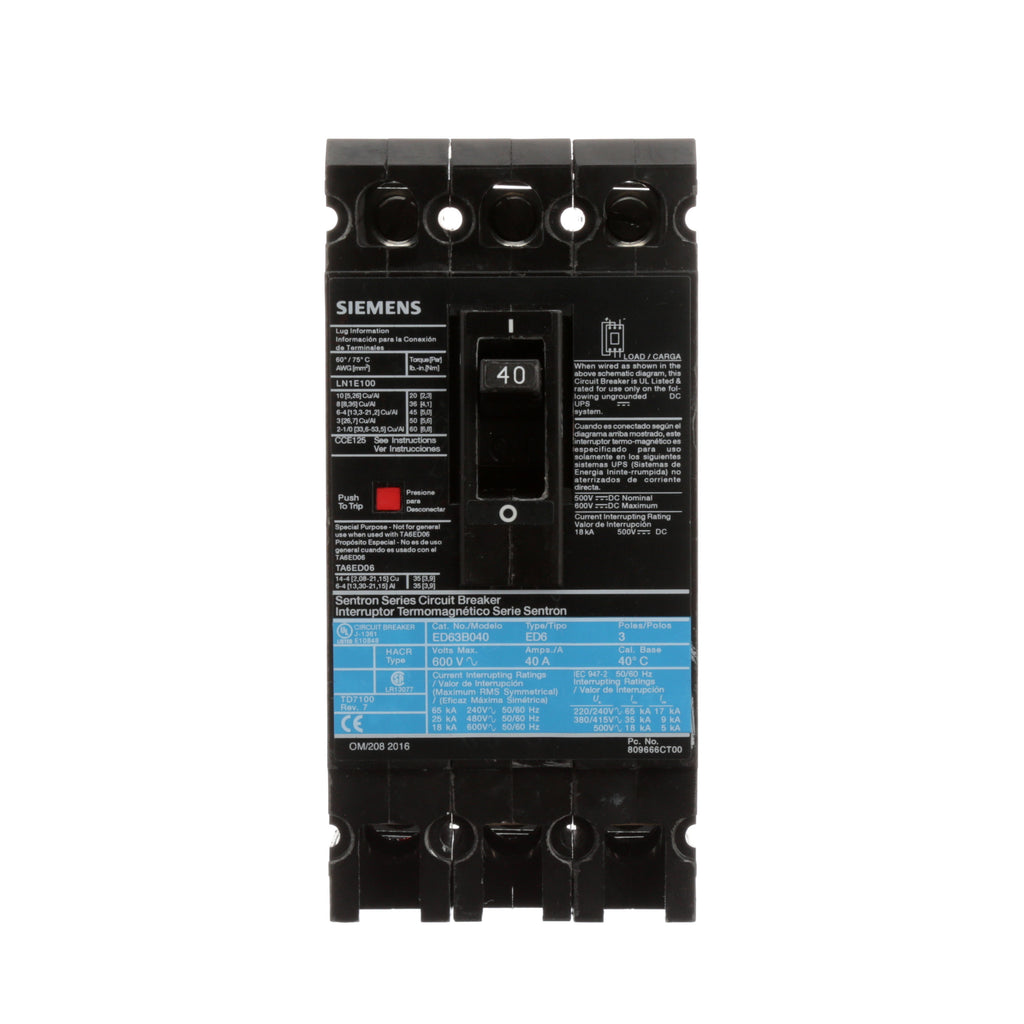

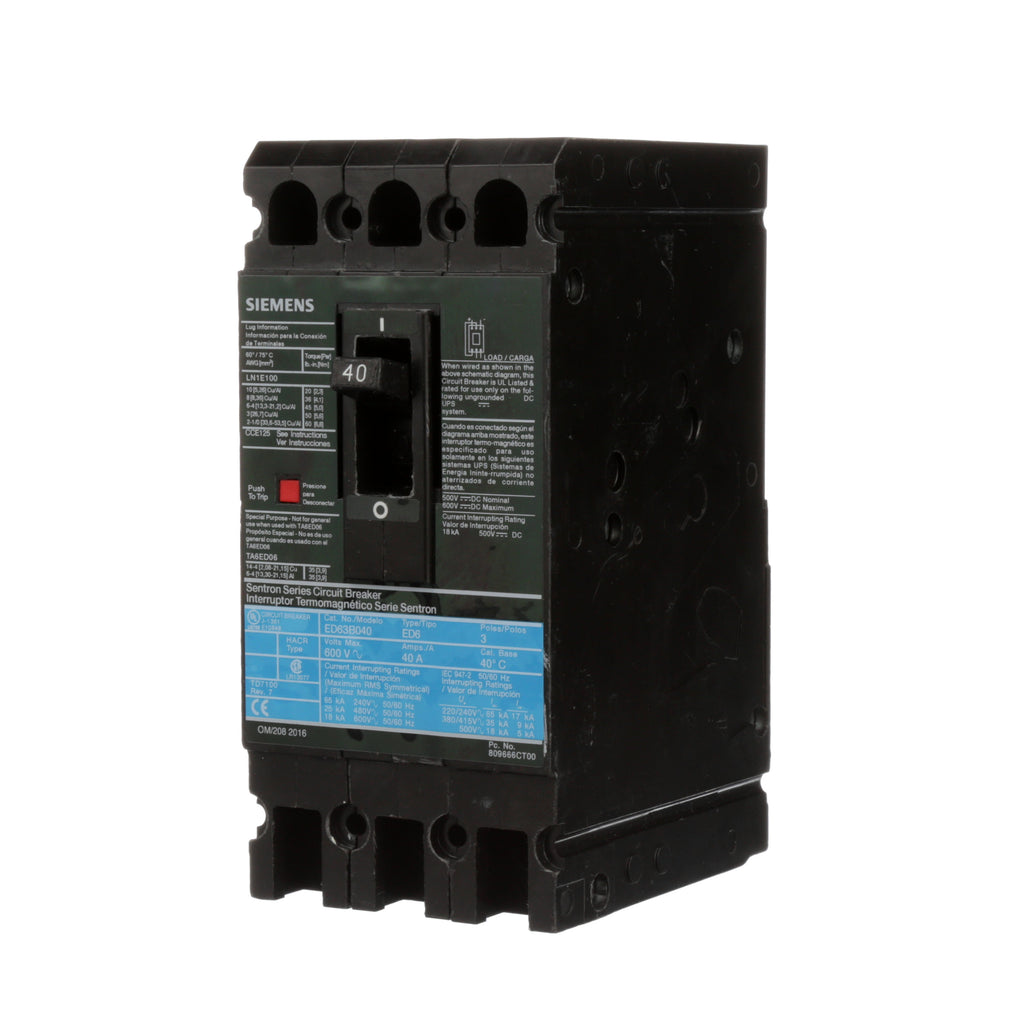

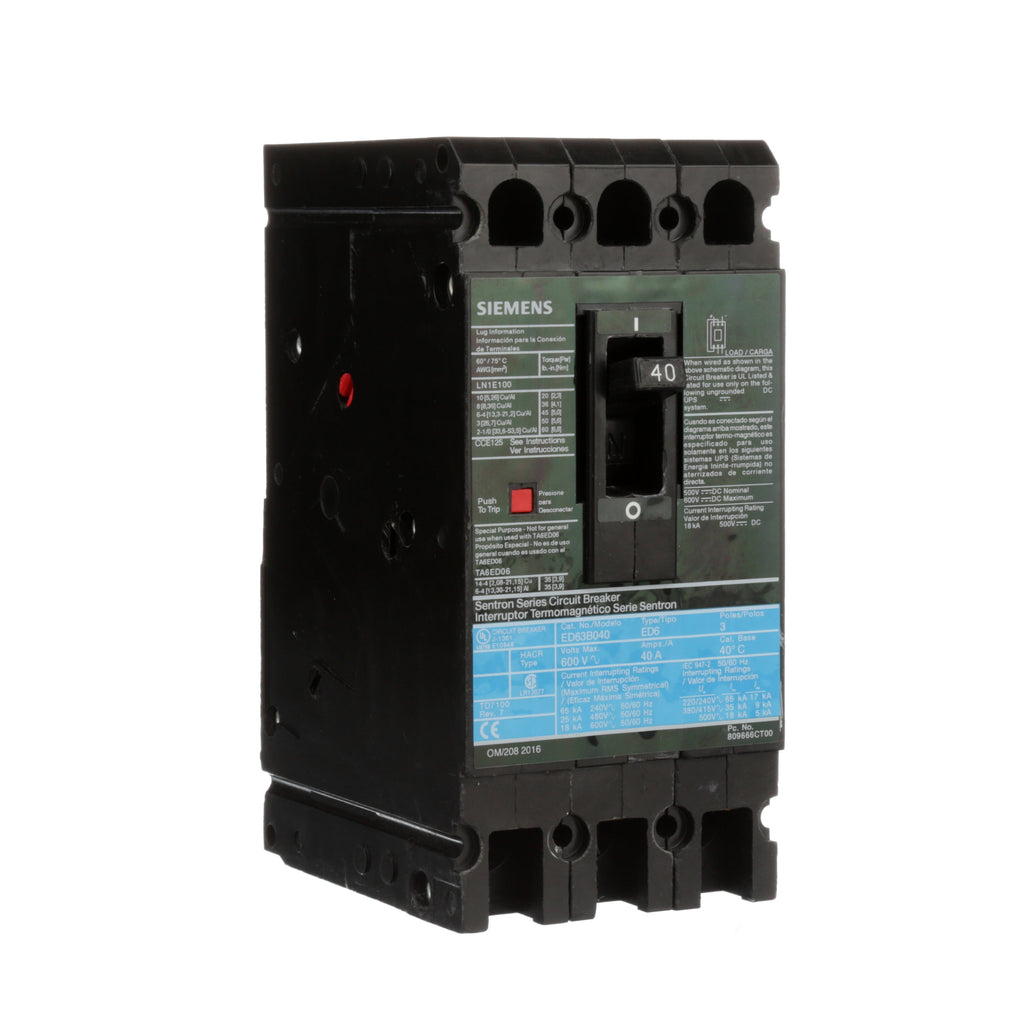

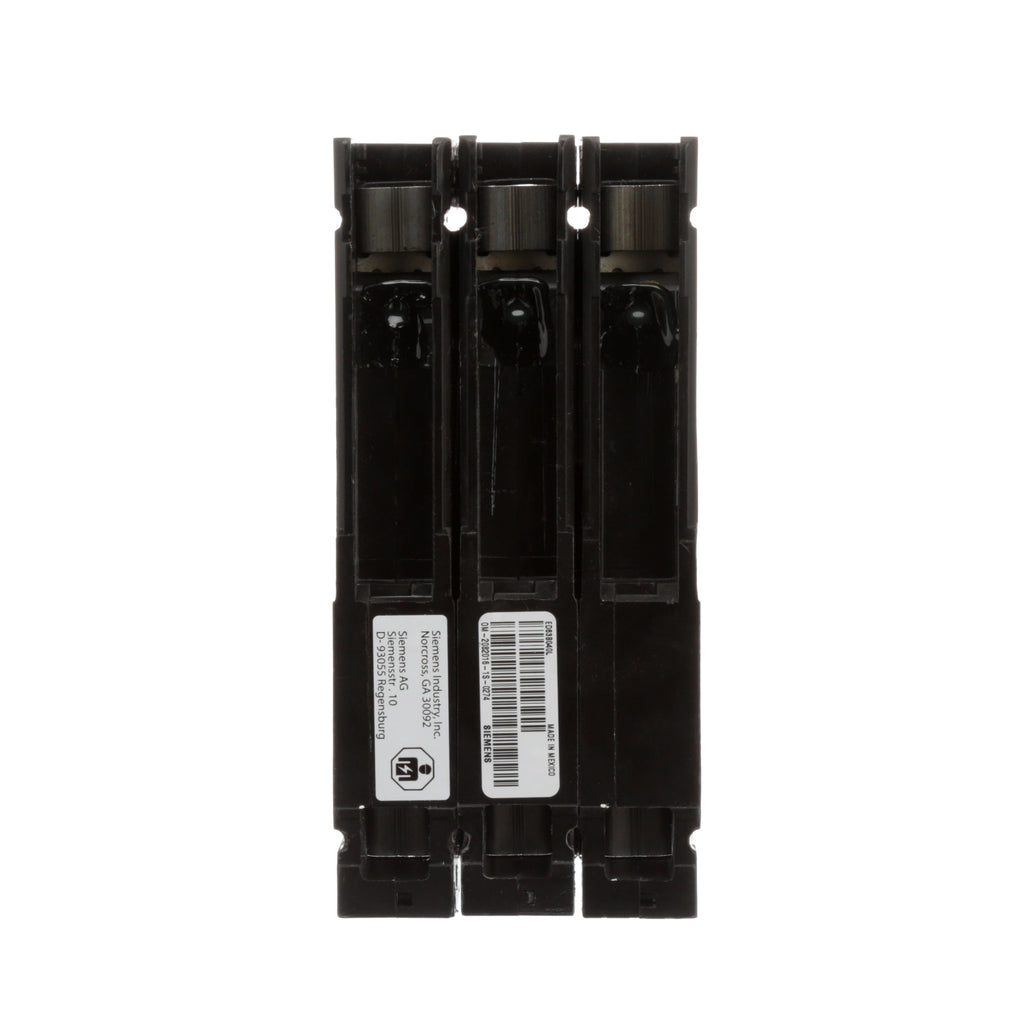

ED63B040L is a Siemens 3-pole molded case circuit breaker rated for 40 amps and 600 VAC with an 18 kA interrupt rating.ED63B040L features thermal magnetic trip units, line/load lugs installed, and is designed for standard mounting in the ED frame series. It supports 50/60 Hz frequency and is suitable for industrial power distribution applications requiring reliable overcurrent protection.
- Key Specifications
- Amperage: 40 Amps
- Voltage: 600 VAC
- Number of Poles: 3
- Interrupt Rating: 18 kA at 600 V
- Trip Type: Thermal Magnetic
- Mounting Type: Molded Case
- Series/Frame: ED Frame
- Frequency: 50/60 Hz
- Line/Load Lugs Installed
- Standard 40¡C Temperature Rating
Specifications
- Part Number: ED63B040L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643236318
- GTIN : 00783643236318
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.992
- Weight : 3.651
- Certification : Ul Listed, IEC
