Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63A125

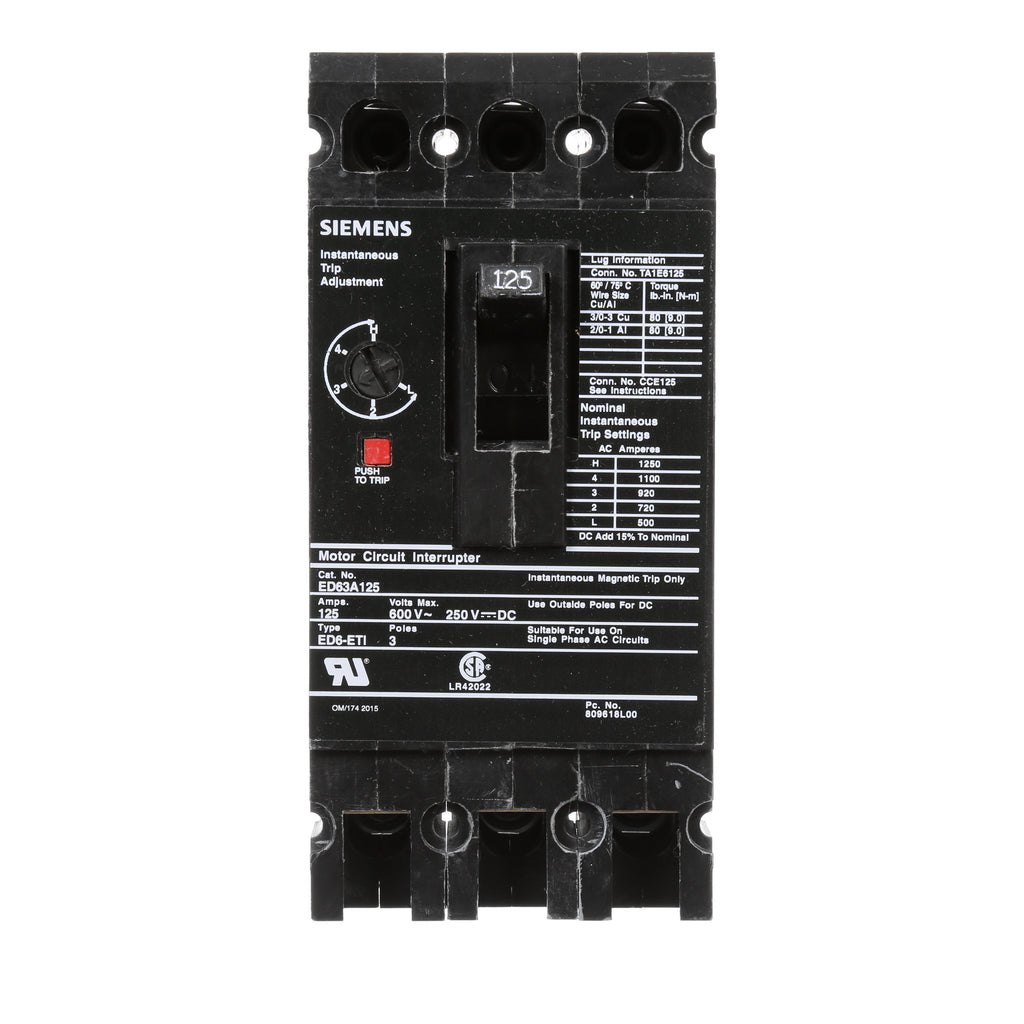

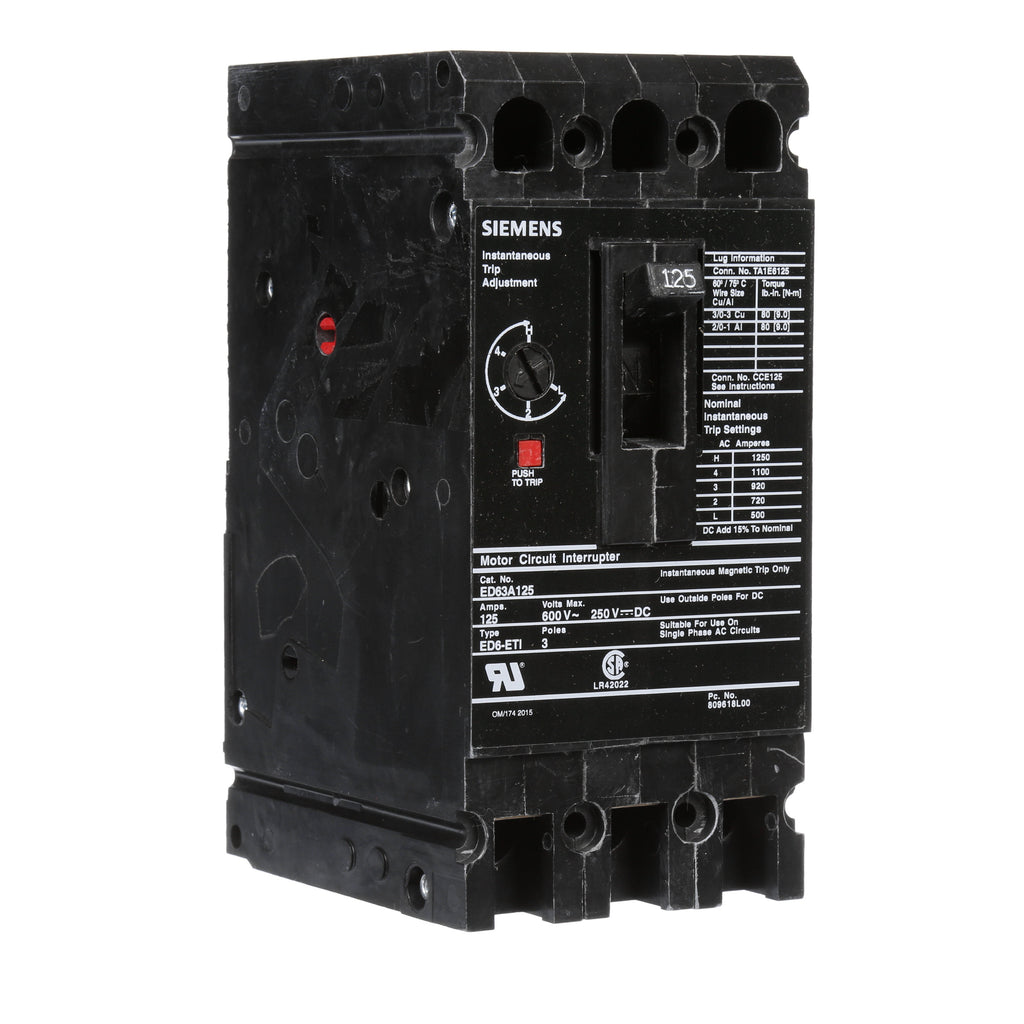

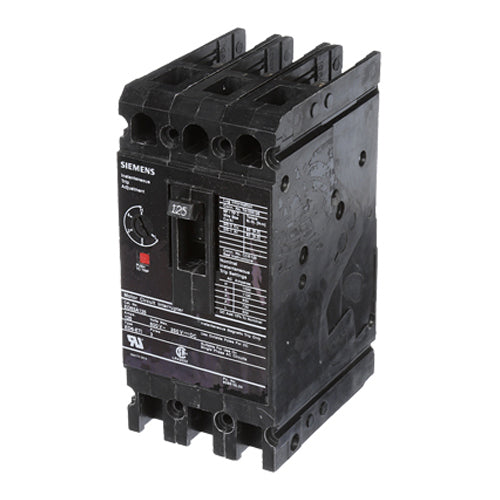

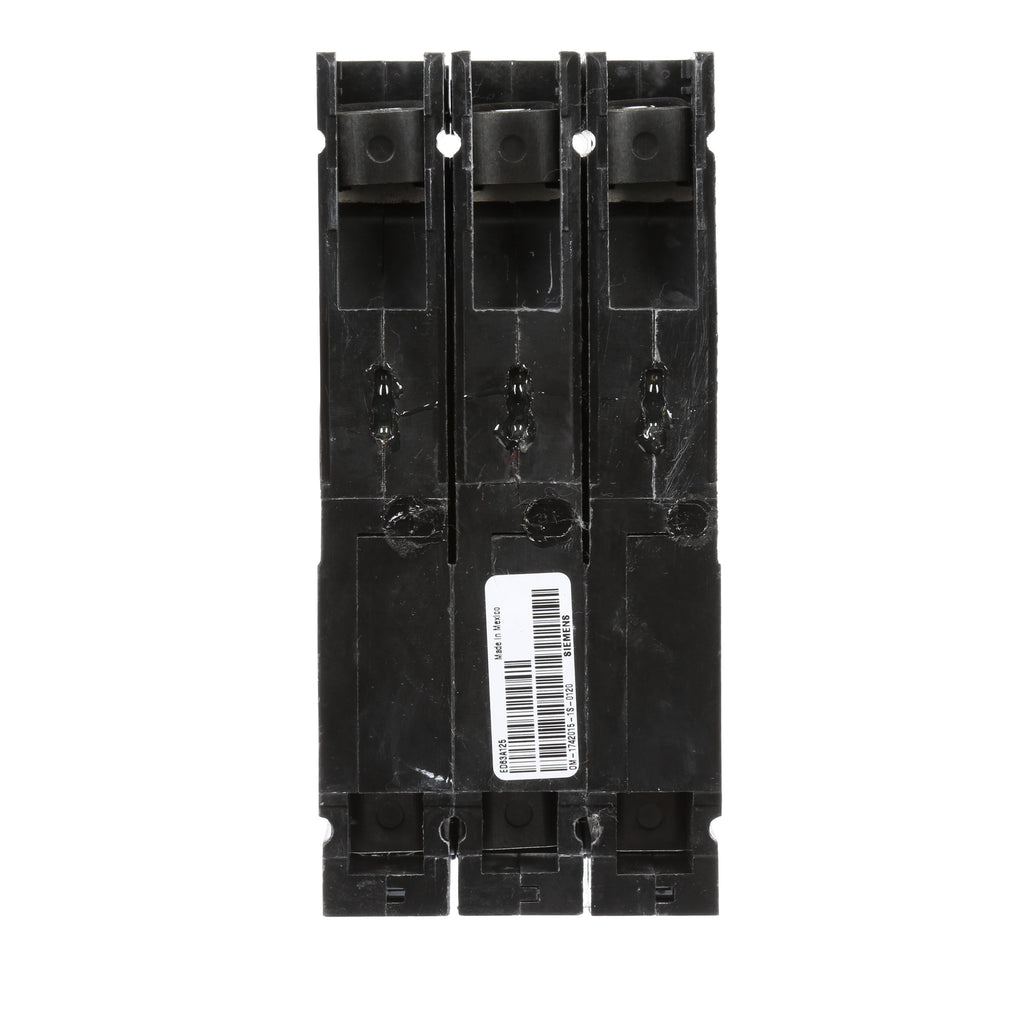

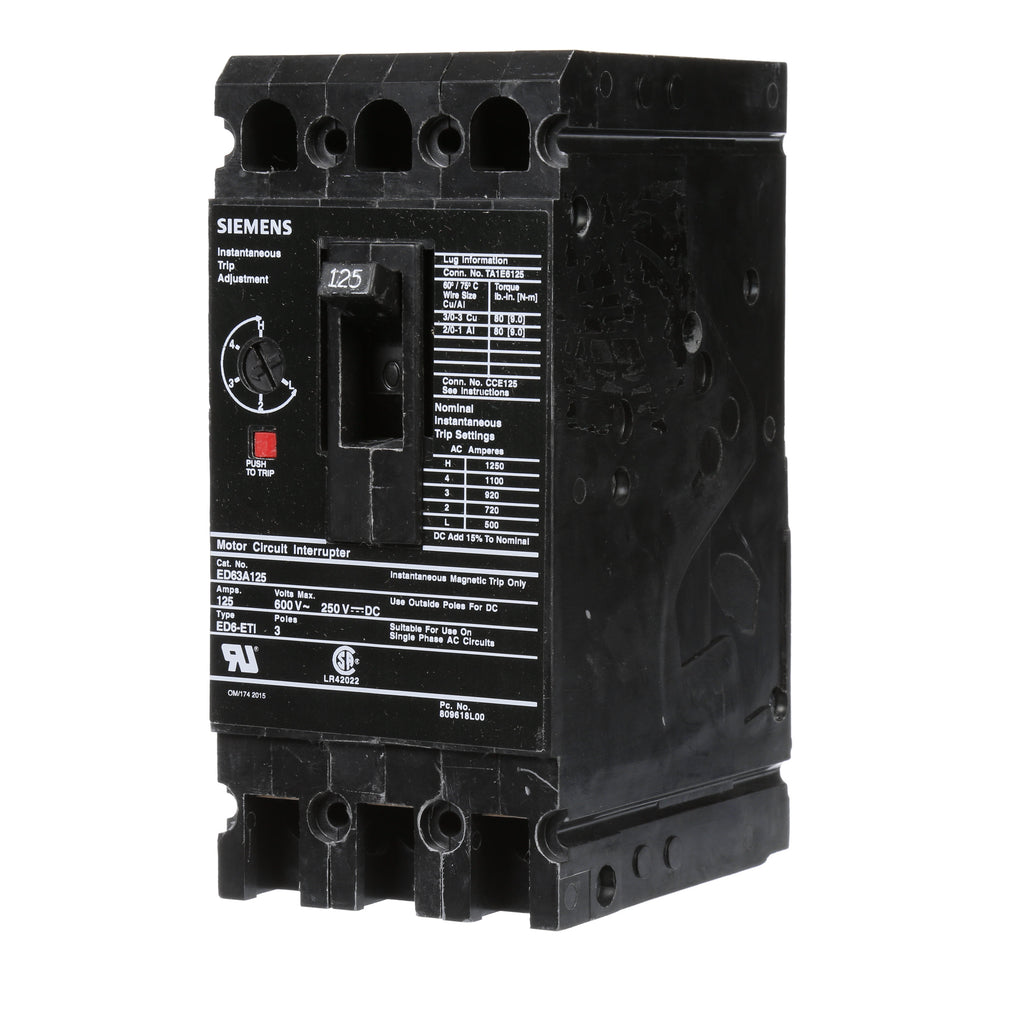

ED63A125 - Siemens Sentron molded case circuit breaker with thermal magnetic trip, 125A rating, 3 poles, and bolt-on mounting.This Siemens ED frame circuit breaker features 600VAC/250VDC rating, 18kA@600V interrupt capacity, and 500-1250A instantaneous trip range. It supports 3 to 3/0 AWG copper or 1 to 2/0 AWG aluminum wire with load lugs, operates at 50/60Hz, and meets UL 489/IEC 60947-2 standards for reliable overcurrent protection in industrial applications.
- Part Number: ED63A125
- Manufacturer: Siemens
- Frame: ED
- Amperage: 125A
- Voltage: 600VAC/250VDC
- Poles: 3
- Phase: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 18kA@600V (25kA@480V)
- Trip Type: Thermal Magnetic/Instantaneous
- Trip Range: 500-1250A
- Wire Range: 3-3/0 AWG Cu, 1-2/0 AWG Al
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: ED63A125
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : I - Instantaneous
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Magnetic Only
Product Data
- UPC : 783643210882
- GTIN : 00783643210882
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.971
- Weight : 0.379 lb
- Certification : IEC Certified, UL Listed
