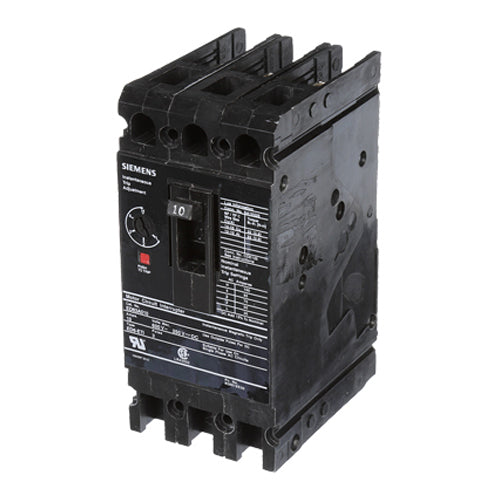

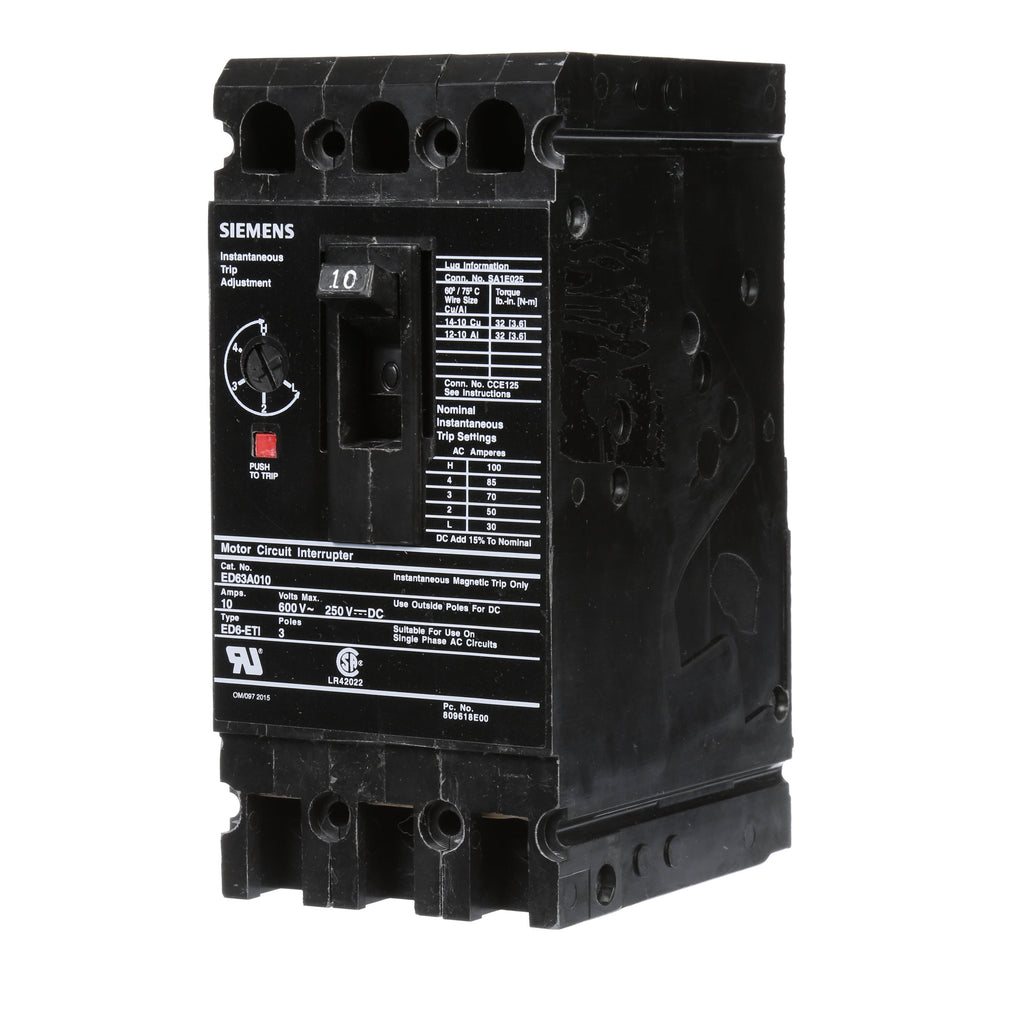

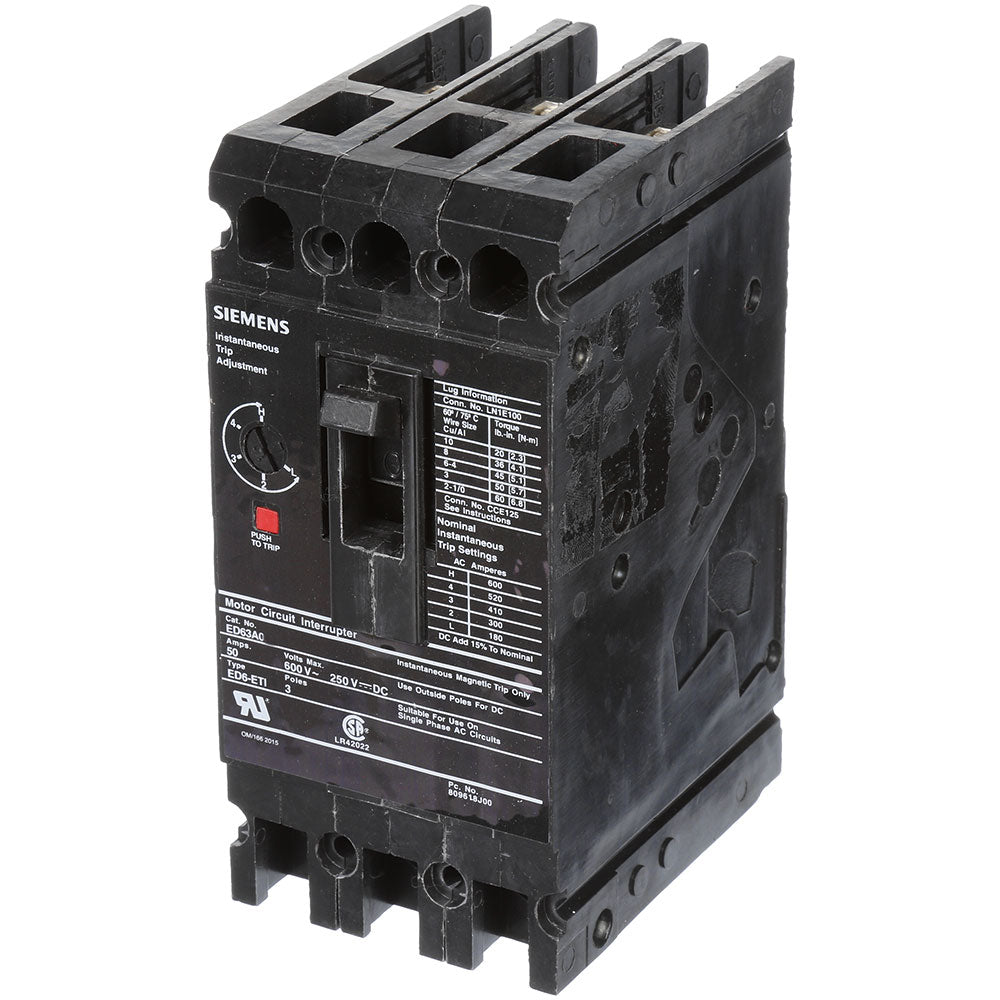

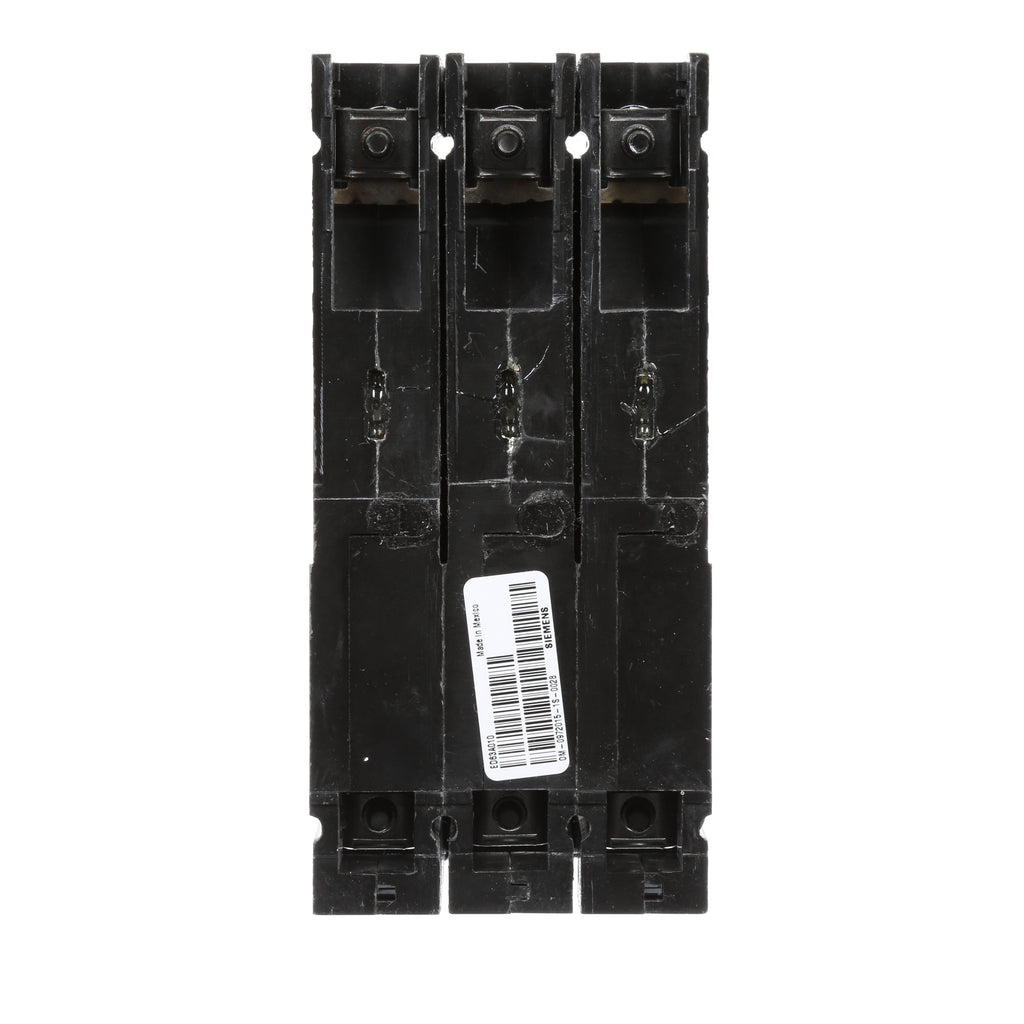

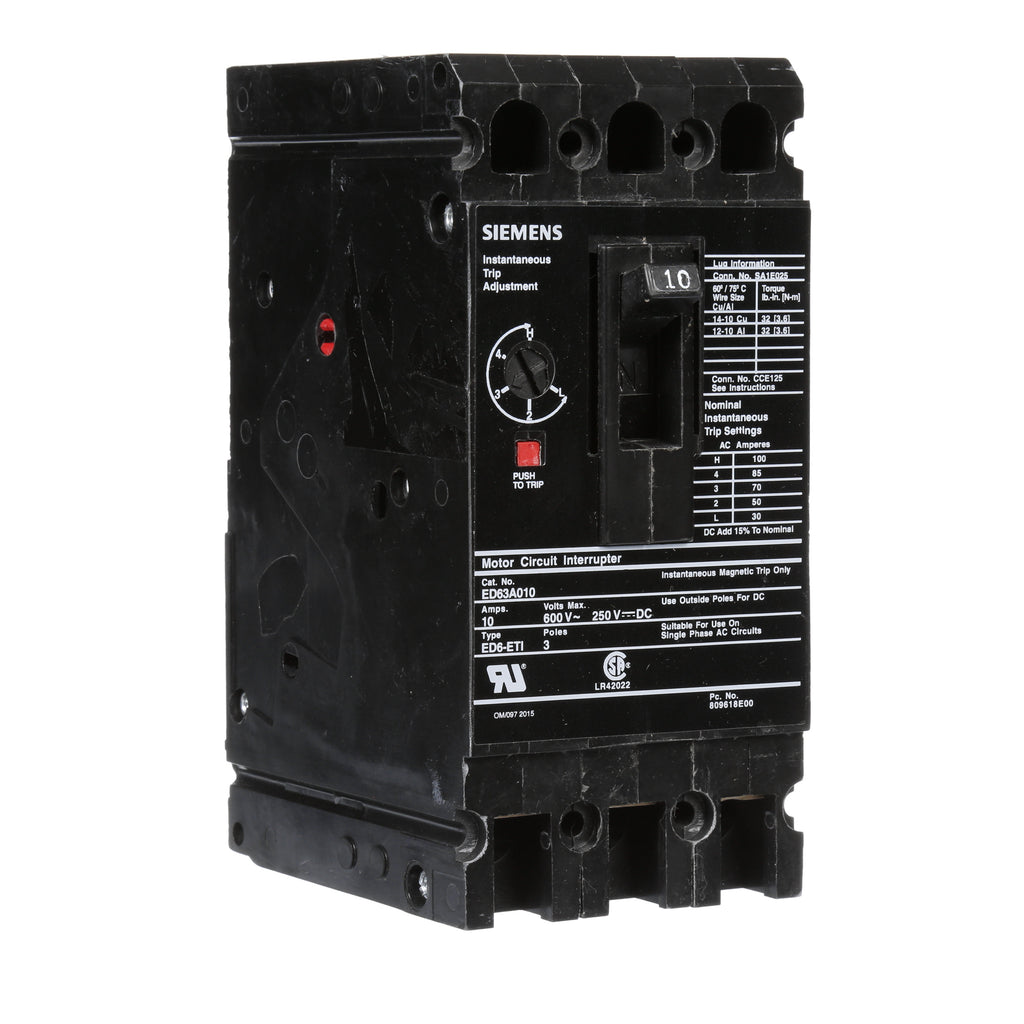

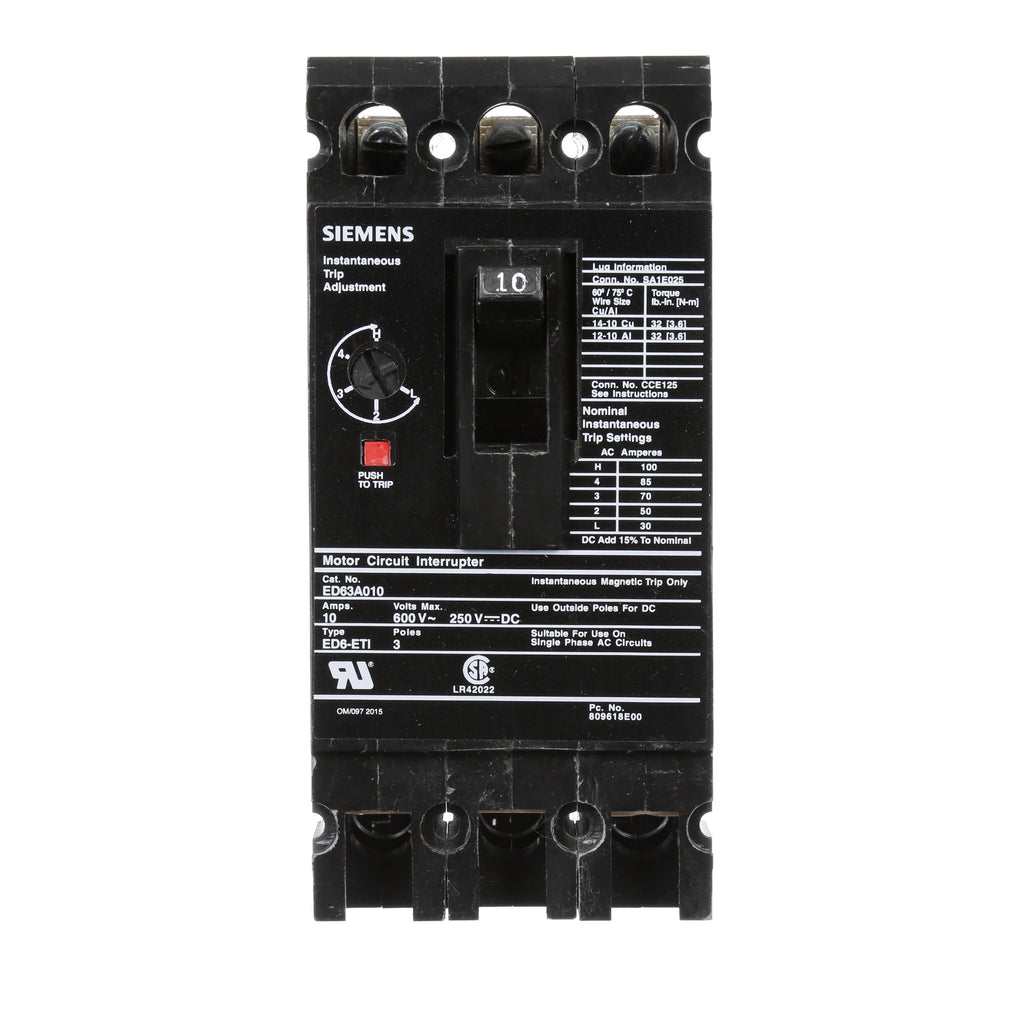

ED63A010 - Siemens 10 Amp 600VAC 3 Pole Molded Case Circuit Breaker Type ED6-A

ED63A010

ED63A010 is a Siemens molded case circuit breaker with a 10 amp rating, 3 poles, and 600 VAC voltage capacity. It is designed for panel mounting and provides reliable circuit protection.This Siemens Sentron Type ED6-A breaker features a thermal magnetic trip unit with instantaneous protection. It supports 600 VAC and 250 VDC operation with an interrupt rating of 18 kA at 600 VAC. The breaker meets UL 489 and IEC 60947-2 standards, ensuring compliance and safety.

• Amperage: 10 A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Panel mount
• Interrupt Rating: 18 kA at 600 VAC
• Series/Frame: ED6-A
• Trip Unit: Thermal magnetic with instantaneous protection
• Certifications: UL 489, IEC 60947-2
• Type: Molded Case Circuit Breaker
• Brand: Siemens Sentron

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: ED63A010
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 10
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Instantaneous
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Magnetic Only

Product Data

• UPC : 783643210820
• GTIN : 00783643210820
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.959
• Weight : 3.801
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
