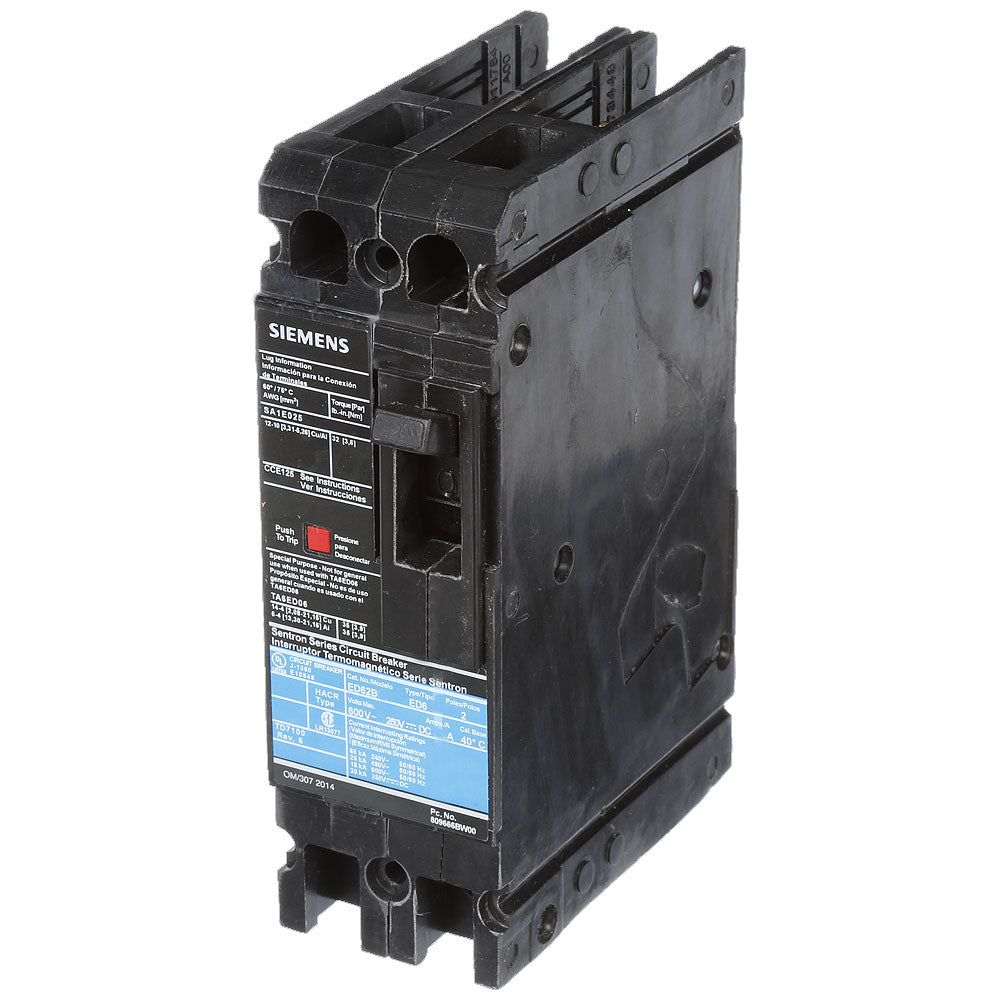

ED62B090 - Siemens 90A 600V 2-Pole ED Frame Bolt-On Circuit Breaker Thermal Magnetic

ED62B090

ED62B090 is a Siemens molded case circuit breaker designed for industrial and commercial electrical applications requiring reliable overload and short-circuit protection. This thermal magnetic breaker features a bolt-on mounting design and is suitable for use in low-voltage distribution systems, control panels, and machinery protection circuits. The ED62B090 offers adjustable trip settings for precise coordination with downstream protective devices and system safety requirements.

• Amperage Rating: 90 Amps
• Voltage Rating: 600V AC
• Number of Poles: 2 Pole
• Frame Type: ED
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic
• Interrupt Rating at 600V AC: 18,000 Amps
• Interrupt Rating at 480V AC: 25,000 Amps
• Interrupt Rating at 240V AC: 65,000 Amps
• Protection Type: Overload and Short Circuit
• Operating Temperature Range: -25 degrees C to 75 degrees C
• Standard: UL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED62B090
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643209626
• Dimensions : 6.693 x 5.906 x 2.786
• Weight : 5
• Certification : IEC Certified, UL Listed
