Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED62B050

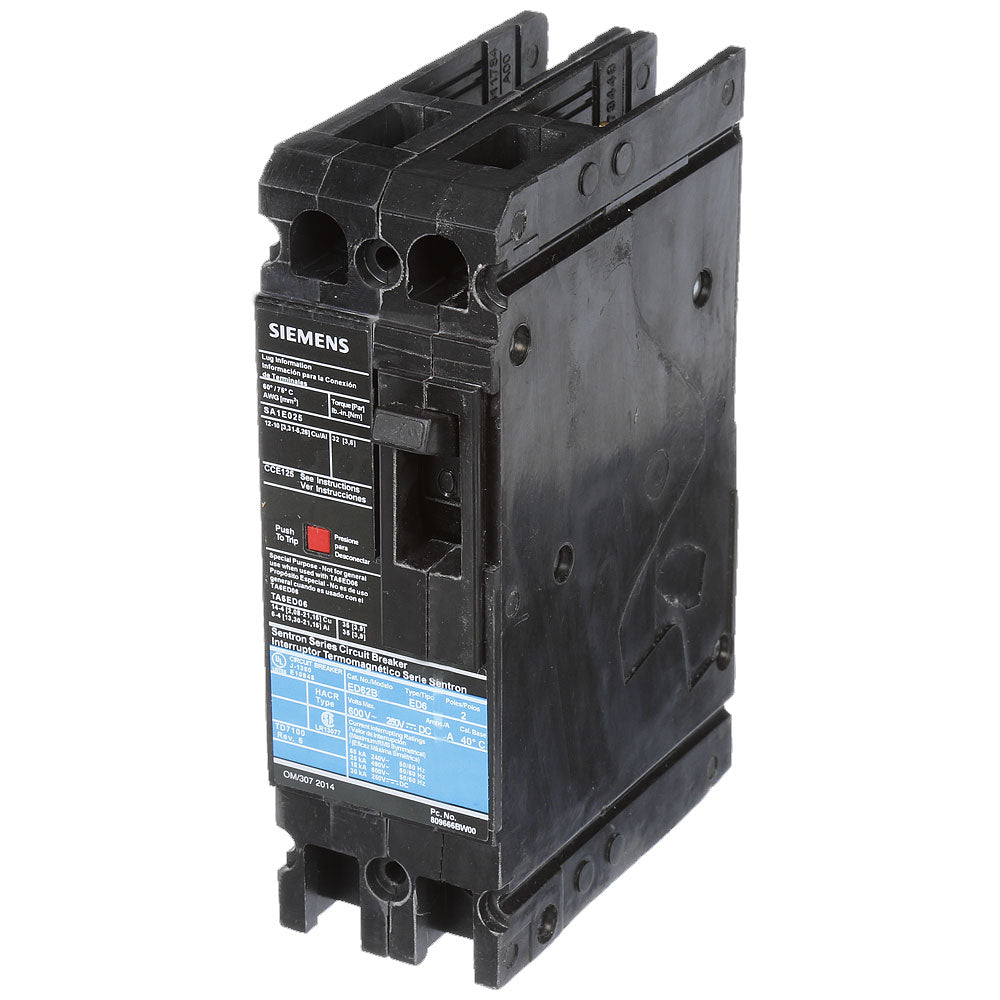

ED62B050 - Siemens ED frame 2-pole molded case circuit breaker rated at 50A and 600V AC with thermal-magnetic trip.
This bolt-on circuit breaker features a thermal-magnetic trip unit for reliable overcurrent protection in commercial and industrial applications. It includes load-side lug terminals and supports wire sizes from 10 to 1/0 AWG CU/AL. Dimensions are 2.00in W x 6.35in L x 3.92in D with 40C rating and HACR rated for reverse feed capability.
Key Specifications
- Amperage: 50A
- Voltage: 600V AC
- Poles: 2
- Frame: ED
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 18kA @ 600V, 25kA @ 480V, 65kA @ 240V
- Wire Range: 10 - 1/0 AWG CU/AL
- Connection: Load-side lugs included
- Temperature Rating: 40C
- HACR Rated: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ED62B050
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 50
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643209589
- GTIN : 00783643209589
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 2.778
- Weight : 5
- Certification : IEC Certified, UL Listed
