Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED62B030L

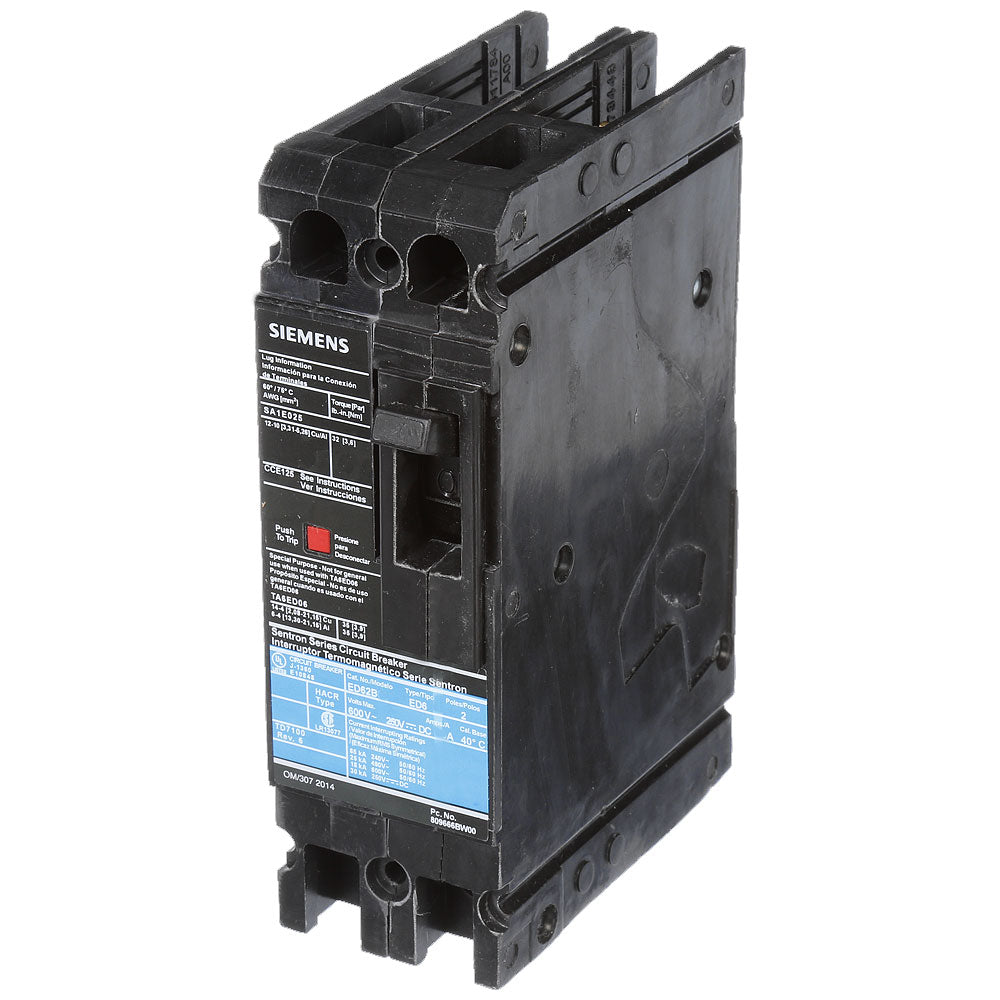

ED62B030L is a Siemens 2-pole molded case circuit breaker rated for 30 amps and 600 volts designed for reliable circuit protection.ED62B030L features the ED frame from Siemens' Sentron series, providing standard interrupting capacity with an 18 kAIC rating at 600V and 25 kAIC at 480V. It is UL 489 and IEC 60947-2 certified, suitable for use in industrial and commercial applications with a 40¡C operating temperature rating. The breaker includes line and load side lugs for easy installation.
- Amperage: 30 Amp
- Voltage: 600 Volt
- Poles: 2
- Interrupt Rating: 18 kAIC at 600V, 25 kAIC at 480V
- Series/Frame: ED Frame, Sentron Series
- Trip Unit: Standard thermal-magnetic
- Mounting Type: Molded case
- Certifications: UL 489, IEC 60947-2
- Operating Temperature: 40¡C
- Connection: Line and load side lugs installed
Specifications
- Part Number: ED62B030L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643087590
- GTIN : 00783643087590
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 2.771
- Weight : 2.712
- Certification : Ul Listed, IEC
