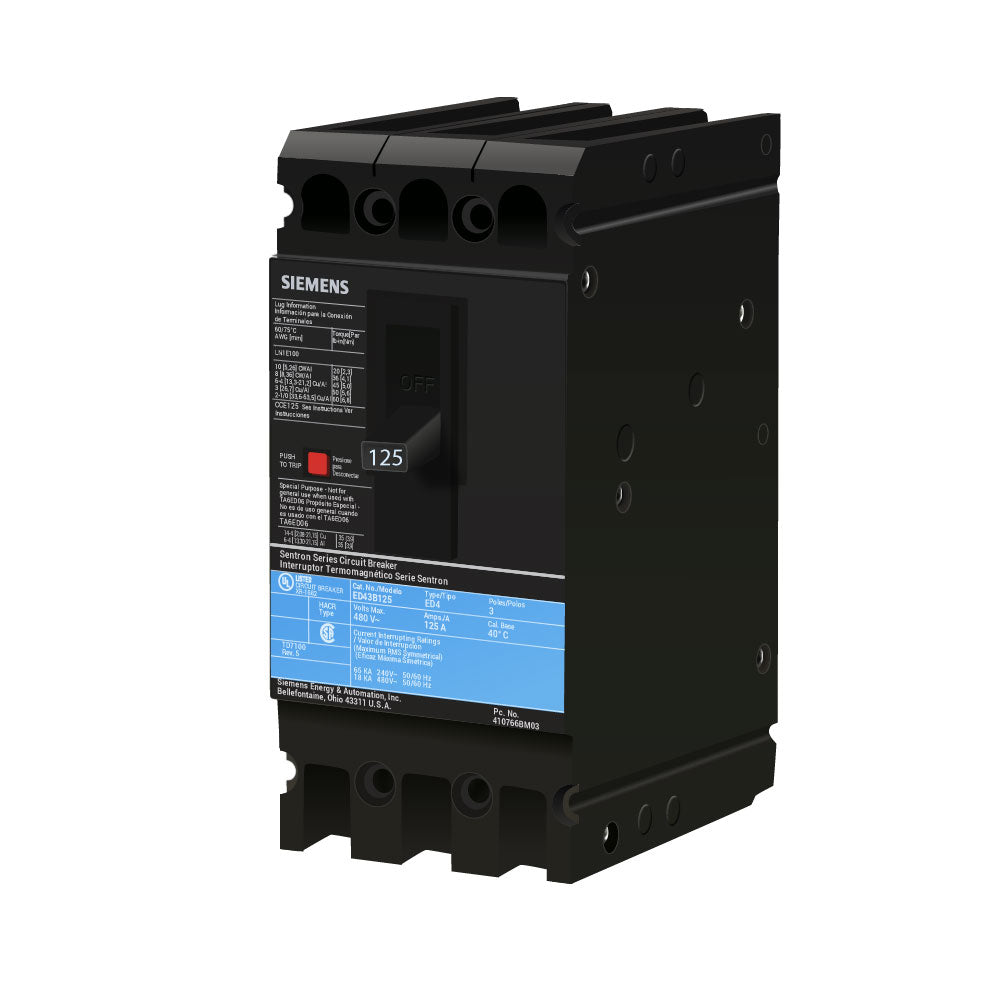

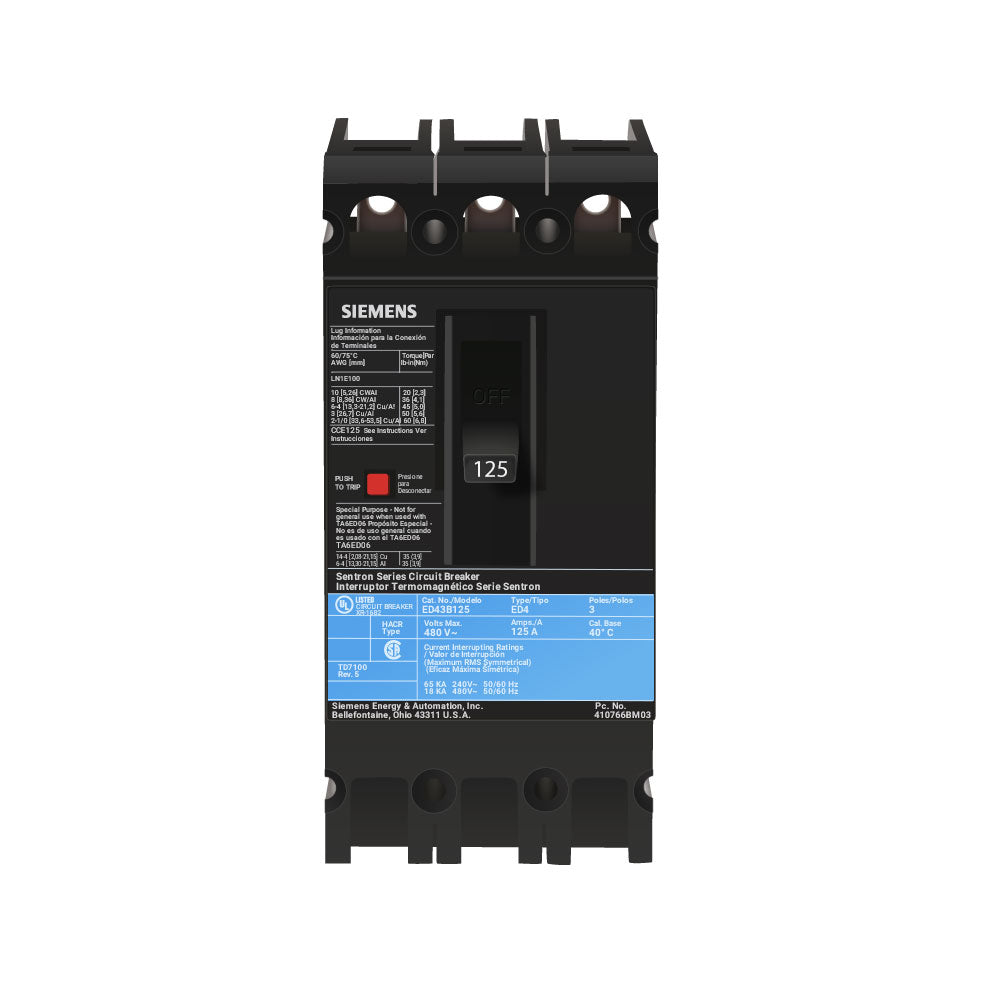

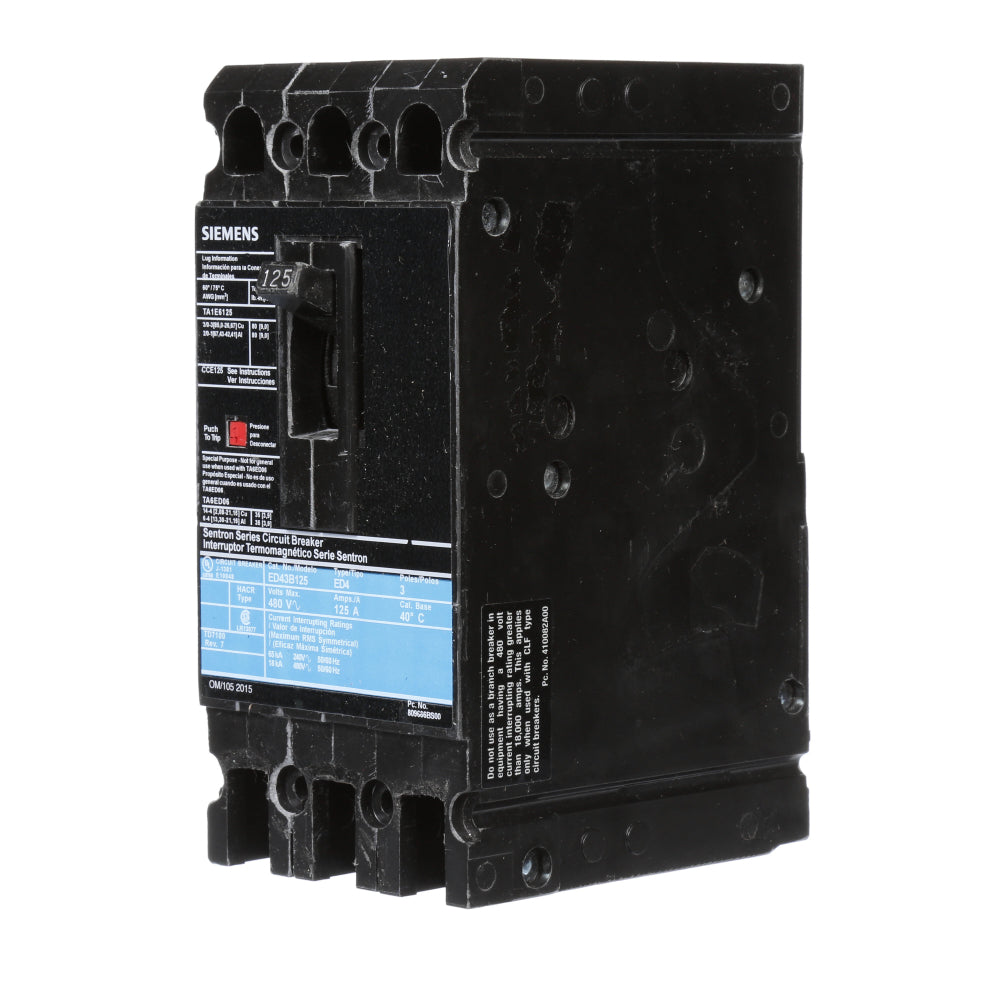

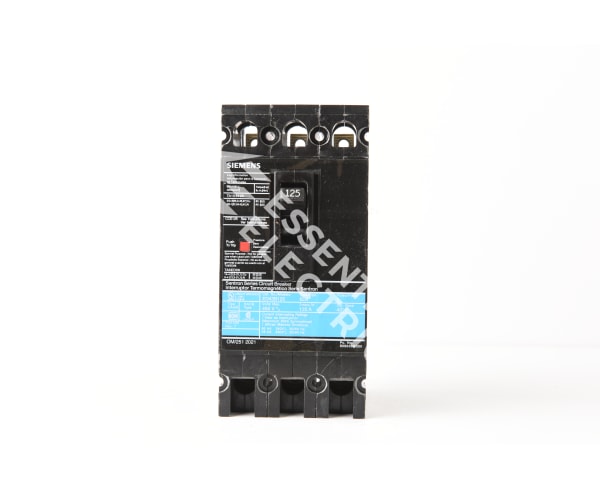

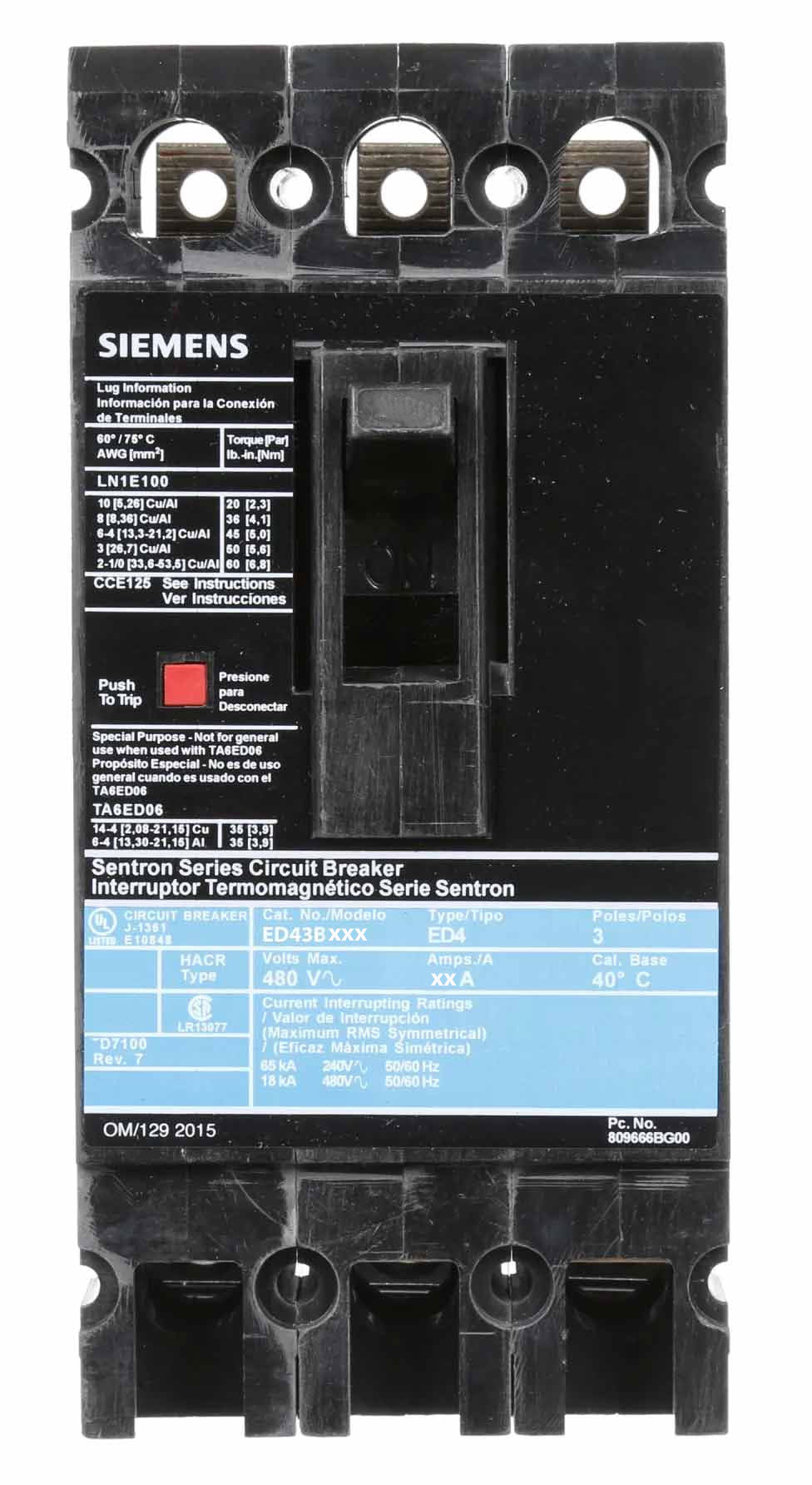

ED43B125 - Siemens 125 Amp 480V 3-Pole ED Frame Molded Case Circuit Breaker, 18kAIC, Bolt-On, Thermal Magnetic Trip, UL/IEC

ED43B125

ED43B125 - Siemens 3-pole molded case circuit breaker rated at 125 Amps, 480VAC with thermal magnetic protection.The Siemens ED43B125 features an ED frame, bolt-on connection, and long time plus instantaneous trip functions for reliable circuit protection in panelboard applications. It includes load side lugs and supports wire gauges from AWG 3 to 3/0 Cu or AWG 1 to 2/0 Al.Key Specifications

• Amperage: 125A
• Voltage: 480VAC
• Poles: 3
• Frame: ED
• Mounting Type: Bolt-On
• Interrupt Rating: 18kAIC at 480VAC
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Terminal Connection: Load Side Lug
• Certifications: UL, IEC
• Wire Gauge: AWG 3 to 3/0 Cu, AWG 1 to 2/0 Al

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B125
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209503
• GTIN : 00783643209503
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.966
• Weight : 3.79
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 3 to AWG 3/0, Cu, AWG 1 to AWG 2/0, Al
