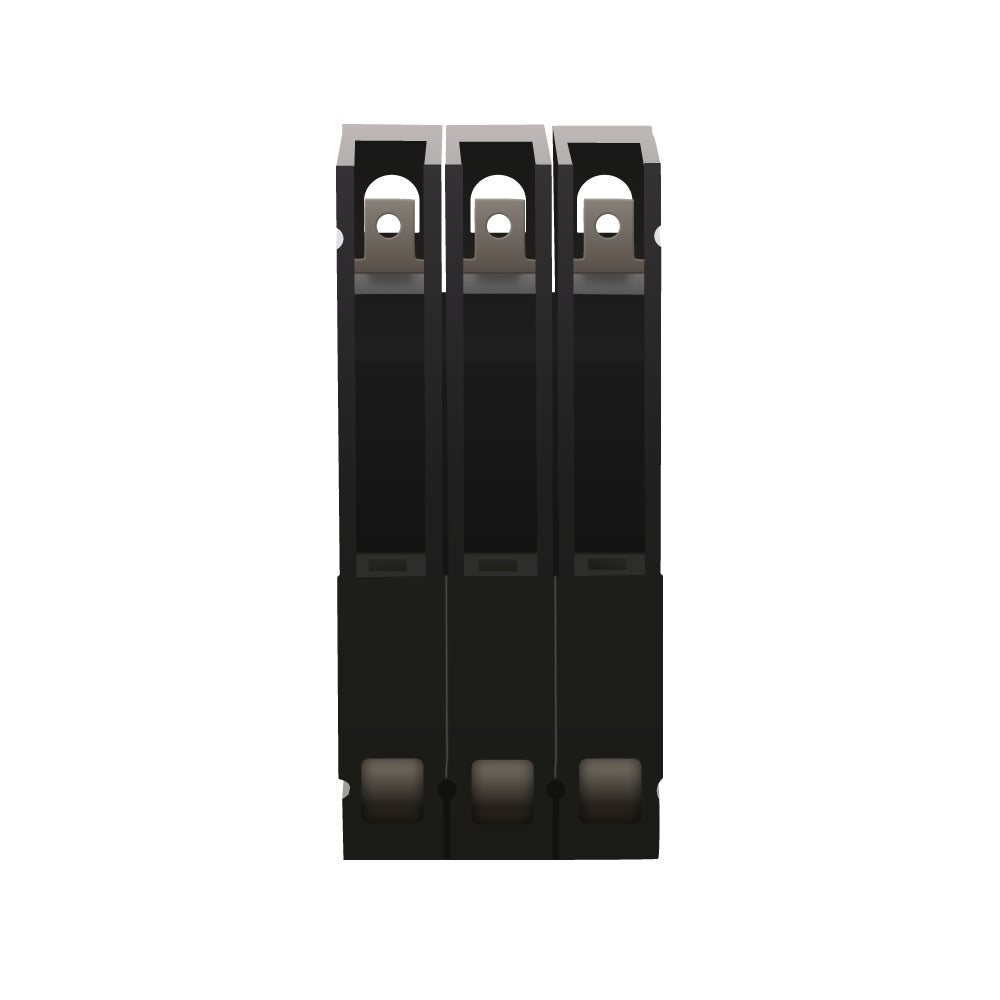

ED43B050 - Siemens 3 Pole 50 Amp 480VAC Molded Case Circuit Breaker, ED Frame, 18kAIC, Bolt-On, Thermal Magnetic Trip, UL/IEC

ED43B050

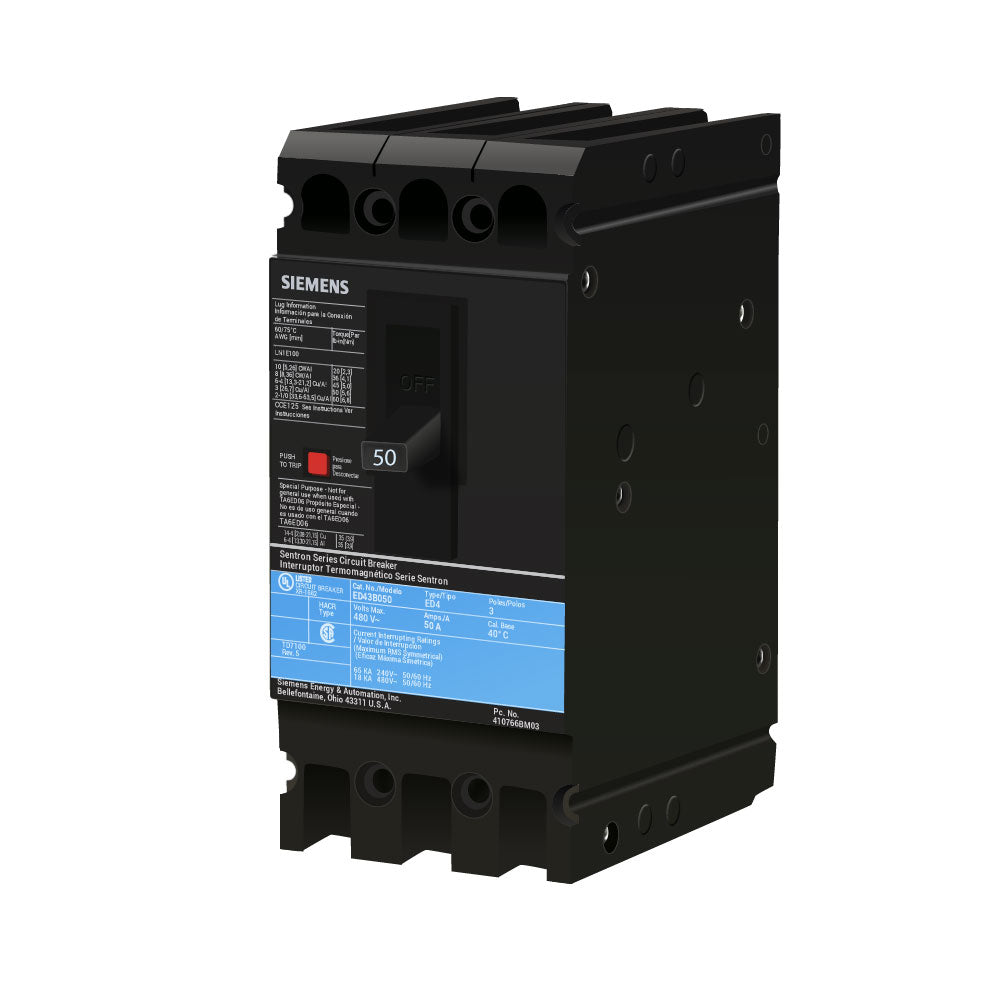

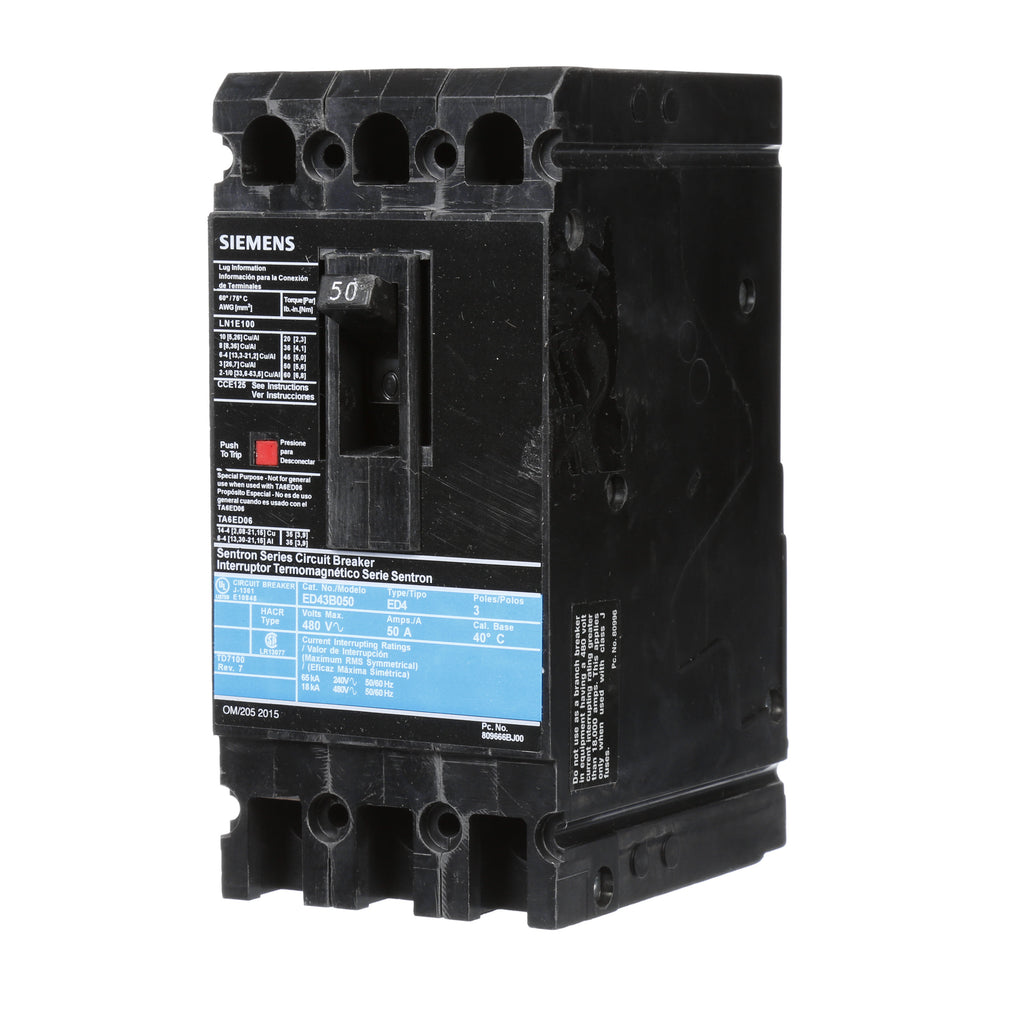

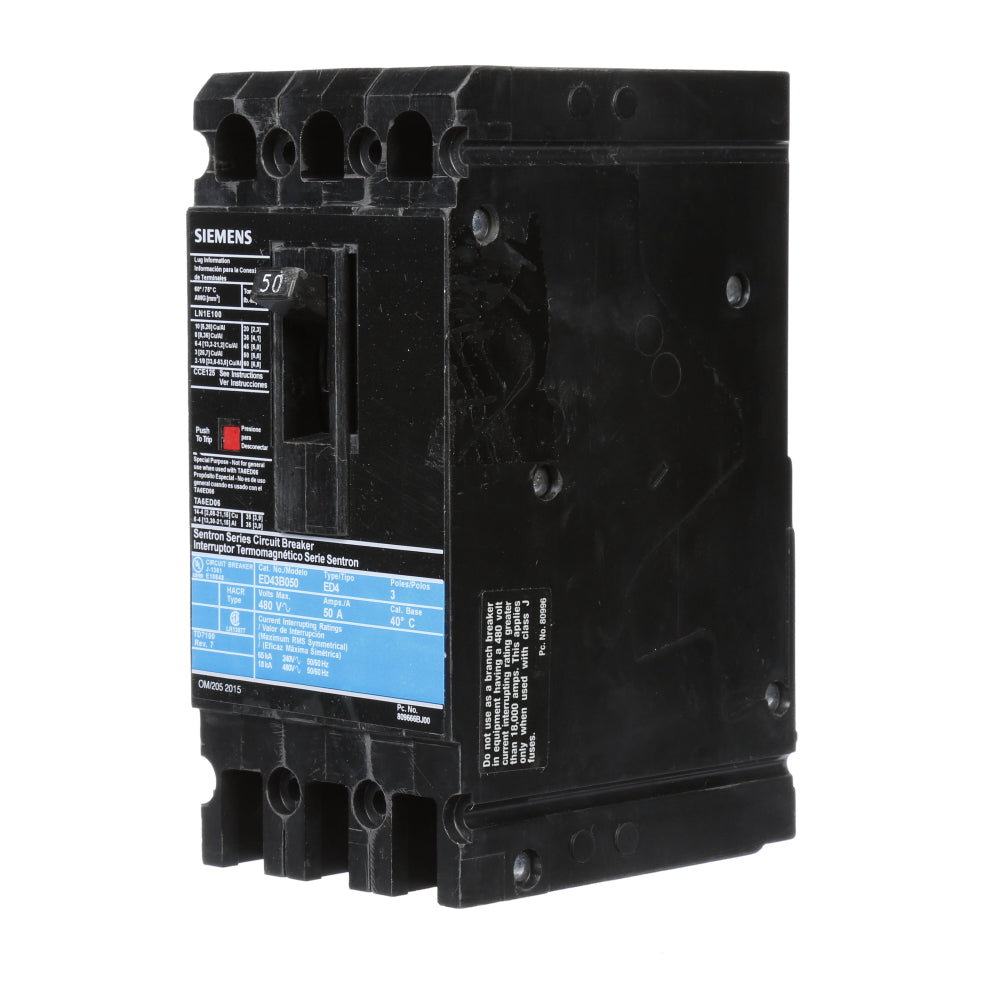

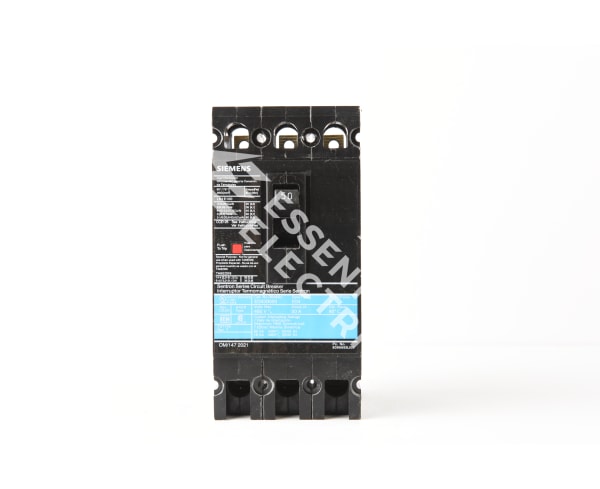

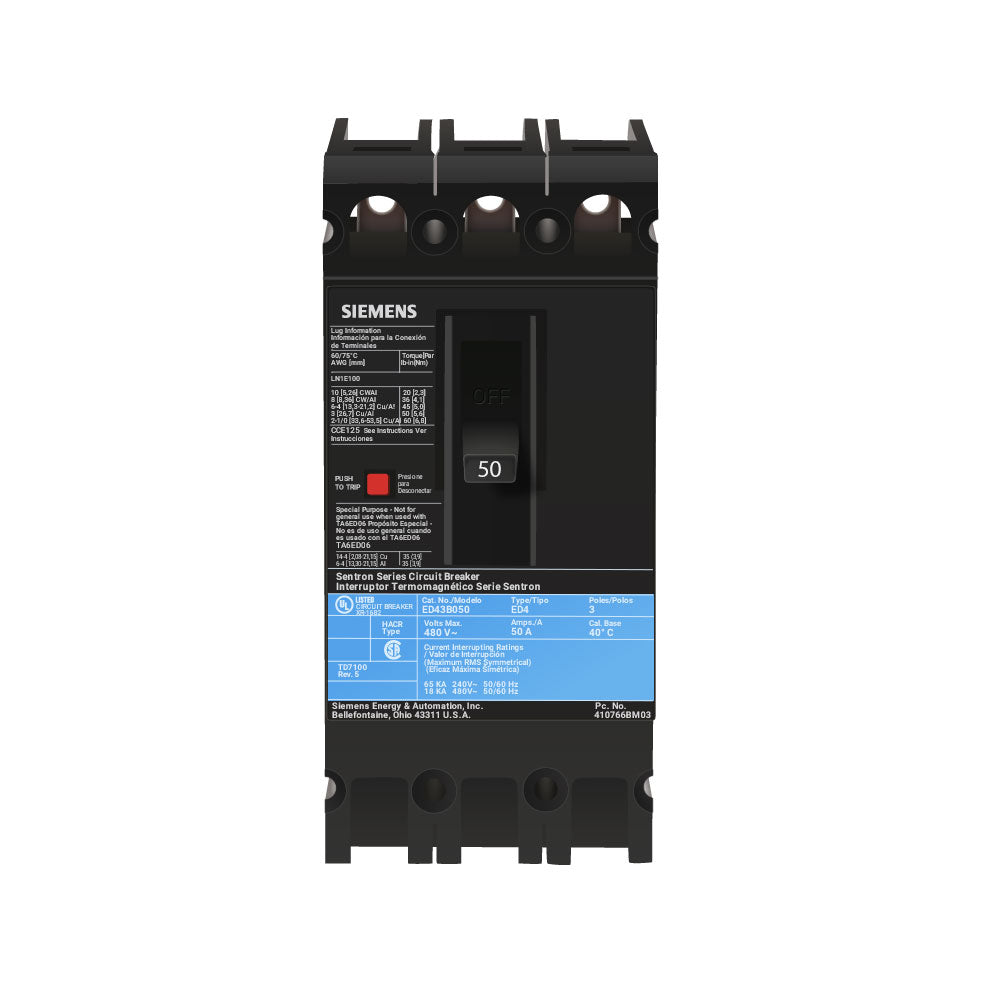

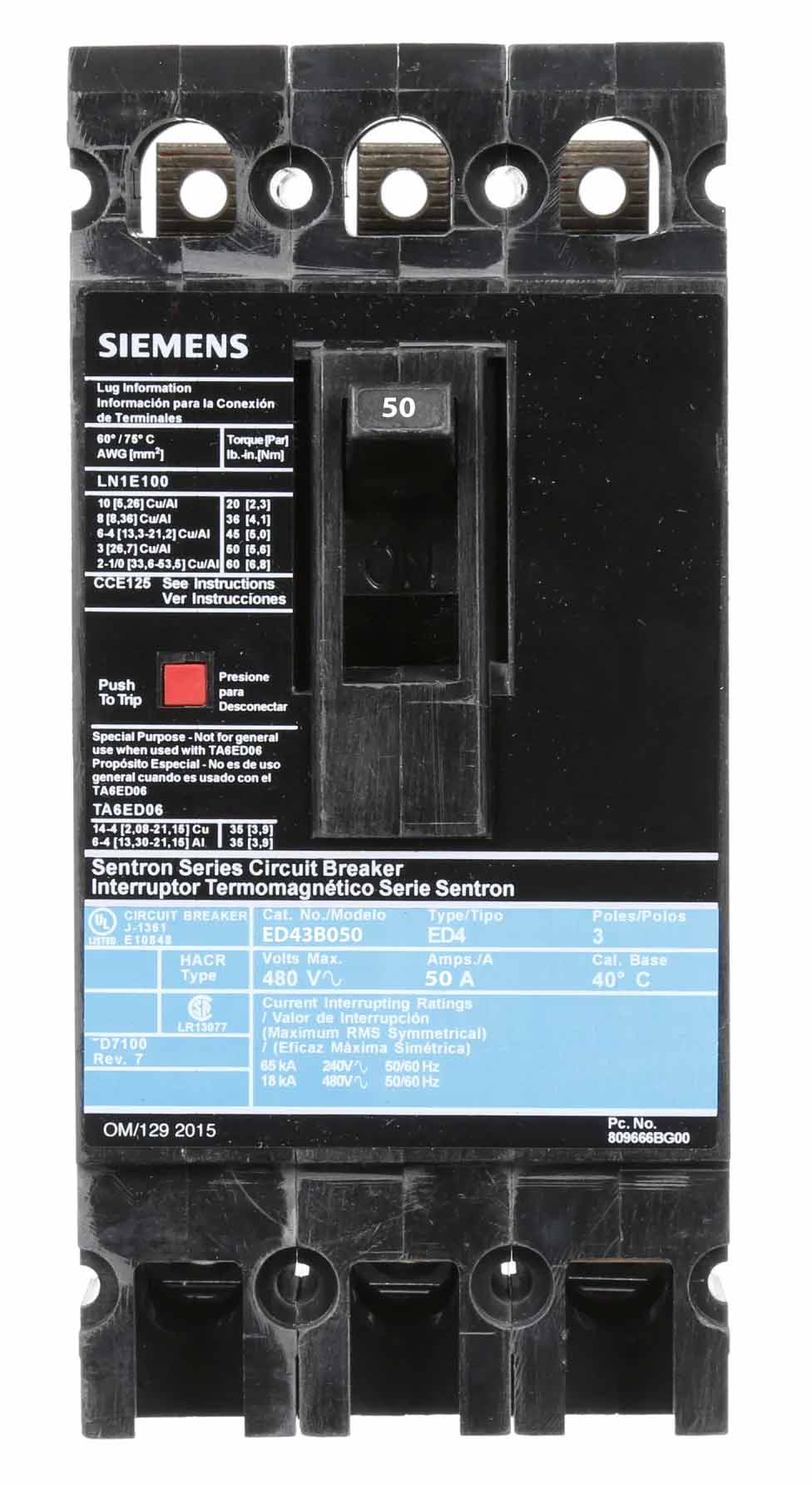

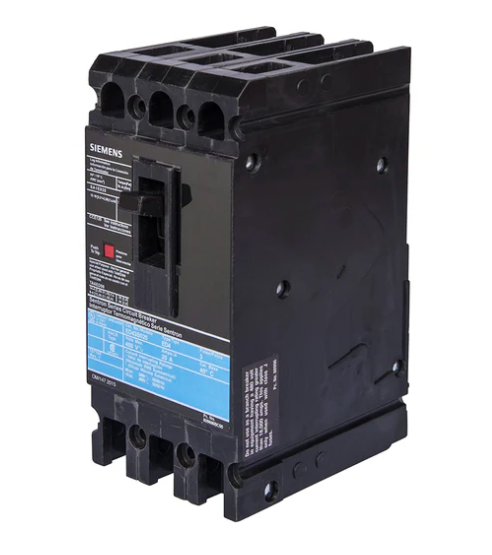

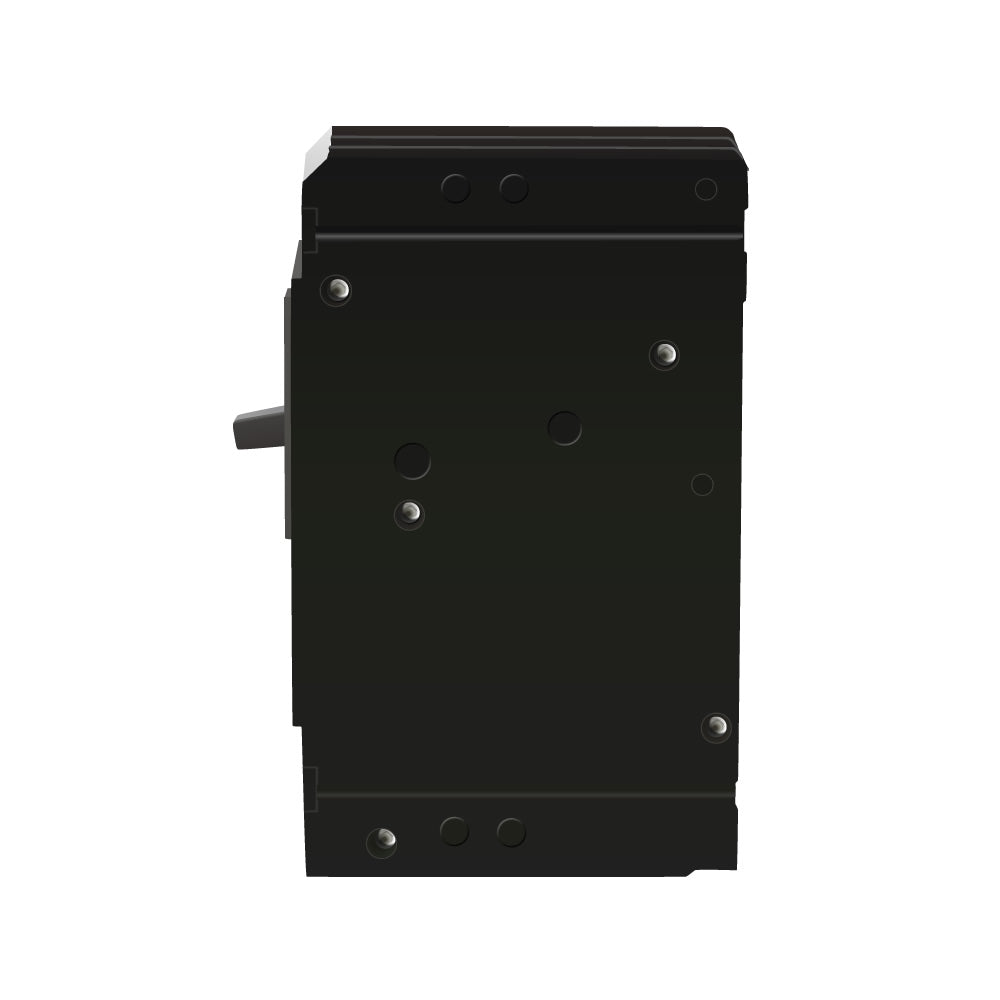

ED43B050 is a Siemens Sentron Series ED frame molded case circuit breaker rated at 50A, 3-pole, 480V.

Siemens ED43B050 features thermal-magnetic trip with long-time and instantaneous functions, bolt-on mounting, and standard interrupting capacity of 18kA at 480V. It meets UL 489 and IEC 60947-2 standards, designed for Sentron panelboards and switchboards with load side lug terminals and 40C temperature rating.

Key Specifications

• Part Number: ED43B050
• Manufacturer: Siemens
• Series/Frame: Sentron ED
• Poles: 3
• Amperage: 50A
• Voltage: 480VAC
• Phase: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA at 480V
• Trip Unit: Thermal-Magnetic (LI)
• Connection: Load Side Lugs
• Certifications: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B050
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209435
• GTIN : 00783643209435
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.952
• Weight : 3.691
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
