Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

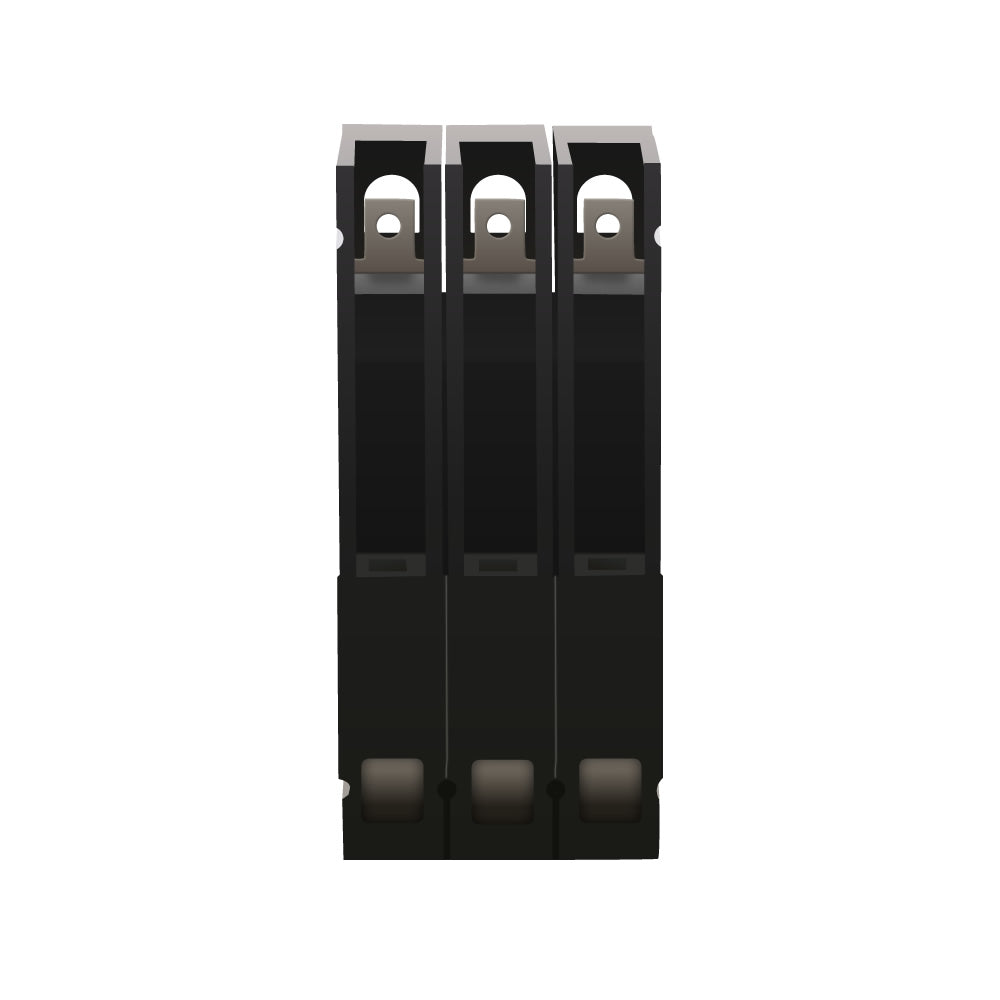

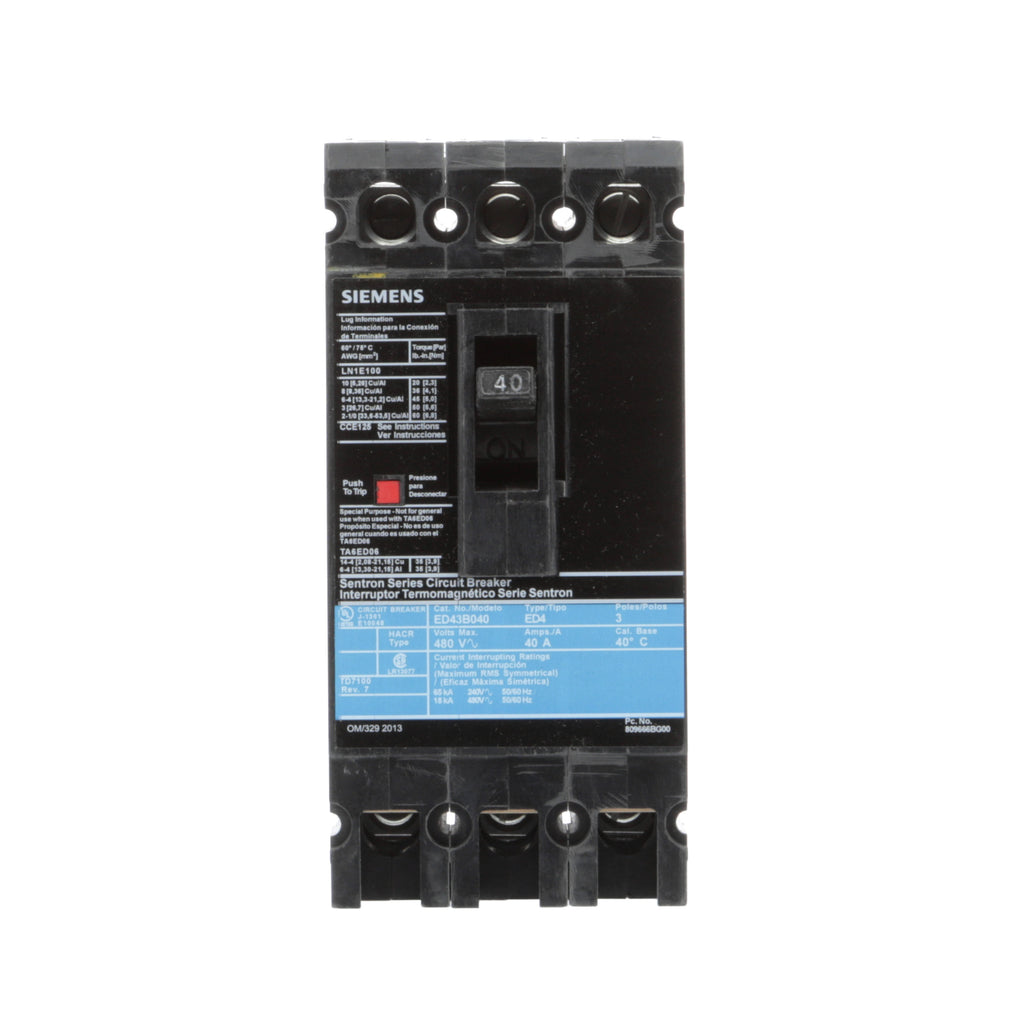

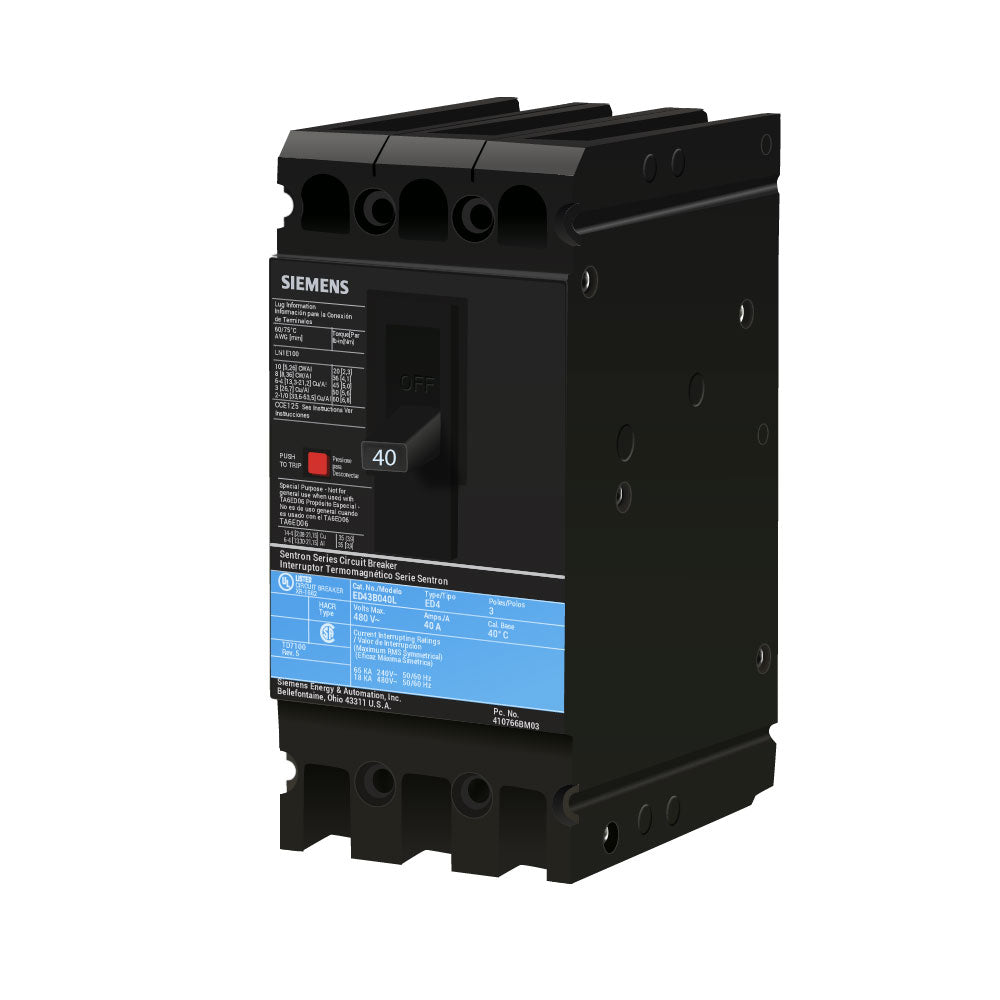

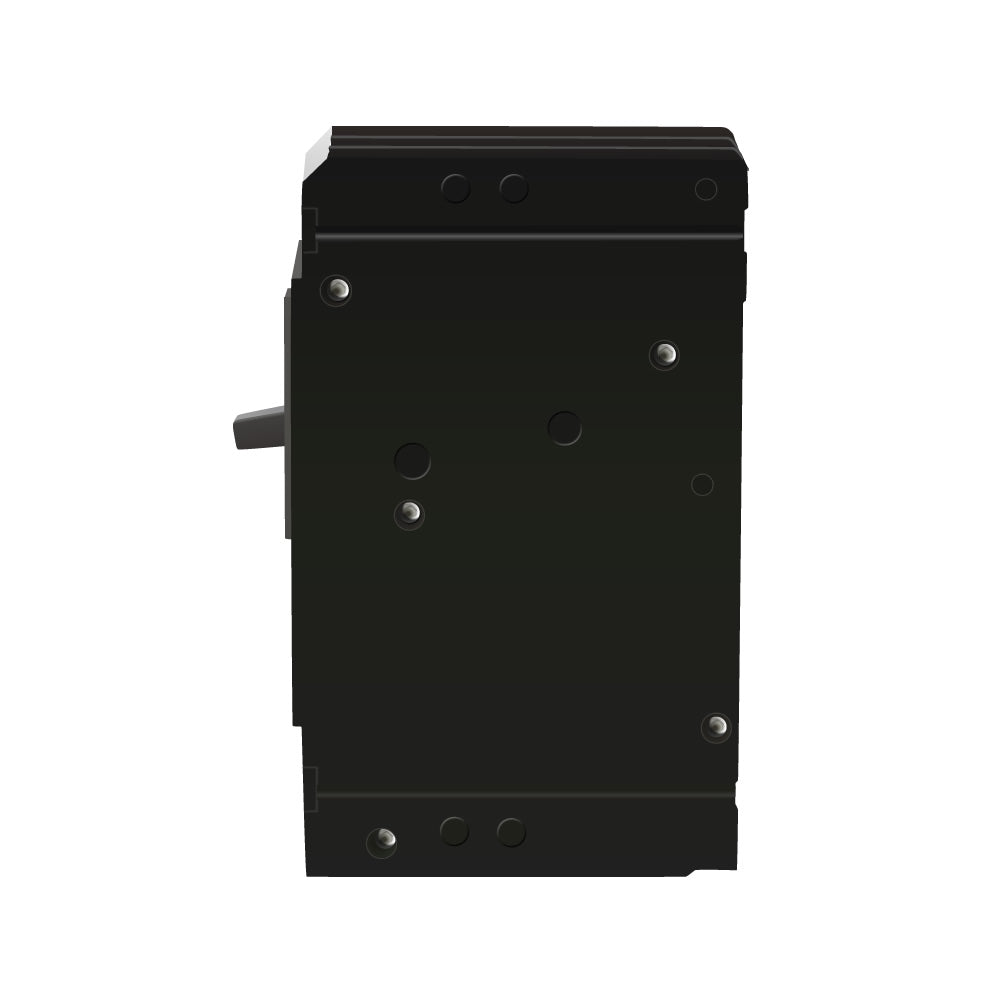

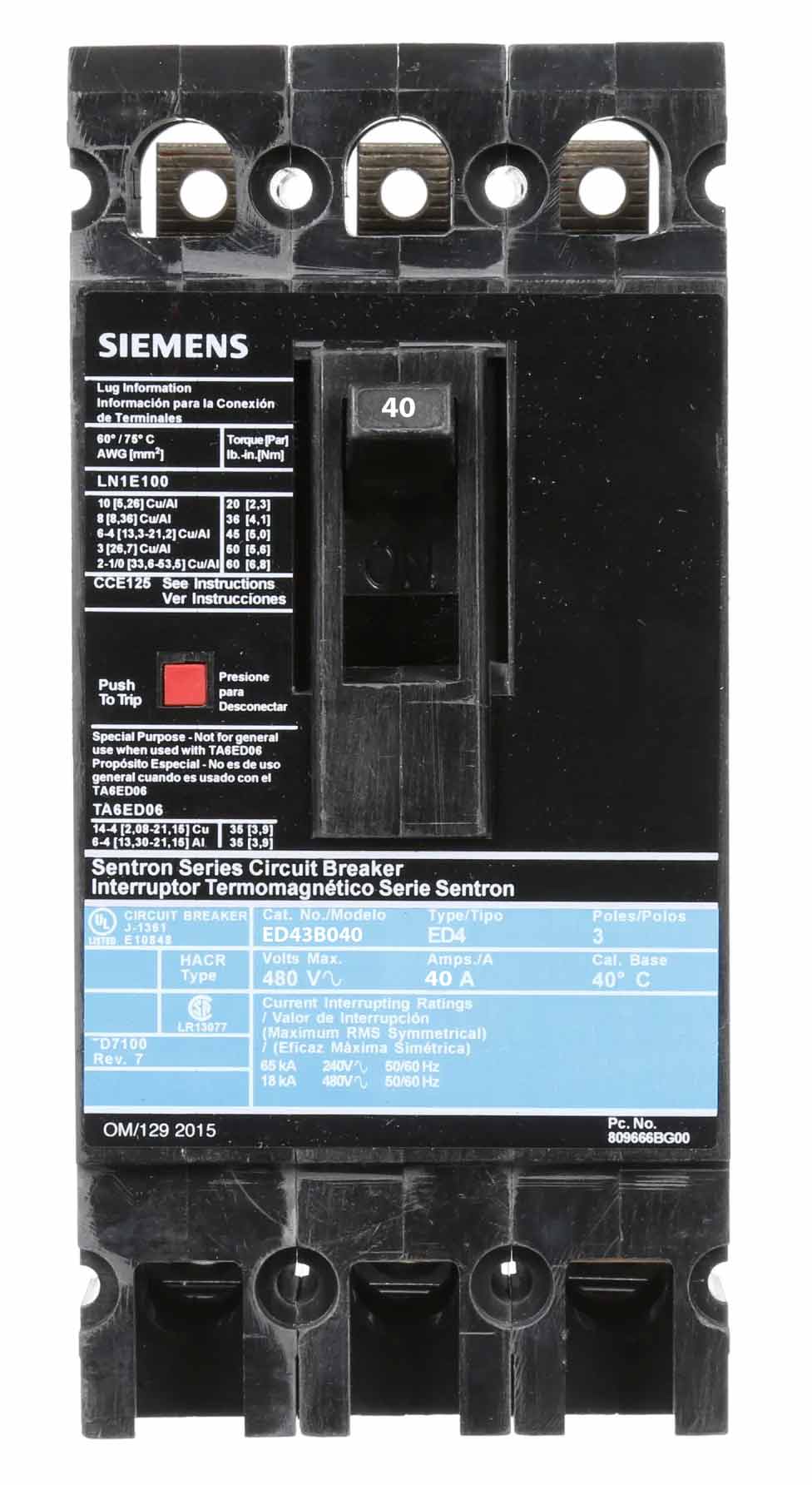

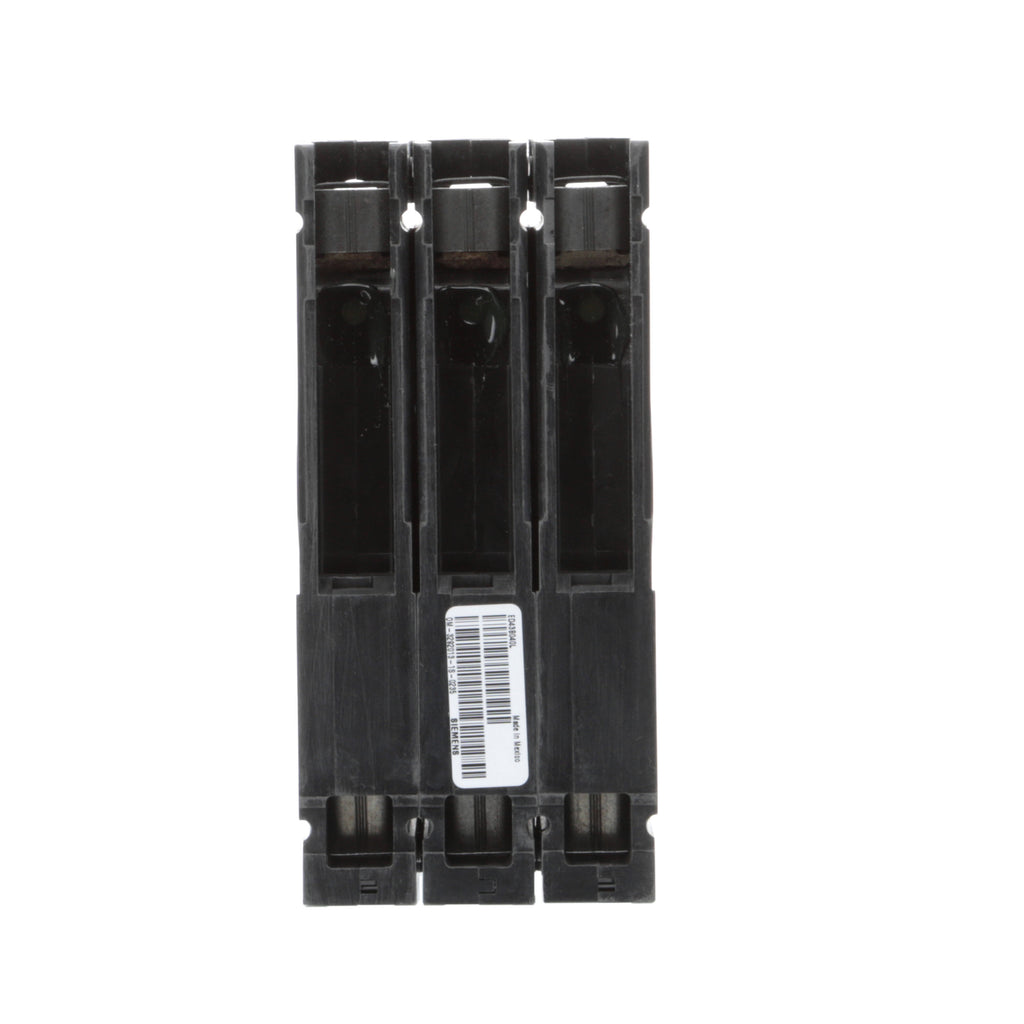

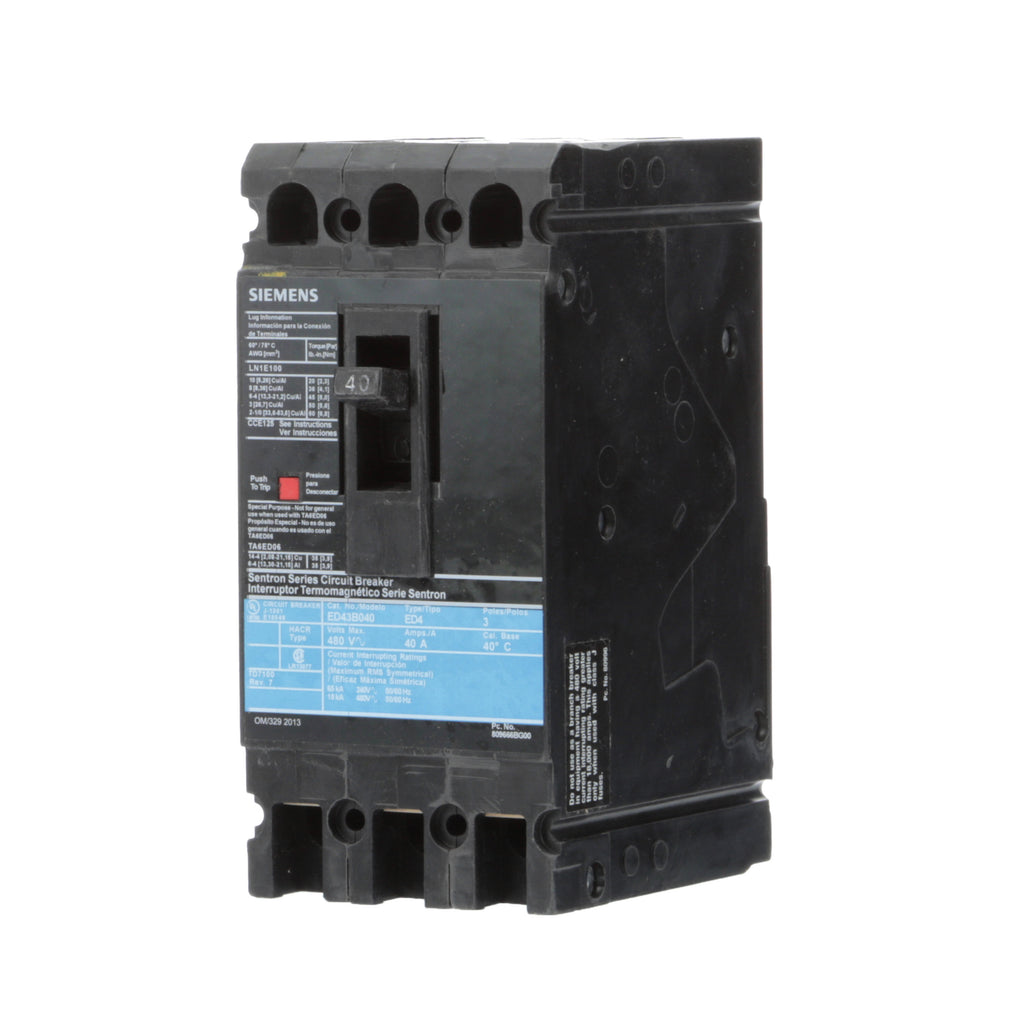

ED43B040L

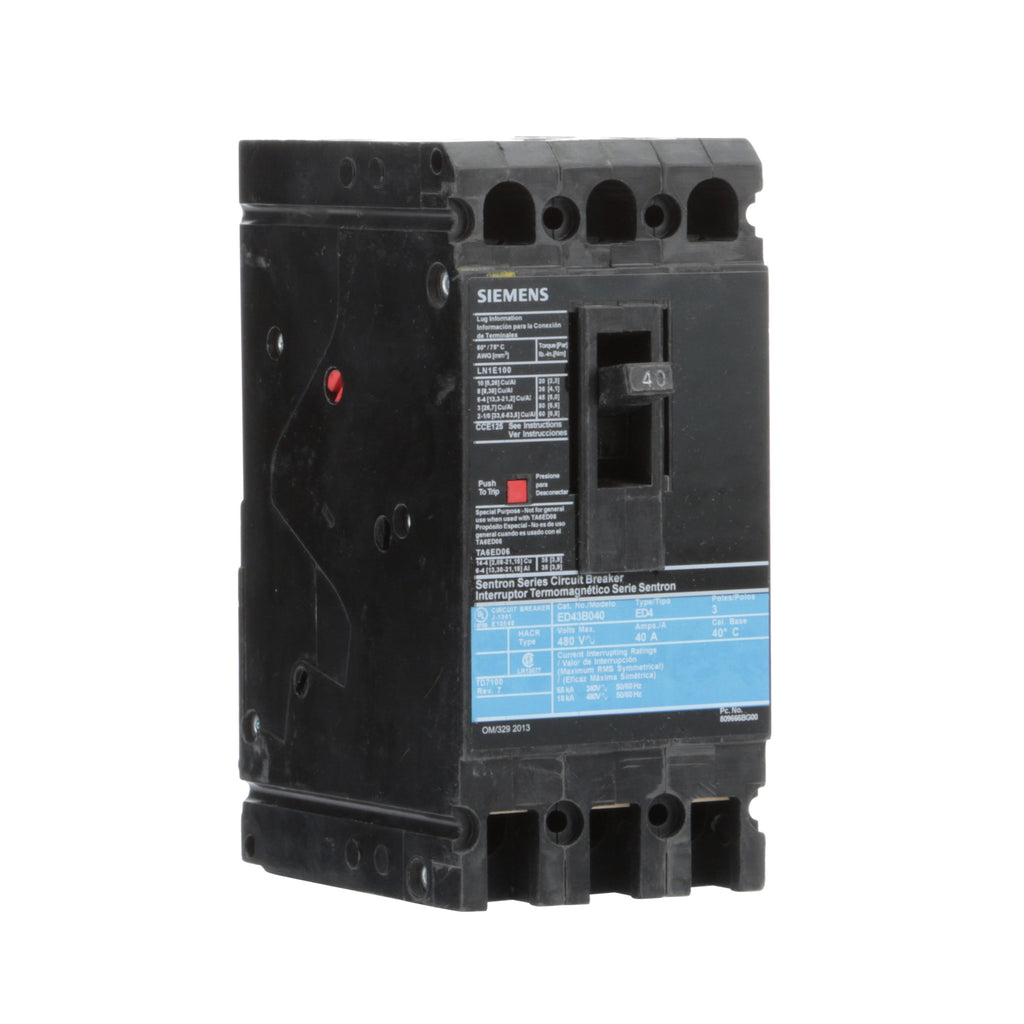

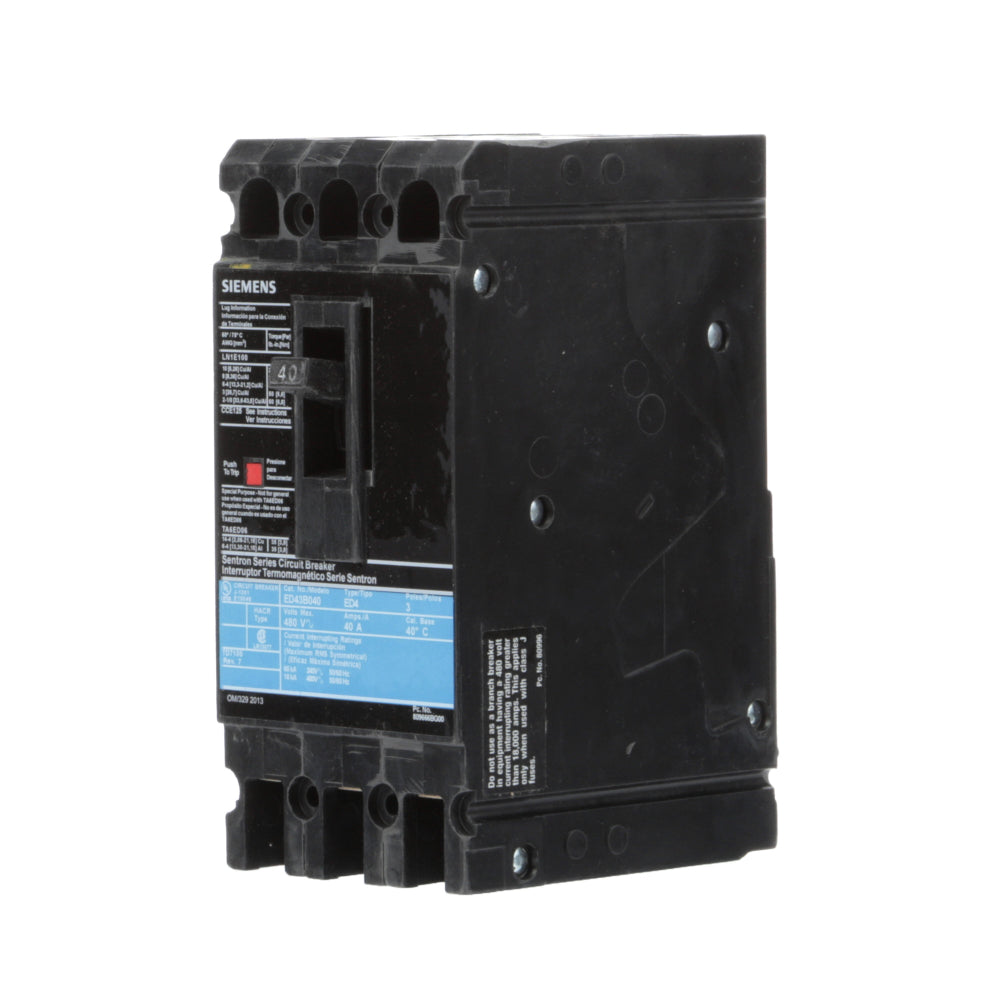

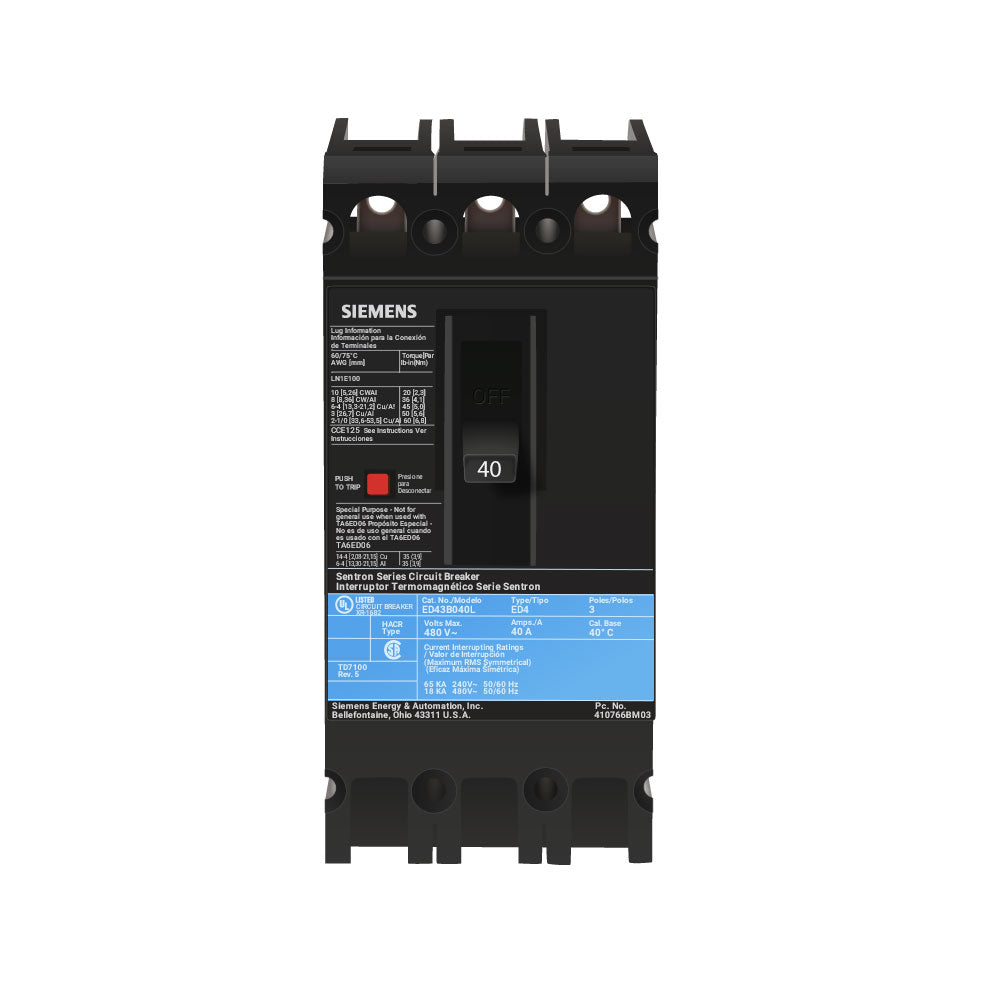

ED43B040L is a Siemens low voltage molded case circuit breaker with a 40 amp rating and 3 poles, designed for reliable protection in electrical distribution systems.This Siemens ED frame breaker features a thermal-magnetic trip unit, 18kA interrupt rating at 480V, and meets UL 489 and IEC 60947-2 standards. It supports wire sizes from 10 to 1/0 AWG (CU/AL) with load lug mounting and is rated for use at 40 degrees Celsius ambient temperature.
- Amperage: 40A
- Voltage: 480VAC / 250VDC
- Poles: 3
- Frame/Series: ED4
- Interrupt Rating: 18kA at 480V
- Trip Unit: Thermal-Magnetic
- Mounting Type: Load Lug
- Wire Range: 10 - 1/0 AWG (CU/AL)
- Standards: UL 489, IEC 60947-2
- Ambient Temp Rating: 40¡C
- Dimensions (W x H x D): 3 x 6.35 x 3.92 inches
Specifications
- Part Number: ED43B040L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 480 AC
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078364323616
- GTIN : 00783643236165
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.949
- Weight : 3.801
- Certification : Ul Listed, IEC
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
