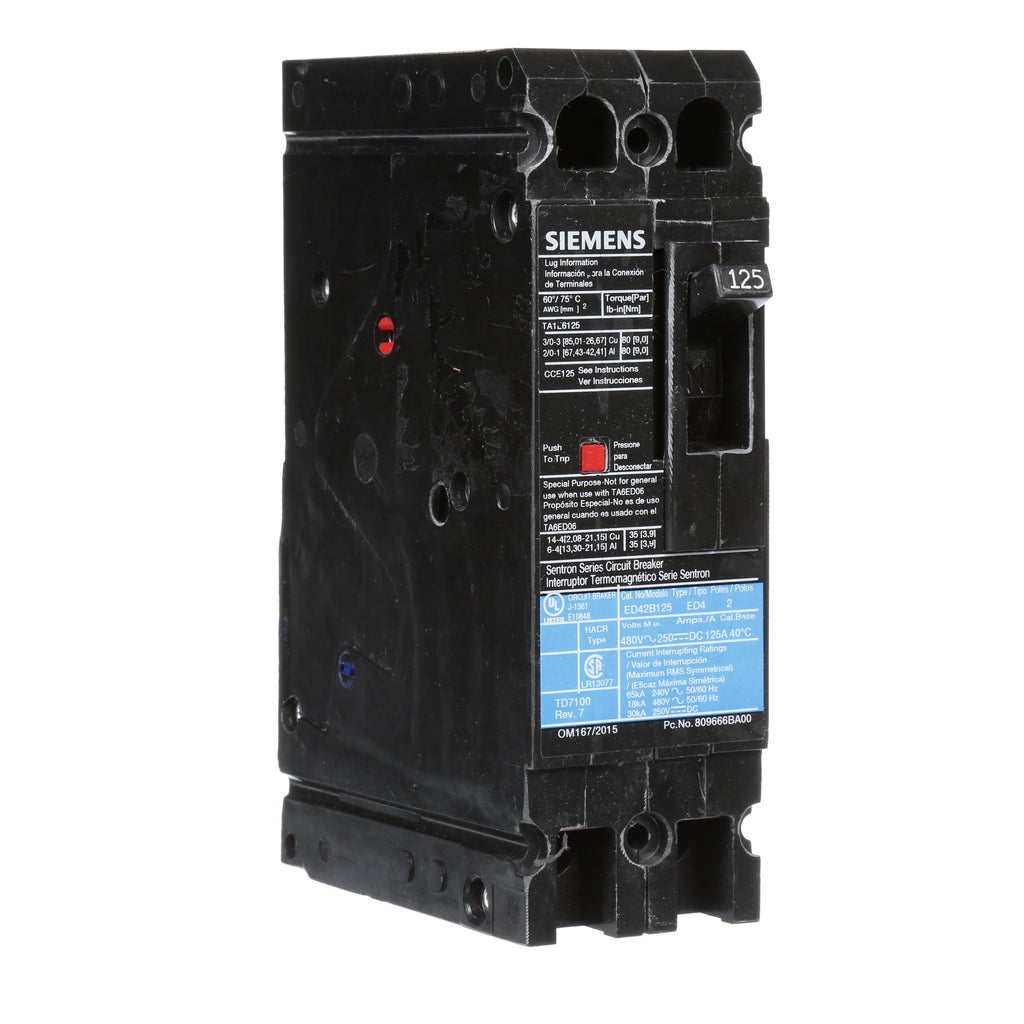

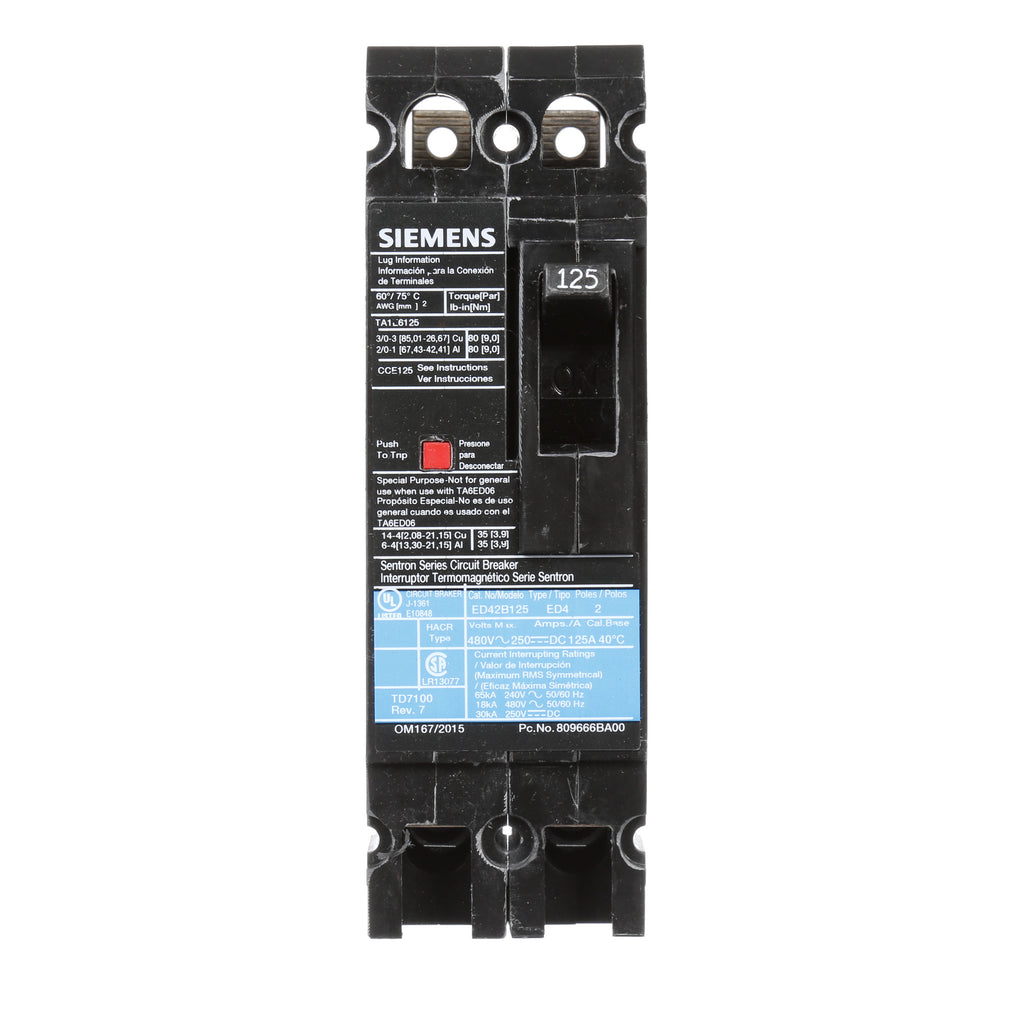

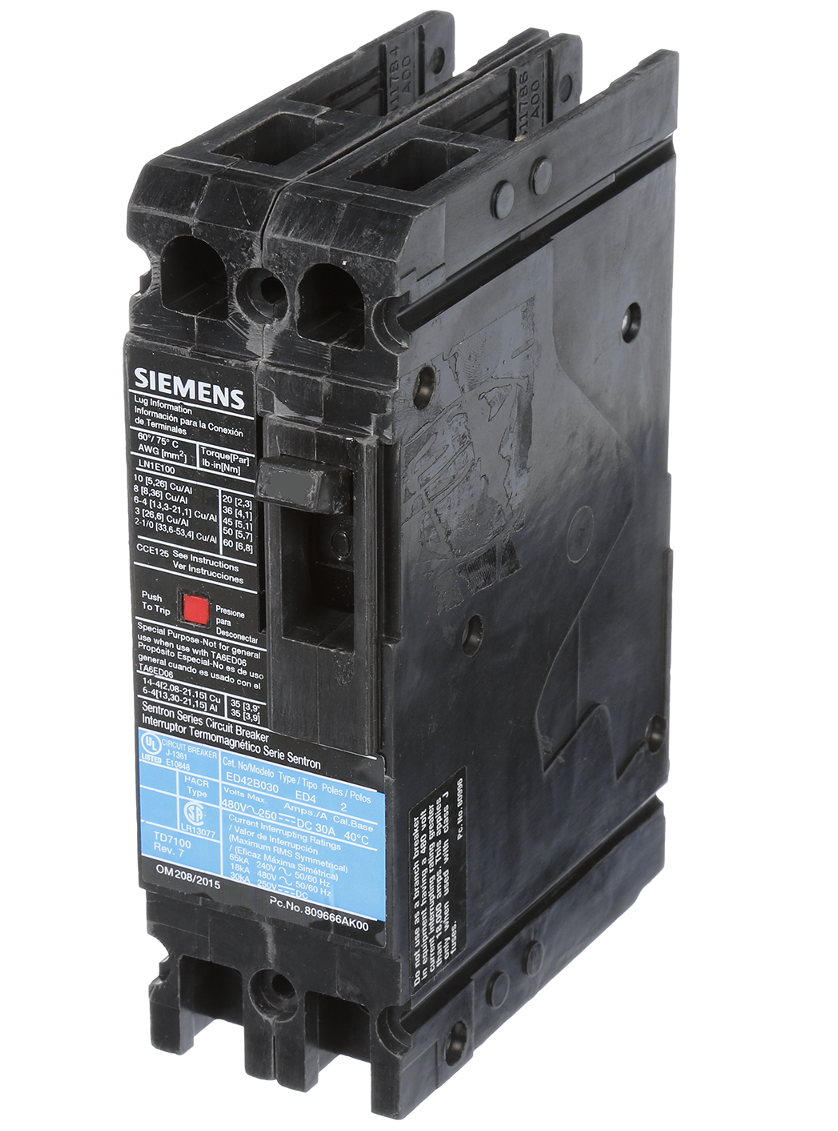

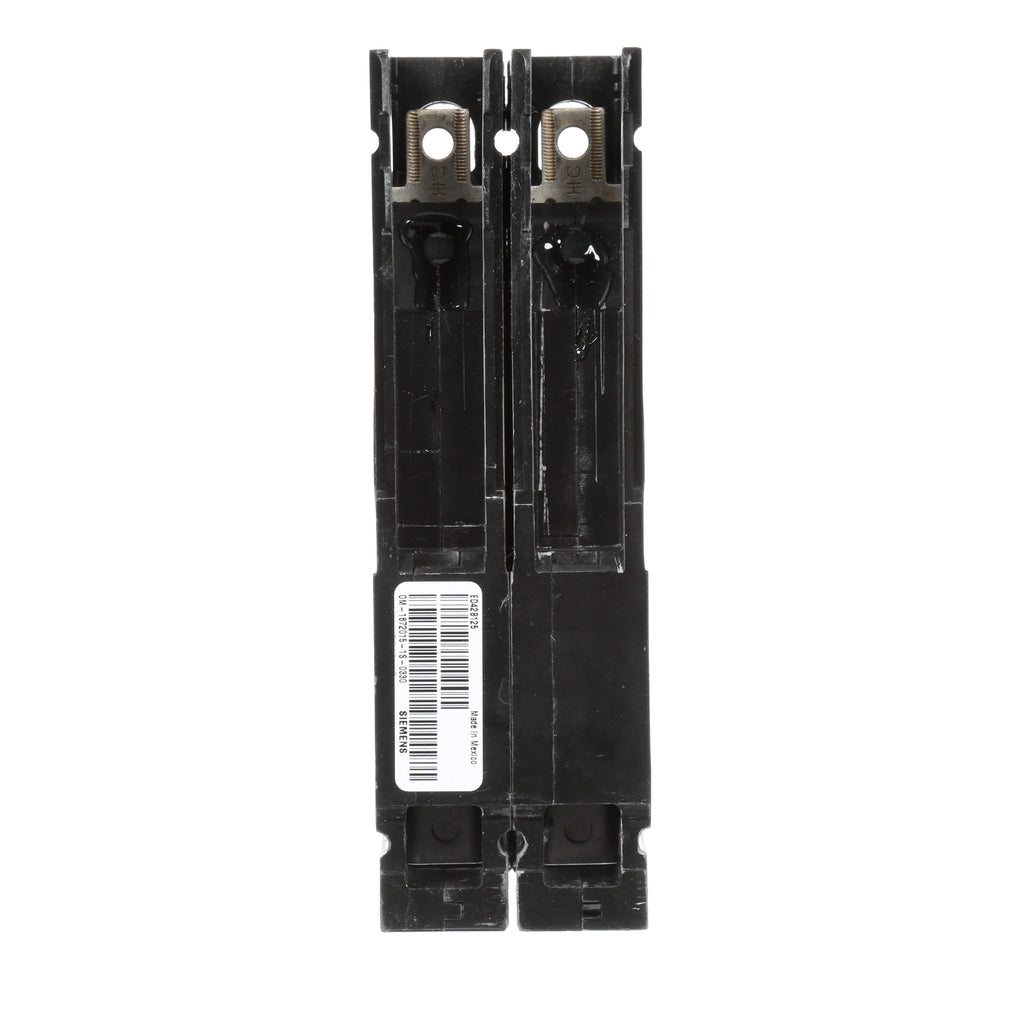

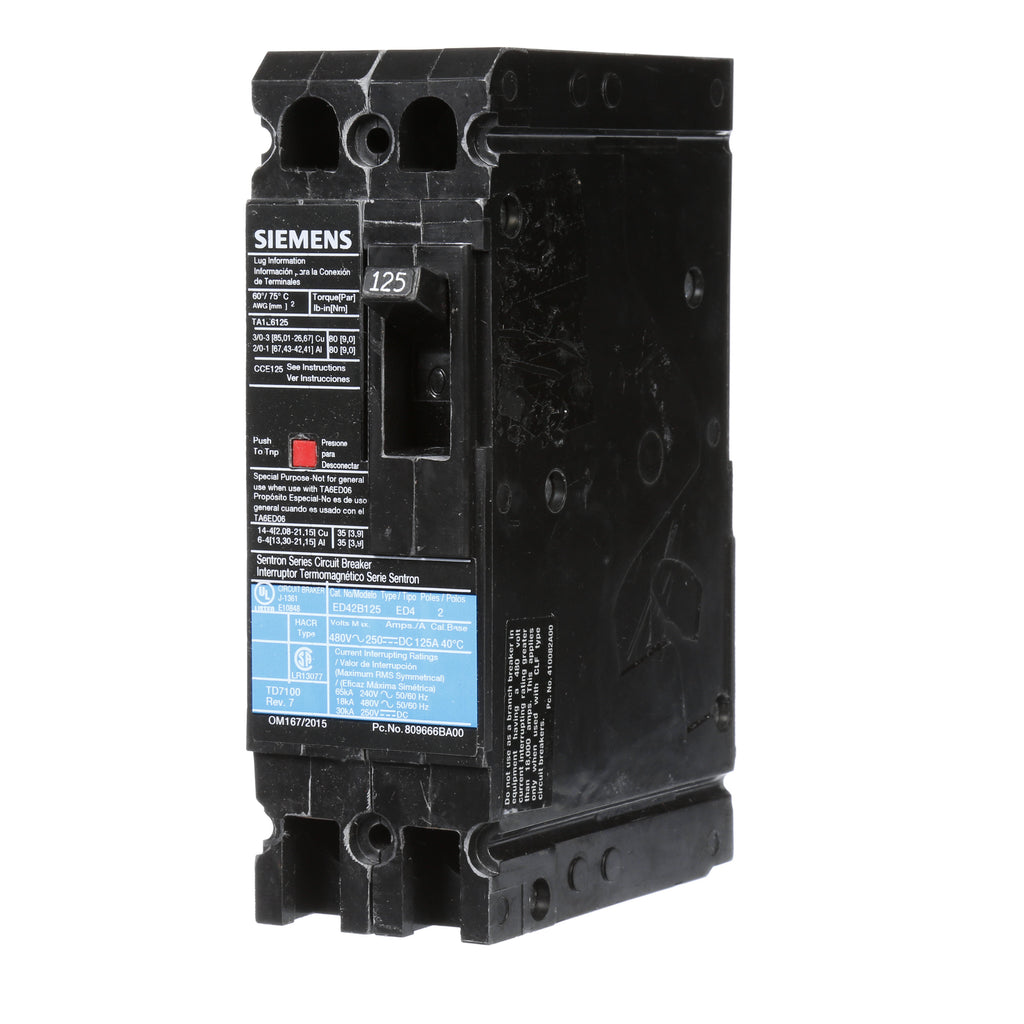

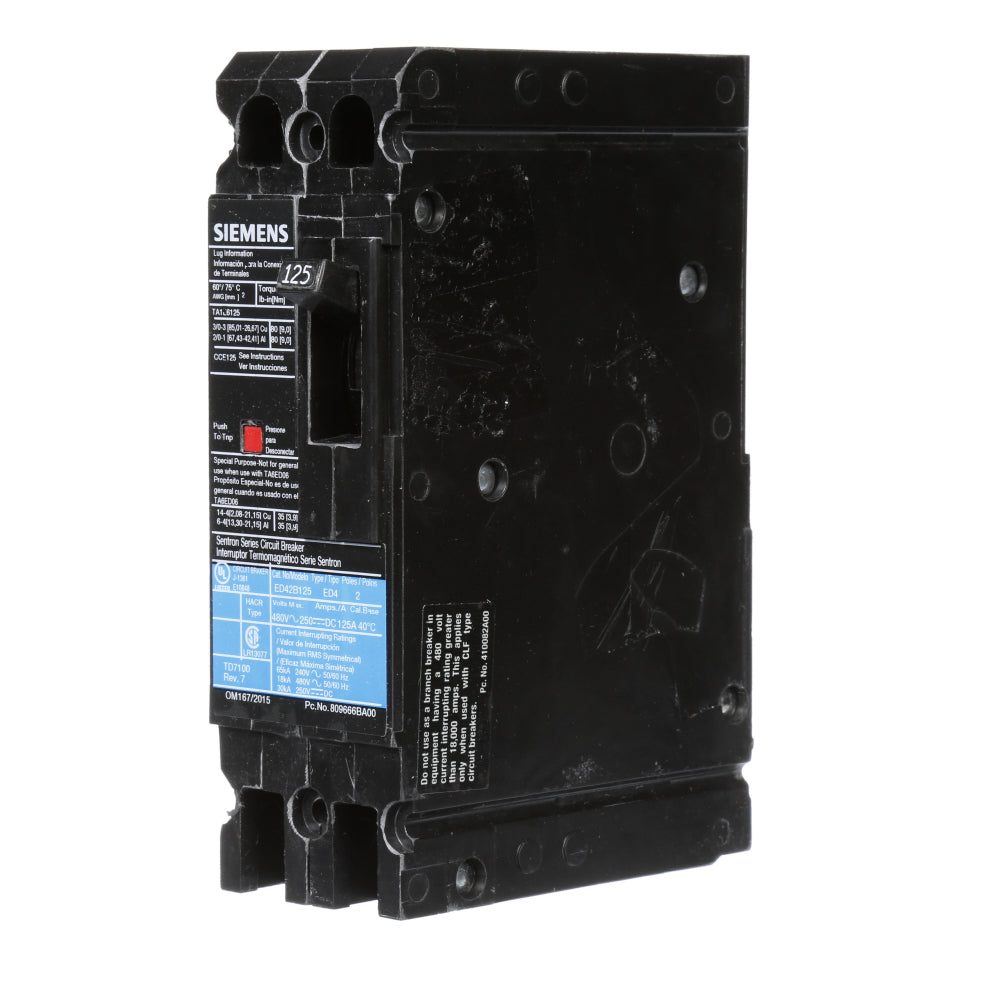

ED42B125 - Siemens 125 Amp 480 Volt 2-Pole Molded Case Circuit Breaker ED Frame

ED42B125

ED42B125 is a Siemens 2-pole molded case circuit breaker rated for 125 amps and 480 volts AC, designed for reliable circuit protection.This Siemens ED frame circuit breaker features a thermal magnetic trip unit with an interrupt rating of 18 kA at 480 VAC. It is a bolt-on type breaker suitable for panel mounting and provides robust protection for electrical circuits in commercial and industrial applications. The breaker supports 2 poles and is UL listed, ensuring compliance with safety standards.

• Amperage: 125 Amps
• Voltage: 480 VAC
• Number of Poles: 2
• Frame Type: ED
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 18 kAIC @ 480V
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
• Certifications: UL Listed
• Connection: Lug (line side)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42B125
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 1/0 AWG (Al), 3 AWG (Cu) Max. Wire Size 2 AWG (Al), 3 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209350
• GTIN : 00783643209350
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 2.784
• Weight : 2.599
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : 3 to 3/0 AWG Copper, 1 to 2/0 AWG Aluminum
