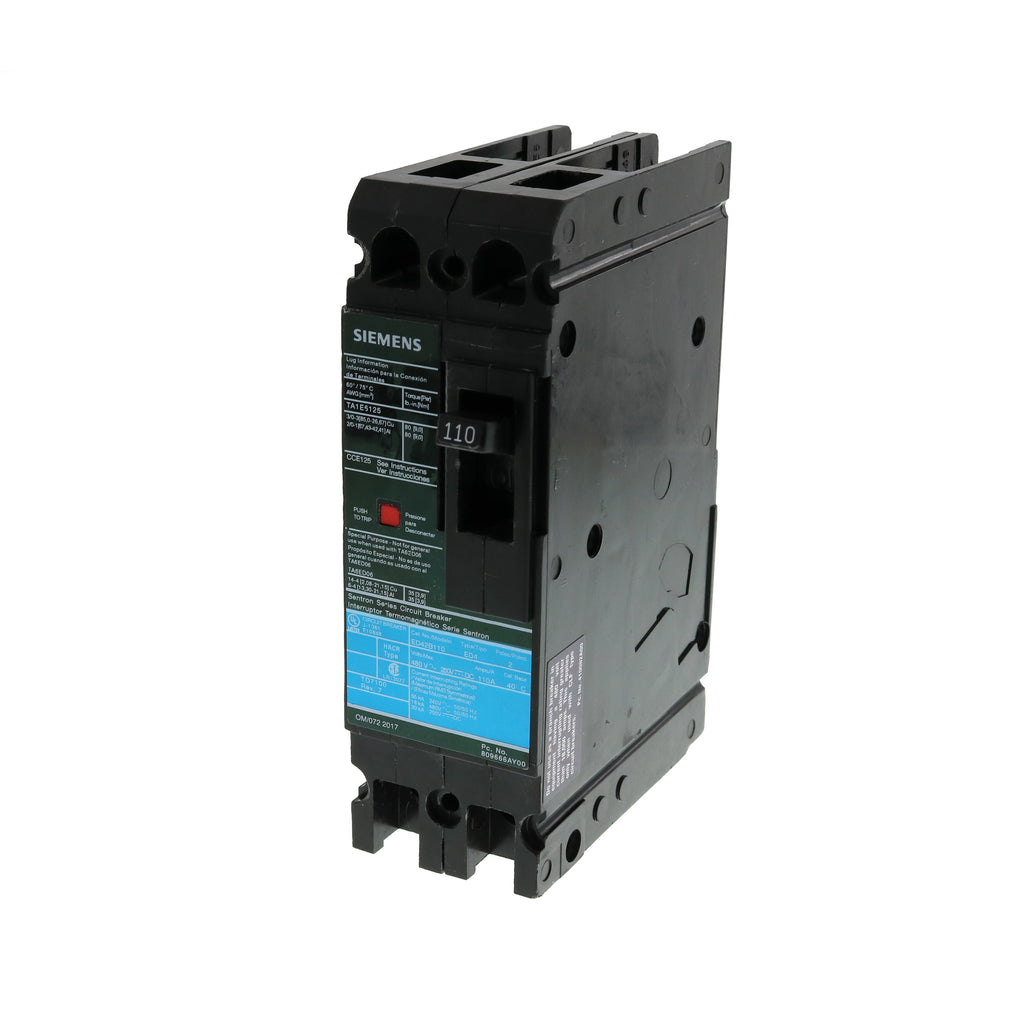

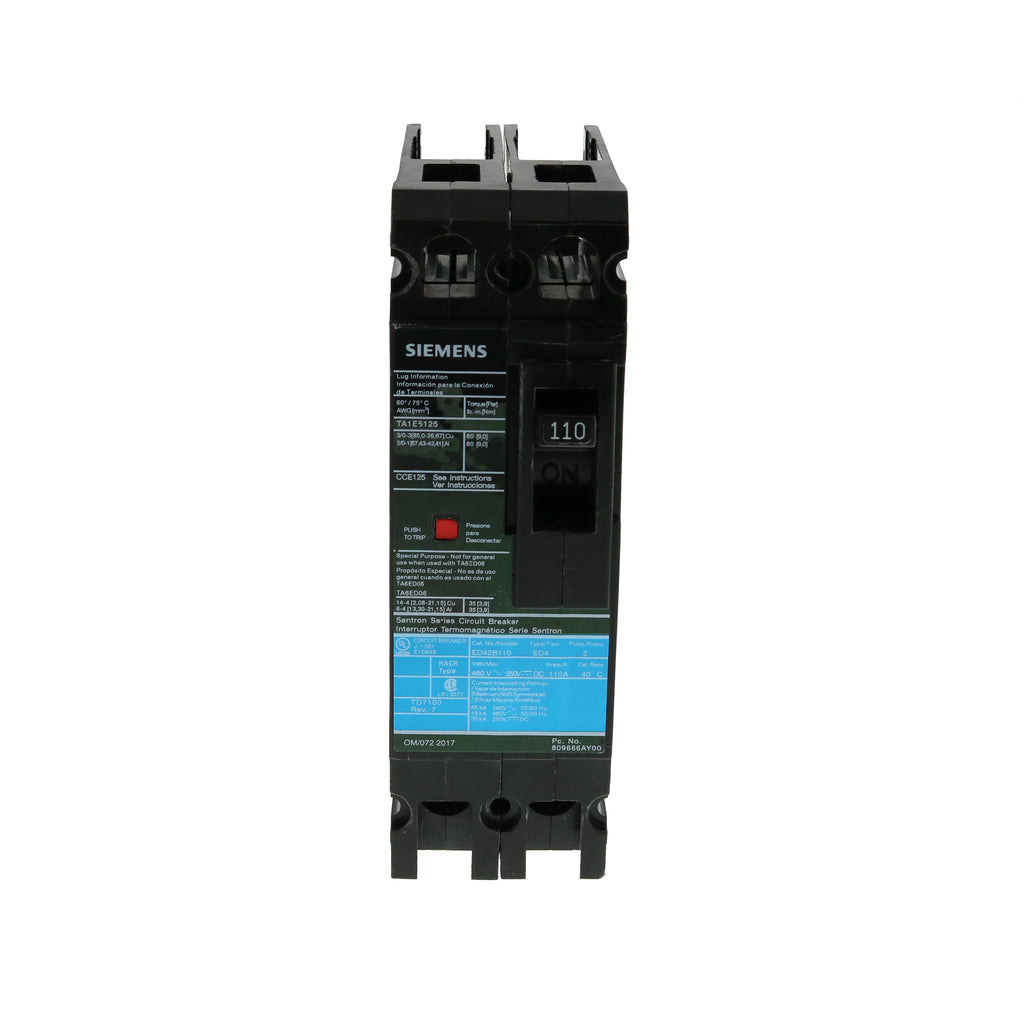

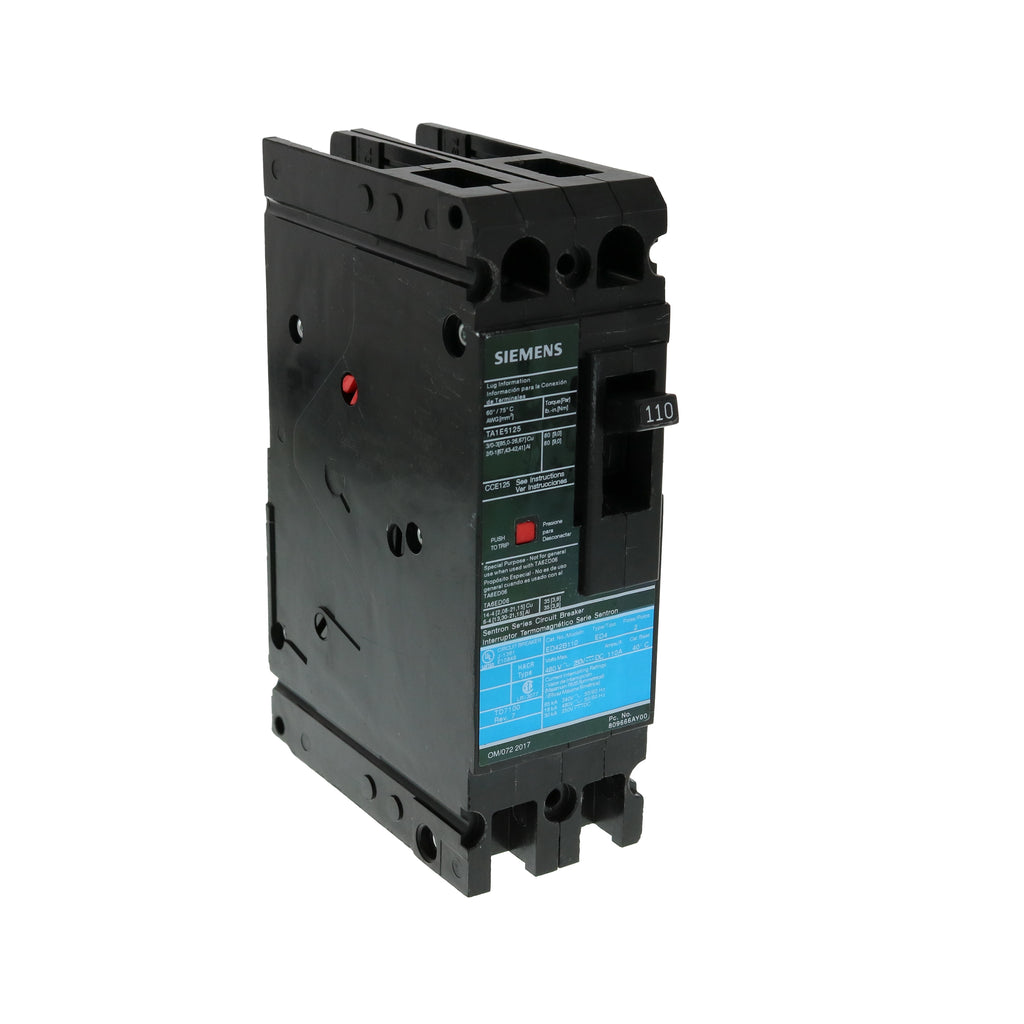

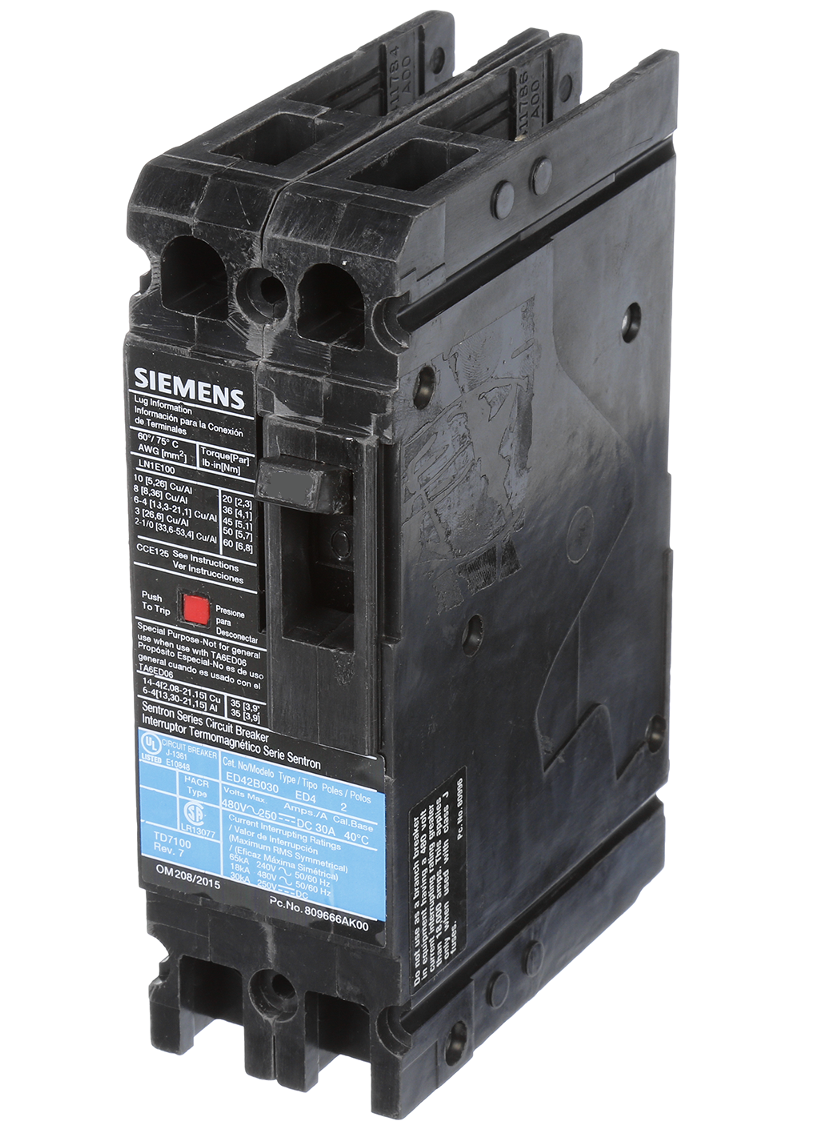

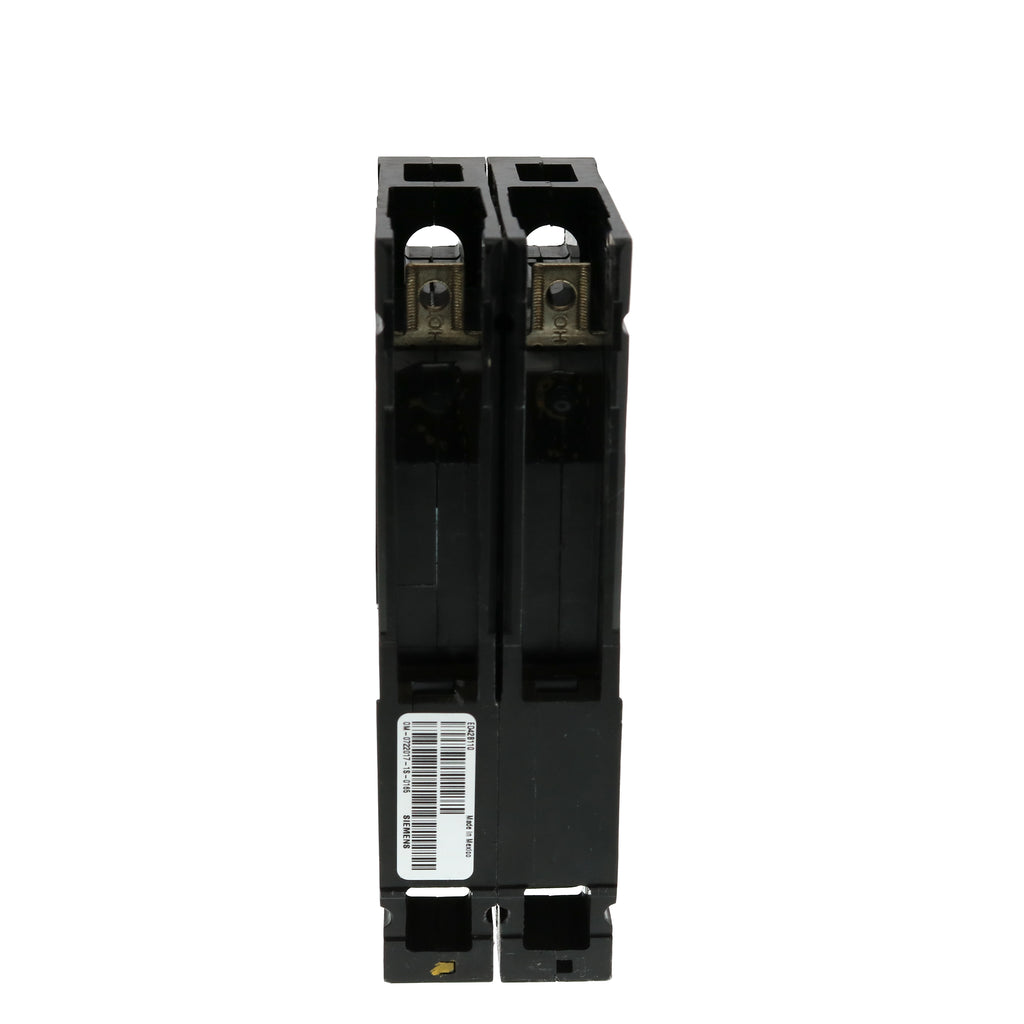

ED42B110 - Siemens 110A 480V 2-Pole Molded Case Circuit Breaker ED Frame Thermal Magnetic Trip

ED42B110

ED42B110 is a Siemens 2-pole molded case circuit breaker rated for 110 amps and 480 volts AC with thermal magnetic trip protection.This Siemens ED frame breaker features a bolt-on mounting type, an 18kA interrupt rating at 480V, and is designed for reliable low voltage power distribution. It includes long-time and instantaneous trip functions for enhanced circuit protection and is part of the Sentron series. The breaker is UL listed and CSA certified for safety compliance.

• Amperage: 110A
• Voltage: 480 VAC / 250 VDC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA at 480V
• Frame Type: ED
• Trip Unit: Thermal Magnetic
• Functions: Long-Time and Instantaneous (LI)
• Series: Sentron
• Certifications: UL Listed, CSA Certified
• Country of Origin: US

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42B110
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 110
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 1/0 AWG (Al), 3 AWG (Cu) Max. Wire Size 2 AWG (Al), 3 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209343
• GTIN : 00783643209343
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 2.782
• Weight : 2.701
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : 3 AWG (Cu), 1/0 AWG (Al)- 3 AWG (Cu), 2 AWG (Al)
