Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED41B100L

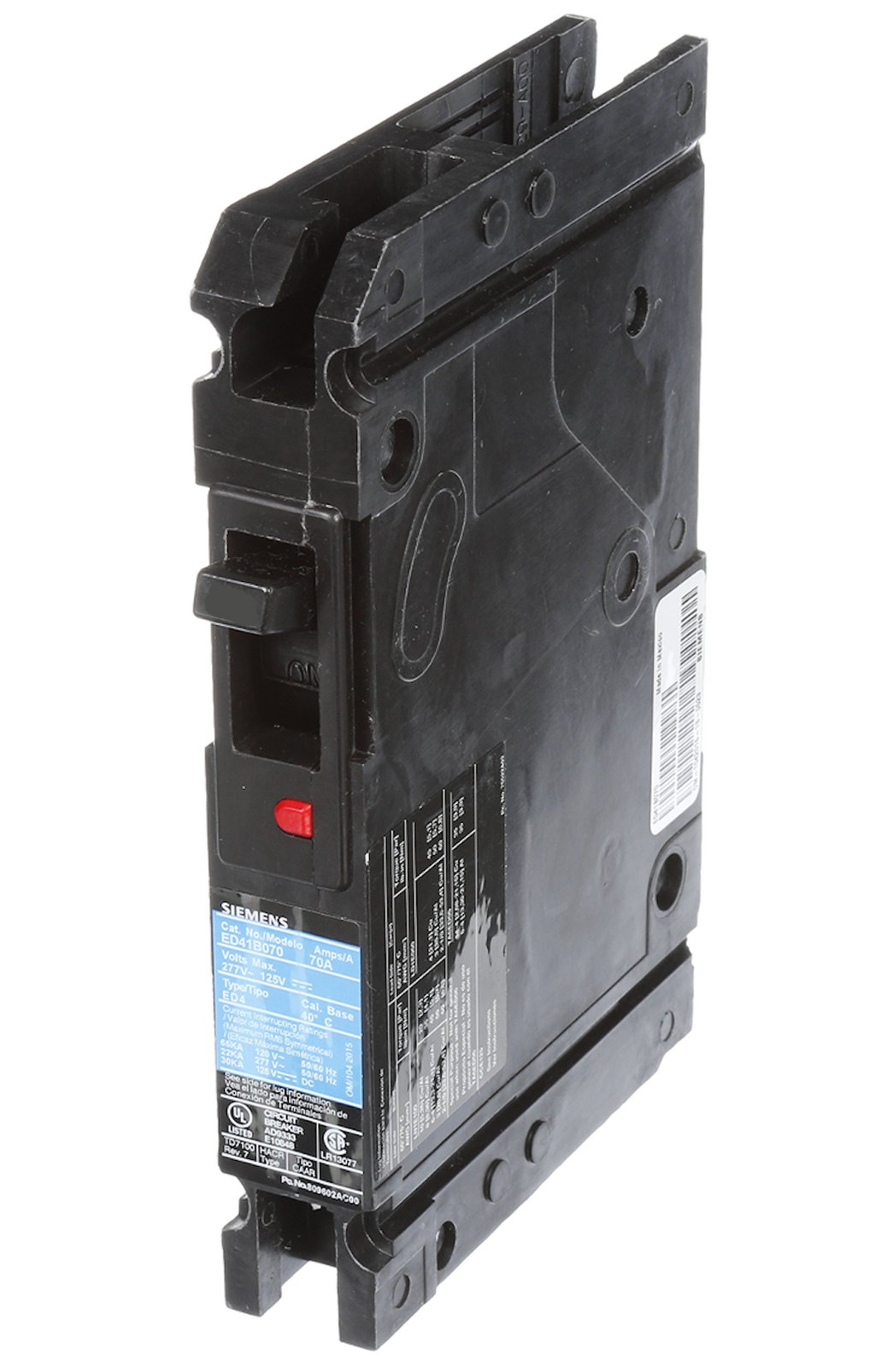

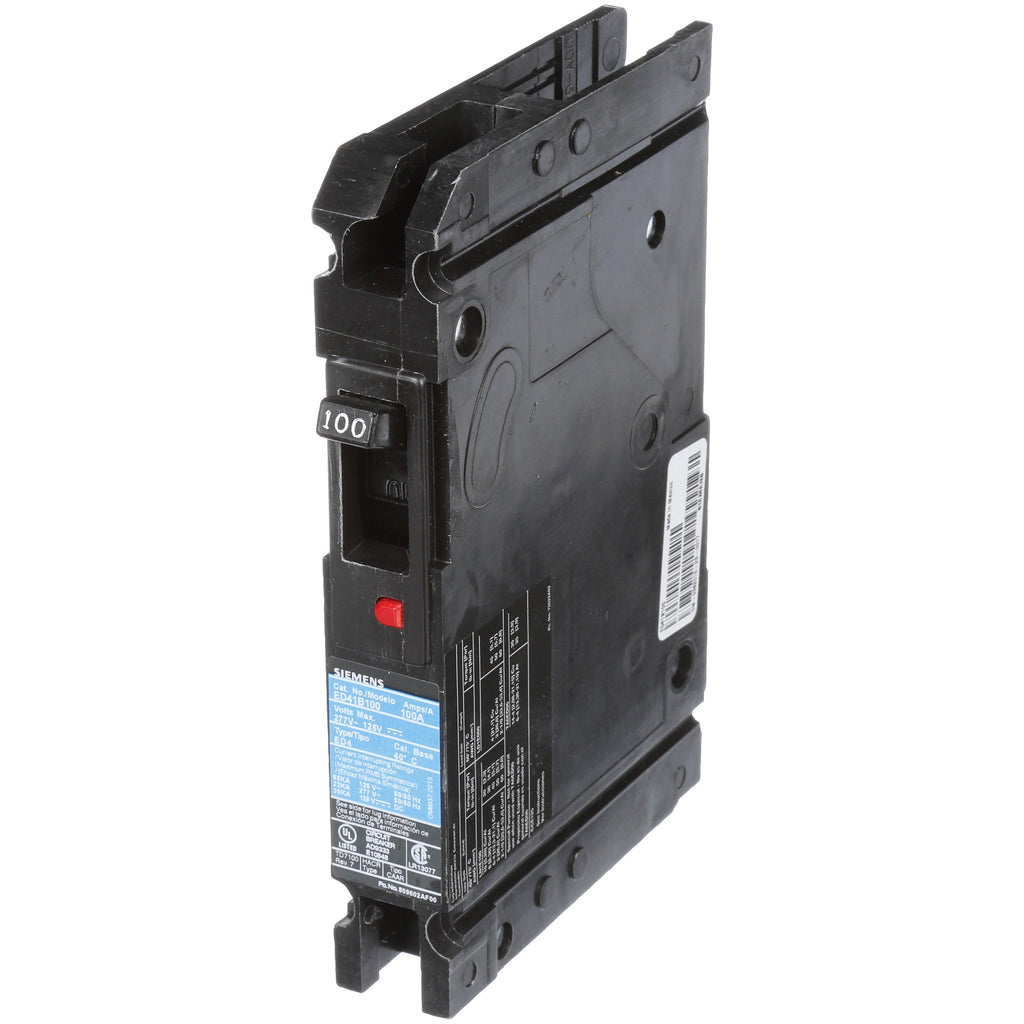

ED41B100L is a Siemens 100 amp, 1-pole circuit breaker designed for low voltage applications with a 120 Volt rating.
This Siemens ED frame breaker features a thermal-magnetic trip unit with a 65kA interrupting rating at 120V, suitable for standard 40 degree C environments. It includes line and load terminals and is part of the Sentron series, providing reliable circuit protection with a non-interchangeable trip unit.
- Amperage: 100 A
- Voltage: 120 V
- Poles: 1
- Interrupt Rating: 65kA at 120 V
- Frame/Series: ED Frame, Sentron Series
- Trip Unit: Thermal-Magnetic, Non-Interchangeable
- Mounting Type: Lug Terminals
- Operating Temperature: 40 degree C standard
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ED41B100L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 120 AC
- Amperage : 100
- Phase : 1
- Poles : 1
- AIC rating : 65kA@120V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643089969
- GTIN : 00783643089969
- Country of Origin : Mexico
- Dimensions : 0.787 x 4.724 x 5.931
- Weight : 1.146
- Certification : Ul Listed, IEC
