2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
ED3150L

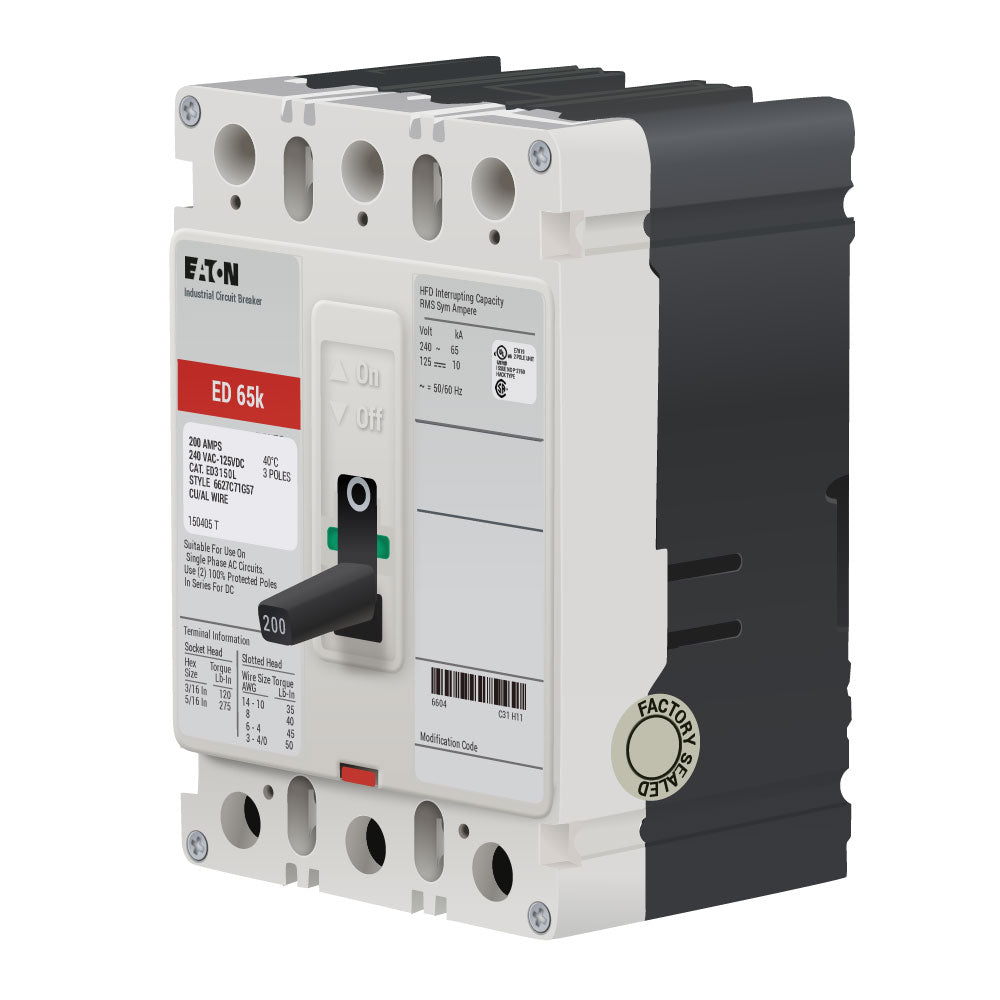

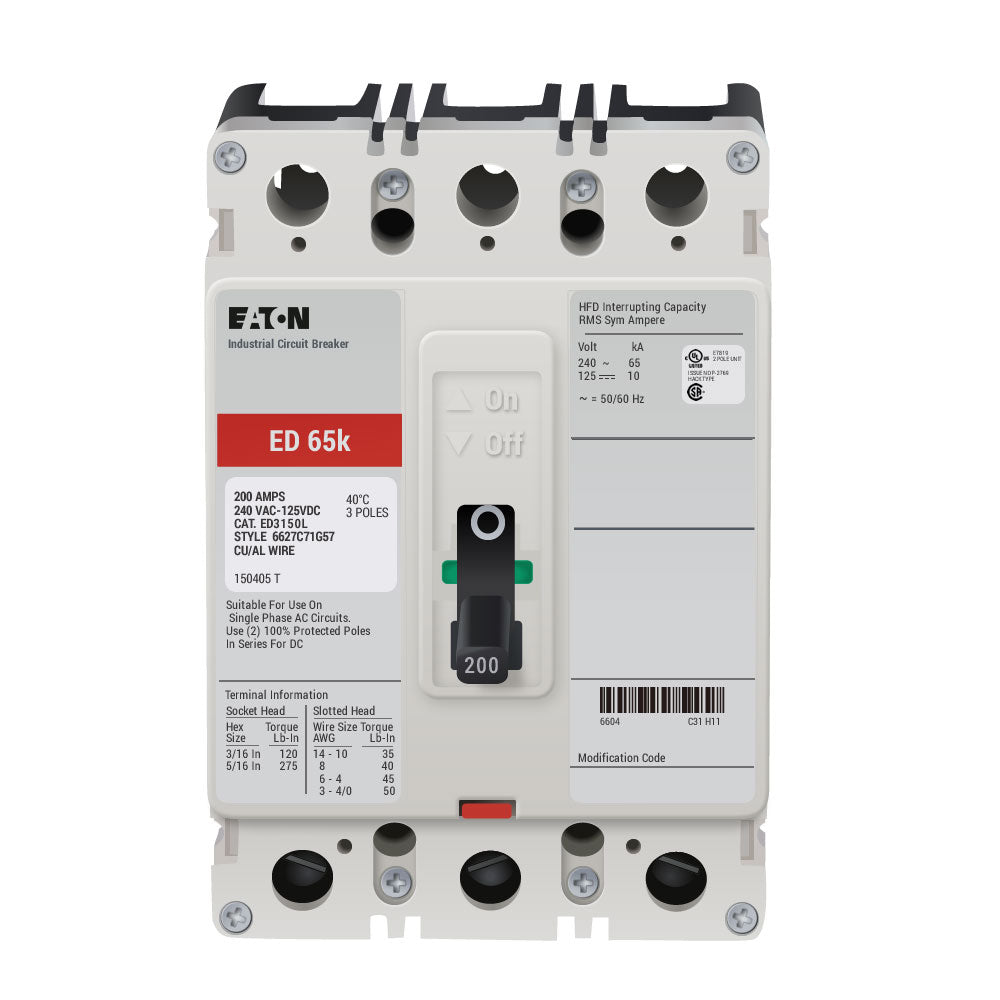

ED3150L is a Cutler Hammer Series C molded case circuit breaker designed for reliable protection in electrical systems.This 3-pole breaker features a fixed thermal and fixed magnetic trip unit, rated for 150 amps and suitable for 240 Vac and 125 Vdc applications. It has an F-frame design with a 65 kA interrupt rating at 240 Vac, making it ideal for panel mounting with line and load lug terminals. The breaker is UL listed and built for durability and safety in industrial and commercial environments.
- Manufacturer: Cutler Hammer
- Part Number: ED3150L
- Amperage: 150A
- Voltage Rating: 240 Vac, 125 Vdc
- Number of Poles: 3
- Frame Type: F-frame
- Series: Series C
- Trip Unit: Fixed thermal, fixed magnetic
- Interrupt Rating: 65 kAIC at 240 Vac
- Mounting Type: Panel mount
- Terminals: Line and load lug
- Certifications: UL Listed
Specifications
- Part Number: ED3150L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : ED
- Voltage : 240
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679454541
- GTIN : 00786679454541
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
