Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
ED3150

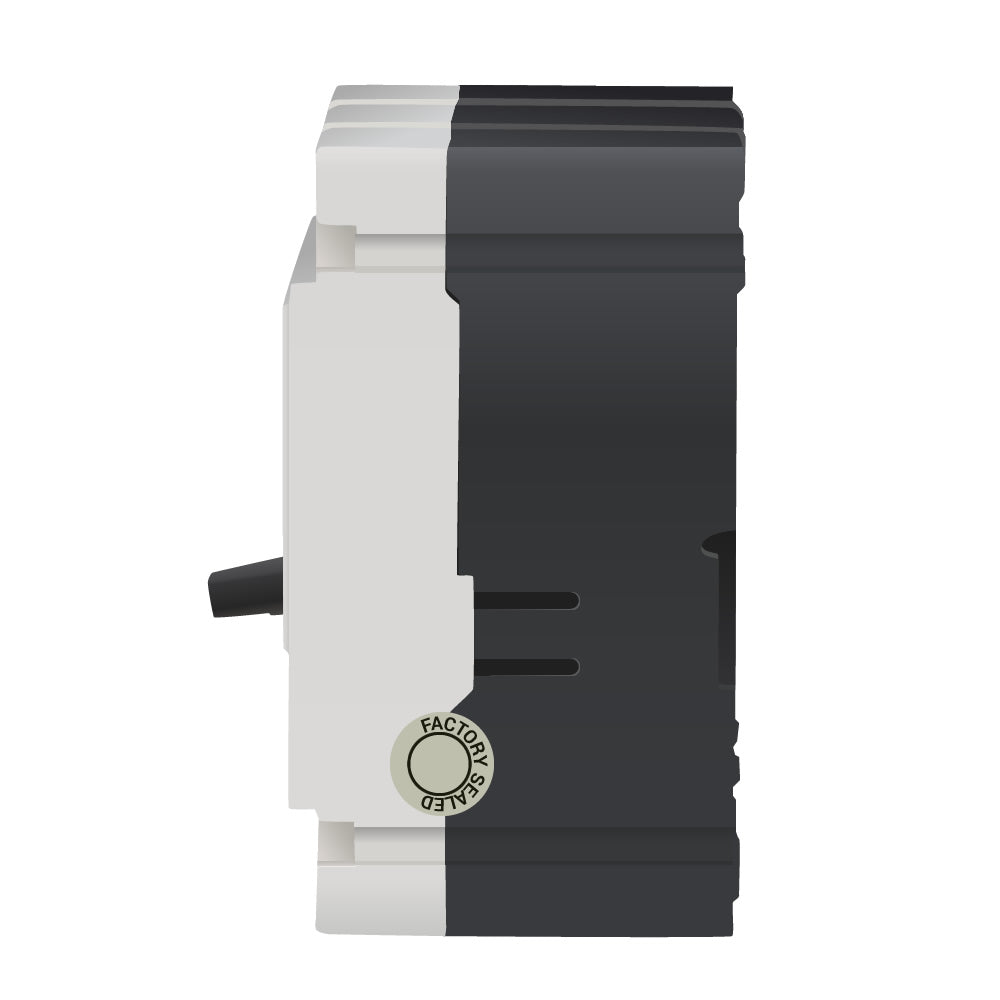

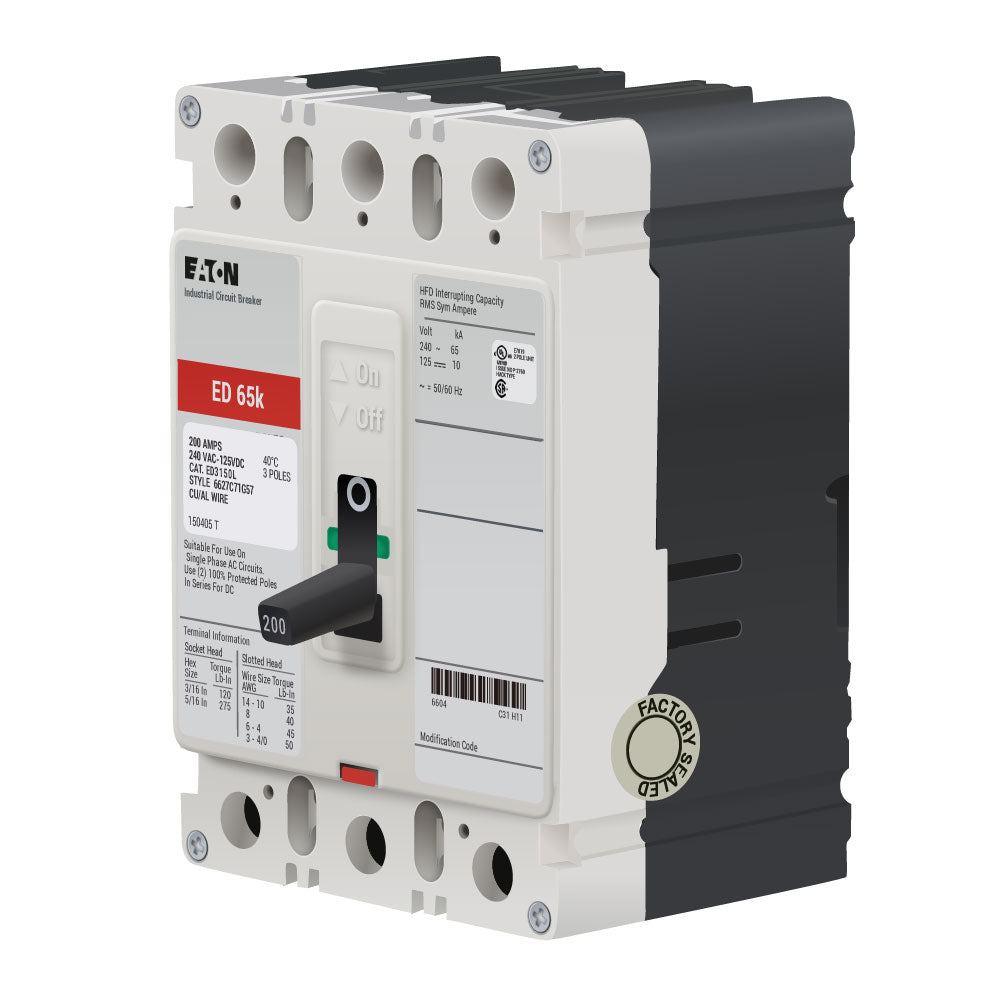

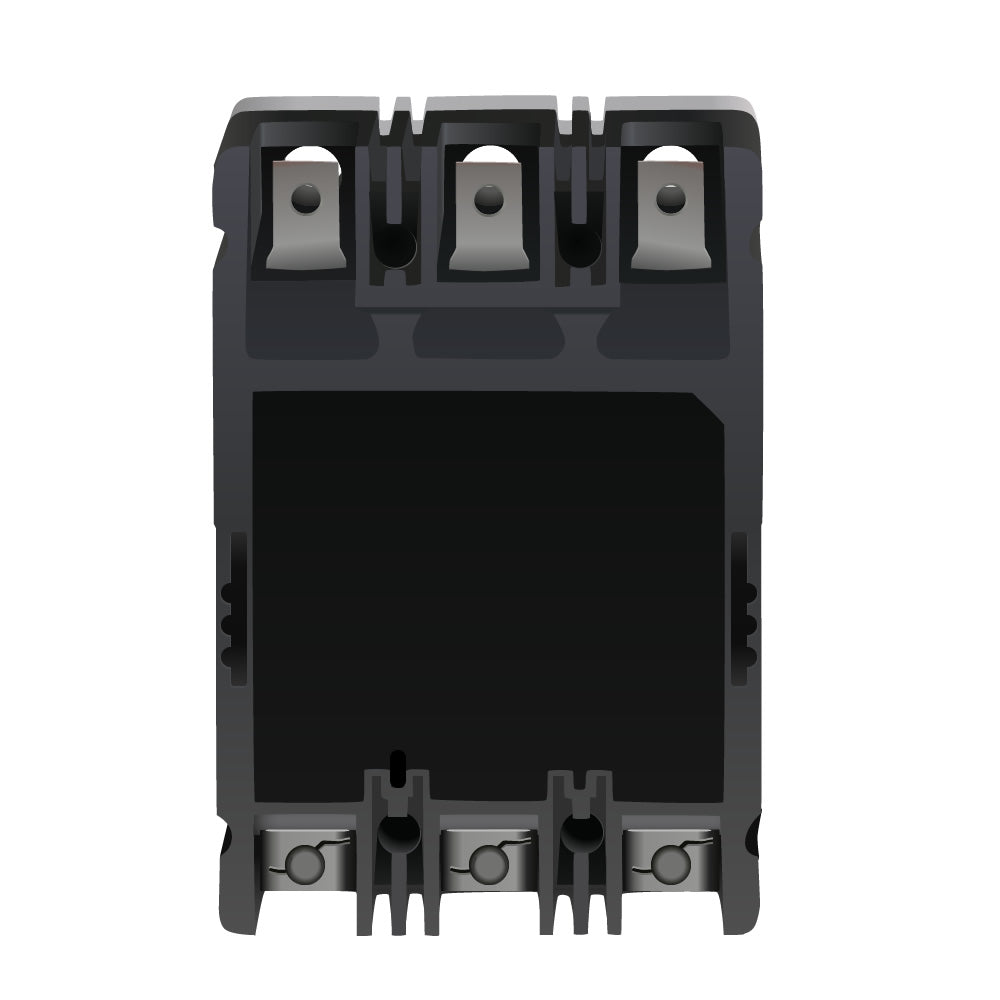

ED3150 is a Cutler Hammer Series C ED frame molded case circuit breaker designed for reliable protection in industrial and commercial applications.
This three-pole, 150 amp breaker features a fixed thermal-magnetic trip unit, 240V AC/125V DC voltage rating, and a high 65kA interrupting rating at 240V AC. It is UL Listed, CSA Certified, and suitable for panelboard, switchboard, motor control center, and busway installations. The ED3150 offers both long-time and instantaneous protection, with bolt-on mounting and standard pressure load terminals for secure connections.
-
Key Specifications
- Part Number: ED3150
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 150A
- Voltage: 240V AC, 125V DC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 240V AC
- Series/Frame: Series C, ED Frame
- Trip Unit: Fixed Thermal-Magnetic
- Certifications: UL Listed, CSA Certified
- Connection: Cable In/Cable Out
- Dimensions: 6" H x 4.13" W x 3.38" D
- Weight: Approx. 4.5 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ED3150
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : ED
- Voltage : 240
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Load Side Lug
- Frame Size : 225A/F
- Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 786679455265
- GTIN : 00786679455265
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
- Standards : CSA Certified, IEC Rated, UL Listed
- Certification : CSA Certified, IEC Rated, UL Listed
