Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
ED3125L

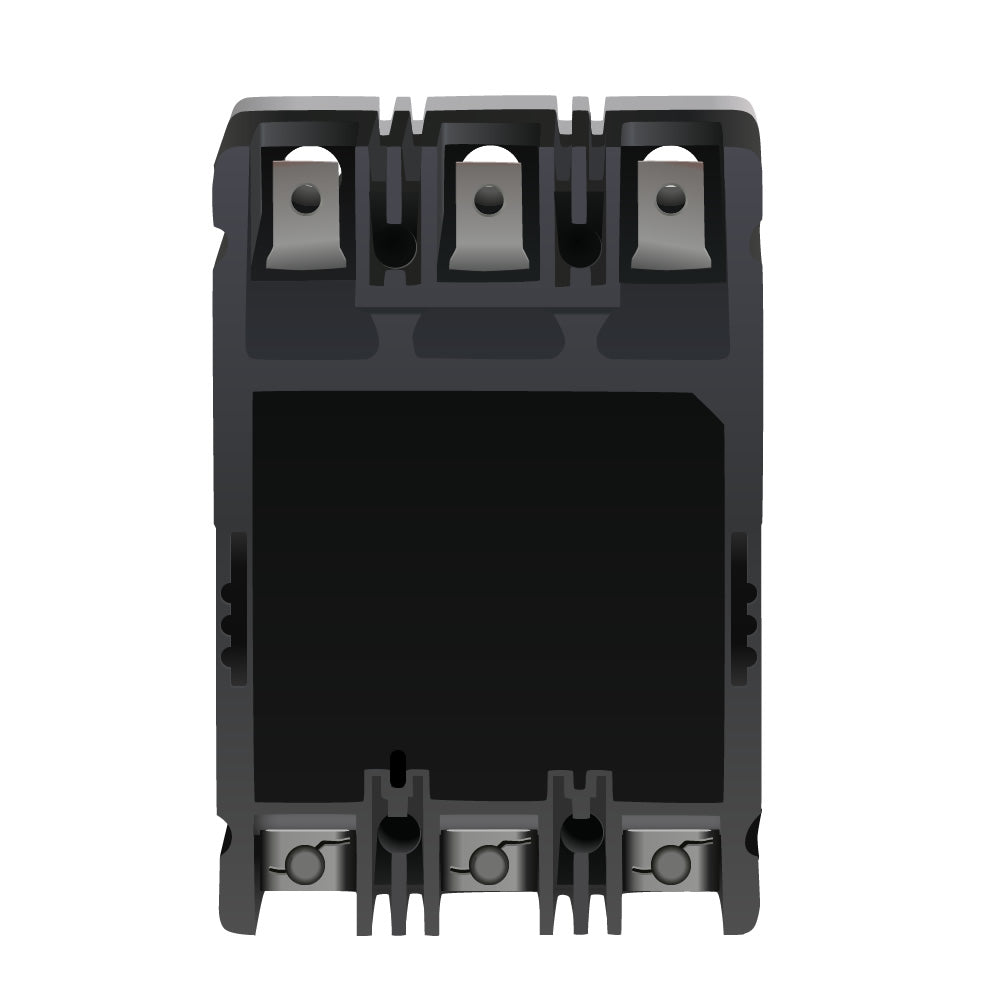

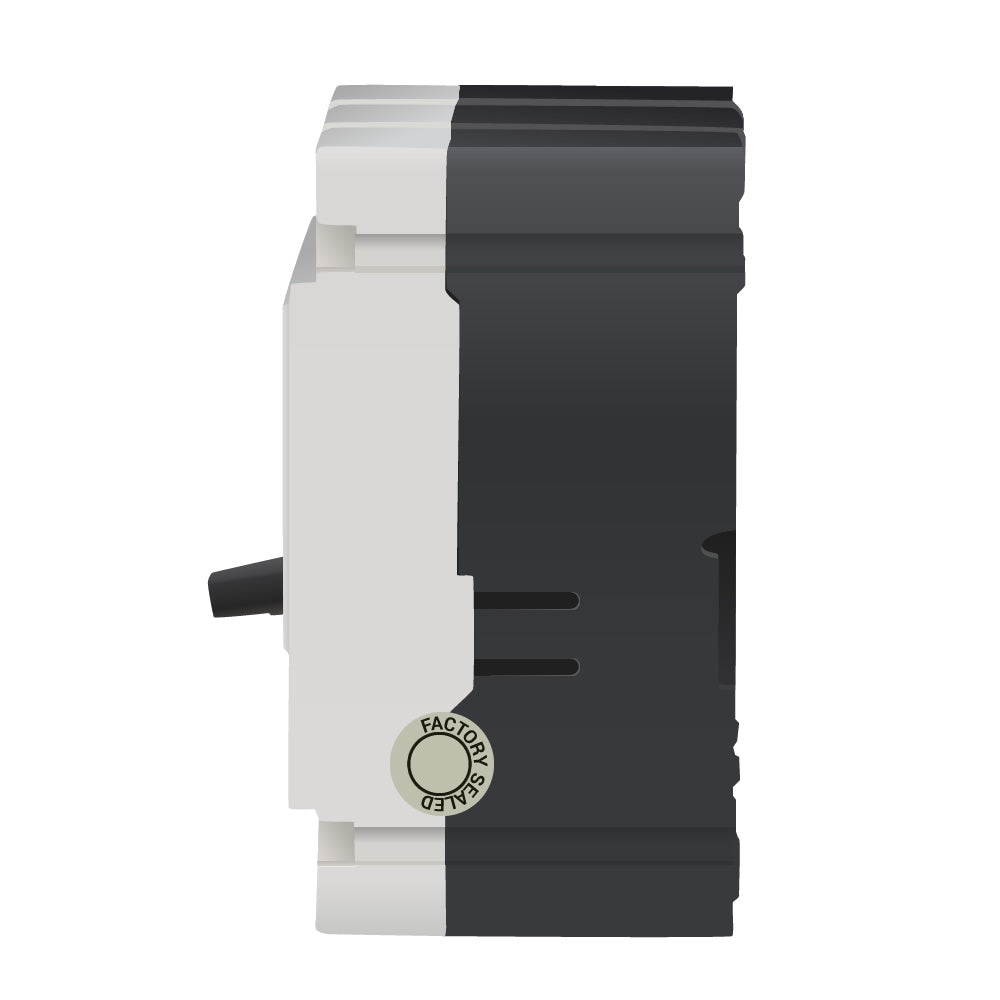

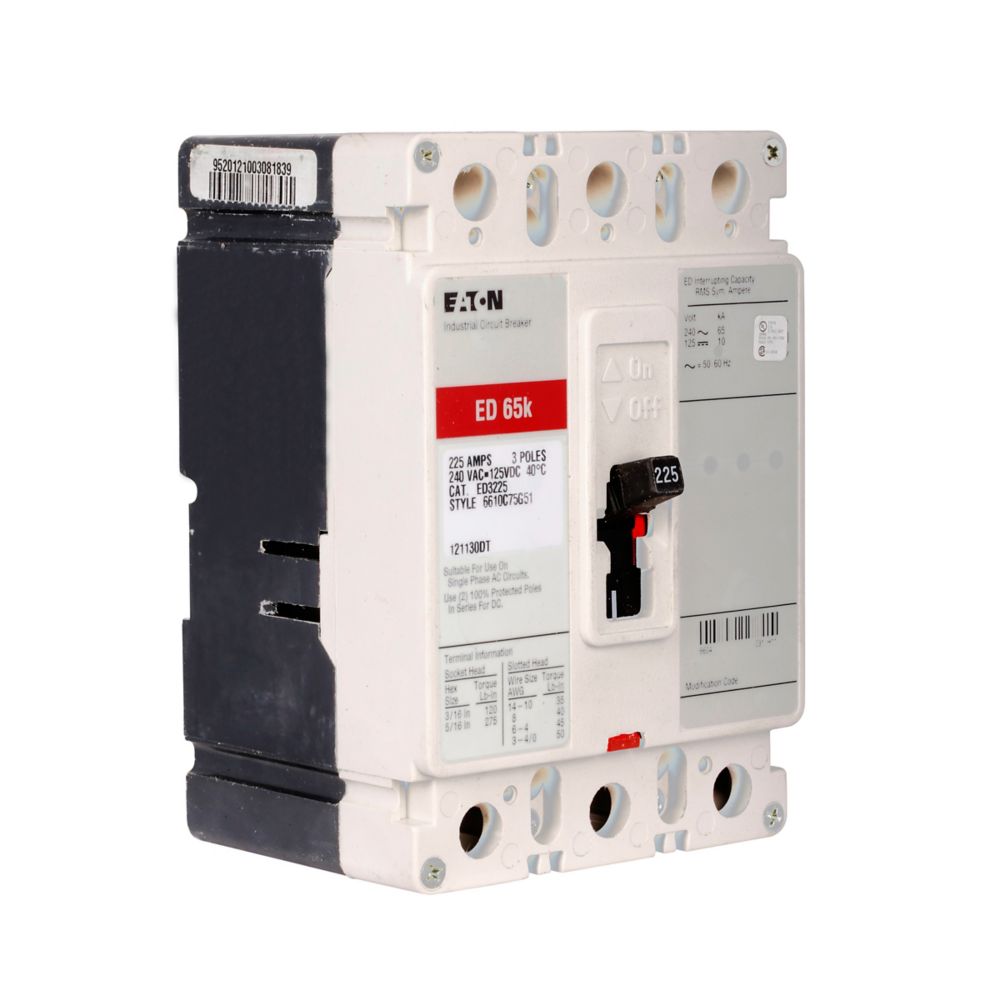

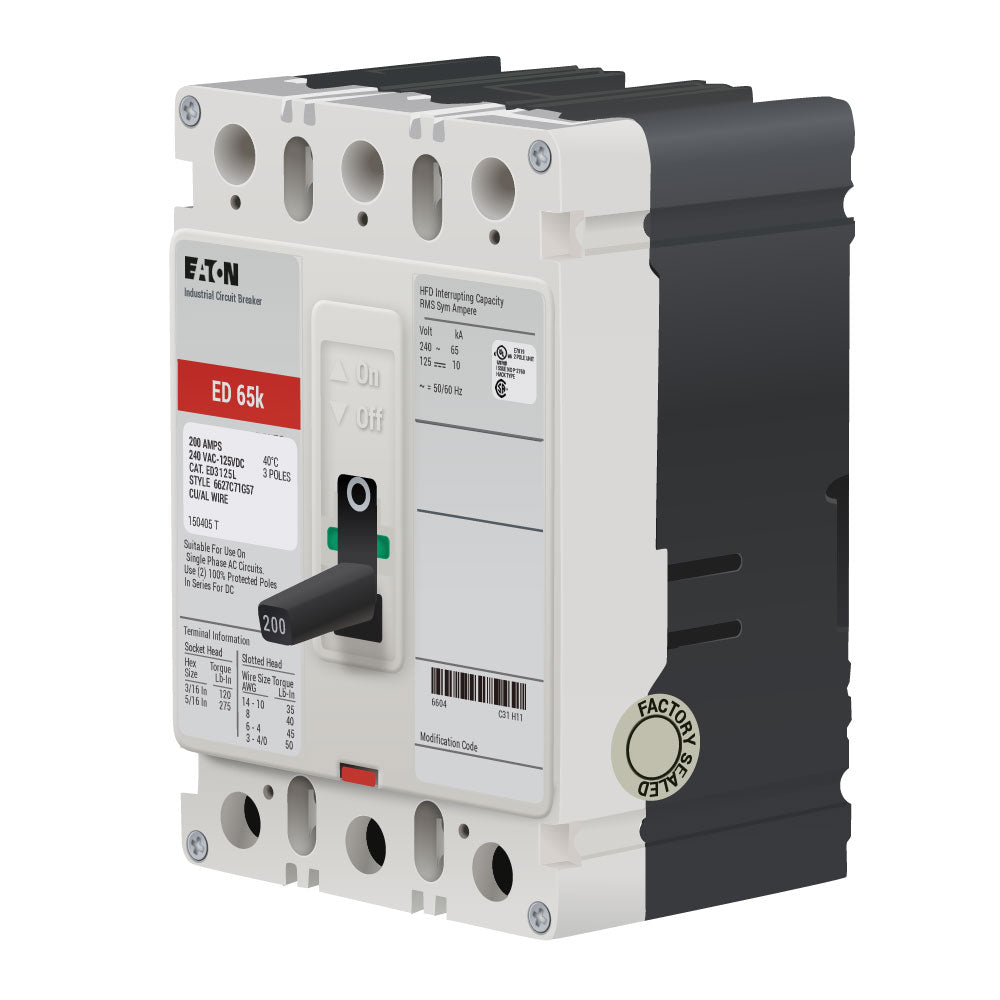

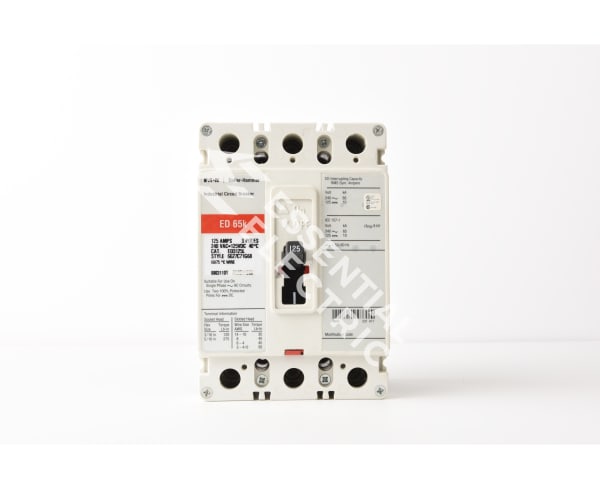

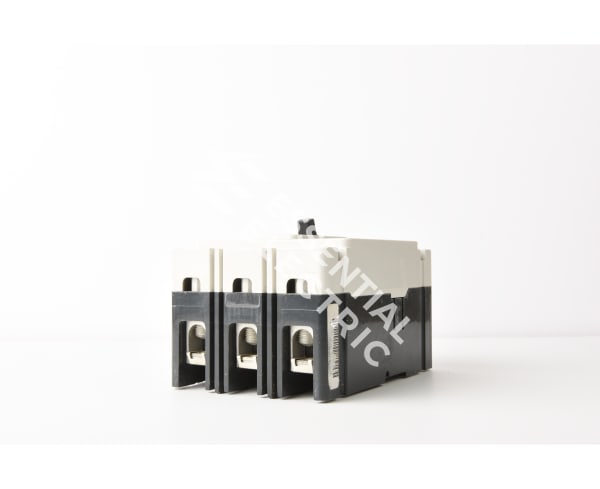

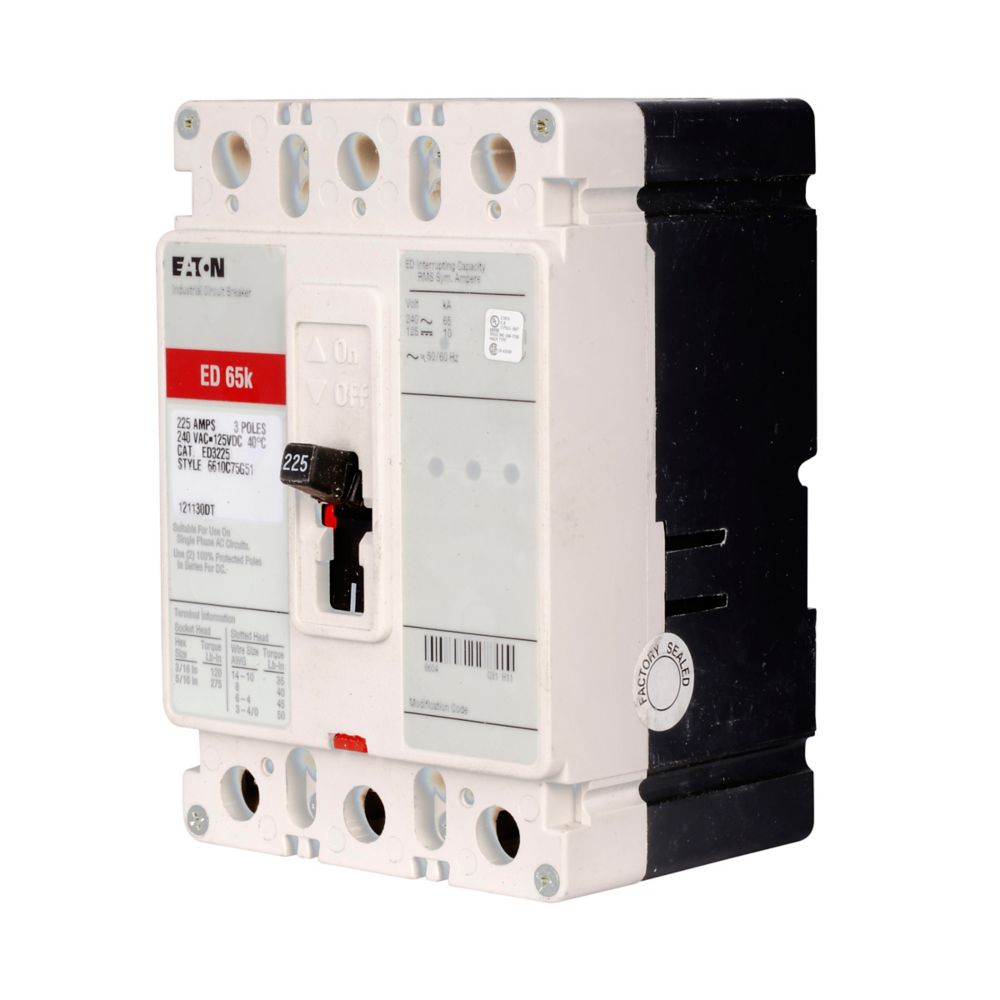

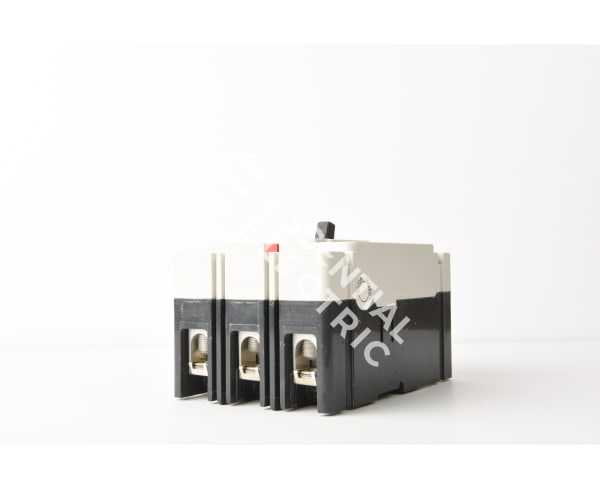

ED3125L is a Cutler Hammer molded case circuit breaker designed for reliable protection in electrical distribution systems.This 3 pole breaker features a 125 ampere rating at 40 degrees Celsius and operates at 240 volts AC and 125 volts DC. It uses a thermal magnetic trip unit within the F frame ED series, providing fixed thermal and magnetic trip protection. The breaker has a 65kA interrupting rating at 240 VAC, suitable for industrial and commercial applications. It supports feed-thru lug connections for easy installation.
- Key Specifications
- Manufacturer: Cutler Hammer
- Part Number: ED3125L
- Amperage: 125 Amps
- Voltage: 240 VAC, 125 VDC
- Poles: 3 Pole
- Frame/Series: F Frame, ED Series
- Trip Unit: Thermal Magnetic, Fixed
- Interrupt Rating: 65kA @ 240 VAC
- Mounting Type: Molded Case
- Connection Type: Feed-Thru Lugs
- Certifications: Eaton/Cutler Hammer standard industrial certifications
- Part Number: ED3125L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : ED
- Voltage : 240
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
- UPC : 786679454602
- GTIN : 00786679454602
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.45
