Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED23B080L

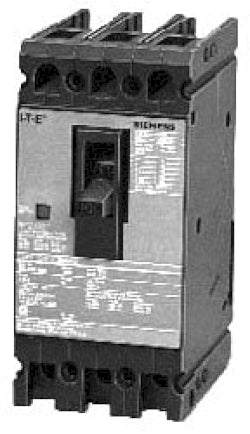

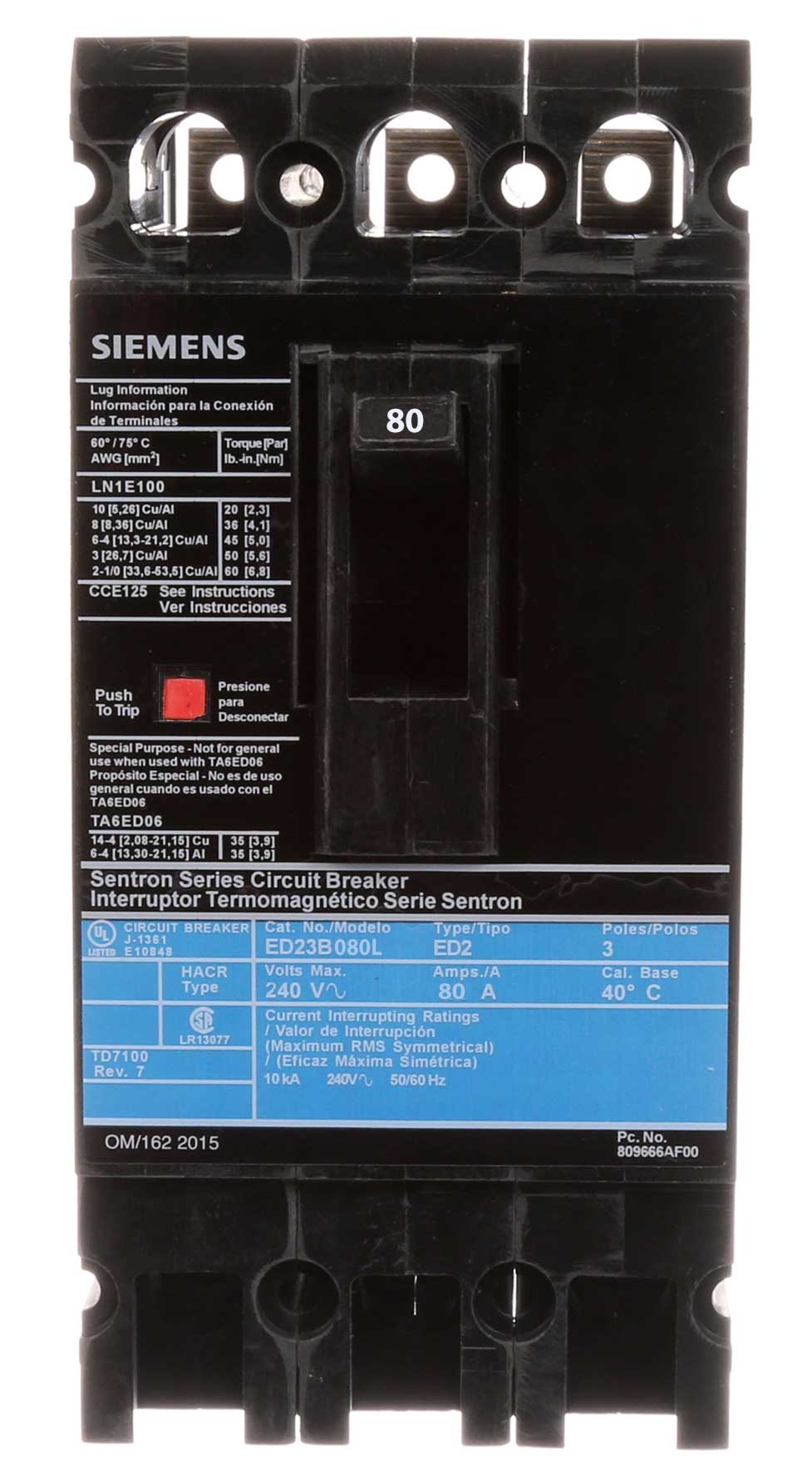

ED23B080L is a Siemens Sentron series 3 pole molded case circuit breaker rated for 80 amperes at 240 volts with thermal magnetic trip protection. This UL listed breaker is designed for reliable overcurrent protection in industrial and commercial power distribution applications. The feed-thru connection design allows for flexible installation configurations in panelboards and distribution equipment. Dimensions measure 4 inches length by 7 inches width by 6 inches height.
- Amperage Rating: 80 A
- Voltage Rating: 240 VAC
- Poles: 3
- Trip Type: Thermal Magnetic
- Interrupting Rating: 10 kA at 240 VAC
- Series: Sentron ED
- Connection Type: Feed-Thru Lug
- Certification: UL Listed
- Operating Temperature: 40 degrees C
- Dimensions: 4 in L x 7 in W x 6 in H
Specifications
- Part Number: ED23B080L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 240
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643003125
- GTIN : 00783643003125
- Country of Origin : Mexico
- Weight : 3.814
- Certification : UL Listed
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
