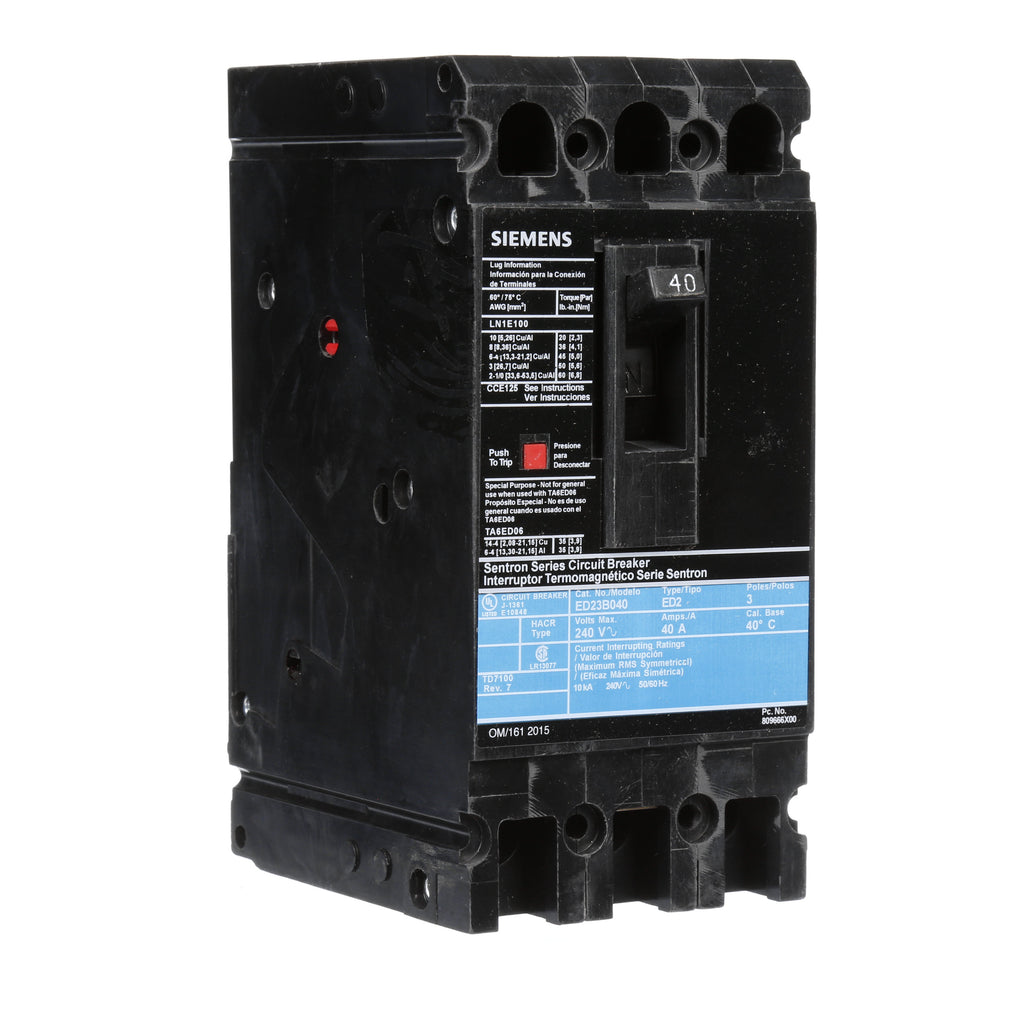

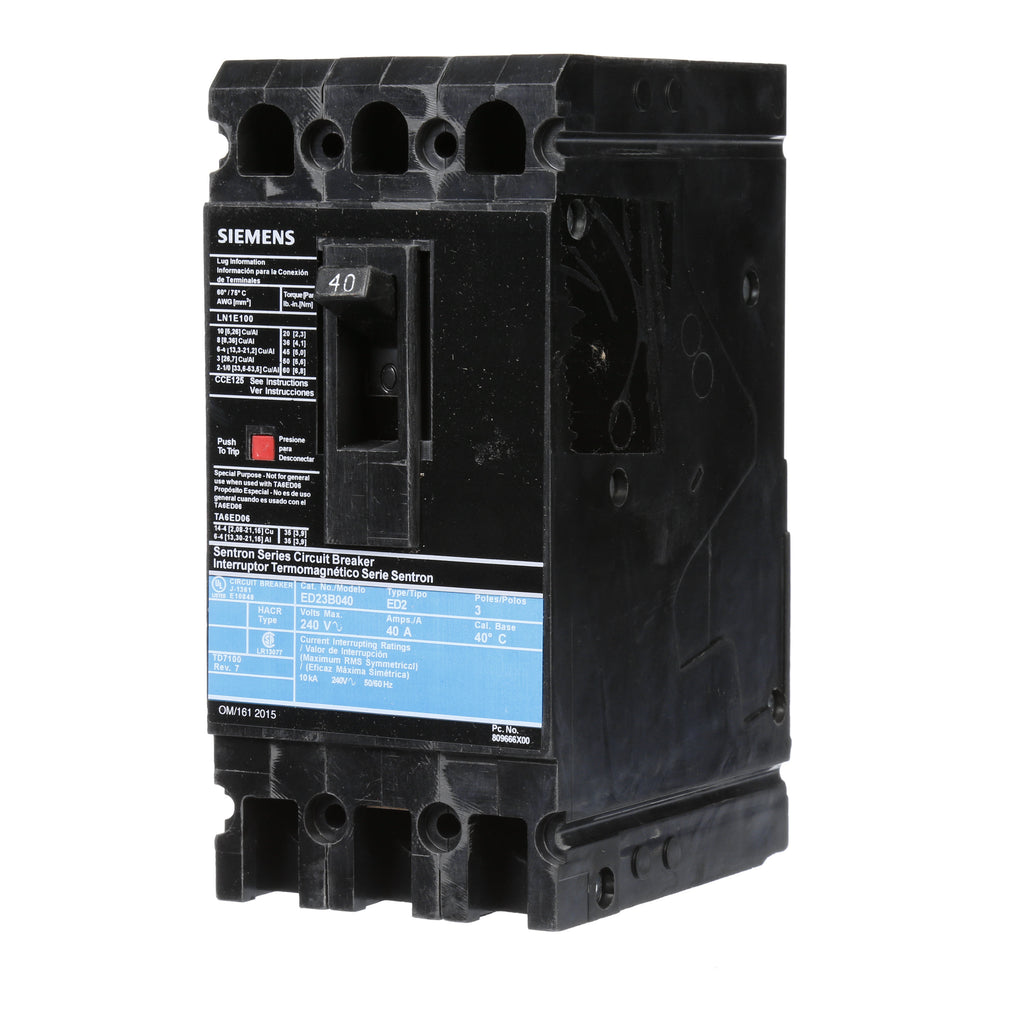

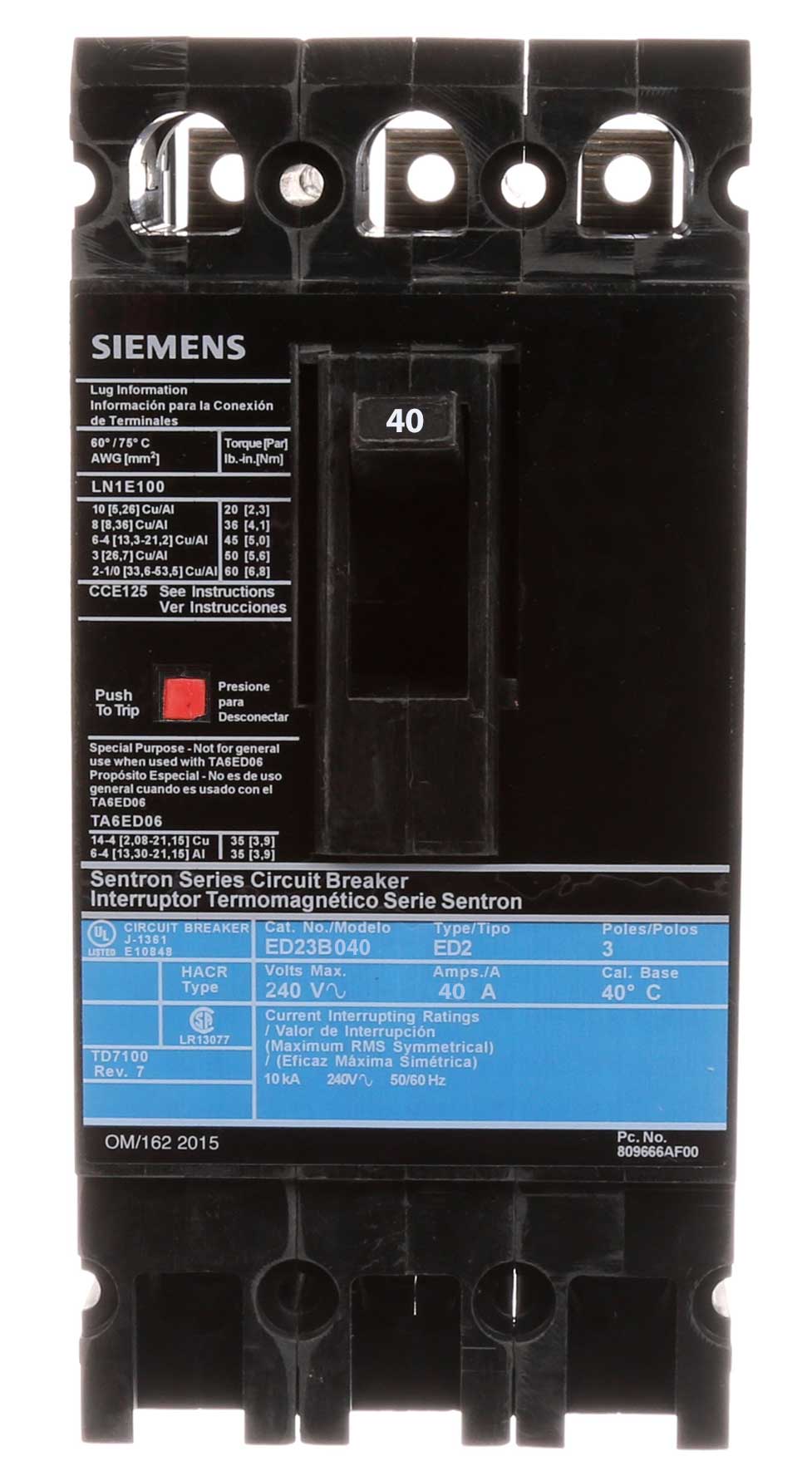

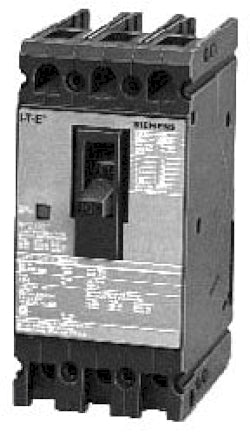

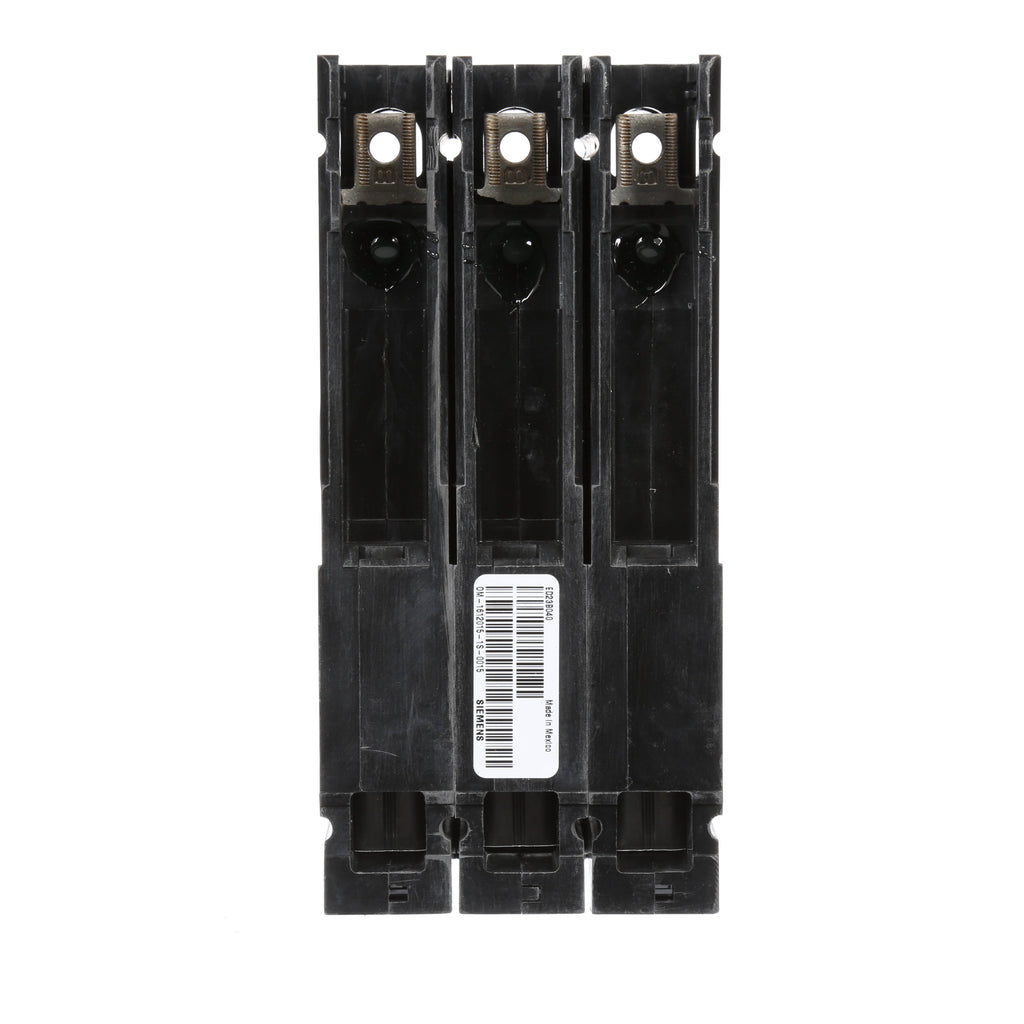

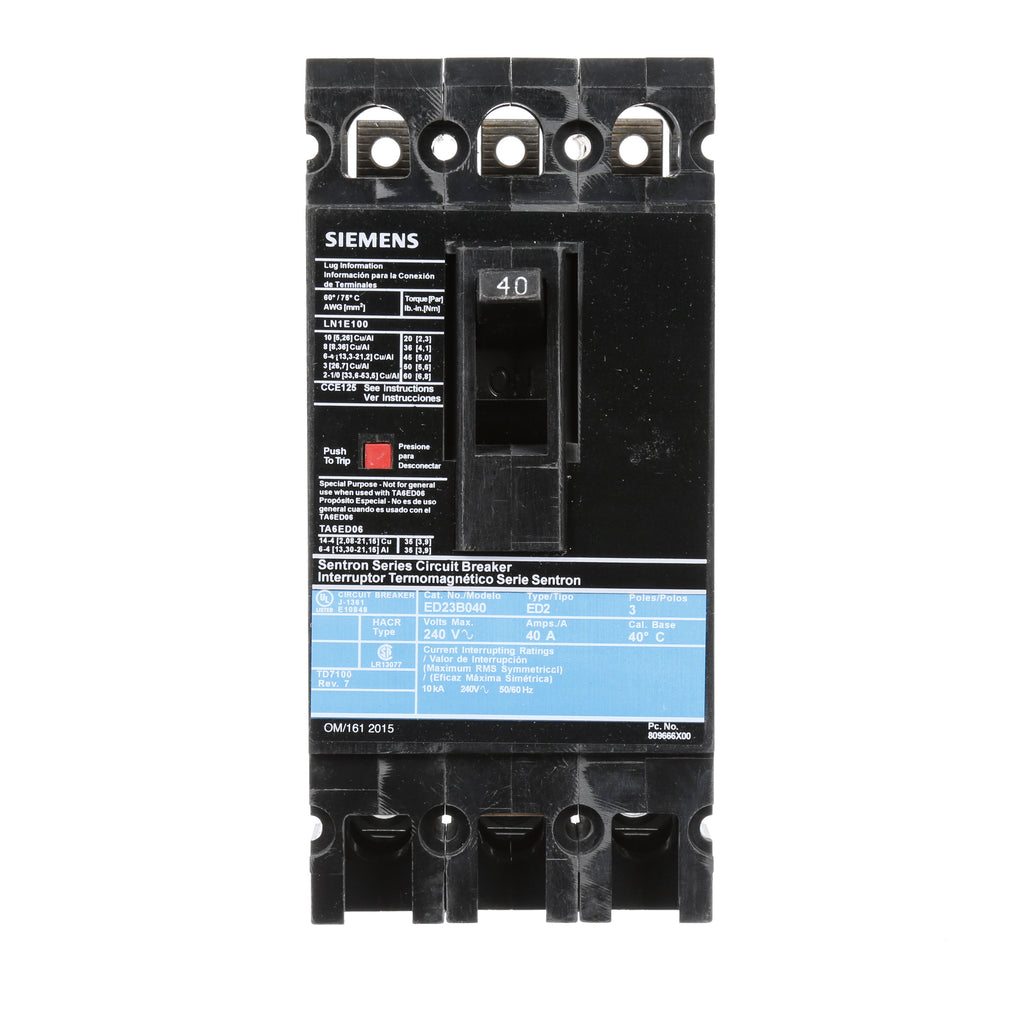

ED23B040 - Siemens 40A 3-Pole 240V Circuit Breaker ED Frame 10kA Interrupt

ED23B040

ED23B040 is a Siemens 40 amp, 3-pole circuit breaker designed for low voltage applications with a 240V rating and 10kA interrupt capacity.ED23B040 features a molded case design from the ED frame series, suitable for bolt-on mounting. It meets UL 489 and IEC 60947-2 standards, providing reliable thermal/magnetic trip protection. This breaker supports wire sizes from 10 to 1/0 AWG copper and is rated for use at 40 degrees Celsius.

Key Specifications
• Amperage: 40 A
• Voltage: 240 VAC, 125/250 VDC
• Poles: 3
• Interrupt Rating: 10 kA at 240V
• Frame/Series: ED Frame
• Trip Unit: Thermal/Magnetic
• Mounting Type: Bolt-on
• Wire Range: 10 - 1/0 AWG Copper
• Certifications: UL 489, IEC 60947-2
• Operating Temperature: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED23B040
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209015
• GTIN : 00783643209015
• Country of Origin : Mexico
• Dimensions : 3 in x 6.34 in
• Weight : 3.699
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
