Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED21B030L

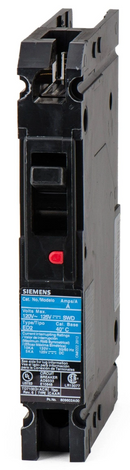

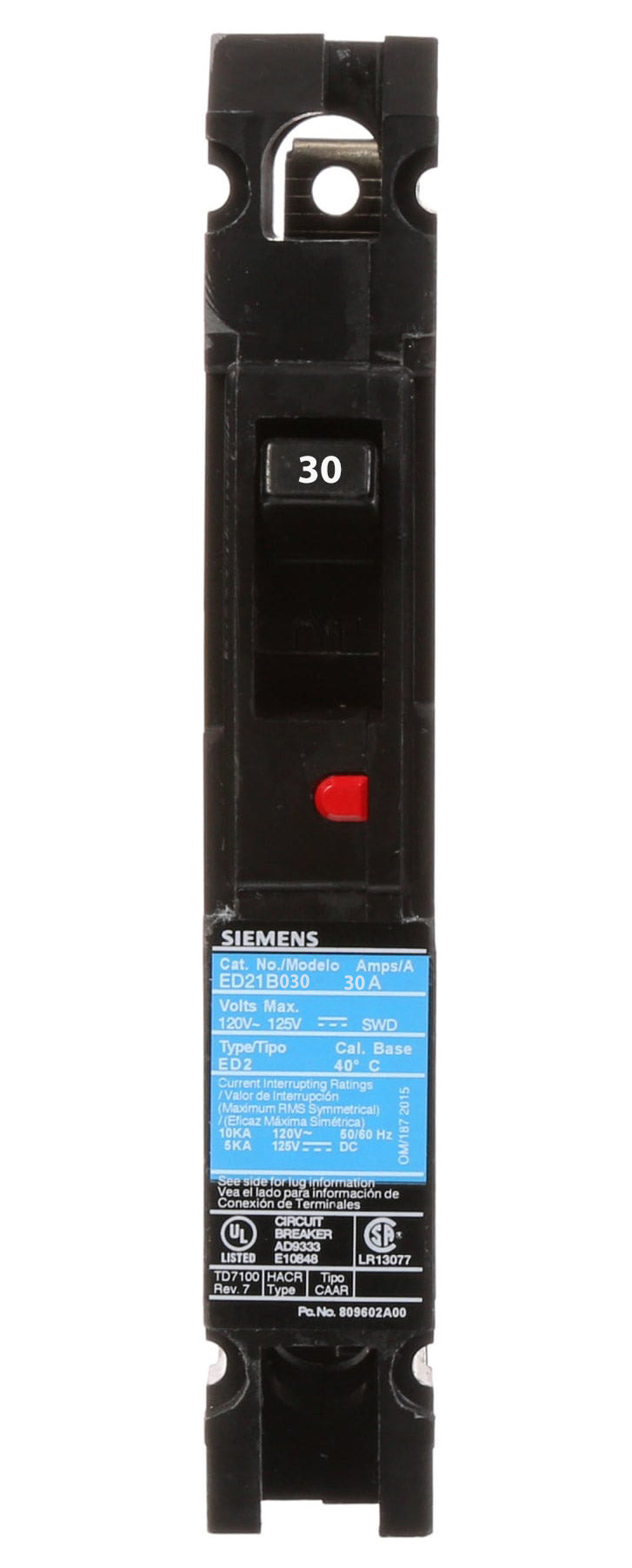

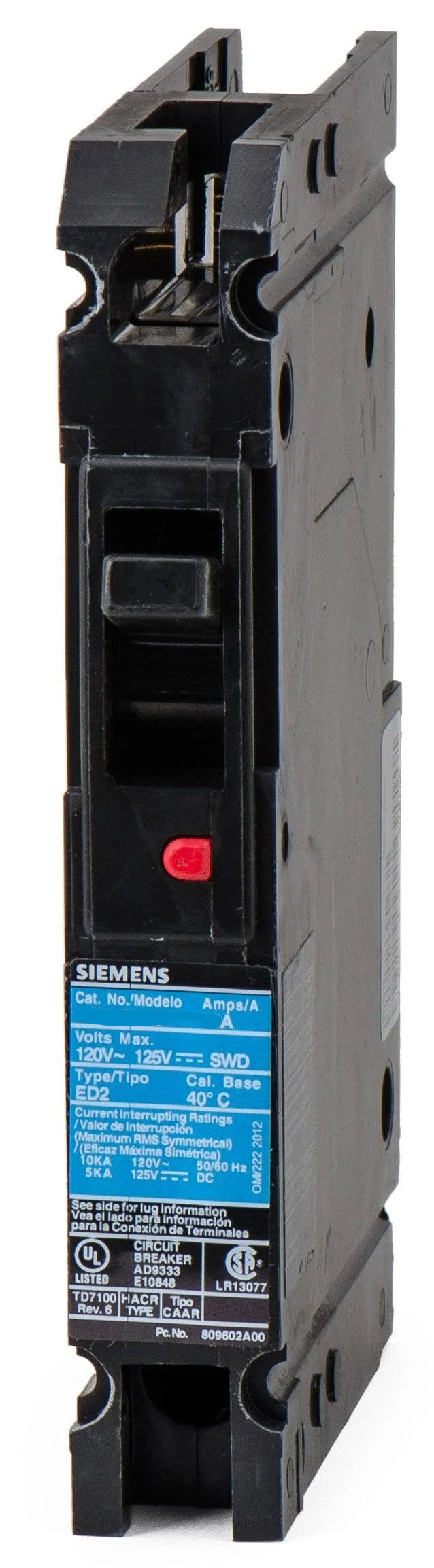

ED21B030L is a Siemens 30 amp, 1-pole molded case circuit breaker designed for reliable circuit protection in electrical distribution systems.This Siemens ED series breaker features a 240 Volt rating with a 10kA interrupting capacity at 120V, suitable for standard 40°C applications. It includes a non-interchangeable trip unit and bolt-on mounting type, meeting UL 489 and IEC 60947-2 standards. The breaker is part of the Sentron family, with a compact design measuring approximately 6.4 inches in height and 1 inch in width.
- Amperage: 30 Amps
- Voltage: 240 Volts
- Poles: 1
- Frame/Series: ED Frame
- Interrupt Rating: 10kA at 120V
- Mounting Type: Bolt-On
- Trip Unit: Non-interchangeable
- Standards: UL 489, IEC 60947-2
- Operating Temperature: Standard 40°C
- Dimensions: 1.00 in W x 6.4 in H x 3.92 in D
Specifications
- Part Number: ED21B030L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643232105
- GTIN : 00783643232105
- Country of Origin : Mexico
- Dimensions : 4.724 x 0.787 x 5.906 inch
- Weight : 0.705
