Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECSR90

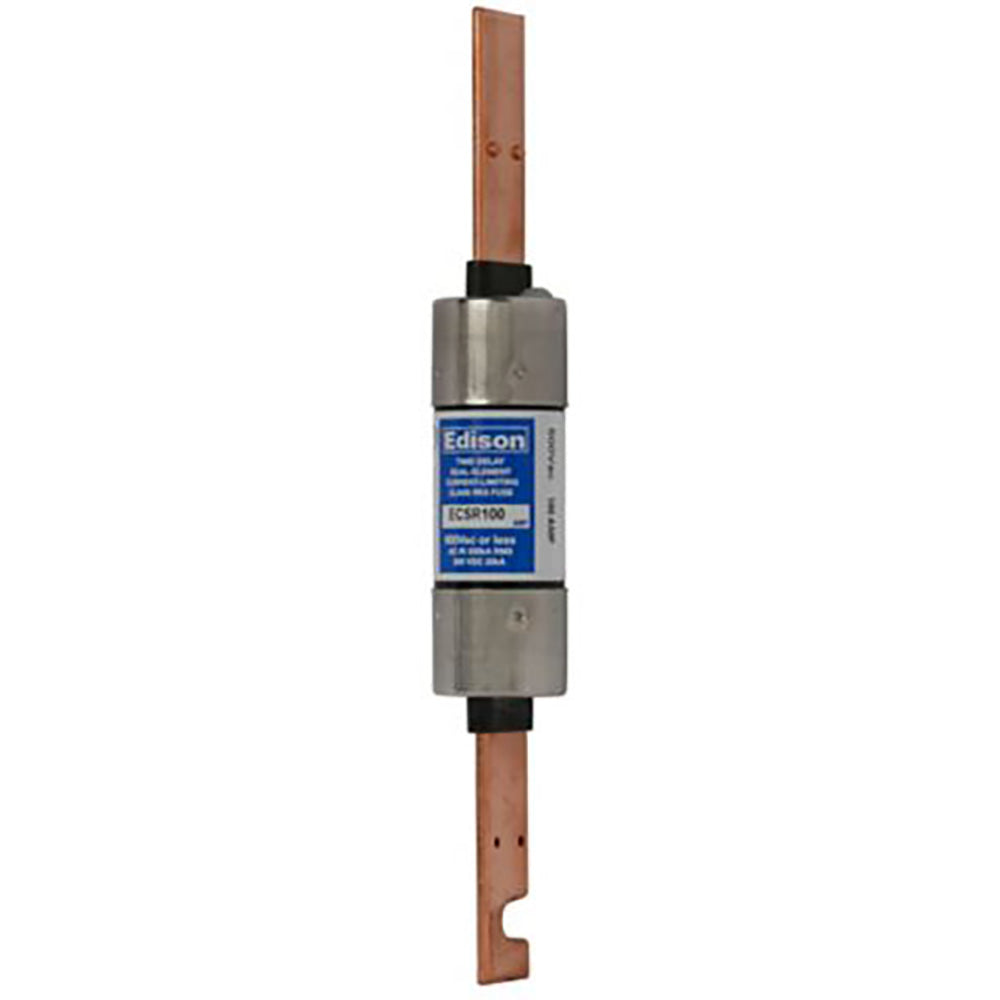

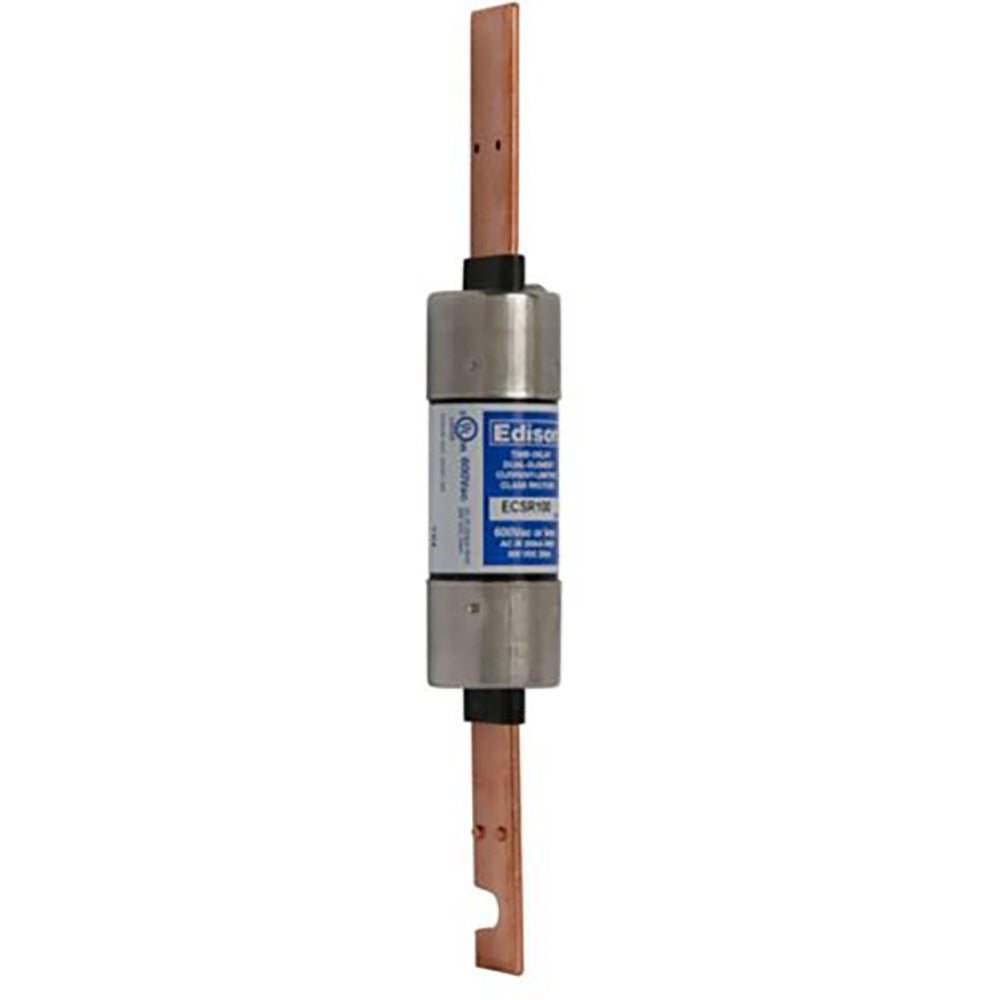

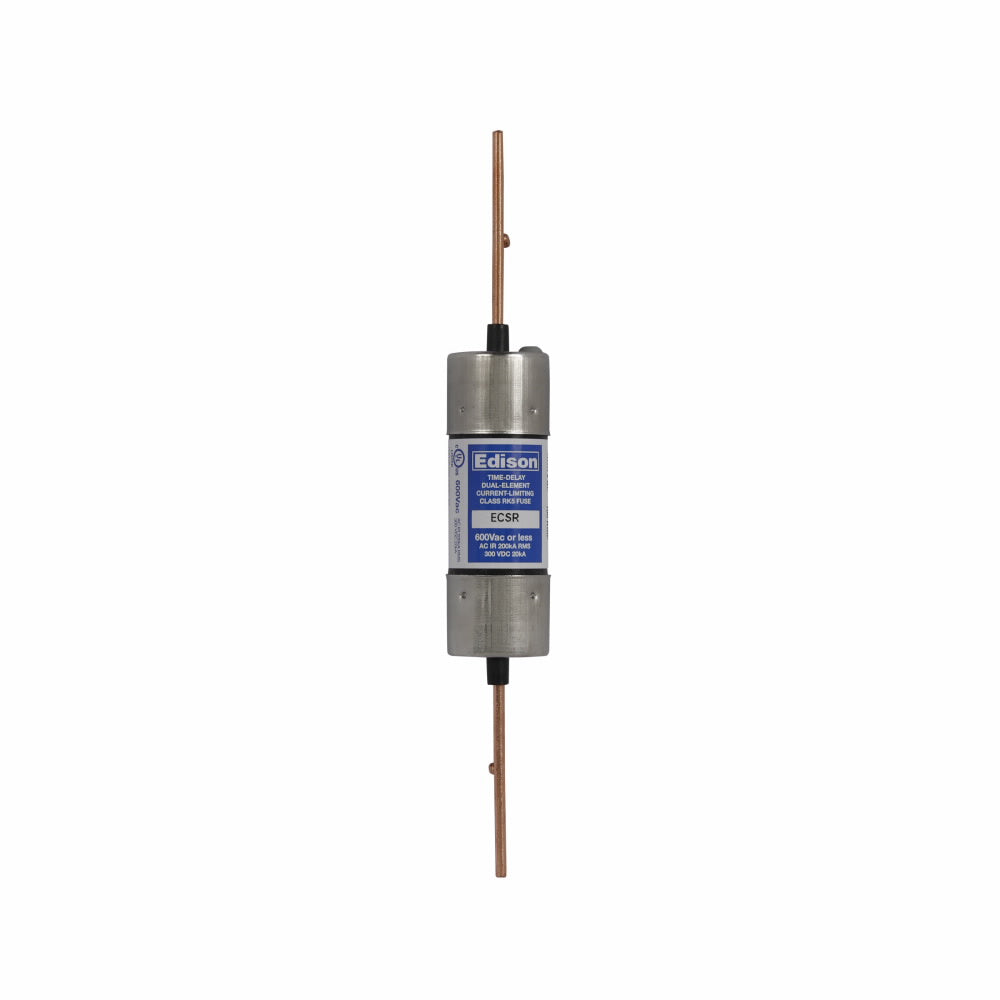

ECSR90 is a Class RK5 time-delay, current-limiting fuse from Edison Fuses, designed for reliable feeder and branch circuit protection in demanding electrical applications.
This fuse features a 90A amperage rating, 600V AC voltage rating, and a 200kA symmetrical interrupt rating. It is certified to UL, CSA C22.2, and CE standards, ensuring compliance with rigorous safety requirements. The ECSR90 is part of the ECSR series, offers a time-delay trip characteristic, and is mounted via knife blade terminals for secure installation.
-
Key Specifications
- Part Number: ECSR90
- Manufacturer: Edison Fuses
- Amperage: 90A
- Voltage: 600V AC
- Poles: 1
- Mounting Type: Knife Blade
- Interrupt Rating: 200kA (symmetrical)
- Series/Frame: ECSR
- Trip Unit: Time Delay
- Certifications: UL, CSA C22.2, CE
- Length: 7.88 inches
- Diameter: 1.11 inches
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ECSR90
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 90
- AIC rating : 200kA@600V
- Connection : Rejection Blade
- Diameter : 1.11
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634508427
- GTIN : 00782634508427
- Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.19
