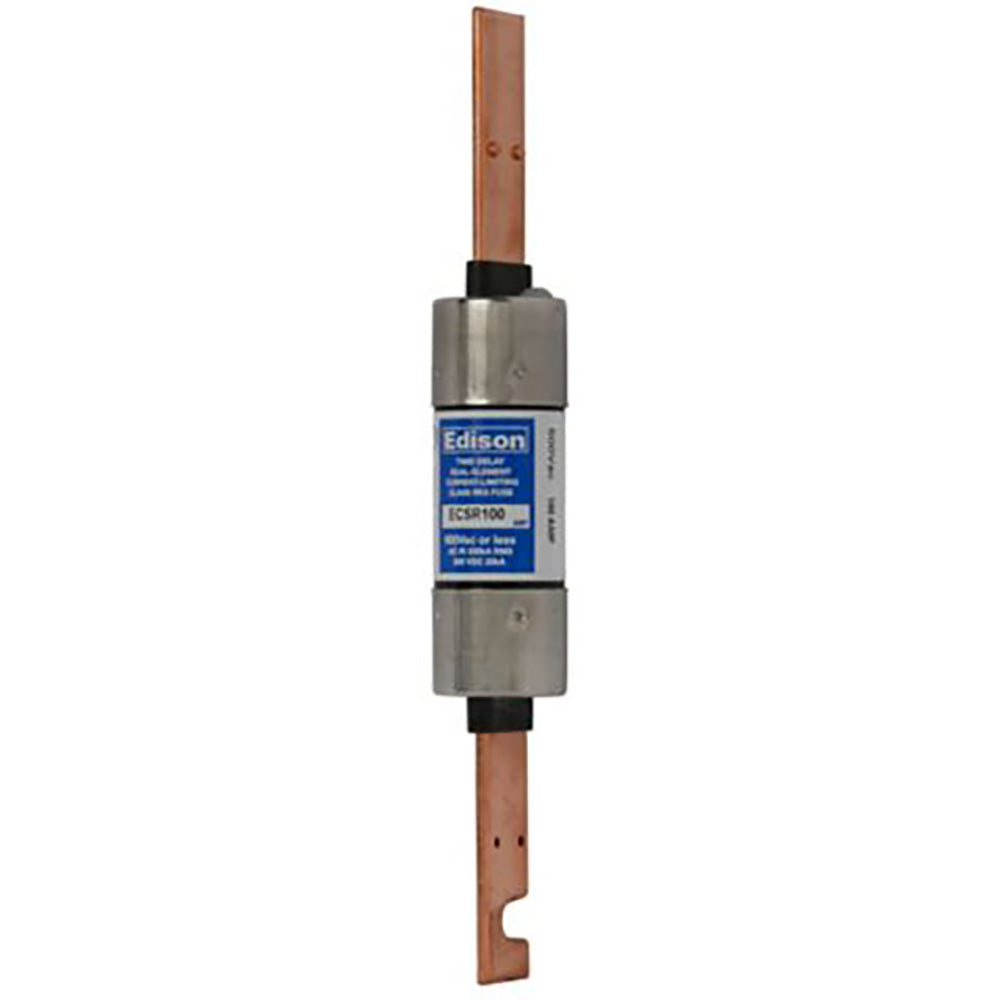

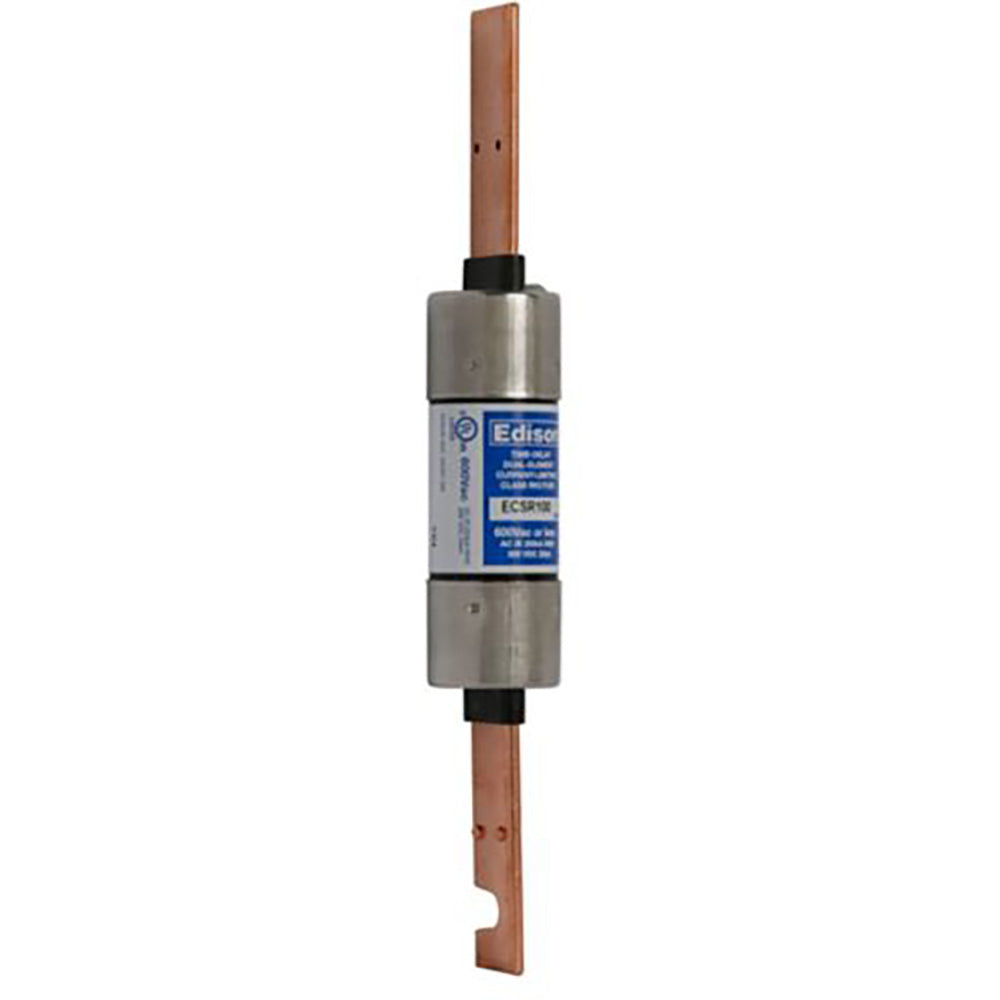

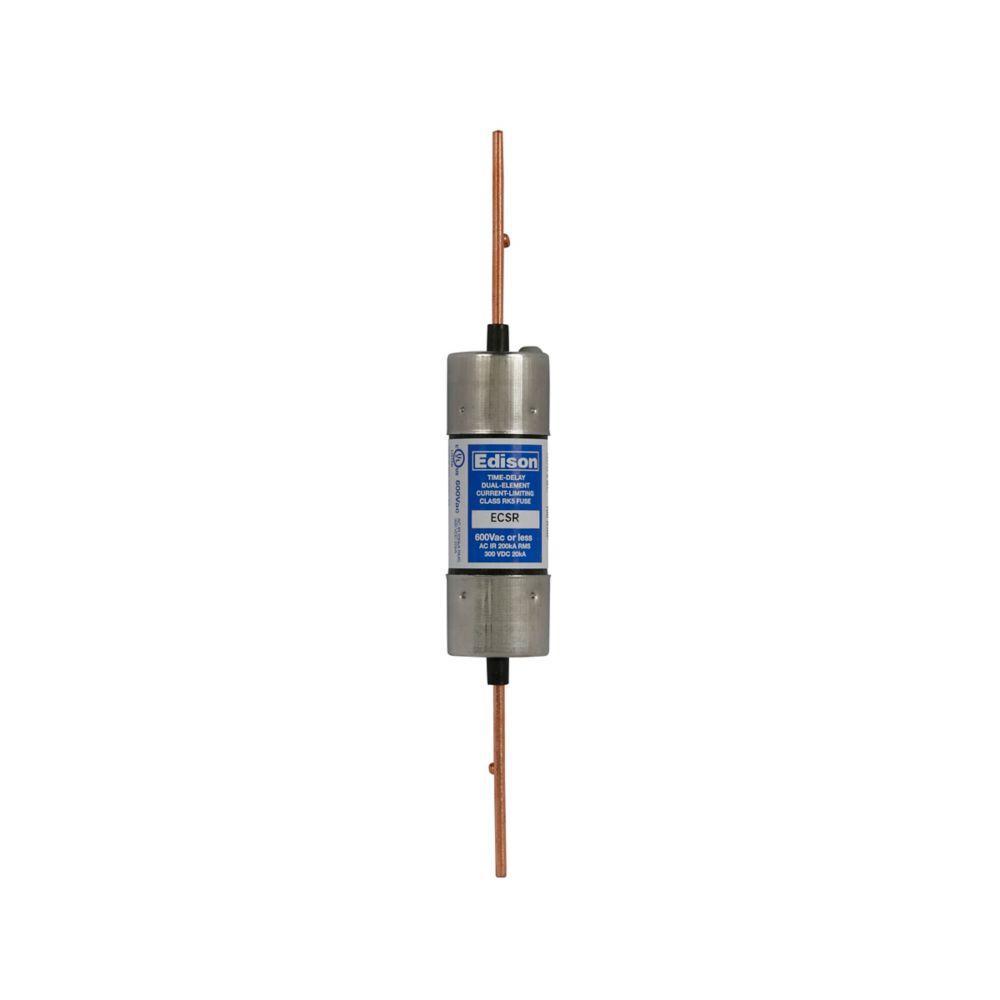

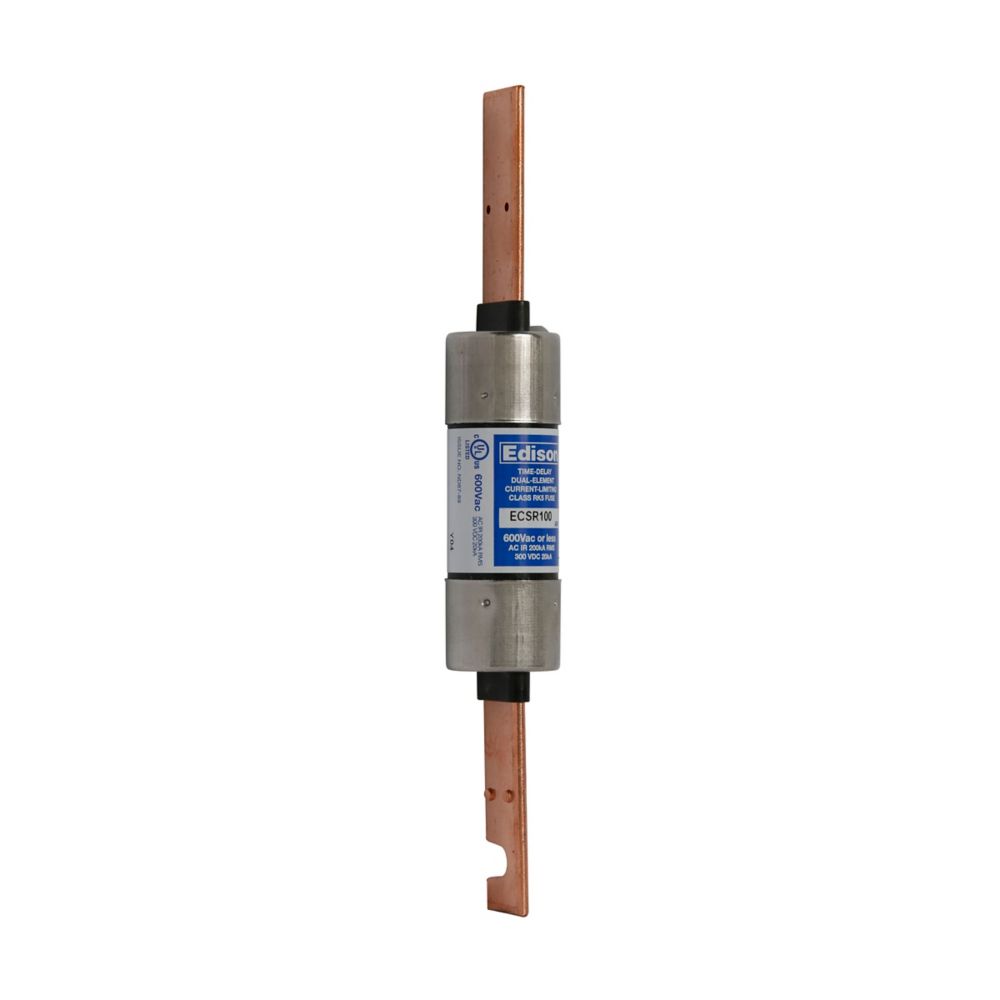

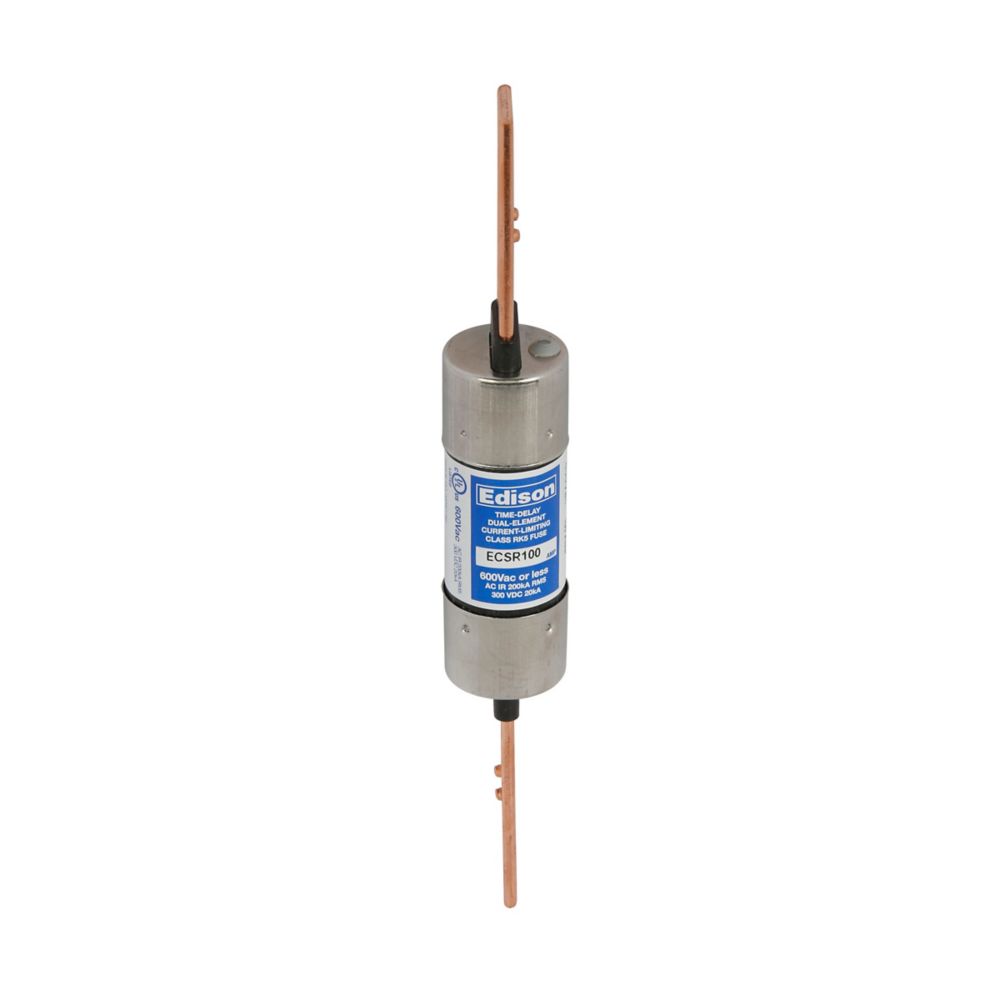

ECSR70 - Edison Fuses 70A 600V Dual Element Class RK5 Time-Delay Fuse

ECSR70

ECSR70 is a 70 amp, 600 volt dual element Class RK5 time-delay fuse from Edison Fuses designed for superior overload and cycling capabilities.This fuse features a blade end x blade end connection, a 10 second time delay at 500% overload, and a high interrupt rating of 200 kAIC. It is non-indicating and CE marked, suitable for reliable protection in power distribution applications.

• Amperage Rating: 70 A
• Voltage Rating: 600 V AC
• Fuse Class: RK5
• Fuse Type: Dual Element, Time-Delay
• Interrupt Rating: 200 kAIC
• Connection Type: Blade end x blade end
• Response Time: 10 seconds at 500% overload
• Fuse Indicator: Non-indicating
• Certifications: CE Marked
• Mounting Type: Blade terminal

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECSR70
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 70
• AIC rating : 200kA@600V
• Connection : Rejection Blade
• Diameter : 1.11
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782634508403
• GTIN : 00782634508403
• Dimensions : 7.88 in x 1.11 in x 1.11 in (Length/Depth x Height x Width)
• Weight : 0.38 lb
