Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECSR60

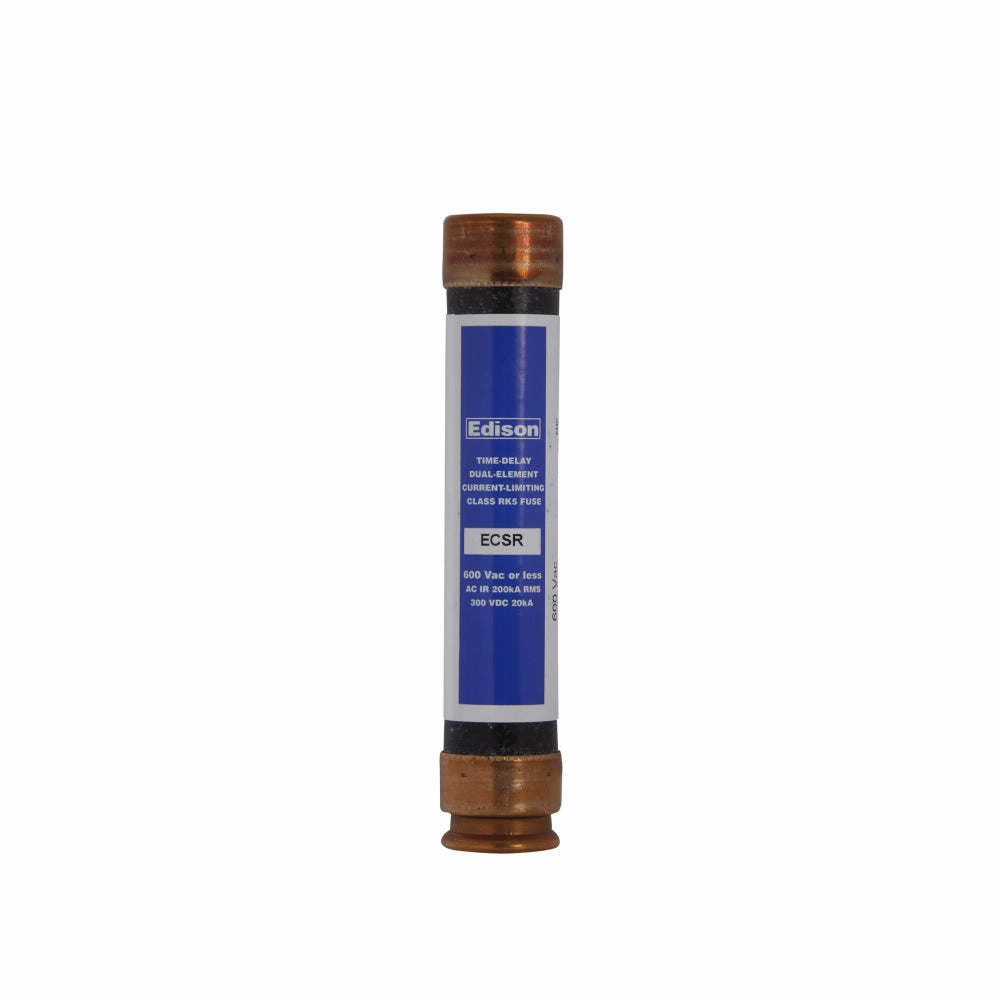

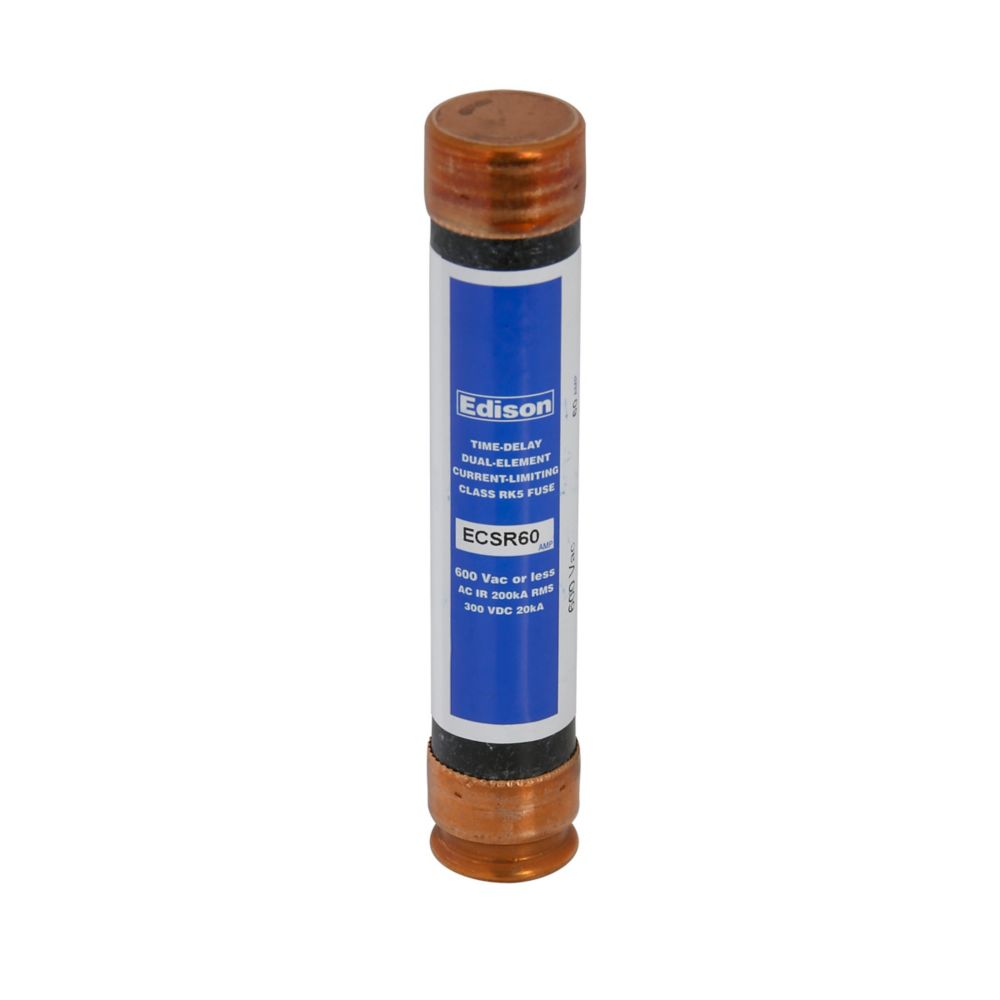

ECSR60 is a 60 amp, 600 volt Class RK5 time-delay fuse designed for motor overload, ground fault, and short-circuit protection.This Edison fuse features a dual-element, current-limiting design with a 10 second minimum time delay at 500% rated current, suitable for circuits with surge currents from motors and transformers. It has a 200kA interrupting rating, ferrule terminal type, and is UL, CSA, and CE certified.
- Key Specifications
- Amperage: 60A
- Voltage Rating: 600 VAC
- Fuse Class: RK5
- Time-Delay: 10 seconds minimum at 500% rated current
- Interrupting Rating: 200kA RMS Symmetrical
- Fuse Type: Dual-Element, Current-Limiting
- Mounting Type: Ferrule Terminal
- Dimensions: 1.06 inch diameter x 5.5 inch length
- Certifications: UL 248-12, CSA C22.2 No. 248.12, CE
Specifications
- Part Number: ECSR60
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 60
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 078263450839
- GTIN : 00782634508397
- Dimensions : 13.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
- Weight : 3.6
