ECSR6.25 - Edison Fuses 6.25A 600V Class RK5 Time-Delay Dual Element Fuse

ECSR6.25

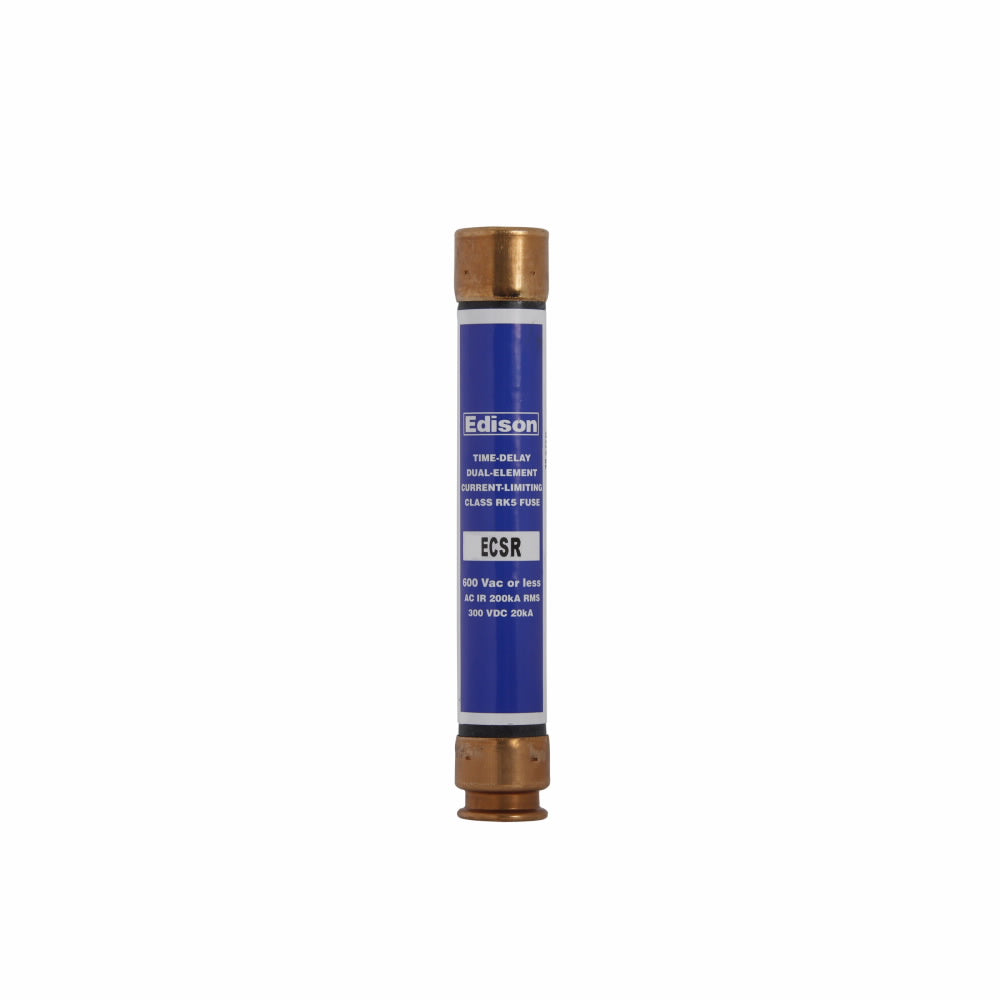

ECSR6.25 is a 6.25 amp, 600 volt Class RK5 time-delay dual-element fuse designed for motor overload and short-circuit protection.This Edison Fuses ECSR series fuse features current-limiting capability with a 200 kA interrupt rating, ferrule end terminals, and a non-indicating design. It provides superior overload and cycling performance with a 10 second delay at 500% rated current, suitable for feeder and branch circuit protection in industrial applications. The fuse is CE marked and complies with UL and CSA standards.

• Amperage Rating: 6.25 A
• Voltage Rating: 600 V AC
• Class: RK5
• Fuse Type: Time-Delay, Dual Element
• Interrupt Rating: 200 kAIC
• Terminal Type: Ferrule End x Ferrule End
• Response Time: 10 seconds at 500% rated current
• Non-Indicating
• Series: ECSR
• Body Material: Fiberglass
• Certifications: CE Marked, UL Listed, CSA Certified
• Dimensions: Approximately 5 in length, 0.81 in diameter

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECSR6.25
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ECSR Series
• Type : ECSR
• Voltage : 600
• Amperage : 6.25
• AIC rating : 200kA@600Vac
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782634508243
• GTIN : 00782634508243
• Dimensions : 5.5 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
• Weight : 0.5
