Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECSR500

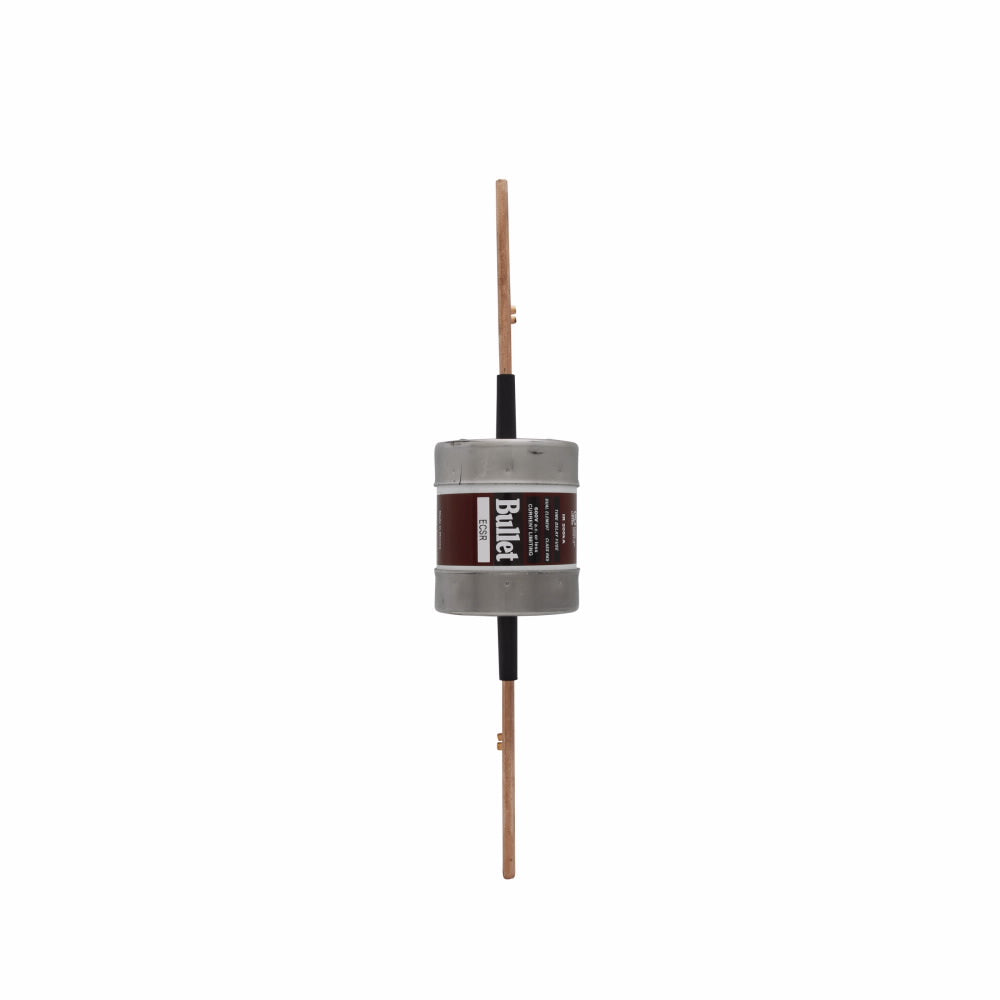

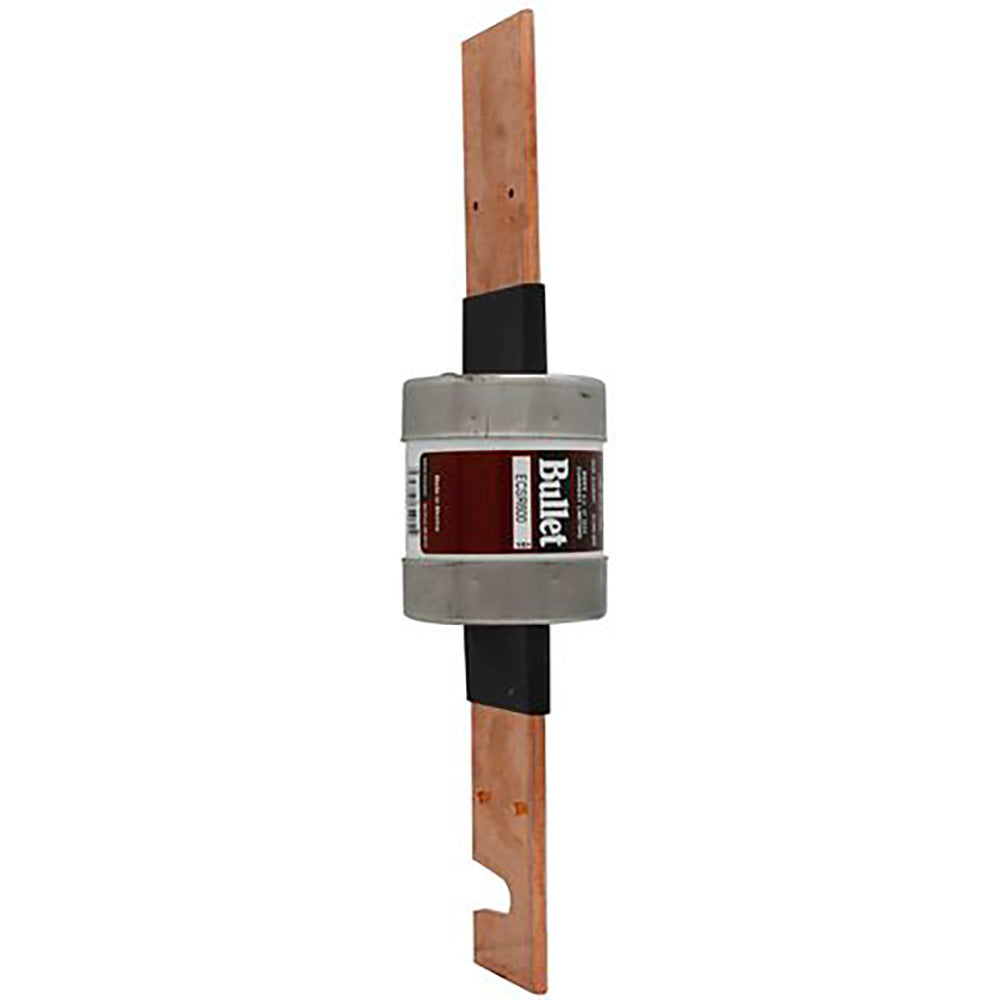

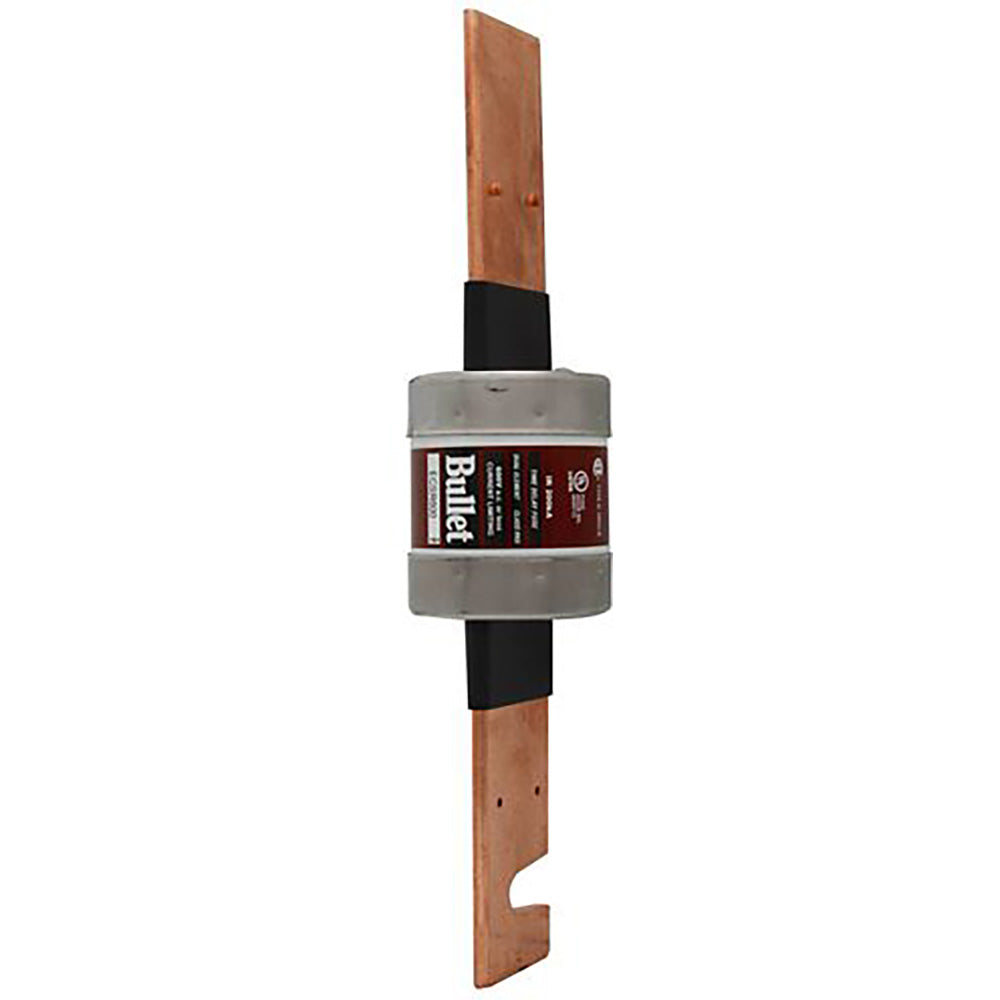

ECSR500 is a Class RK5, 500A, 600VAC, time-delay, current-limiting fuse designed for feeder and branch circuit protection applications. This Edison Fuses ECSR series knife blade fuse offers reliable performance in industrial and commercial power distribution systems. The ECSR500 fuse features a robust knife blade design for secure mounting and efficient current interruption. It is engineered for superior overload and cycling capabilities, making it suitable for demanding environments where dependable circuit protection is critical.
- Part Number: ECSR500
- Manufacturer: Edison Fuses
- Series: ECSR
- Fuse Class: Class RK5
- Amperage Rating: 500A
- Voltage Rating: 600 VAC
- Response Type: Time-Delay
- Current-Limiting: Yes
- Body Type: Knife Blade
- Application: Feeder/Branch Protection
- Agency Approvals: UL Listed, CSA Recognized
- Interrupt Rating: 200,000A (AIC)
Specifications
- Part Number: ECSR500
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 500
- AIC rating : 200kA@600V
- Diameter : 2.88
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 78263450855
- GTIN : 00782634508557
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.4
