Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

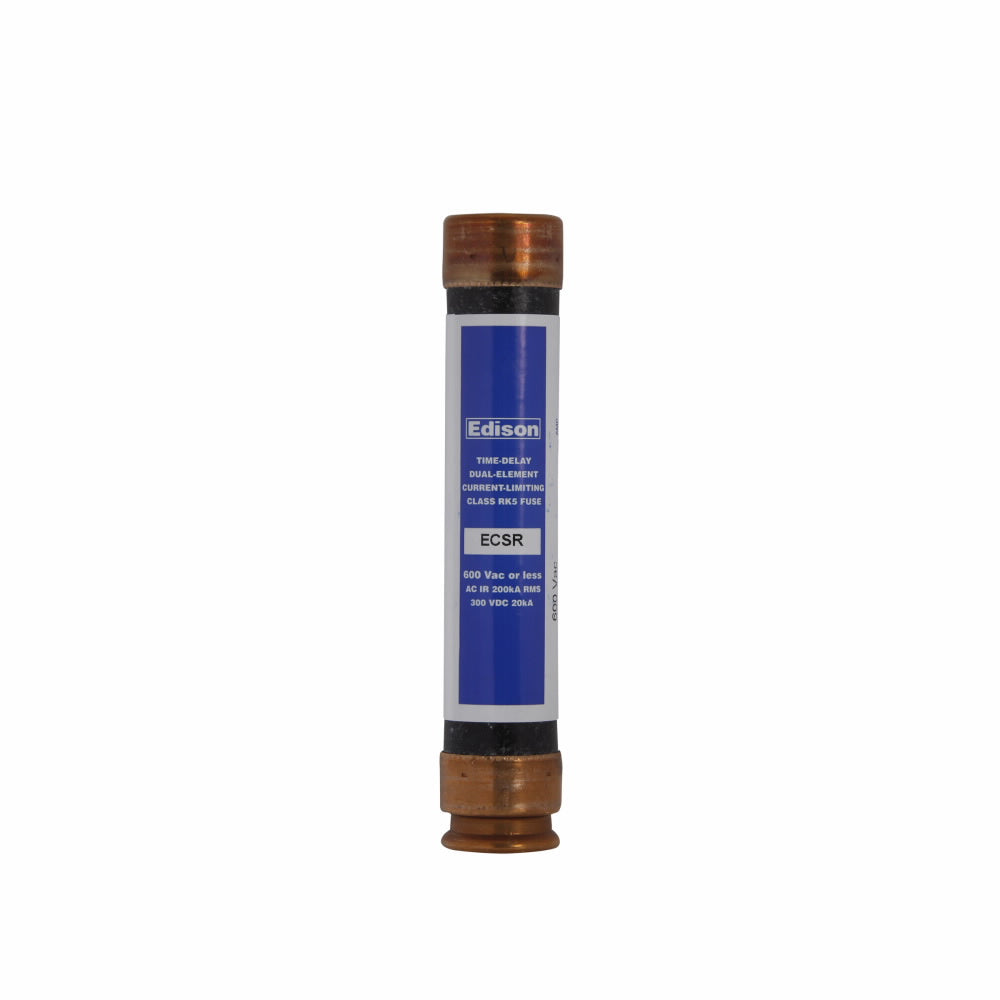

ECSR50
ECSR50 is a 50 amp, 600 volt Class RK5 time delay current limiting fuse from Edison Fuses designed for reliable power distribution protection.This fuse features true dual element construction for motor backup protection, allowing sizing at 125% full load amperage. It provides superior overload, cycling capabilities, and current limiting to protect downstream components from high fault currents. The fuse has a 10 second time delay at 5 times the rated current, making it suitable for motor circuits, transformers, and other inductive loads. It is UL, CSA, and CE certified with a 200 kiloamp interrupt rating and ferrule end terminals for holder mounting.
- Key Specifications
- Amperage: 50 A
- Voltage Rating: 600 VAC
- Class: RK5
- Type: Time Delay, Current Limiting
- Interrupt Rating: 200 kA
- Mounting Type: Holder (Ferrule End x Ferrule End)
- Length: 5.5 inches
- Diameter: 1.06 inches
- Dual Element Construction
- Certifications: UL, CSA C22.2 No. 248.12, CE
Specifications
- Part Number: ECSR50
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 50
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634508380
- GTIN : 00782634508380
- Dimensions : 13.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
- Weight : 3.6
