Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

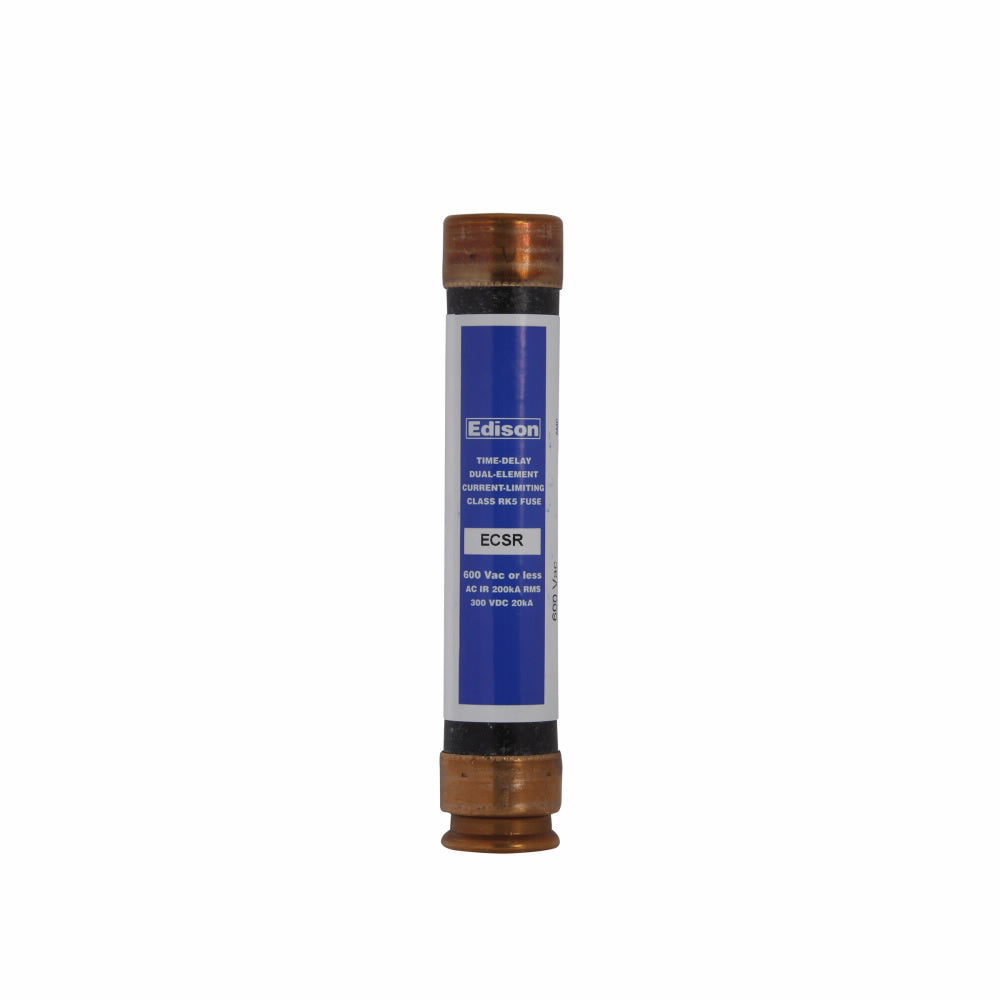

ECSR45
ECSR45 is a 45 amp, 600 volt Class RK5 time-delay fuse designed for reliable circuit protection.This Edison Fuses ECSR45 fuse features a dual-element, time-delay design suitable for AC power distribution, motor, transformer, and general-purpose applications. It has a 200kA interrupting rating at 600V, a diameter of approximately 1.06 inches, and ferrule end connections. The fuse is UL Listed, CSA Certified, and provides current limiting protection with a 10-second minimum time delay at 500% overload.
- Key Specifications
- Amperage: 45A
- Voltage Rating: 600 VAC
- Class: RK5
- Fuse Type: Time-Delay, Dual Element
- Interrupting Rating: 200,000 AIC @ 600V
- Diameter: 1.06 inches
- Connection: Ferrule End X Ferrule End
- Approvals: UL Listed, CSA Certified
- Application: Motors, Transformers, General AC Power Distribution
- Current Limiting: Yes
- Part Number: ECSR45
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 45
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
- UPC : 78263450837
- GTIN : 00782634508373
- Dimensions : 13.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
- Weight : 3.6 lb
