Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

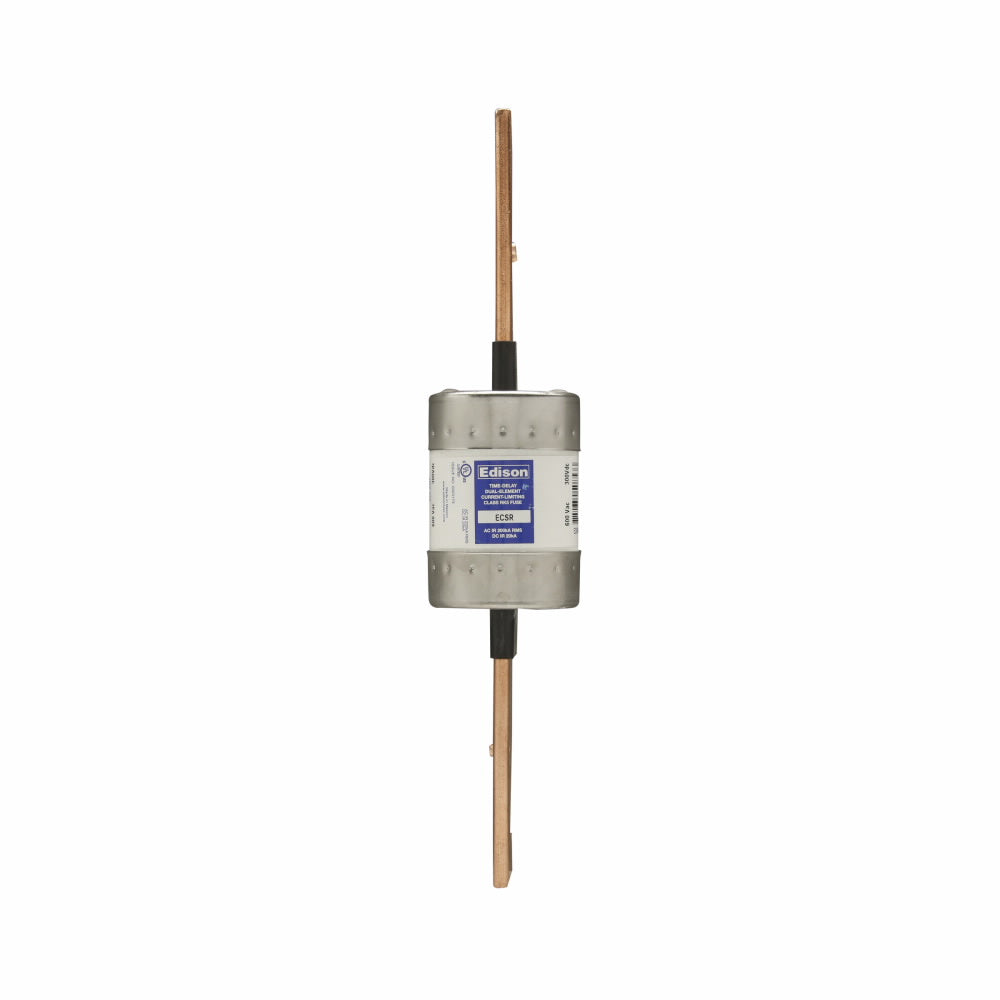

ECSR400
ECSR400 is a 400 amp, 600 volt Class RK5 time-delay current-limiting fuse from Edison Fuses designed for feeder and branch circuit protection.This dual-element, blade-type fuse offers superior overload and cycling capabilities with a 200 kA interrupt rating. It features a non-indicating, finger-safe design and complies with UL, CSA, and CE certifications. The fuse has a response time of 10 seconds at 500% overload and is suitable for industrial and commercial applications requiring reliable overcurrent protection.
- Amperage Rating: 400 A
- Voltage Rating: 600 V AC
- Fuse Class: RK5
- Current Limiting: Yes
- Time-Delay Characteristic
- Interrupt Rating: 200 kAIC
- Number of Elements: Dual
- Body Type: Blade (Knife Blade)
- Fuse Indicator: Non-indicating
- Certifications: UL Listed, CSA, CE Marked
- Dimensions: Approx. 11.63 in length, 2.34 in diameter
- Finger Safe Design
Specifications
- Part Number: ECSR400
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Connection : Rejection Blade
- Diameter : 2.34
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 78263450853
- GTIN : 00782634508533
- Dimensions : 5.5 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
- Weight : 0.5
