Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

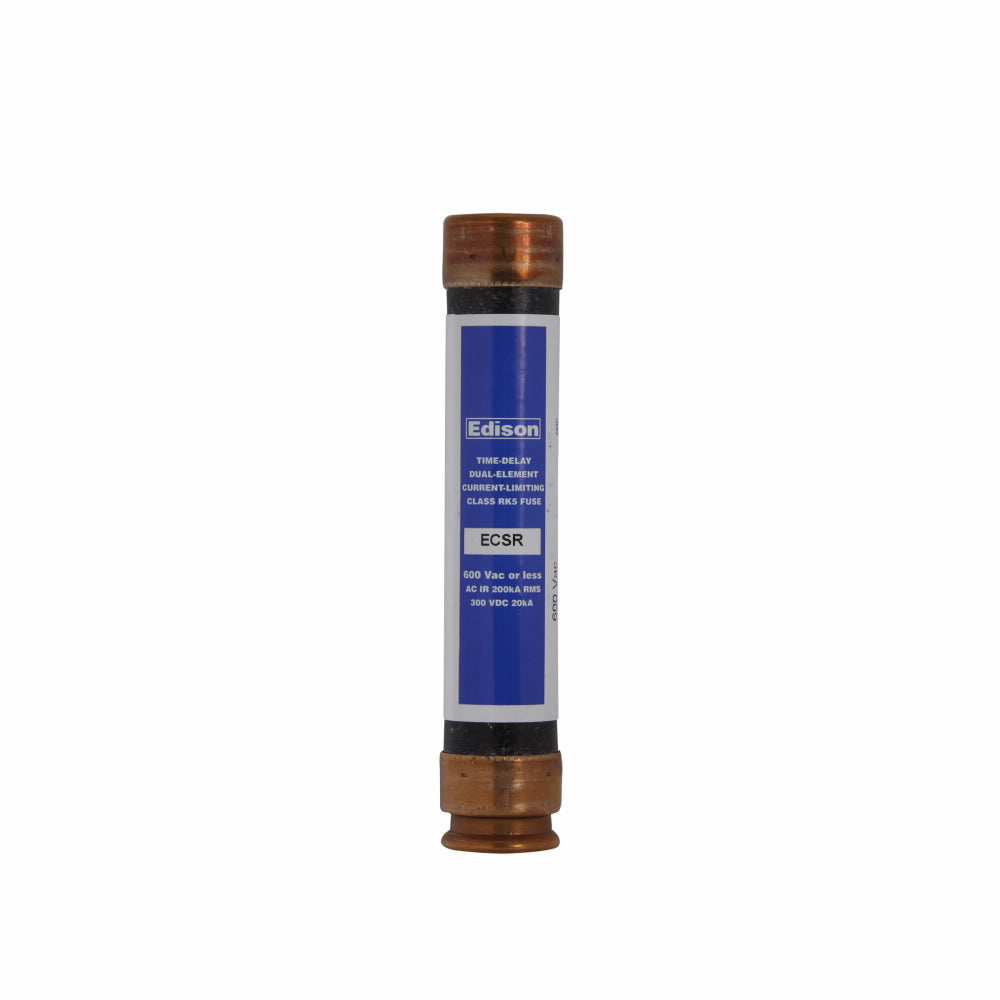

ECSR40
ECSR40 is a Class RK5, 40A, 600V time-delay fuse from the Edison Fuses ECSR Series, designed for feeder and branch circuit protection applications.This cylindrical, ferrule-end, current-limiting fuse provides reliable protection with a dual-element, time-delay design. It features a 10-second minimum time-delay at 500% of rated current, making it suitable for motor and transformer protection where inrush currents are present. The ECSR40 is non-indicating and meets UL Class RK5 standards.
- Part Number: ECSR40
- Manufacturer: Edison Fuses
- Series: ECSR
- Fuse Type: Class RK5
- Amperage: 40A
- Voltage Rating: 600V AC
- Response Time: Time-Delay (Dual-Element)
- Interrupt Rating: 200,000A
- Body Style: Cylindrical
- Visual Indication: Non-Indicating
- Mounting Type: Ferrule End
- Certifications: UL Listed
Specifications
- Part Number: ECSR40
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 40
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634508366
- GTIN : 00782634508366
- Dimensions : 11.63 in x 2.34 in x 2.34 in (Length/Depth x Height x Width)
- Weight : 2.35
