Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECSR350

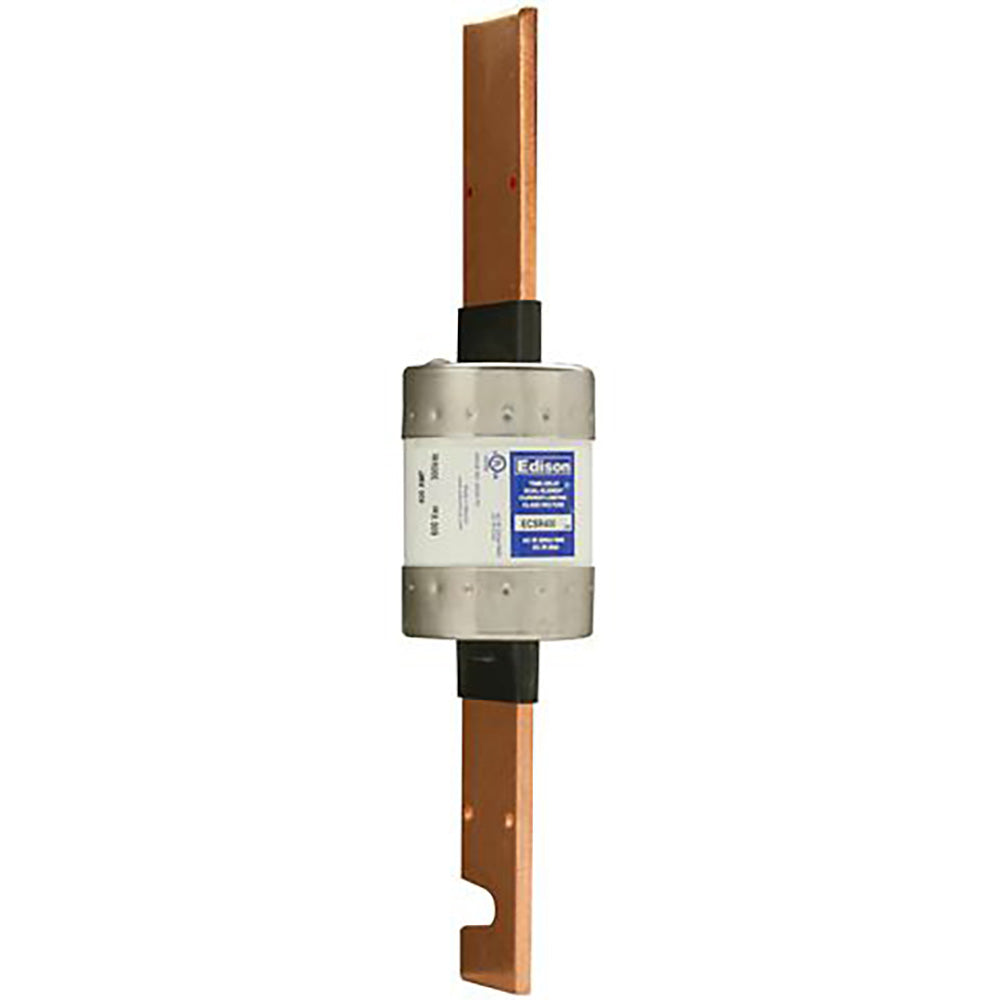

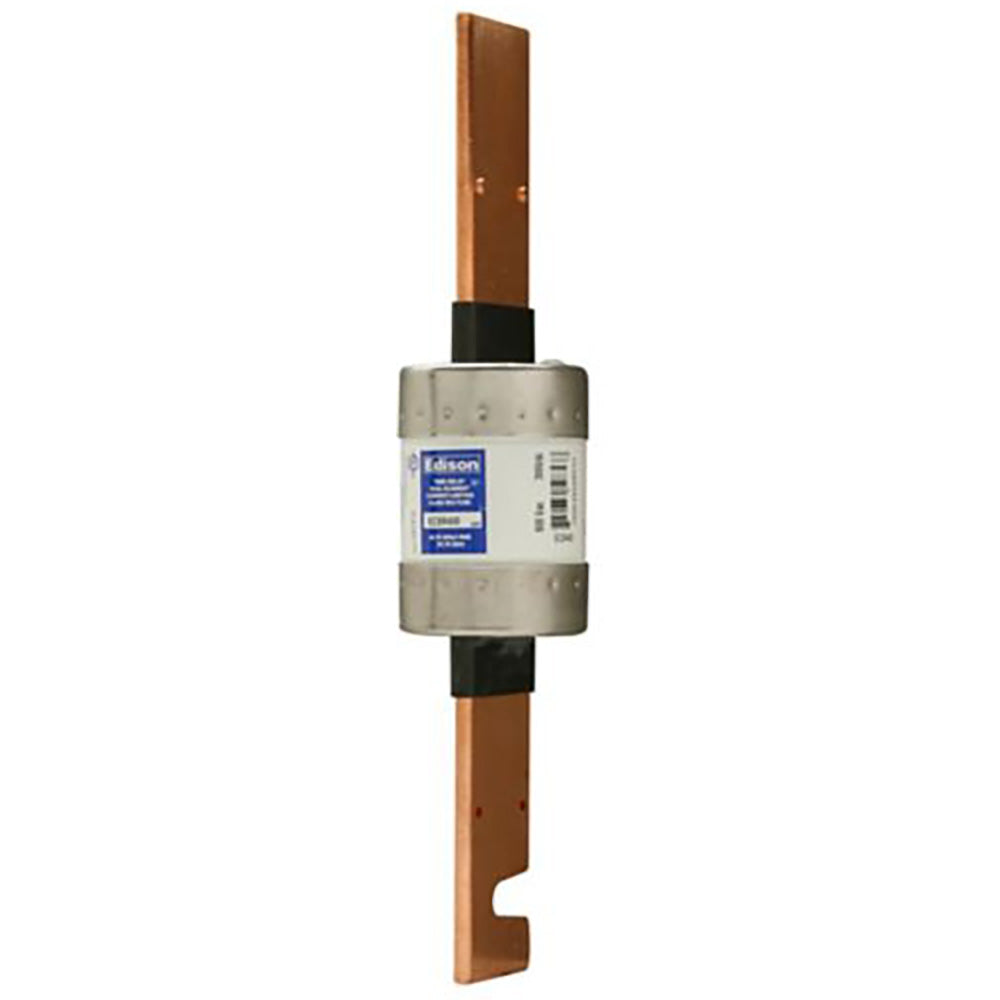

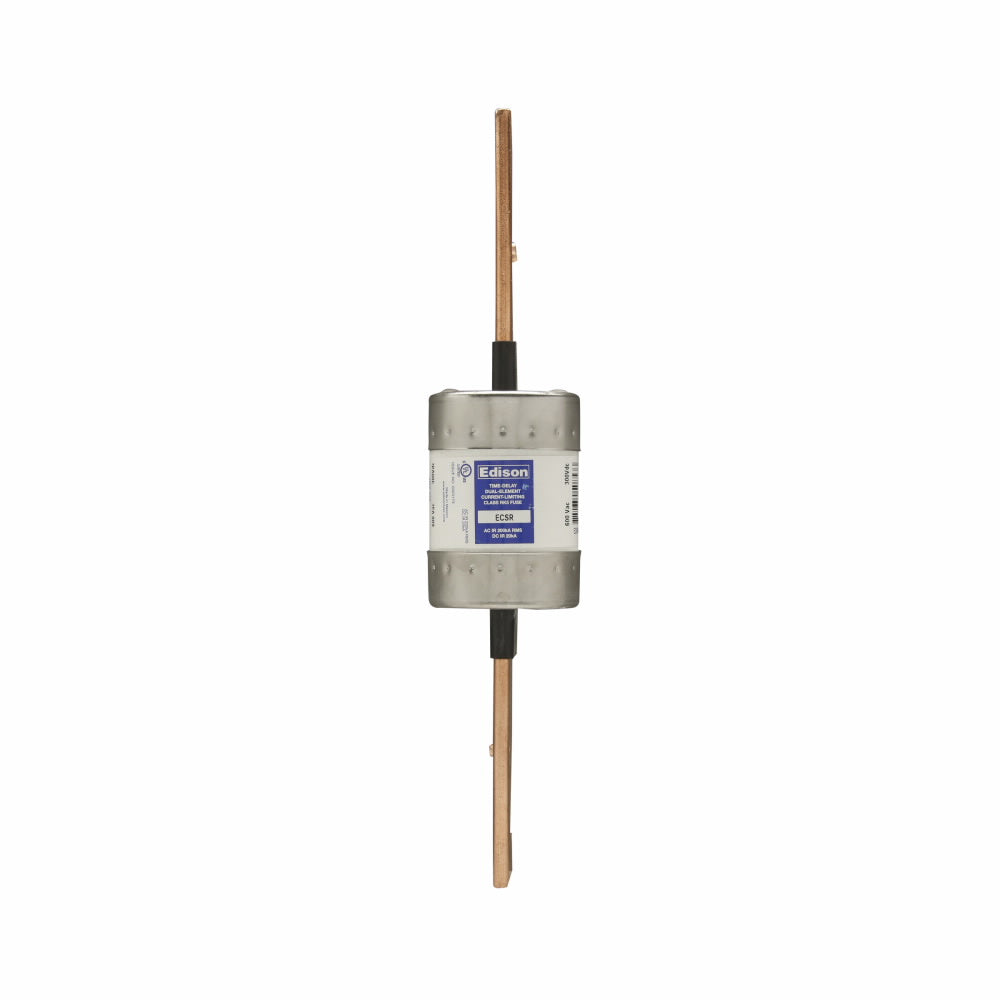

ECSR350 is a Class RK5, 350A, 600VAC time delay fuse with knife blade terminals, designed for feeder and branch circuit protection in industrial and commercial applications. This Edison Fuses ECSR350 is a current-limiting, time-delay fuse featuring a stainless steel barrel and blade ends for secure mounting. It provides reliable protection with a high interrupt rating and is suitable for use in a wide range of electrical systems.
- Part Number: ECSR350
- Manufacturer: Edison Fuses
- Amperage: 350A
- Voltage: 600VAC
- Series: ECSR
- Class: RK5
- Interrupt Rating: 200kAIC
- Response Time: Time Delay (10s @ 500%)
- Mounting Type: Knife Blade
- Barrel Type: 1 Barrel
- Enclosure Material: Stainless Steel
- Standards: UL Listed
Specifications
- Part Number: ECSR350
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Connection : Rejection Blade
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 78263450852
- GTIN : 00782634508526
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.4
