Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

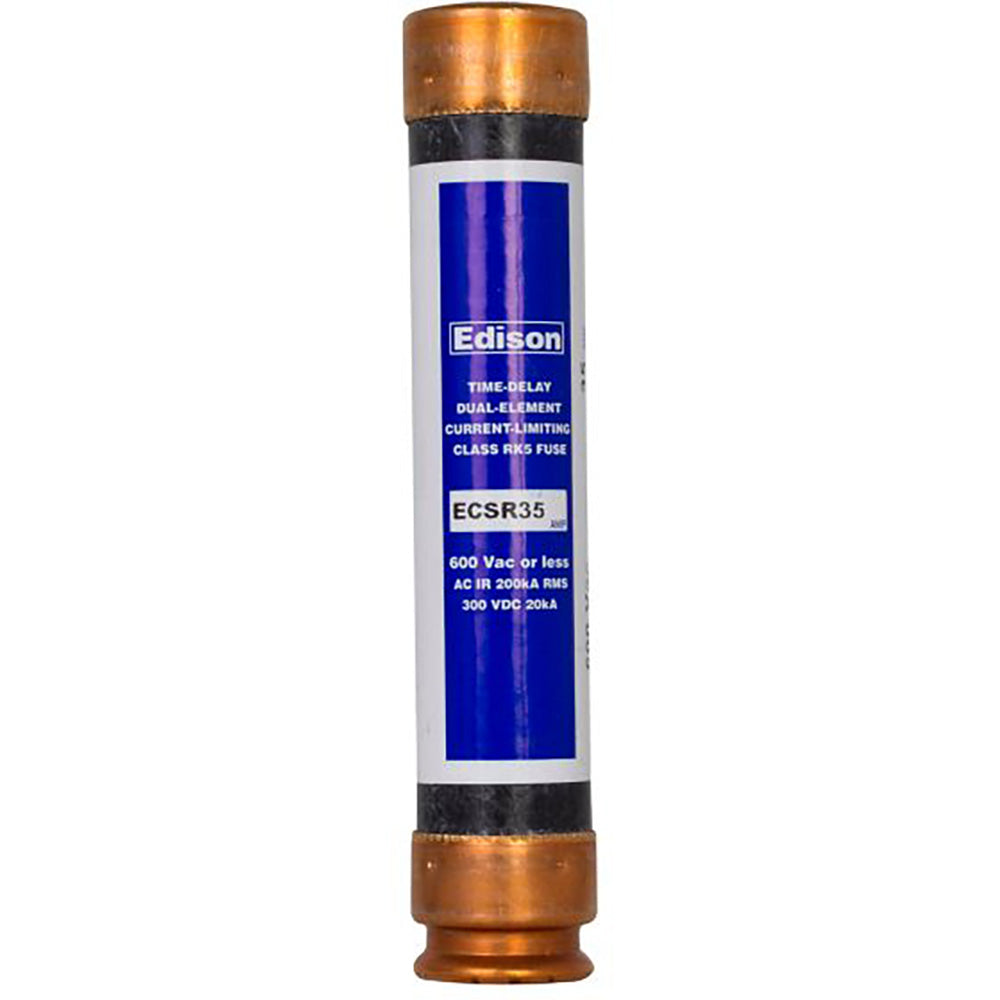

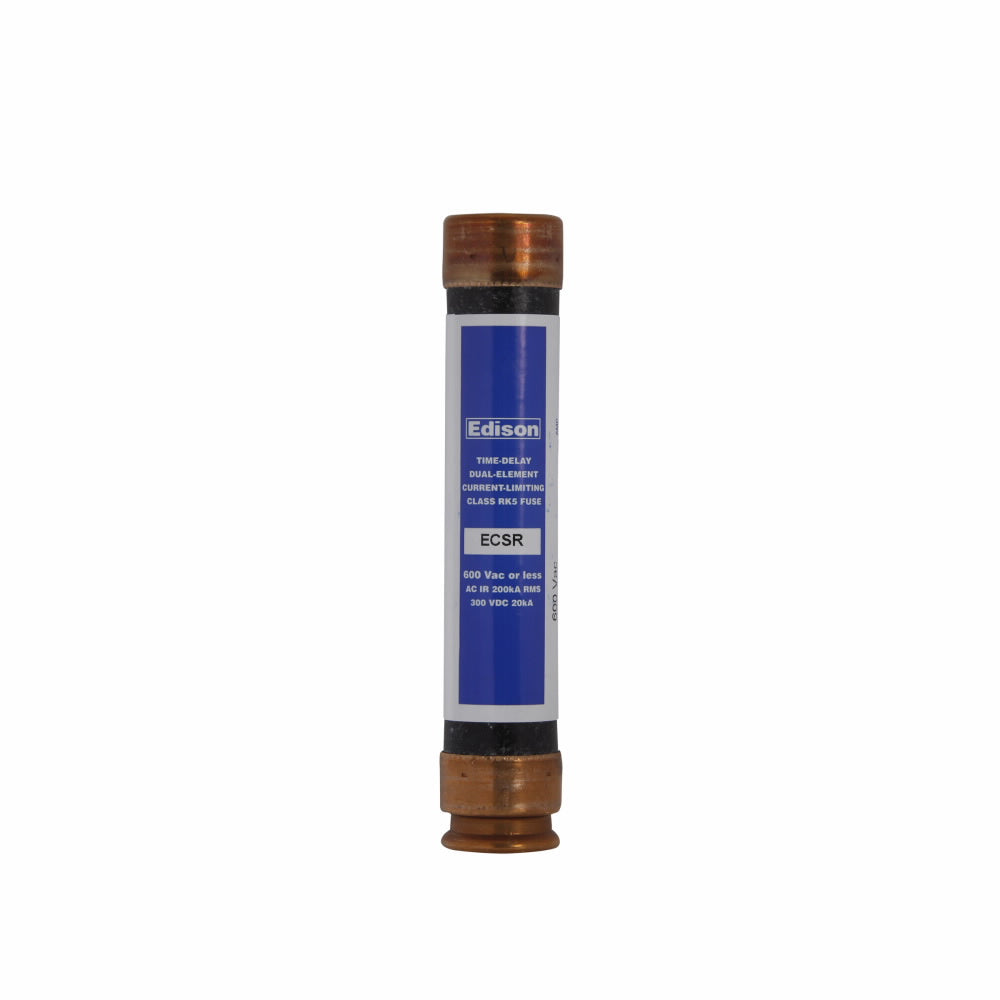

ECSR35
ECSR35 is a 35 amp, 600 VAC Class RK5 time-delay current-limiting fuse from Edison Fuses designed for feeder and branch circuit protection.This dual-element, time-delay fuse provides motor overload, ground fault, and short-circuit protection with a 200kA interrupt rating. It features a ferrule mounting type and is UL, CSA, and CE certified. The fuse allows sizing close to full load amps for maximum overcurrent protection in circuits with surge currents such as motors and transformers.
- Key Specifications
- Amperage: 35 Amps
- Voltage Rating: 600 VAC
- Fuse Type: Class RK5
- Time-Delay: Yes, dual-element
- Interrupt Rating: 200kA RMS Symmetrical
- Mounting Type: Ferrule
- Series: ECSR
- Certifications: UL, CSA C22.2, CE
- Fuse Length: Approximately 5.5 inches
- Diameter: 1.06 inches
Specifications
- Part Number: ECSR35
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 35
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634508359
- GTIN : 00782634508359
- Dimensions : 11.63 in x 2.34 in x 2.34 in (Length/Depth x Height x Width)
- Weight : 2.35
