Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECSR300

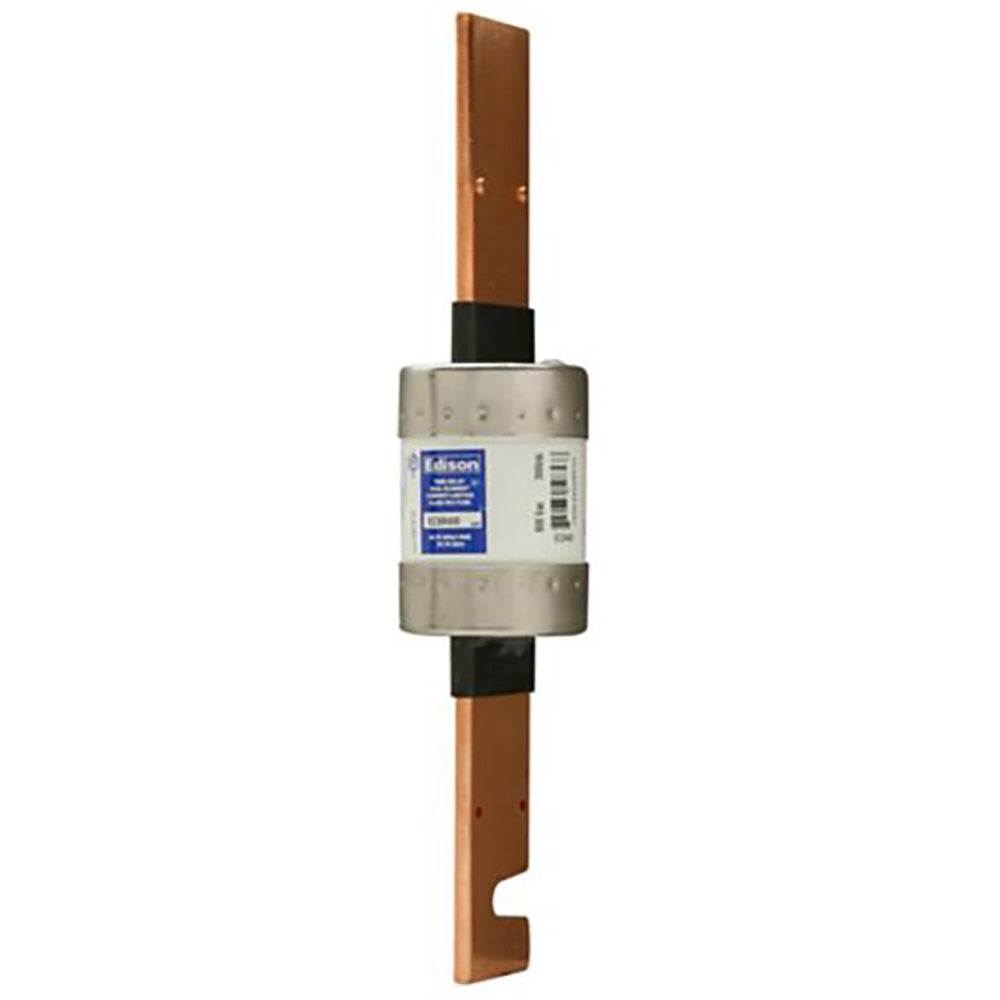

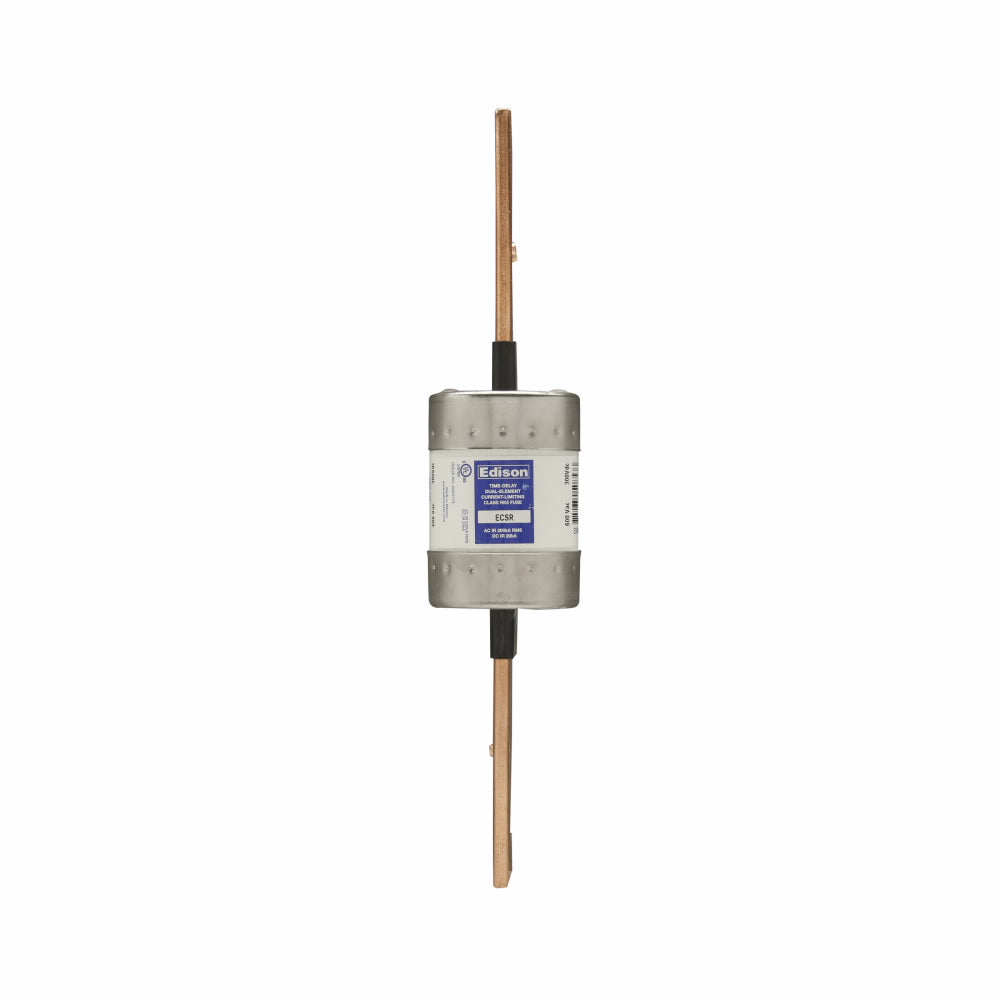

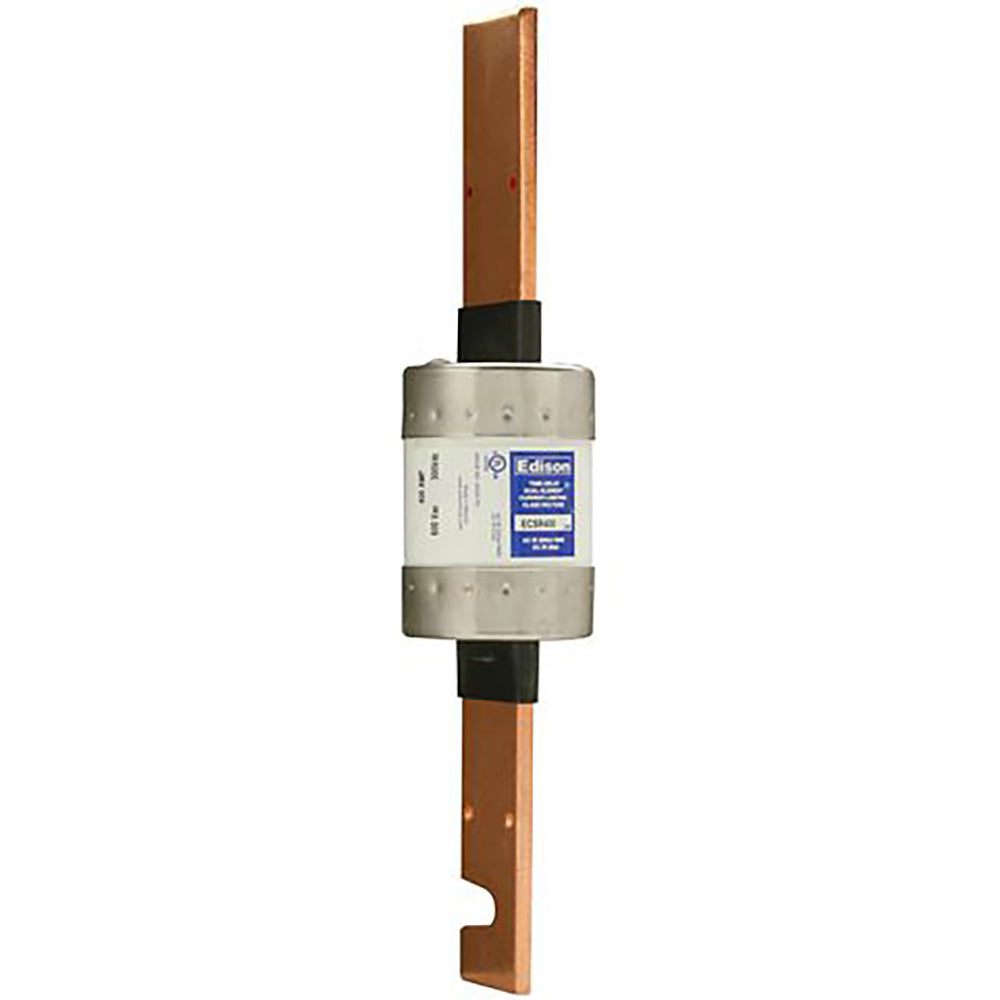

ECSR300 is a 300 amp, 600 volt Class RK5 time delay blade fuse designed for feeder and branch circuit protection.This Edison Fuses ECSR300 fuse features current-limiting capability with a 200kA interrupt rating at 600 VAC. It has a knife blade mounting type and provides reliable time-delay operation with a 10 second rating at 500% overload. The fuse is UL, CSA C22.2, and CE certified, suitable for industrial and commercial low voltage applications.
- Key Specifications
- Amperage: 300A
- Voltage Rating: 600 VAC
- Fuse Class: RK5
- Fuse Type: Time Delay, Current Limiting
- Interrupt Rating: 200kA at 600V
- Mounting Type: Knife Blade
- Length: 11.63 inches
- Diameter: 2.34 inches
- Certifications: UL, CSA C22.2, CE
- Blade End Connection
Specifications
- Part Number: ECSR300
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 300
- AIC rating : 200kA@600V
- Connection : Rejection Blade
- Diameter : 2.34
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 078263450851
- GTIN : 00782634508519
- Dimensions : 5.5 in x 1.06 in x 1.6 in (Length/Depth x Height x Width)
- Weight : 0.5
