Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

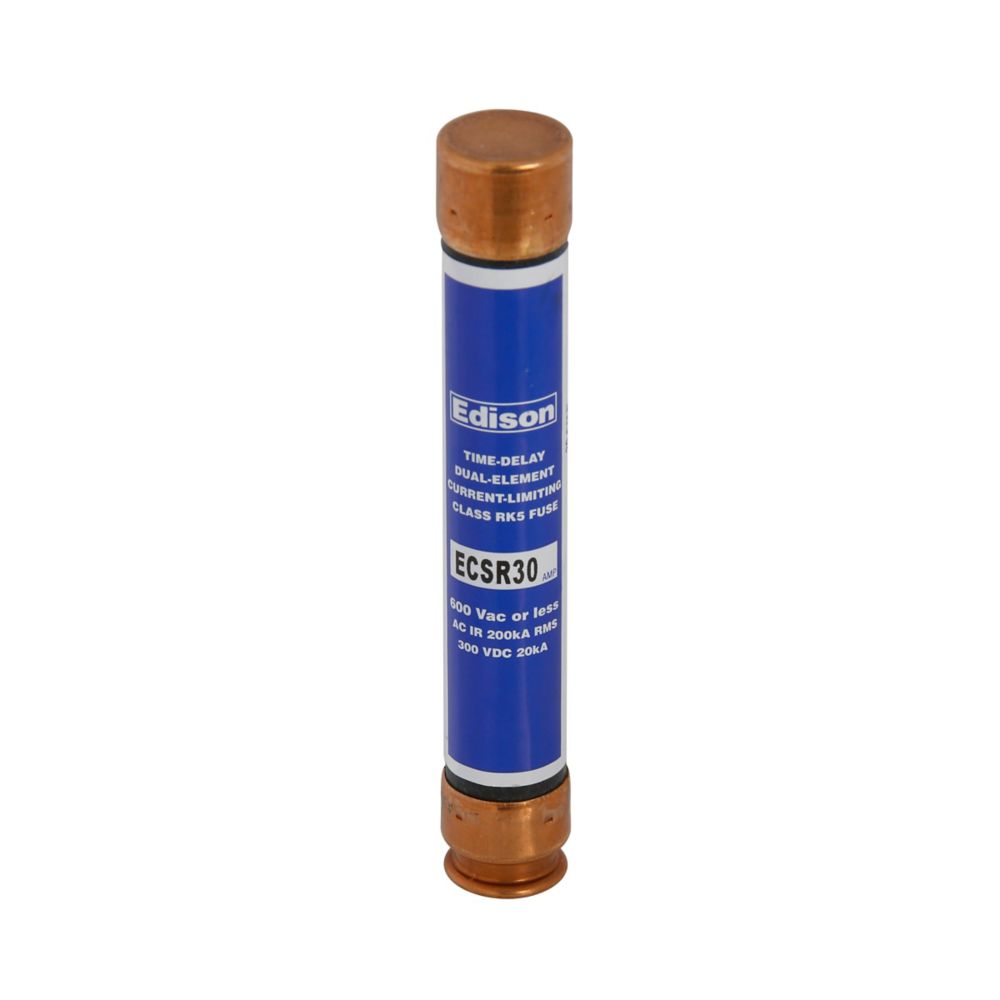

ECSR30

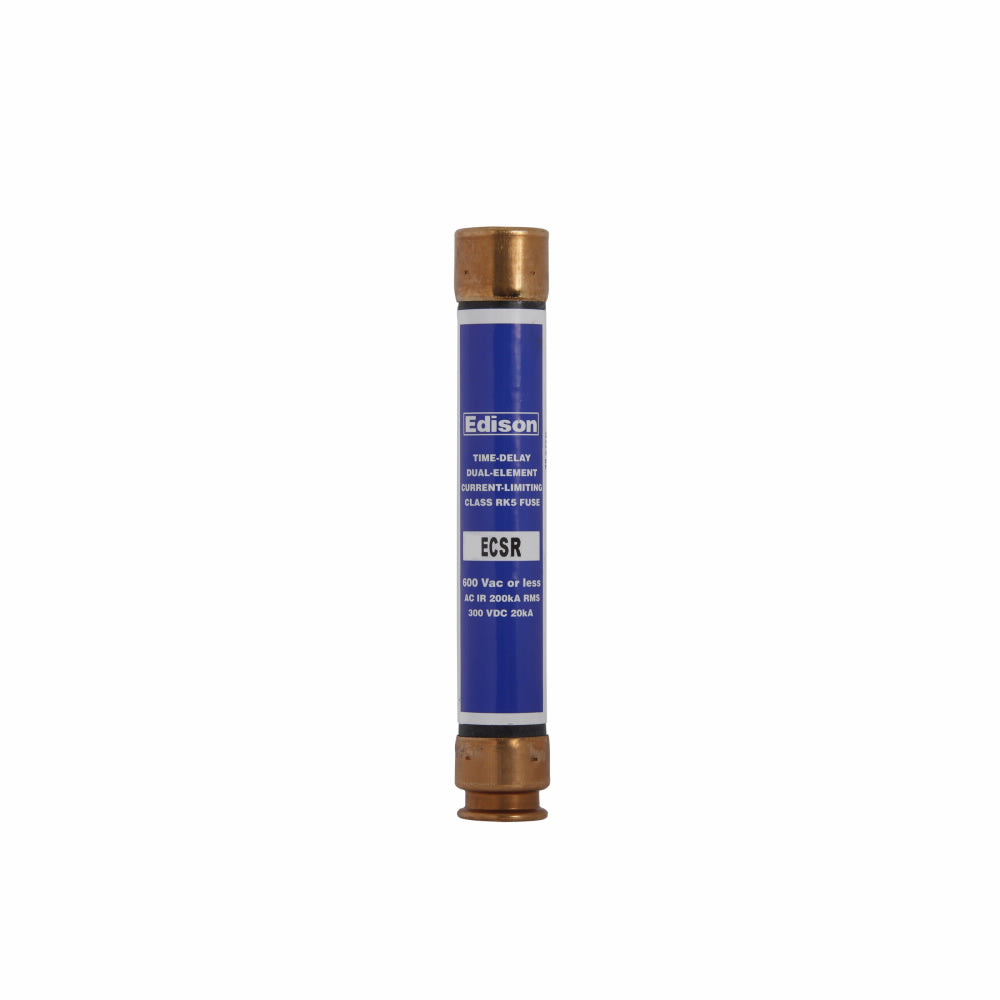

ECSR30 is a 30 amp, 600 volt dual-element time-delay fuse from Eaton Edison, designed for superior overload and cycling capabilities.ECSR30 provides motor overload, ground fault, and short-circuit protection with a 10 second minimum response time at 500% rated current. It features a current-limiting design with a 200 kA interrupt rating, ferrule end connections, and is CE marked for safety compliance.
- Key Specifications
- Amperage: 30 A
- Voltage Rating: 600 V AC
- Fuse Class: RK5
- Fuse Type: Dual-Element, Time-Delay
- Interrupt Rating: 200 kAIC
- Response Time: 10 seconds at 500% rated current
- Number of Elements: Dual
- Fuse Indicator: Non-indicating
- Mounting Type: Ferrule end x ferrule end
- Certifications: CE Marked, UL, CSA
- Special Features: Finger safe, current limiting
Specifications
- Part Number: ECSR30
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 30
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634508342
- GTIN : 00782634508342
- Country of Origin : Mexico
- Dimensions : 11.63 in x 2.34 in x 2.34 in (Length/Depth x Height x Width)
- Weight : 2.35
