Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECSR3

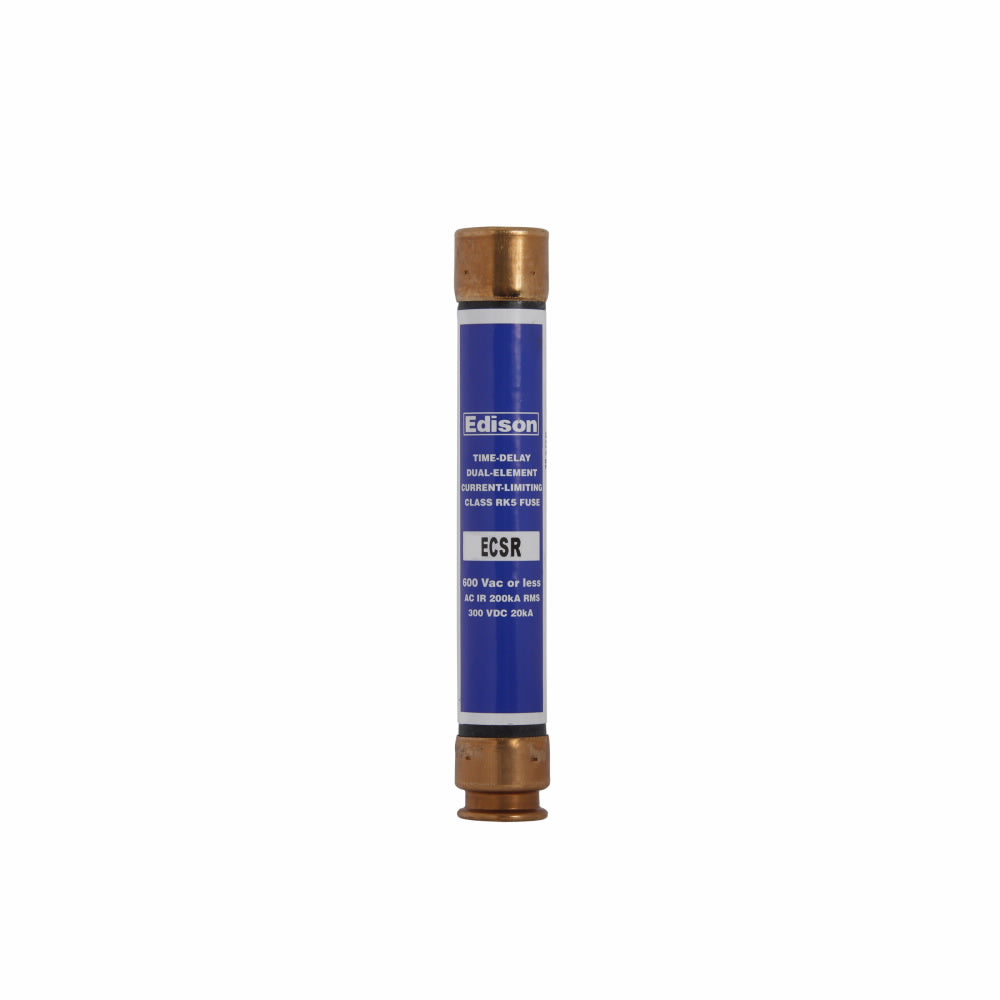

ECSR3 is a Class RK5 time delay fuse from Edison Fuses, designed for reliable circuit protection in industrial and commercial applications. This fuse features a 3A current rating, 600VAC voltage rating, and a 200kA symmetrical interrupt rating for robust performance. The cylindrical body with ferrule terminals ensures secure mounting and easy installation. It is UL, CSA C22.2, and CE certified for safety and compliance. This Edison ECSR3 fuse is part of the ECSR series, offering dual element construction for time delay protection. The fuse is ideal for use in motor circuits, control panels, and other applications requiring dependable overcurrent protection. Its 0.81 inch diameter and 5 inch length make it compatible with standard fuse holders.
- Current Rating: 3A
- Voltage Rating: 600VAC, 300VDC
- Interrupt Rating: 200kA (Symmetrical)
- Fuse Type: Class RK5
- Series: ECSR
- Mounting Type: Ferrule
- Body Type: Cylindrical
- Length: 5 inches
- Diameter: 0.81 inches
- Approvals: UL, CSA C22.2, CE
- Country of Origin: Mexico
- Application: Motor circuits, control panels
Specifications
- Part Number: ECSR3
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 3
- AIC rating : 200kA@600Vac
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634507994
- GTIN : 00782634507994
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.4
